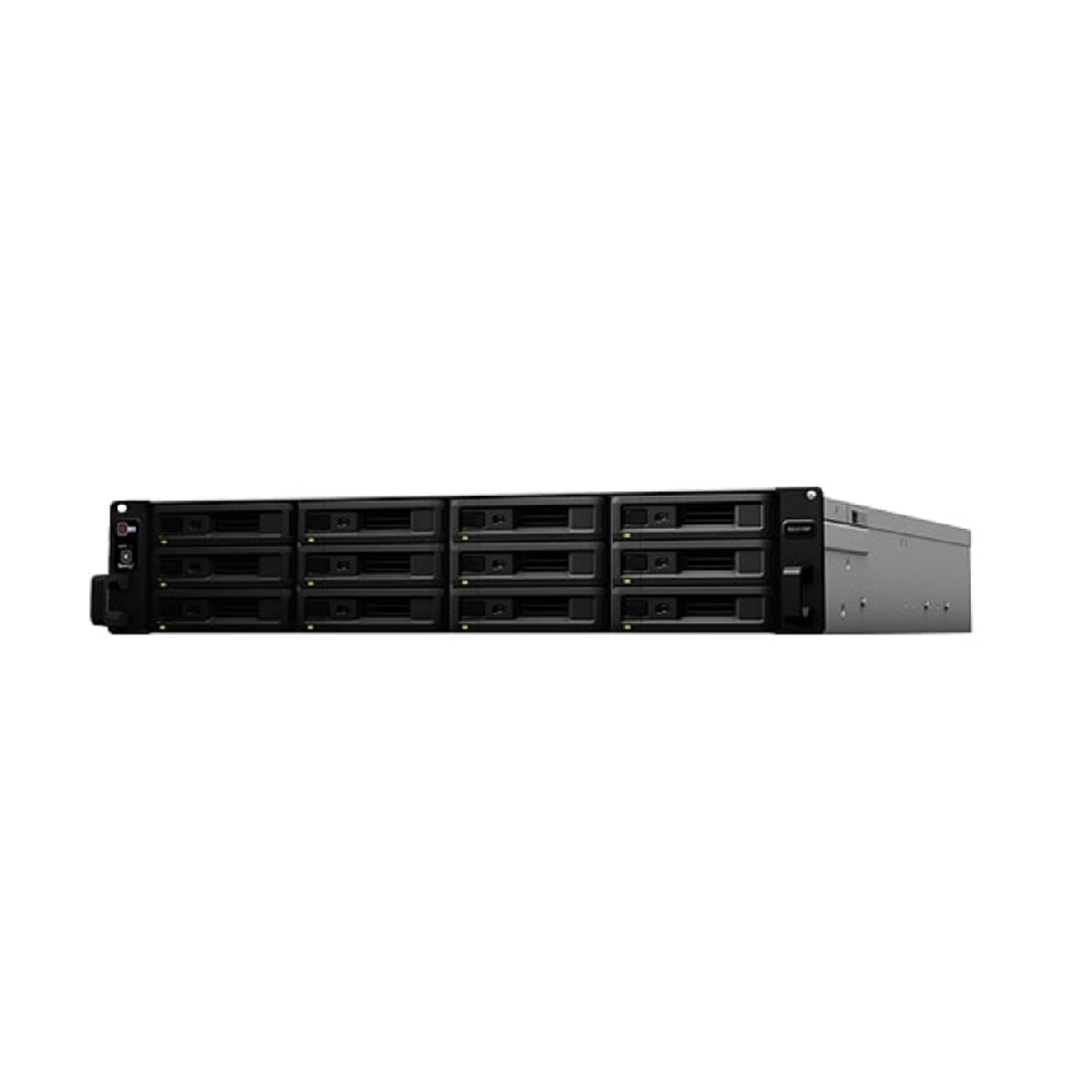

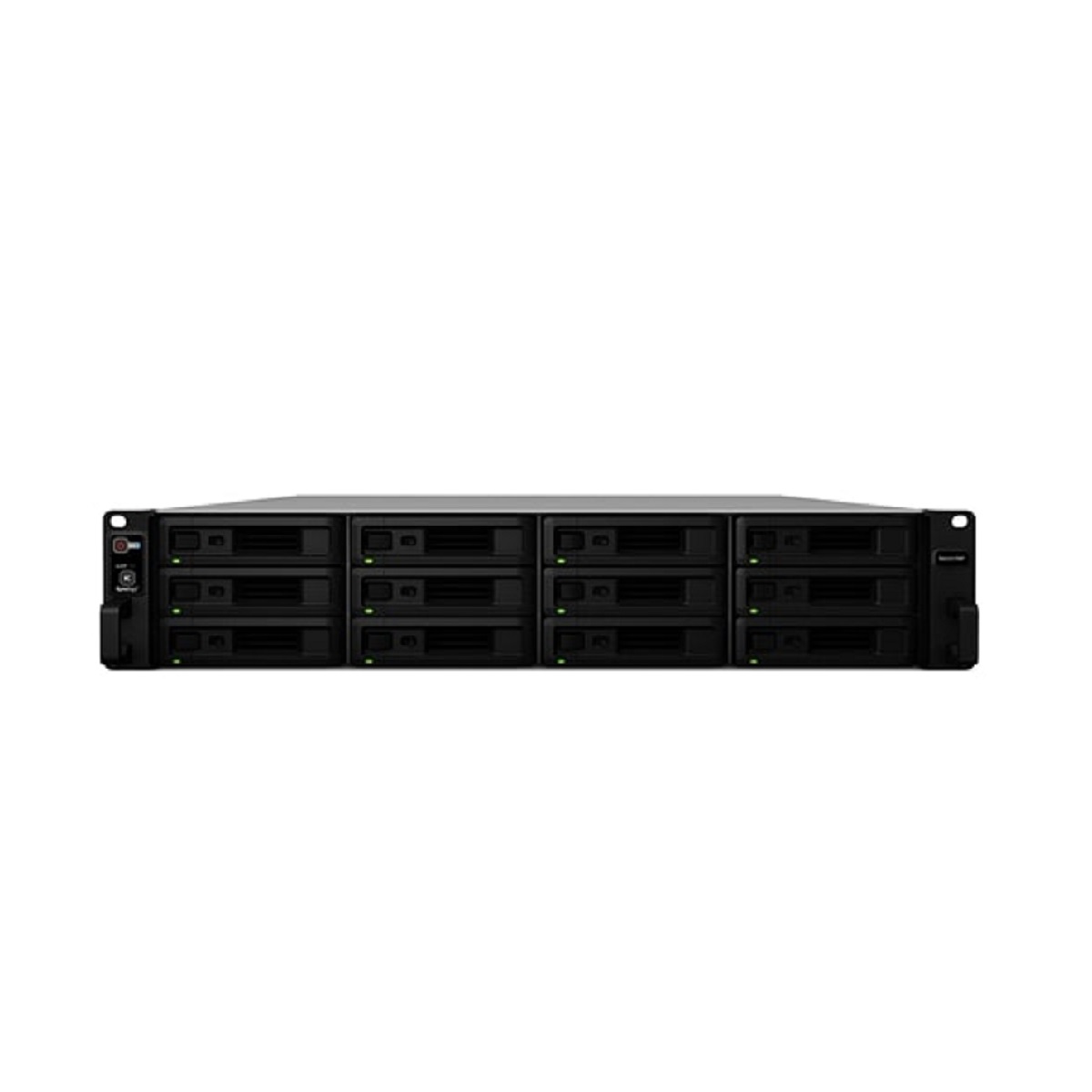

Synology RX1217RP RackStation 12-Bay Network Attached
£1,971.31 inc.VAT / £1,642.76 exc.VAT
Synology RX1217RP 12-Bay NAS Expansion Module Enclosure
Synology RX1217RP RackStation 12-Bay Network Attached Expansion Module offers an easy way to immediately expand storage by providing 12 additional drive slots.
Out of stock
Synology RX1217RP 12-Bay NAS Expansion Module Enclosure
Synology RX1217RP RackStation 12-Bay Network Attached
Please Note:Â This product is not a NAS, it is an expansion enclosure for an existing NAS device
Synology RX1217RP RackStation 12-Bay Network Attached Expansion Module offers an easy way to immediately expand storage by providing 12 additional drive slots.
The RAID volume on the Synology RackStation can be expanded directly without having to reformat the existing hard drives, ensuring service continuity during the expansion process.
To ensure 24/7 service uptime, the Synology RX1217RP RackStation 12-Bay Network Attached NAS Storage Expansion Module is equipped with redundant power supplies, allowing failover support if one of the PSUs fail.
When created as a separate volume, the Synology RX1217RP RackStation 12-Bay Network Attached NAS Storage Expansion Module also serves as an additional local backup destination for Synology RackStations.
RackStation RX1217RP 12-Bay
Key Features
- Un-populated twelve (12) bay network attached storage expansion module.
- Connects to Synology Rackstation servers with high-bandwidth expansion cable.
- SATA 6Gb/s interface ensures drives provide high quality data processing performance.
- Smartly power on/off with attached RackStation, so no user intervention is needed.
- RAID volume on the Synology RackStation can be expanded directly with out reformating existing drives.
- Serves as an additional local backup destination for Synology RackStations.
- Equipped with redundant power supplies allowing failover support if one PSU fails.
Reliable plug-and-use design
The Synology RX1217RP RackStation 12-Bay Network Attached NAS Storage Expansion Module securely connects to Synology RackStation servers with a high-bandwidth expansion cable, ensuring maximum data throughput and smooth operation — as if they are part of the internal drives of Synology RackStation.
SATA 6Gb/s interface ensures the installed drives provide high quality, outstanding data processing performance.
Green and easy to manage
Hibernation mode can be manually configured to start automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of hard drives.
The Synology RX1217RP RackStation 12-Bay Network Attached NAS Storage Expansion Module will also smartly power on/off with the attached RackStation, so no user intervention is needed to keep this system running smartly and efficiently.
Specifications
Hardware Specifications
Applied Models
- RS4017xs+
- RS3617xs+
- RS3614xs+
- RS3413xs+
- RS3617xs
- RS3617RPxs
- RS3614(RP)xs
- RS3412(RP)xs
- RS3411(RP)xs
- RS2416(RP)+
- RS2414(RP)+
- RS2212(RP)+
- RS2211(RP)+
- Note: DSM version requirement: 6.0.1-7393 or later version
Storage
Drive Bays
- 12
Compatible Drive Type* (See all supported drives)
- 3.5″ SATA HDD
- 2.5″ SATA HDD
- 2.5″ SATA SSD
Maximum Internal Raw Capacity
- 120 TB (10 TB drive x 12) (Capacity may vary by RAID types)
Hot Swappable Drive
- Yes
RAID Management through Synology DSM
- Yes
External ports
Infiniband
- 1
Appearance
Size (Height x Width x Depth)
- 88 mm x 430.5 mm x 692 mm
Weight
- 13.4 kg
Power
Power Recovery
- Synchronized with the Synology RackStation
Power Supply Unit / Adapter
- 2 X 500W
AC Input Power Voltage
- 100V to 240V AC
Power Frequency
- 50/60 Hz, Single Phase
Power Consumption*
- 71.32 W (Access)
- 31.20 W (HDD Hibernation)
British Thermal Unit
- 243.52 BTU/hr (Access)
- 106.53 BTU/hr (HDD Hibernation)
- Note: Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Redundant Power Supply
- Yes
Temperature
Operating Temperature
- 5C to 35C (40F to 95F)
Storage Temperature
- -20C to 60C (-5F to 140F)
Relative Humidity
- 5% to 95% RH
Others
System Fan
- 80 mm x 80 mm x 3 pcs
Easy Replacement System Fan
- Yes
Noise Level*
- 54.2 dB(A)
- Note: Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2 1.8%
Certification
- FCC Class A
- CE Class A
- BSMI Class A
Warranty
- 5-years
Environment and Packaging
Environment
- RoHS Compliant
Packaging Content
- Synology RX1217RP RackStation 12-Bay Network Attached NAS Storage Expansion Module X 1
- Accessory Pack X 1
- AC Power Cord X 2 (for RP model)
- Expansion Cable: Infiniband X 1
- Quick Installation Guide X 1
Optional Accessories
- Synology RKS1317 – Rail Kit Sliding
Standard warranty: 5-years
