Hardware Specifications

Applied Models

• RS4017xs+
• RS3617xs+
• RS3614xs+
• RS3413xs+
• RS3617xs
• RS3617RPxs
• RS3614(RP)xs
• RS3412(RP)xs
• RS3411(RP)xs
• RS2416(RP)+
• RS2414(RP)+
• RS2212(RP)+
• RS2211(RP)+
• Note: DSM version requirement: 6.0.1-7393 or later version

Storage

Drive Bays

• 12

Compatible Drive Type* (See all supported drives)

• 3.5″ SATA HDD
• 2.5″ SATA HDD
• 2.5″ SATA SSD

Maximum Internal Raw Capacity

• 120 TB (10 TB drive x 12) (Capacity may vary by RAID types)

Hot Swappable Drive

• Yes

RAID Management through Synology DSM

• Yes

External Ports

Infiniband port

• 1

Appearance

Size (Height x Width x Depth)

• 88 mm x 430.5 mm x 664 mm
• 88 mm x 430.5 mm x 692 mm (for RP model)

Weight

• 12.7 kg
• 13.4 kg (for RP model)

Power

Power Recovery

• Synchronized with the Synology RackStation

Power Supply Unit / Adapter

• 500W

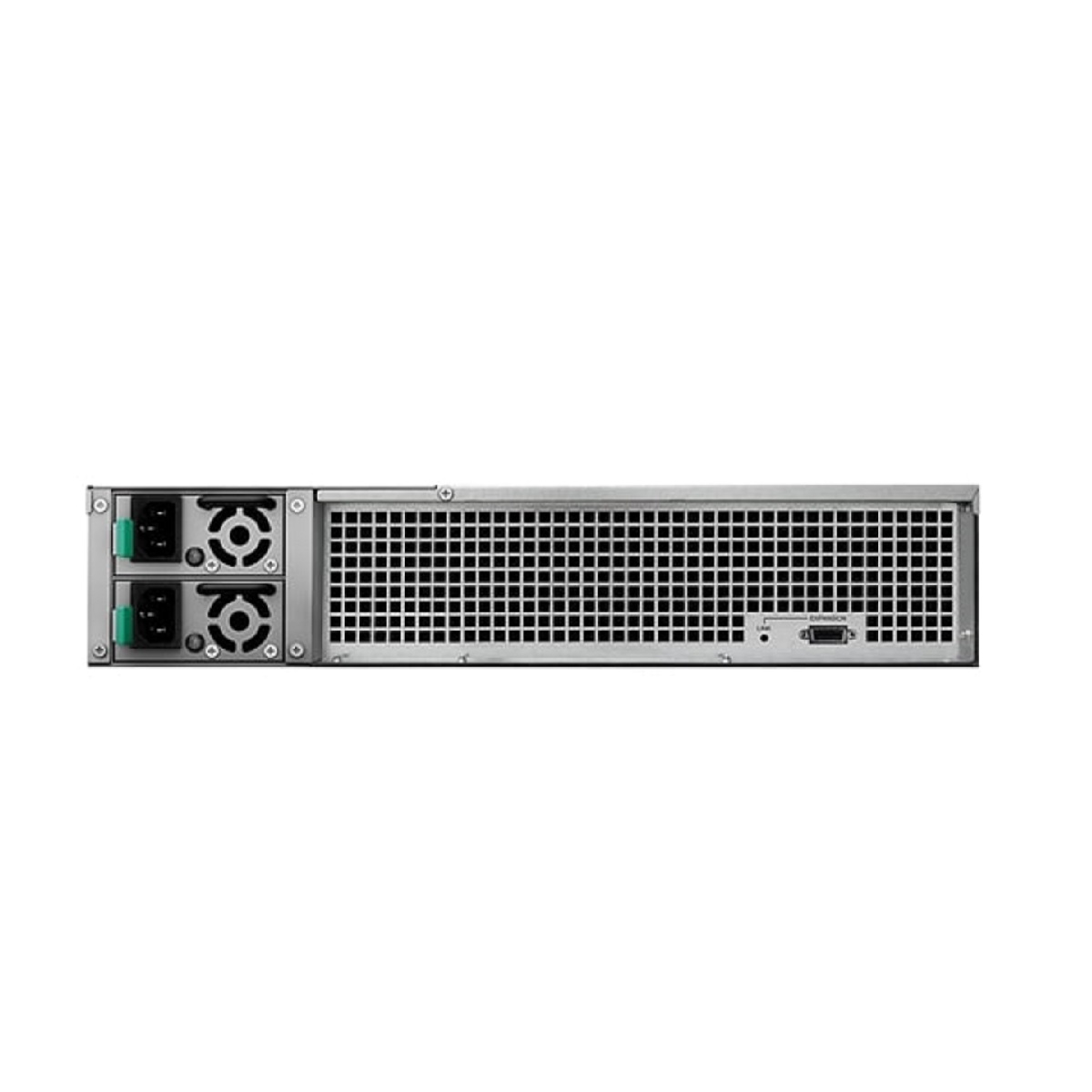

• 2 X 500W (for RP model)

AC Input Power Voltage

• 100V to 240V AC

Power Frequency

• 50/60 Hz, Single Phase

Power Consumption*

• 68.60 W (Access)
• 27.45 W (HDD Hibernation)
• 71.32 W (Access, for RP model)
• 31.20 W (HDD Hibernation, for RP model)

British Thermal Unit

• 234.23 BTU/hr (Access)
• 93.73 BTU/hr (HDD Hibernation)
• 243.52 BTU/hr (Access, for RP model)
• 106.53 BTU/hr (HDD Hibernation, for RP model)
• Note: Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).

Temperature

Operating Temperature

• 5C to 35C (40F to 95F)

Storage Temperature

• -20C to 60C (-5F to 140F)

Relative Humidity

• 5% to 95% RH

Others

System Fan

• 80 mm x 80 mm x 3 pcs

Easy Replacement System Fan

• Yes

Noise Level*

• 54.6 dB(A)
• 54.2 dB(A) (for RP model)
• Note: Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2- 1.8%

Certification

• FCC Class A
• CE Class A
• BSMI Class A

Warranty

• 5 Years

Environment and Packaging

Environment

• RoHS Compliant

Packaging Content

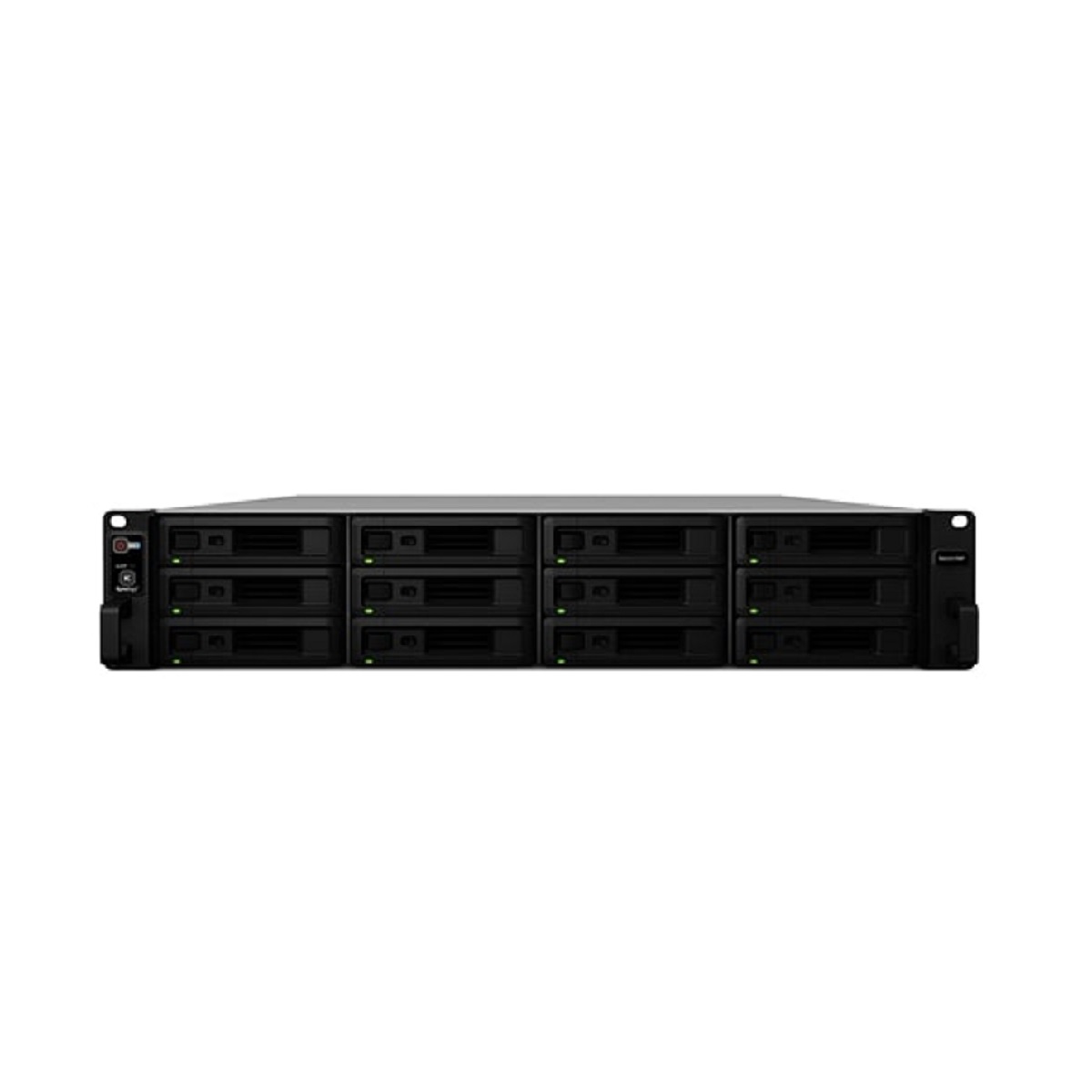

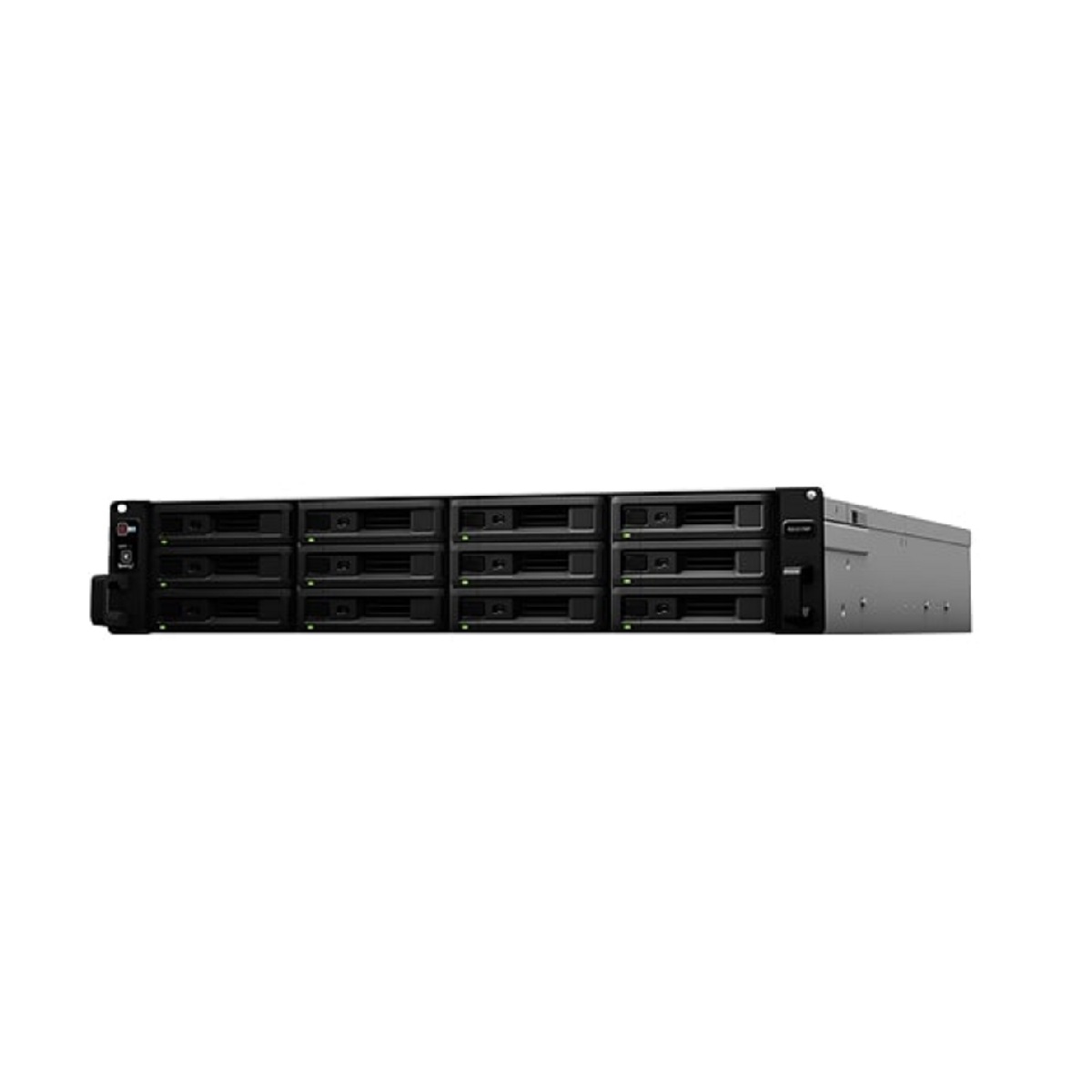

• Synology RX1217 RackStation 12-Bay Network Attached NAS Storage Expansion Module X 1
• Accessory Pack X 1
• AC Power Cord X 1
• AC Power Cord X 2 (for RP model)
• Expansion Cable: Infiniband X 1
• Quick Installation Guide X 1

Optional Accessories

• Synology RKS1317 – Rail Kit Sliding
