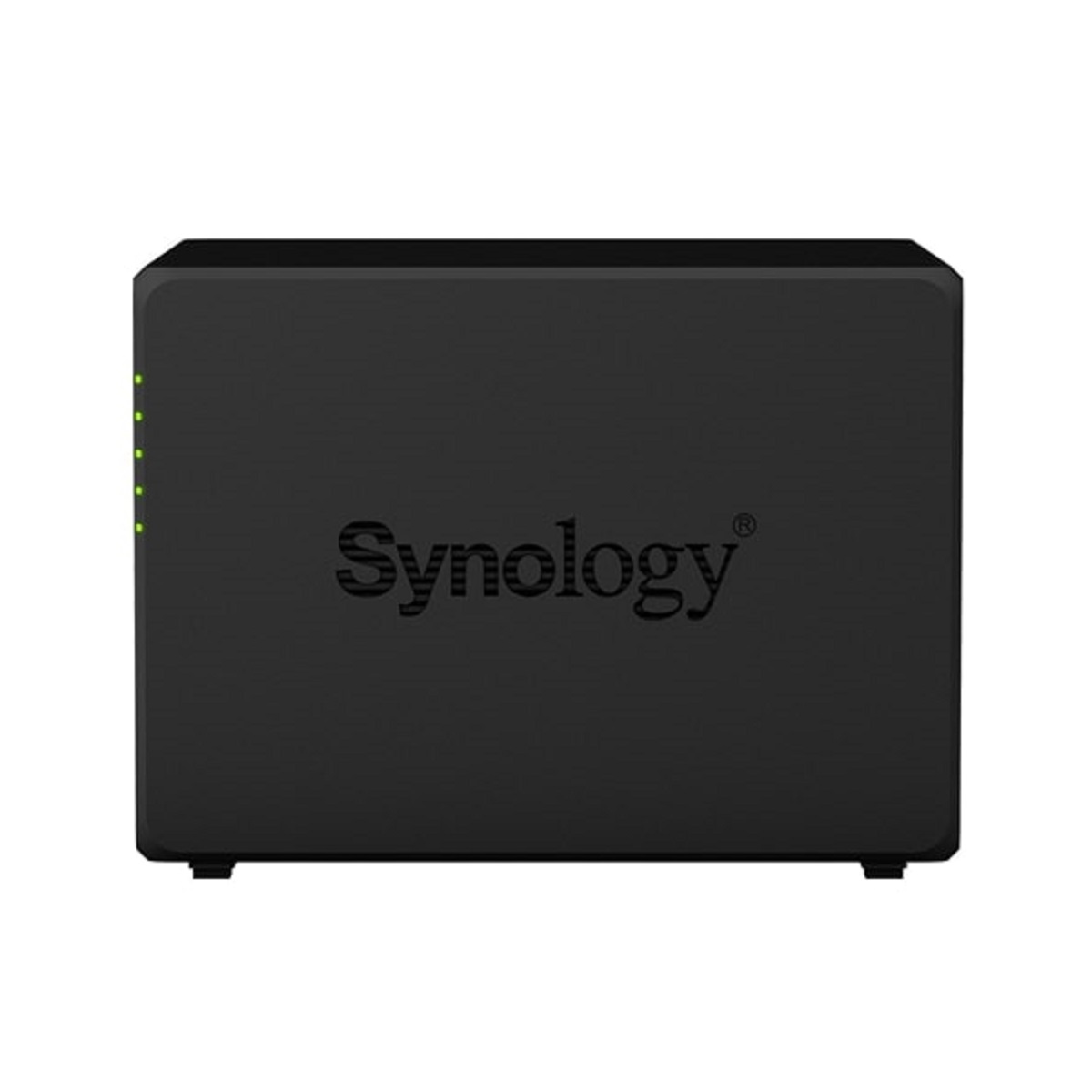

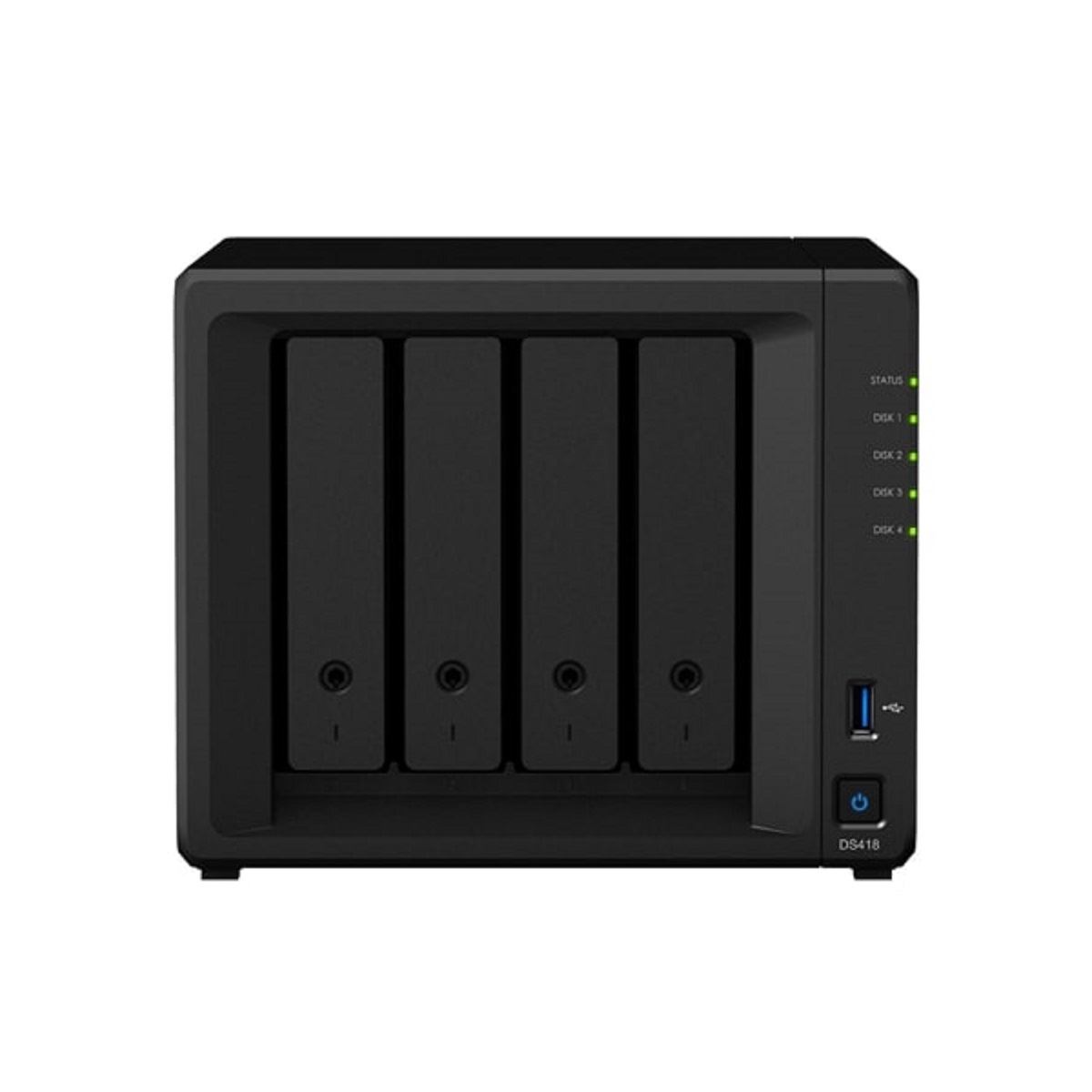

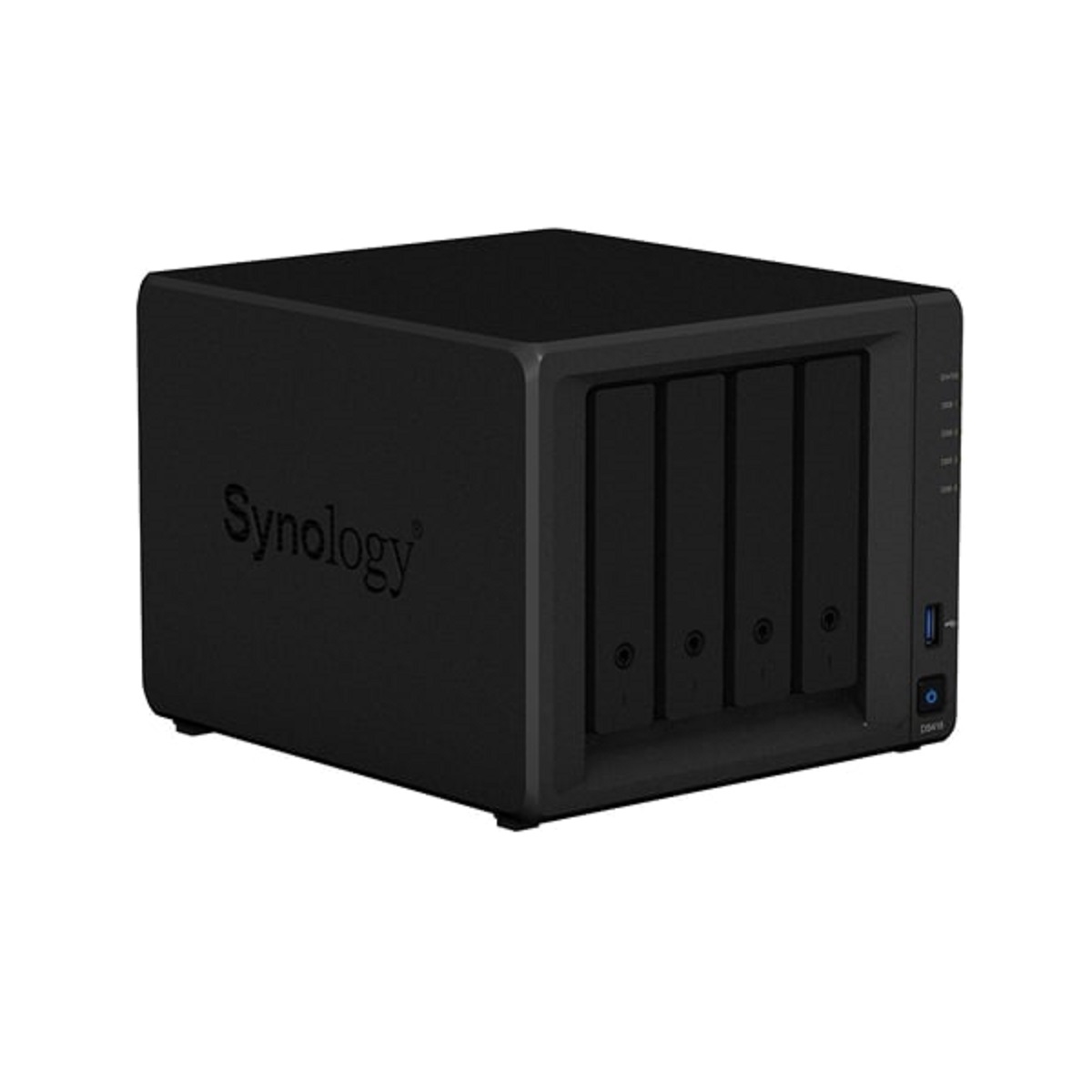

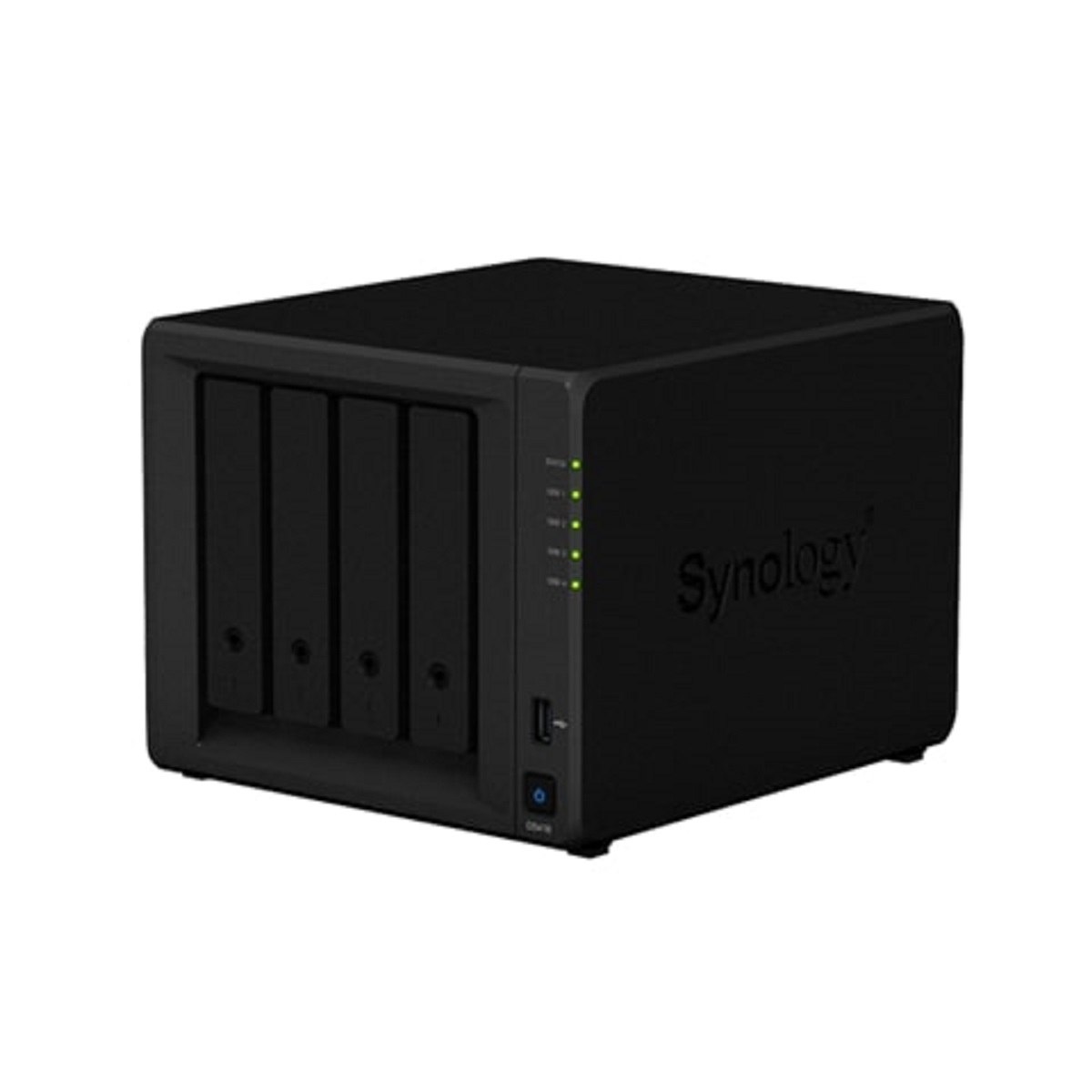

Synology DS418/24TB-SIW 4-Bay 24TB NAS 4x6TB IronWolf Bundle
£455.00 inc.VAT / £379.17 exc.VAT
Synology DS418/24TB-SIW 4-Bay 24TB Network Storage Bundle
Bundled with 24TB of storage capacity (includes 4 x 6TB Seagate IronWolf HDDs) for offices and home users to effectively manage, protect,share data.
Out of stock
Synology DS418/24TB-SIW 4-Bay 24TB Network Storage 4x6TB IronWolf Bundle
Synology DS418/24TB-SIW 4-Bay 24TB NAS 4x6TB IronWolf Bundle
Synology DS418/24TB-SIW 4-Bay 24TB NAS 4x6TB IronWolf Bundle is a high-performance and versatile 4-bay NAS, specifically designed for offices and home users to effectively manage, protect, and share data.
Its new 64-bit quad-core processor supports volume management of large-capacity storage and 10-bit 4K H.265 video transcoding to enrich multimedia entertainment.
The Synology DS418 is backed by Synology;s 2-year limited warranty.
Powerful 4-bay NAS for home and office users
Key Features

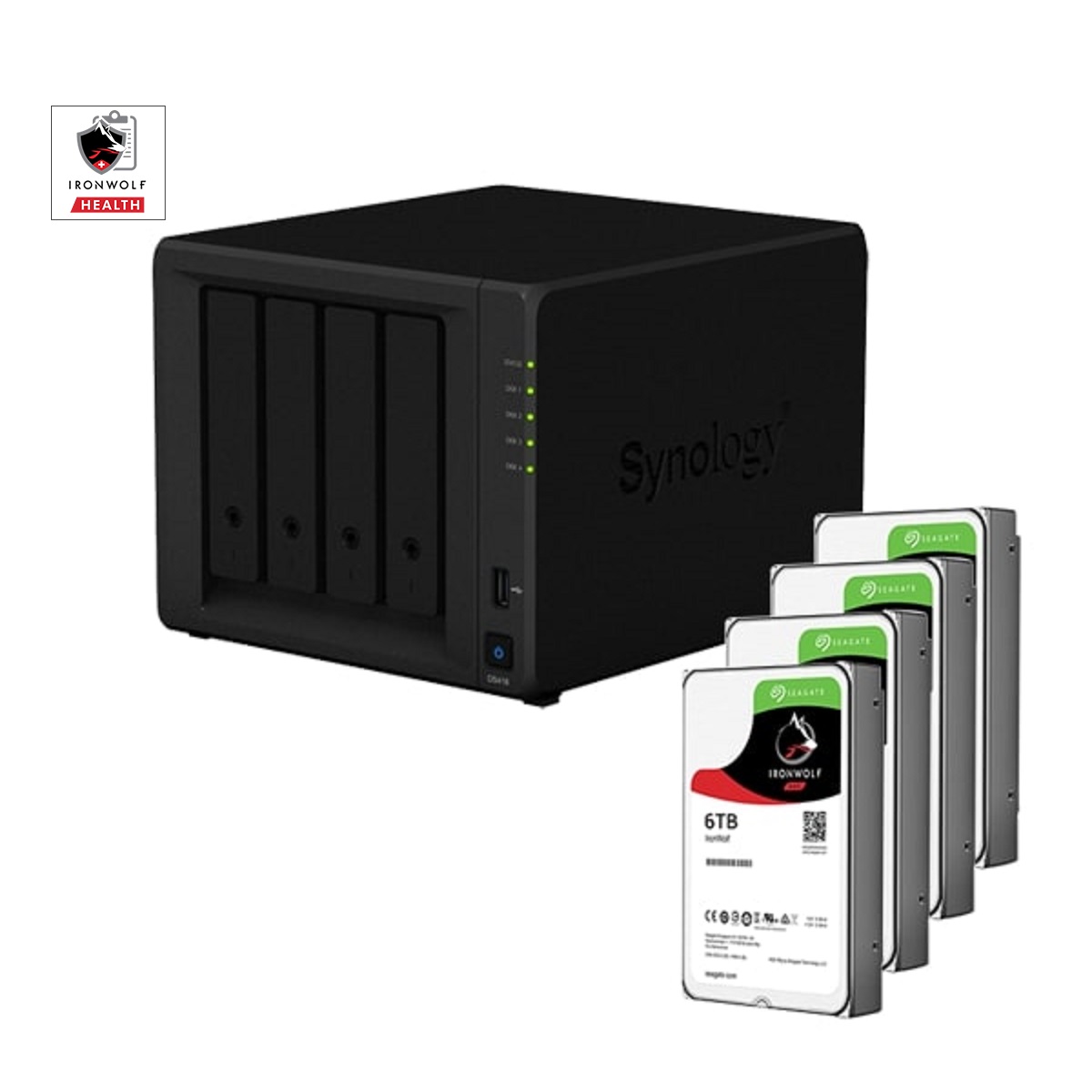

- Bundled with 24TB of storage capacity (includes 4 x 6TB Seagate IronWolf HDDs).
- 64-bit quad-core 1.4 GHz processor, 2GB of memory and dual 1GbE ports.
- Dual 1GbE ports with failover and Link Aggregation support.
- Throughput performance at over 226 MB/s reading and 170 MB/s writing.
- Delivers encrypted data throughput at over 224 MB/s reading and 139 MB/s writing.
- Supports comprehensive network protocols, ensuring a seamless file sharing experience.
- Optimised for 10-bit 4K H.265 video transcoding via Video Station.
- Provides online 4K video transcoding to 1080p or lower resolutions.
- Provides multi-version backup with optimized storage utilization.
- Access your DiskStation anywhere using Synology mobile apps.
Includes Seagate IronWolf Hard Drives
A thriving small business needs storage that can thrive with it. Seagate IronWolf Hard Drives are optimized for NAS in multi-RAID environments that not only handle the vibration, but also handle the high user workload rate in a high data traffic network.
With Seagate IronWolf drives you can get used to tough, ready and scalable 24×7 performance that can handle multi-drive environments with a wide range of capacities.
Vital Statistics
- Model Number: ST6000VN001
- Capacity: 6TB
- Speed: 5400RPM
- Cache: 256MB
- Interface: SATA 6Gb/s
- Form factor: 3.5 inch
Optimal price-performance ratio
The Synology DS418 DiskStation is a powerful 4-bay network attached storage solution equipped with a 64-bit quad-core 1.4 GHz processor, 2GB memory, and dual 1GbE ports.
With Link Aggregation enabled, DS418 delivers great sequential throughput performance at over 226 MB/s reading and 170 MB/s writing.
With hardware accelerated encryption, DS418 delivers encrypted data throughput at over 224 MB/s reading and 139 MB/s writing.
The Synology DS418 DiskStation is also optimized for 10-bit 4K H.265 video transcoding via Video Station. You can organise personal digital video library with comprehensive media information, and stream 4K Ultra HD movies and films to various devices such as computers, smartphones, media players, and TVs.
If your device is not capable of 4K video playback, DS418 provides online 4K video transcoding to 1080p or lower resolutions for smoother and time-saving video watching experience.
Cross-Platform File Sharing and Data Synchronisation
DS418 supports comprehensive network protocols, ensuring a seamless file sharing experience across Windows, Mac, and Linux platforms.
Windows AD and LDAP integration allows DS418 to fit quickly and effortlessly into any existing network environment without the need to repeatedly create user accounts.
Cloud Sync keeps your Dropbox, Google Drive, Microsoft OneDrive, Baidu and Box storages in sync with your personal DiskStation at home.
The Cloud Station Suite allows you to sync files among multiple devices — Windows PC, Mac, Linux, iOS or Android™ tablets/phones — effortlessly keeping everything up-to-date.
DS418 combines seamless file sharing capability with hardened security, even over the Internet with HTTPS, built-in firewall, and multiple auto-blocking mechanisms against IP and account intrusion.
.jpg "Cross-Platform file sharing")
Easy backup solutions
With block-level incremental backup and cross-version deduplication, Synology Hyper Backup provides multi-version backup with optimized storage utilization and allows data backup to multiple destinations, such as local shared folders, external hard drives, network shared folders, rsync servers, and public cloud services.
Anywhere/Anytime Availability
Synology provides various mobile applications allowing you to enjoy your multimedia library even when on the go. Available on iOS, Android, and Windows Phone platforms, DS photo, DS audio, DS video, and DS file enable access to your Synology NAS through Photo Station, Audio Station, Video Station, and File Station.
What’s more, you can use DS get to remotely manage and monitor download tasks on Download Station.
Quick Connect allows you to connect via a simple customisable address so that you can instantly access media and work files on any Windows/Mac/Linux computer, laptop, or mobile device.
.jpg "Anytime Availability")
24/7 Security Solution
Featuring user-friendly video management tools and an intuitive desktop-like interface, Synology Surveillance Station is a reliable private-security solution that can support multiple IP cameras connected to the same network with the Synology DS418 DiskStation.
Surveillance Station features optimized live view together with streamlined real-time monitoring. Its powerful analytics, such as motion detection and alert notification, allow you to stay informed of any suspicious activities with triggers sent via SMS, e-mail, and DS cam mobile application.
Energy-efficient and easy management
The Synology DS418 DiskStation is designed and developed with energy efficiency in mind. DS418 consumes only 26.49 W in regular operation.
Wake on LAN/WAN and scheduled power on/off can further reduce power consumption and operational costs.
With HDD hibernation, hard drives can enter the energy-saving mode automatically when the system has been idle for a specified period of time.
Specifications
Hardware specifications
CPU
CPU Model
- Realtek RTD1296
CPU Architecture
- 64-bit
CPU Frequency
- Quad Core 1.4 GHz
Hardware Encryption Engine
- Yes
Hardware Transcoding Engine
- 10-bit H.265 (HEVC), MPEG-4 Part 2, MPEG-2, VC-1; maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 60
Memory
System Memory
- 2 GB DDR4
Storage
Drive Bays
- 4
- Bundled with 24TB of storage capacity (includes 4 x 6TB Seagate IronWolf HDDs)
Compatible Drive Type*
- 3.5″ SATA HDD
- 2.5″ SATA HDD
- 2.5″ SATA SSD
Maximum Internal Raw Capacity
- 56 TB (14 TB drive x 4) (Capacity may vary by RAID types)
Maximum Single Volume Size
- 108 TB
Hot Swappable Drive
- Yes
Notes
- “Compatible drive type” indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
- The maximum single volume size is not directly related to the maximum raw capacity.
External ports
RJ-45 1GbE LAN Port
- 2 (with Link Aggregation / Failover support)
USB 3.0 Port
- 2
File System
Internal Drives
- Btrfs
- EXT4
External Drives
- Btrfs
- EXT4
- EXT3
- FAT
- NTFS
- HFS+
- exFAT (exFAT Access is purchased separately in Package Centre)
Appearance
Size (Height x Width x Depth)
- 166 mm x 199 mm x 223 mm
Weight
- 2.28 kg
Others
System Fan
- 92 mm x 92 mm x 2 pcs
Fan Speed Mode
- Full-Speed Mode
- Cool Mode
- Quiet Mode
Brightness adjustable front LED indicators
- Yes
Power recovery
- Yes
Noise Level
- 20.9 dB(A)
Scheduled Power On/Off
- Yes
Wake on LAN/WAN
- Yes
Power Supply Unit / Adapter
- 90W
AC Input Power Voltage
- 100V to 240V AC
Power Frequency
- 50/60 Hz, Single Phase
Power Consumption
- 26.49 W (Access)
- 8.78 W (HDD Hibernation)
British Thermal Unit
- 90.39 BTU/hr (Access)
- 29.96 BTU/hr (HDD Hibernation)
Environmental temperature
Operating Temperature
- 5C to 40C (40F to 104F)
Storage Temperature
- -20C to 60C (-5F to 140F)
Relative Humidity
- 5% to 95% RH
Certification
- EAC
- CCC
- RCM
- KC
- FCC
- CE
- BSMI
Warranty
- 2 Years
Notes
- Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
- Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 metre away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2-61.8%
DSM Specifications
Storage Management
Maximum Internal Volume Number
- 256
Maximum iSCSI Target Number
- 128
Maximum iSCSI LUN
- 256
Supported RAID Type
- Synology Hybrid RAID
- Basic
- JBOD
- RAID 0
- RAID 1
- RAID 5
- RAID 6
- RAID 10
RAID Migration
- Basic to RAID 1
- Basic to RAID 5
- RAID 1 to RAID 5
- RAID 5 to RAID 6
Volume Expansion with Larger HDDs
- Synology Hybrid RAID
- RAID 1
- RAID 5
- RAID 6
Volume Expansion by Adding an HDD
- Synology Hybrid RAID
- RAID 5
- JBOD
Global Hot Spare Supported RAID Type
- Synology Hybrid RAID
- RAID 1
- RAID 5
SSD Support
SSD Trim
- Yes
File Sharing Capacity
Maximum Local User Accounts
- 2048
Maximum Local Groups
- 256
Maximum Shared Folder
- 256
Maximum Shared Folder Sync Tasks
- 4
Maximum Concurrent CIFS/AFP/FTP Connections
- 200
Windows Access Control List (ACL) Integration
- Yes
NFS Kerberos Authentication
- Yes
Log Centre
- Yes
Syslog Events per Second
- 100
Add-on packages
Chat
- Yes
Maximum Users
- 500
Notes
- The number of concurrent HTTP connections for Chat was configured to the maximum.
- CPU and RAM usage were both under 80% when the number of maximum users was reached.
Cloud Station Server
- Yes
Maximum Number of Concurrently Connected Devices
- 200
Maximum Number of Hosted Files (ext4)
- 100,000
Notes
- The maximum number of concurrently connected devices refers to the maximum number of devices that can remain connected at the same time.
- The maximum number of hosted files refers to the maximum number of files that can be indexed and hosted by the Cloud Station Server service.
- RAM expansion was not used during testing.
- Non-encrypted shared folders were used during the aforementioned testing.
Download Station
- Yes
Maximum Concurrent Download Tasks
- 30
Drive
- Yes
Maximum Number of Hosted Files
- 100,000
Maximum Number of Concurrent Connections for PC Clients
- 200
Notes
- The EXT4 file system was used for the purpose of testing.
- The maximum number of hosted files refers to the maximum number of files that can be indexed and hosted by the Drive service.
- The maximum number of concurrent connections refers to the maximum number of connections that can be maintained when the maximum number of hosted files was reached.
- Non-encrypted shared folders were used during the aforementioned testing.
exFAT Access (optional)
- Yes
Media Server
- Yes
DLNA Compliance
- Yes
Moments
Facial recognition
- Yes
Subject recognition
- Yes
Office
- Yes
Maximum Users
- 200
Notes
- Multiple files were opened for testing and each file was edited by 30 users simultaneously.
- CPU and RAM usage were both under 80% when the number of maximum users was reached.
- Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Snapshot Replication
Maximum Snapshots per Shared Folder
- 256
Maximum Snapshots per Shared Folder
- 4096
Surveillance Station
- Yes
Maximum IP cam (Licences required)
- 30 (including 2 Free Licences)
Total FPS (H.264)
- 900 FPS @ 720p (1280×720)
- 300 FPS @ 1080p (1920×1080)
- 240 FPS @ 3M (2048×1536)
- 150 FPS @ 5M (2591×1944)
- 110 FPS @ 4K (3840×2160)
Total FPS (H.265)
- 900 FPS @ 720p (1280×720)
- 450 FPS @ 1080p (1920×1080)
- 360 FPS @ 3M (2048×1536)
- 250 FPS @ 5M (2591×1944)
- 180 FPS @ 4K (3840×2160)
Total FPS (MJPEG)
- 300 FPS @ 720p (1280×720)
- 200 FPS @ 1080p (1920×1080)
- 130 FPS @ 3M (2048×1536)
- 80 FPS @ 5M (2591×1944)
Notes
- Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera.
- Live view and recording are sharing the same stream from the camera.
Video Station
- Yes
Video Transcoding
- 4K Group 3
Maximum Transcoding Channel Number
- 1 channel, 30 FPS @ 4K (4096 x 2160), H.265 (HEVC), 10-bit or
- 1 channel, 30 FPS @ 1080p (1920×1080), H.264 (AVC)/H.265 (HEVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1
VPN Server
- Yes
Maximum Connections
- 20
Environment and packaging
Environment
- RoHS Compliant
Package Contents
- Synology DS418 DiskStation x 1
- Seagate IronWolf HDD x 4
- Accessory Pack x 1
- AC Power Adapter x 1
- AC Power Cord x 1
- RJ-45 LAN Cable x 2
- Quick Installation Guide x 1
Standard Warranty: 2-Years
