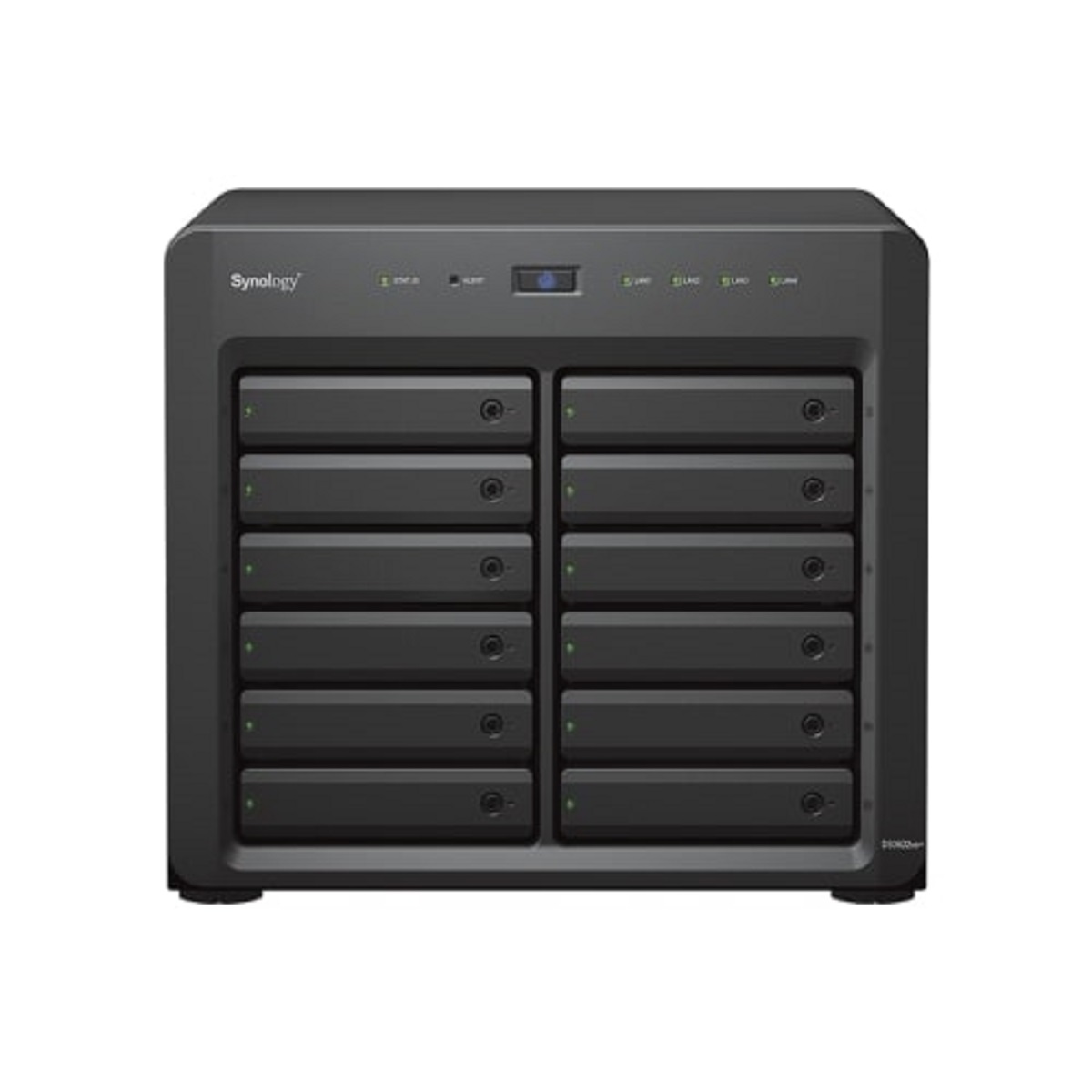

Synology DS3622xs+ 12-Bay NAS Enclosure
£3,142.18 inc.VAT / £2,618.48 exc.VAT
Synology DS3622xs+ DiskStation 12-Bay Network Storage Enclosure (16GB RAM)
Synology DS3622xs+ 12-Bay NAS Enclosure is a powerhouse NAS capable of fitting into small and medium business environments with intensive and multi-user workloads.
Out of stock
Synology DS3622xs+ DiskStation 12-Bay Network Storage Enclosure (16GB RAM)
Synology DS3622xs+ 12-Bay NAS Enclosure
Synology DS3622xs+ 12-Bay NAS Enclosure is a powerhouse NAS capable of fitting into small and medium business environments with intensive and multi-user workloads.
Its high capacity, scalability, and processing power make it ideal for VM and container storage, for lightning-fast file sharing, and as a network video recorder for large surveillance deployments.
It comes with powerful storage management, file syncing, surveillance, and backup software, and is suitable for editing high-quality video.
Powerful and high-capacity storage that fits in any environment
Key Features
- Un-populated twelve (12) bay network attached NAS storage device.
- Features a six-core Intel Xeon D-1531 processor.
- 4,719 MB/s sequential read and 260,691 4K random read IOPS.
- 16 GB DDR4 ECC memory, expandable to 48 GB.
- Expand to thirty-six (36) drives with two (2) DX1222 expansion units (sold separately).
- Empower your workforce to collaborate, share files, and communicate from anywhere.
- Synology DiskStation Manager (DSM) streamlines provisioning for and management of virtual machines.
Dependable storage for many scenarios
This Synology NAS is a versatile storage platform that fits perfectly in file server, block storage, or application server roles that require high availability, reliability, and leading-edge storage technology.
- Multi-purpose NAS storage
Keep digital assets accessible locally or remotely with easy-to-maintain shared file storage, backed by fast SMB file serving, powerful RAID options, efficient backup tools, and granular permission management. - SAN infrastructure for SMBs
Deploy certified block storage with minimal disruption thanks to easy management plugins, and leverage free snapshots paired with built-in high-availability options to maximize service availability. - Versatile business applications
Host business solutions privately and on your own terms, including a powerful backup server to protect all business assets from a centralized platform or a full-fledged surveillance platform to safeguard physical premises with transparent licensing.
Faster performance
Enjoy a smooth experience even with multiple users running demanding applications. See the numbers that make the DS3622xs+ more efficient.
- Sequential Throughput
- Read – 4.7K+ MB/s
- Write – 2.4K+ MB/s
- 4K Random IOPS
- Read – 260K+ IOPS
- Write – 97K+ IOPS
Built to maximize up time
The DS3622xs+ is built to keep mission-critical data and services accessible, so that businesses can continue to perform even when disaster strikes.
- Out-of-band (OOB) management
Simplify troubleshooting by managing powered-down devices remotely and accessing critical logs through a dedicated interface. - High-availability solution
Create an active-passive cluster with minute-level fail over by pairing the DS3622xs+ with an identical unit using Synology High Availability.
Rise to the challenge
Prepare your DS3622xs+ for the heaviest workloads or upgrade flexibly as your business continues to grow. Use add-in cards (sold separately) to add bandwidth, fast SSD cache, or both.
- Maximize bandwidth
Handle heavier I/O and serve more users with dual-port Synology 10 or 25GbE network interface cards. Integrate with any FC SAN using compatible Fibre Channel adapters. - Accelerate storage performance
Enable SSD caching to speed up HDD arrays with an M.2 NVMe SSD adapter card and SNV3000 series SSDs, or install SAT5200 SATA SSDs in drive bays to increase performance. - Do both with one card
Add both 10GbE connectivity and M.2 NVMe SSD slots for SSD cache with a single combination NIC and adapter card.
Out-of-the-box data protection
Protect your data with professional backup software for your Synology NAS, other devices, and applications.
Consolidate backups to your NAS
- Active Backup Suite
- Securely back up Windows clients and servers, Microsoft 365 and Google Workspace accounts, file servers, and VMware and Hyper-V virtual machines with the Active Backup Suite.
- Leverage built-in deduplication technology to reduce backup sizes and multi-versioning to allow flexible restoration.
- Implement a 3-2-1 backup strategy
- Combine local and remote backup strategies to achieve fully redundant protection of your IT infrastructure using Synology and third-party solutions.
Back up your NAS to other devices
- Hyper Backup
- Back up files, LUNs, installed applications, and system configurations to destinations including Synology C2 Storage, public cloud platforms, USB devices, file servers, local folders, or other Synology NAS.
- Set and forget backup tasks with regular schedules, enhance security with fine-grained user permissions and encryption, keep backup sizes small with built-in deduplication, and restore data flexibly with multi-versioning.
- Snapshot Replication
- Snapshot Replication enables configurable point-in-time snapshots of shared folders and virtual machines with an RPO as low as 5 minutes and recovery within seconds.
Efficient collaboration and communication
Empower your workforce to collaborate, share files, and communicate from anywhere.
- Synology Drive
Host your own private cloud behind the safety of your NAS with 100% data ownership and no subscription fees. - Synology Office
Collaborate in real time on documents, spreadsheets, and slides for greater synergy and productivity. - Synology MailPlus
Improve team efficiency with an on-premises email solution that ensures data ownership, security, and reliability.
Certified virtual machine storage
Synology DiskStation Manager (DSM) streamlines provisioning for and management of virtual machines with full certification for VMware vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack virtualization environments.
Synology Storage Console for VMware or Windows platforms lets you manage storage directly from your hypervisor. VMware VAAI integration and Windows ODX help offload storage operations and speed up data transfer, and a Kubernetes CSI driver lets you provision and manage volumes directly from the K8s CLI.
Centralized surveillance for your business
Transform the DS3622xs+ into a powerful network video recorder with Synology Surveillance Station.
- Secure and private
Footage stored locally is protected by industry-standard AES-256 encryption. - Scale up any time
Connect up to 90 IP cameras from a wide selection of over 7,900 validated models. - Real-time analytics
Take advantage of intelligent monitoring features and receive automatic alerts of security events.
Get more with DiskStation Manager
Take advantage of a whole host of native productivity, management, and security solutions available on the web-based Synology DSM operating system.
- Data Protection
Keep your business safe from data loss and minimize service downtime. - User Management
Manage user accounts and devices throughout your business with powerful directory services. - Security
Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions. - File Management
Manage, sync, and share files from multiple devices through a centralized platform. - System Administration
Manage the health of your deployments and centrally administer updates with ease. - Surveillance
Protect your home or business with intelligent monitoring and video management tools.
Specifications
Hardware Specifications
CPU
CPU Model
- Intel Xeon D-1531
CPU Quantity
- 1
CPU Architecture
- 64-bit
CPU Frequency
- 6-core 2.2 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI)
- Yes
Memory
System Memory
- 16 GB DDR4 ECC SODIMM
Memory Module Pre-installed
- 16 GB (8 GB x 2)
Total Memory Slots
- 4
Maximum Memory Capacity
- 48 GB (8 GB x 2 + 16 GB x 2)
Notes
- Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
- Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Storage
Drive Bays
- 12 (un-populated)
Maximum Drive Bays with Expansion Unit
- 36 (2 x DX1222 – sold separately)
Compatible Drive Type
- 3.5″ SATA HDD
- 2.5″ SATA HDD
- 2.5″ SATA SSD
Maximum Single Volume Size
- 200 TB (32 GB memory required)
- 108 TB
Hot Swappable Drive
- Yes
Notes
- It is strongly recommended that you only install drives listed on your device’s compatibility list. Storage pool and volume creation processes may fail when using unverified drives. Synology is unable to provide technical support for devices using unsupported components.
- “Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
- Each internal volume (may consist of multiple drives) is expandable up to 108 TB (with memory less than 32 GB) or 200 TB (with memory equal to or greater than 32 GB).

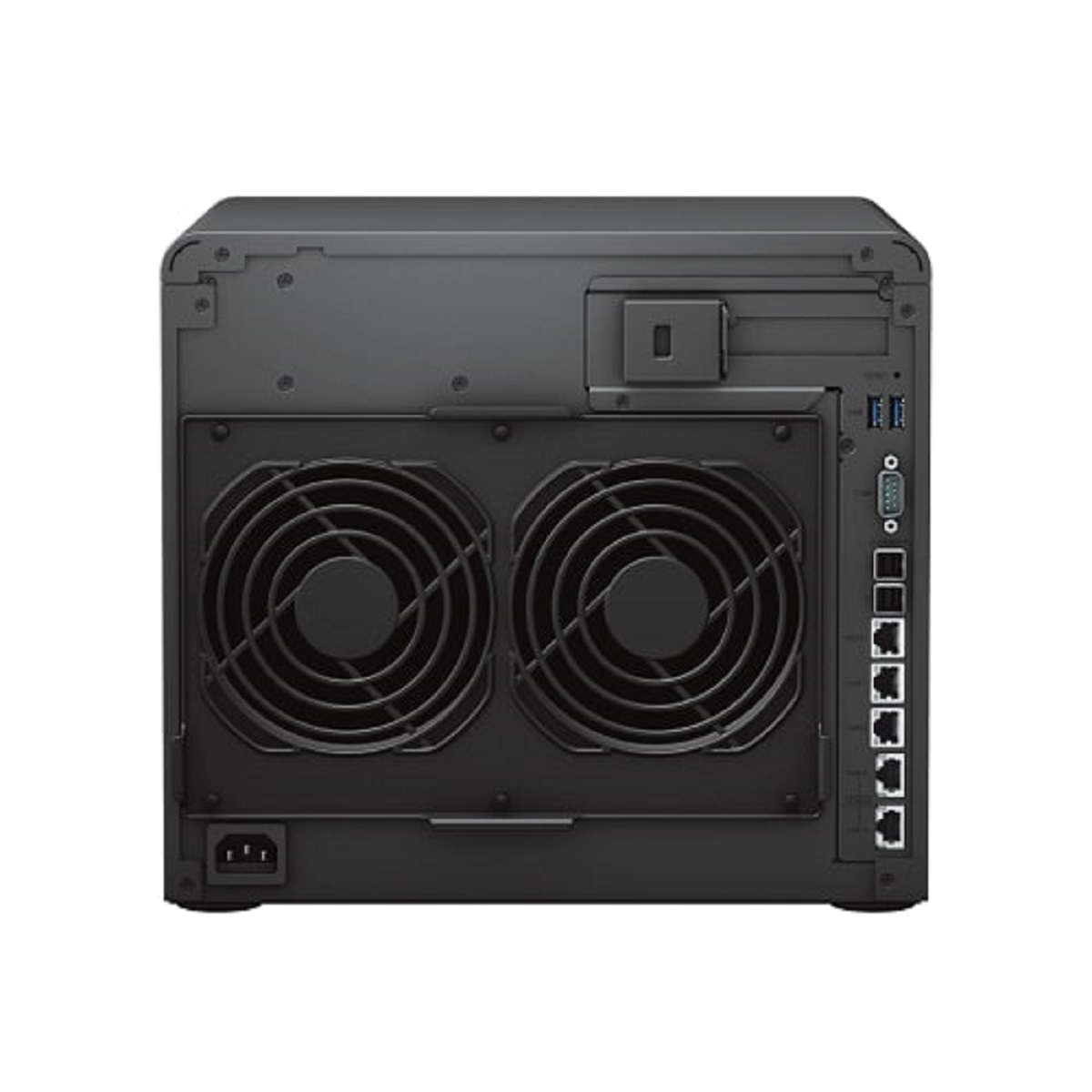

External Ports
RJ45 1GbE LAN Port
- 2 (with Link Aggregation / Failover support)
RJ45 10GbE LAN Port
- 2 (with Link Aggregation / Failover support)
Management LAN Port
- 1
USB 3.2 Gen 1 Port
- 2
Expansion Port
- 2
Notes
- This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
- The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe
PCIe Expansion
- 1 x Gen3 x8 slot (x8 link)
File System
Internal Drives
- Btrfs
- EXT4
External Drives
- Btrfs
- EXT4
- EXT3
- FAT
- NTFS
- HFS+
- exFAT
Notes
- exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.
Appearance
Dimensions (H x W x D)
- 270 x 300 x 340 mm
Weight
- 9.8 kg
Others
System Fan
- 120 mm x 120 mm x 2 pcs
Fan Speed Mode
- Full-Speed Mode
- Cool Mode
- Quiet Mode
Easy Replacement System Fan
- Yes
Power Recovery
- Yes
Noise Level
- 25 dB(A)
Scheduled Power On / Off
- Yes
Wake on LAN / WAN
- Yes
Power Supply Unit / Adapter
- 550 W
AC Input Power Voltage
- 100 V to 240 V AC
Power Frequency
- 50/60 Hz, Single Phase
Power Consumption
- 94.42 W (Access)
- 54.33 W (HDD Hibernation)
British Thermal Unit
- 322.39 BTU/hr (Access)
- 185.51 BTU/hr (HDD Hibernation)
Notes
- Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s) (sold separately).
- Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 metre away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2-61.8%
Environment
Operating Temperature
- 0°C to 40°C (32°F to 104°F)
Storage Temperature
- -20°C to 60°C (-5°F to 140°F)
Relative Humidity
- 5% to 95% RH
Certification
Certification
- FCC
- CE
- BSMI
- VCCI
- RCM
- UKCA
- EAC
- KC
- UL
RoHS Compliant
- Yes
Software Specifications
DSM Specifications
Storage Management
Maximum Internal Volume Number
- 256
SSD Read / Write Cache (White Paper)
- Yes
SSD TRIM
- Yes
RAID Group
- Yes
Supported RAID Type
- RAID F1
- Basic
- JBOD
- RAID 0
- RAID 1
- RAID 5
- RAID 6
- RAID 10
RAID Migration
- Basic to RAID 1
- Basic to RAID 5
- RAID 1 to RAID 5
- RAID 5 to RAID 6
Volume Expansion with Larger HDDs
- RAID F1
- RAID 1
- RAID 5
- RAID 6
- RAID 10
Volume Expansion by Adding a HDD
- RAID F1
- JBOD
- RAID 5
- RAID 6
Global Hot Spare Supported RAID Type
- RAID F1
- RAID 1
- RAID 5
- RAID 6
- RAID 10
File Services
File Protocol
- SMB/AFP/NFS/FTP/WebDAV
Maximum Concurrent SMB/AFP/FTP Connections
- 4,000
Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion)
- 10,000
Windows Access Control List (ACL) Integration
- Yes
NFS Kerberos Authentication
- Yes
Notes
- Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM.
- During testing, the maximum number of SSDs supported by this model is installed in a RAID 5 configuration.
- The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Account & Shared Folder
Maximum Local User Accounts
- 16,000
Maximum Local Groups
- 512
Maximum Shared Folder
- 512
Maximum Shared Folder Sync Tasks
- 32
Hybrid Share
Hybrid Share Folder Number
- 8
High Availability
Synology High Availability
- Yes
Log Center
Syslog Events per Second
- 3,000
Virtualization
VMware vSphere with VAAI
- Yes
Windows Server 2016
- Yes
Windows Server 2019
- Yes
Citrix Ready
- Yes
OpenStack
- Yes
General Specifications
Networking Protocols
- SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers
- Google Chrome
- Firefox
- Microsoft Edge
- Safari
Supported Language
- English
- German
- French
- Italian
- Spanish
- Danish
- Norwegian
- Swedish
- Dutch
- Russian
- Polish
- Hungarian
- Portuguese (Brazil)
- Portuguese (Europe)
- Turkish
- Czech
- Thai
- Japanese
- Korean
- Chinese (Traditional)
- Chinese (Simplified)
Add-on Packages
Antivirus by McAfee (Trial)
- Yes
Central Management System
- Yes
Synology Chat
Maximum Users
- 4,000
Notes
- The number of concurrent HTTP connections for Synology Chat was configured to the maximum.
- For tested models with expandable memory, the maximum amount of RAM was installed.
Document Viewer
- Yes
Download Station
Maximum Concurrent Download Tasks
- 80
SAN Manager
Maximum iSCSI Target Number
- 256
Maximum LUN
- 512
LUN Clone/Snapshot, Windows ODX
- Yes
Synology MailPlus / MailPlus Server
Free Email Accounts
- 5 (Licences required for additional accounts)
Maximum Number of Concurrent Users
- 800
Maximum Server Performance
- 4,235,000 emails per day, approx. 129 GB
Notes
- Models with more than 4 bays were installed with two SSDs for SSD cache.
- For tested models with expandable memory, the maximum amount of RAM was installed.
- The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers.
- Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Media Server
DLNA Compliance
- Yes
Synology Photos
Facial Recognition
- Yes
Snapshot Replication
Maximum Snapshots per Shared Folder
- 1,024
Maximum of System Snapshots
- 65,536
Surveillance Station
Maximum IP cam (Licences required)
- 90 (including 2 Free Licence)
Total FPS (H.264)
- 2700 FPS @ 720p (1280×720)
- 2250 FPS @ 1080p (1920×1080)
- 1500 FPS @ 3M (2048×1536)
- 900 FPS @ 5M (2591×1944)
- 550 FPS @ 4K (3840×2160)
Total FPS (H.265)
- 2700 FPS @ 720p (1280×720)
- 2700 FPS @ 1080p (1920×1080)
- 2250 FPS @ 3M (2048×1536)
- 1500 FPS @ 5M (2591×1944)
- 1080 FPS @ 4K (3840×2160)
Notes
- Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.
- The maximum channel number also includes devices installed on Virtual DSM.
- Total FPS may be affected by other services running at the same time (e.g., archive tasks performed by Archive Vault).
Synology Drive
Recommended Number of Hosted Files
- 50,000,000 (applies to files indexed or hosted by Synology Drive.)
Recommended Number of Concurrent Sync Clients
- 1,800 (the number of connections that can be maintained when the recommended number of hosted files was reached)
Notes
- Exceeding the recommended numbers above will not block application operations, but may result in longer response time.
- Utilizing SSD cache can significantly improve performance.
- For tested models with expandable memory, the maximum amount of RAM was installed.
- Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office
Maximum Users
- 2,900
Notes
- Multiple files were opened for testing and each file was edited by 30 users simultaneously.
- For tested models with expandable memory, the maximum amount of RAM was installed.
- Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Video Station
- Yes
Virtual Machine Manager
Recommended Virtual Machine Instances
- 12
Recommended Virtual DSM Number (Licences required)
- 12 (including 1 Free Licence)
Notes
- The specifications vary depending on system configuration and memory size.
VPN Server
Maximum Connections
- 60
Package
Package Content
- 1 x Synology DS3622xs+
- 1 x Accessory Pack
- 1 x AC Power Cord
- 2 x RJ45 LAN Cable
- 1 x Quick Installation Guide
Standard Warranty: 5-Years
Only logged in customers who have purchased this product may leave a review.
Related Products
Synology FS6400 FlashStation 24-Bay NAS Enclosure (32 GB RAM)
Synology FS6400 FlashStation 24-Bay Network Storage Enclosure is a highly reliable and ultra-high performance all-flash server for I/O-intensive and latency sensitive applications.
Out of stock
Synology FS3600 FlashStation 24-Bay NAS Enclosure (16 GB RAM)
Synology FS3600 FlashStation 24-Bay Network Storage Enclosure boosts the performance of I/O sensitive applications, such as databases, virtual machines, or online transaction processing (OLTP). Featuring a 12-core CPU and high-speed network connection, the FS3600 delivers over 195,000 iSCSI 4K random write IOPS to satisfy enterprise demand for high-speed infrastructure.
Out of stock
Synology RS2423+ 12-Bay NAS Enclosure (8GB RAM)
Synology RS2423+ 12-Bay NAS Enclosure is a high-performance storage solution designed for businesses that require reliable and scalable storage for their growing data needs.
Out of stock
Synology RS3618xs 12-Bay NAS Enclosure (8GB RAM)
Synology RS3618xs RackStation NAS is a reliable, superior-performance network-attached storage solution for large-scale enterprises with demanding business applications.
Out of stock

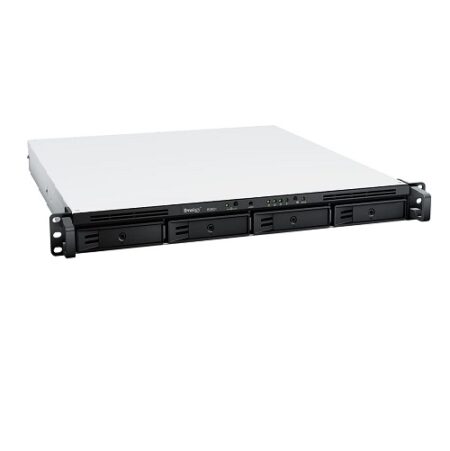

Synology 4-Bay RackStation RS822+ (Diskless)
Synology RackStation RS822+ is a 4-bay rackmount NAS suitable for branch offices and small and medium-sized businesses with ever increasing data management needs.
Out of stock
Synology RS1221+RackStation 8-Bay NAS Enclosure (4GB RAM)
Synology RS1221+RackStation 8-Bay Network Attached NAS Storage Enclosure is perfect for centralizing data management in short rack-depth environments.
Out of stock
Synology FS2500 FlashStation 12-Bay NAS Enclosure (8GB RAM)
Synology FS2500 FlashStation 12-Bay Rackmount NAS Enclosure device accommodates up to twelve (12) 2.5-inch SATA SSDs in a 1U enclosure.Â
Out of stock
Synology SA3600 12-Bay 16 GB RAM Rackmount Network Storage Enclosure (16 GB RAM)
Synology SA3600 12-Bay NAS Enclosure Rackmount Network Attached is designed for large-scale data storage. Its comprehensive data protection solutions, including multi-version backup for server and virtual machines, hybrid cloud integration, and high-availability technology support, make it a reliable server for massive storage deployment.
Out of stock
Synology SA6400 12-Bay NAS Enclosure (32GB RAM)
Synology SA6400 12-Bay NAS Enclosure is a rackmount storage server engineered for scalability & performance.
Out of stock
Synology DS720+ DiskStation 2-Bay NAS Enclosure w/ 2 x M.2 NVMe Slots (2GB RAM)
Synology DS720+ DiskStation 2-Bay NAS Enclosure Device is a compact network-attached storage solution to streamline data and multimedia management.
Out of stock
Synology SA3400 12-Bay Rackmount Network Storage Enclosure Enclosure (16 GB RAM)
Synology SA3400 12-Bay Rackmount Network Storage Enclosure is designed for large and extensive scaling of data storage.
Out of stock

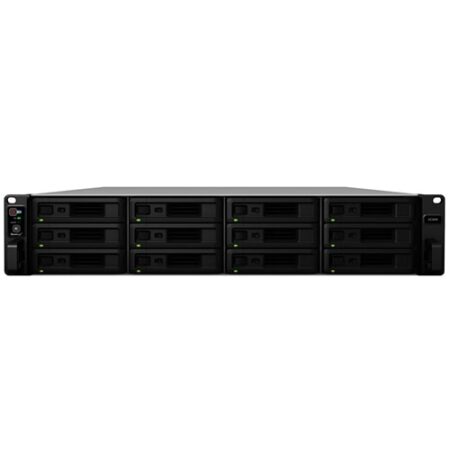

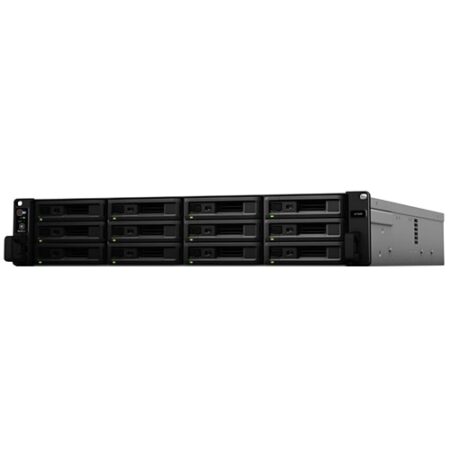

Synology UC3200 Unified Controller 12-Bay Rackmount IP SAN Enclosure (8GB RAM)
The Synology UC3200 Unified Controller 12-Bay Rack mount IP Storage Area SAN Network Enclosure, designed for high-availability IP SAN requirements, offers active-active architecture for non-disruptive iSCSI services.
Out of stock
Reviews
There are no reviews yet.
