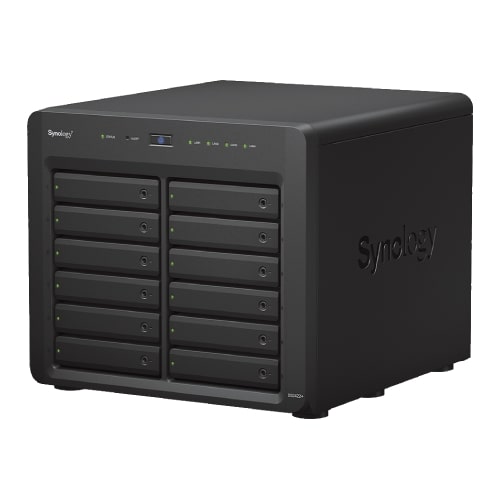

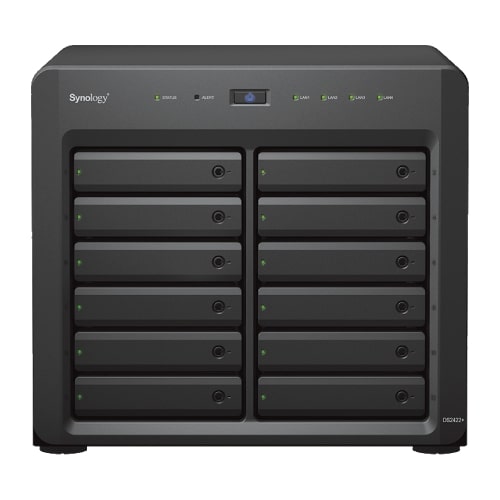

Synology DS2422+ 12-Bay Network Attached Storage Enclosure
£2,148.88 inc.VAT / £1,790.73 exc.VAT
Synology DS2422+ 12-Bay Network Attached Storage Enclosure (4GB RAM)
Synology DS2422+ 12-Bay Network Attached Storage Enclosure is a capable choice for SMB with large storage, file sharing & data protection in a multi-user environment.
Out of stock
Synology DS2422+ 12-Bay Network Attached Storage Enclosure (4GB RAM)
Synology DS2422+ 12-Bay Network Attached Storage Enclosure
Synology DS2422+ 12-Bay Network Attached Storage Enclosure is a capable choice for small and medium businesses with large storage, file sharing, and data protection requirements in a multi-user environment.
It comes with powerful storage management, file syncing, surveillance and backup software, and is suitable for use as VM storage and editing high-quality video.
With support for up to 32 GB of memory, NVMe SSD cache, and 25GbE network cards, the DS2422+ is ready for large-scale business applications.
Flexible large-scale storage for small and medium-sized businesses.
Key Features
- Delivers up to 2,201 MB/s read and 1,383 MB/s sequential write performance.
- Leverage up to 32 GB memory, 10/25GbE networking or NVMe SSD Cache to boost read and write speed.
- Supports twelve (12) SATA HDD/SSD 2.5″ and 3.5″ drives (sold separately).
- Features AMD Ryzen quad-core processor.
- Boost bandwidth with 10GbE SFP+/RJ45 and 25GbE SFP28 NICs, drive down latency with NVMe SSD cache or add both 10GbE and NVMe SSD with a combination card using the PCIe Gen 3.0 slot.
- Comfortably run demanding applications and processes with multiple users on the DS2422+ while still enjoying a smooth and fast experience.
Rise to the challenge
Prepare your DS2422+ for heavy workloads or upgrade flexibly as your business continues to grow. Use add-in cards (sold separately) to add bandwidth, fast SSD cache, or both.
Maximize bandwidth
Handle heavier input/output and serve more users with dual-port Synology 10 or 25GbE network interface cards (sold separately).
Boost storage performance
Accelerate HDD arrays with an M.2 NVMe SSD adapter card and SNV3000 series SSDs, or install SAT5200 SATA SSDs in drive bays to increase performance with SSD cache (sold separately).
Do both with one card
Add both 10GbE connectivity and M.2 NVMe SSD slots for SSD cache with a single combination NIC and adapter card (sold separately).
Powered by Synology DiskStation Manager
Data Protection
Safeguard your data with user management and system administration tools on Synology’s DiskStation Manager (DSM) coupled with powerful storage technology and support for the Btrfs file system.
- Advanced snapshot technology provides schedulable and near-instantaneous data protection for shared folders and LUNs
- File and folder-level data restoration enables recovery of specific files or folders
- Flexible storage quota system helps admins manage available space by specifying storage limits for shared folders
- File self-healing detects and recovers corrupted files using mirrored metadata and RAID configurations
- Inline compression minimizes storage consumption and extends the life of drives by compressing data before it is written to the storage pool
Backup Solutions
DSM comes standard with a complete package of backup solutions available at no extra cost.
- Active Backup Suite includes backup solutions for Windows and Linux computers, VMs, other file servers, and SaaS applications.
- Snapshot Replication creates point-in-time copies of shared folders and LUNs to protect them from accidental modifications or ransomware incidents.
- Hyper Backup backs up your NAS data to multiple destinations securely and efficiently with integrity checks and powerful deduplication, compression, and versioning options.
- C2 Storage for Hyper Backup offers a dedicated secure public cloud destination for Synology NAS backup data
Remote Work and Collaboration Tools
Synology’s productivity suite provides a private cloud solution for on-site and remote workers to concurrently edit documents, share files, manage emails, send instant messages, and more.
By leveraging private cloud infrastructure, businesses can ensure complete data ownership and multi-layered security.
- Synology Office lets multiple users edit, comment on, and share files together using Synology Documents, Spreadsheets, and Slides.
- Synology Drive is a cloud file management solution that supports remote data access, synchronization, on-demand file restoration, and backup.
- Synology Chat brings teams together with one-on-one chats, group chats, and encrypted private channels over multiple platforms.
- Synology MailPlus provides a secure, reliable, and private email server.
- Synology Calendar helps teams keep track of what is most important with convenient event sharing and scheduling.
- Synology Hybrid Share offloads synchronization processes from the NAS to Synology C2 cloud storage, removing the need for direct data transfers between branches while reducing bandwidth costs.
Surveillance
Protect your home or business with intelligent monitoring and video management tools. Surveillance Station transforms the DS2422+ into a powerful Network Video Recorder solution with support for up to 40 IP cameras.
- 7,900+ supported camera models
- ONVIF support for a broader selection of cameras
- Private, subscription-free storage of recordings
- Access through web browsers, desktop clients, or mobile apps
- Event-based rules to trigger specific actions
- Email, SMS, and push notification options
Virtualization and Certified Storage
Your DS2422+ can serve as virtual machine storage, host its own virtual machines (VMs) using Virtual Machine Manager (VMM), and run Docker containers.
Virtualization solutions in DSM streamline provisioning for and management of VMs with full certification for VMware vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack virtualization environments.
- VMM is a hosted hypervisor for virtual machines running Windows, Linux, or virtualised versions of DSM with recovery mechanisms that ensure data protection for each VM9
- Synology Storage Console for VMware or Windows platforms lets you manage VM storage components directly from your hypervisor. VMware VAAI integration and Windows ODX help offload storage operations and speed up data transfer
User Management
Manage user accounts and devices throughout your business with powerful directory services.
Security
Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.
File Management
Manage, sync, and share files from multiple devices through a centralised platform.
System Administration
Manage the health of your deployments and centrally administer updates with ease.
Specifications
CPU
- AMD Ryzen V1500B quad-core 2.2 GHz
Hardware encryption engine
- Yes (AES-NI)
Memory
- 4 GB DDR4 ECC SODIMM (expandable up to 32 GB with 2 x D4ES01-16G)
Compatible drive types
- 12 x 3.5″ or 2.5″ SATA HDD/SSD (drives not included)
- Only drives listed on the compatibility list can be used to create storage pools
Hot-swappable drives
- Yes

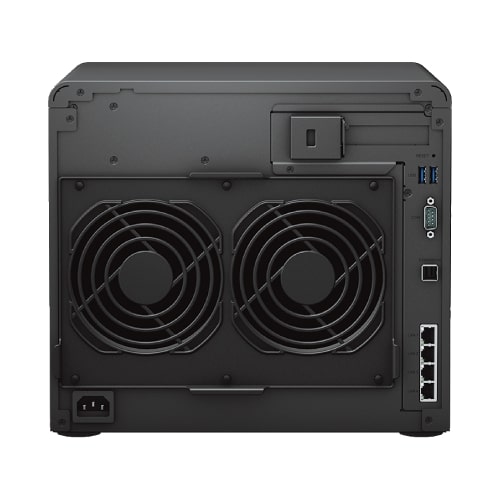

External ports
- 2 x USB 3.2 Gen 1 ports
- 1 x Expansion port (Mini-SAS HD)
Form factor
- Desktop
Size (HxWxD)
- 270 mm x 300 mm x 340 mm
Weight
- 9.5 kg
LAN ports
- 4 x 1GbE RJ45
Wake on LAN/WAN
- Yes
PCIe expansion
- 1 x 8 width slot, Gen 3.0 x4 lanes
- Supports network interface cards, M.2 NVMe adapter cards for SSD cache and combination cards (sold separately)
Scheduled power on/off
- Yes
System fans
- 2 (120 x 120 x 25 mm)
AC input power voltage
- 100 V to 240 V AC
Power frequency
- 50/60 Hz, single-phase
Operating temperature
- 0°C to 40°C (32°F to 104°F)
Storage temperature
- -20°C to 60°C (-5°F to 140°F)
Relative humidity
- 5% to 95% RH
Maximum operating altitude
- 5,000 m (16,400 ft)
Networking protocols
- SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN, L2TP)
File systemsÂ
- Internal: Btrfs, ext4
- External: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT
Supported RAID types
- Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10
Storage management
- Maximum single volume size: 108 TB
- Maximum system snapshots: 65,53610
- Maximum internal volumes: 64
SSD cache
- Read/write cache support
- M.2 NVMe or 2.5″ SATA SSD support
File sharing capabilities
- Maximum local user accounts: 2,048
- Maximum local groups: 256
- Maximum shared folders: 512
- Maximum concurrent SMB/NFS/AFP/FTP connections: 1,000
Privileges
- Windows Access Control List (ACL) and application privileges.
Directory services
- Connects with Windows AD/LDAP servers enabling domain users to login via SMB/NFS/AFP/FTP/File Station using their existing credentials.
Virtualisation
- VMware vSphere, Microsoft Hyper-V, Citrix, and OpenStack.
Security
- Firewall, shared folder encryption, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let’s Encrypt support, and HTTPS (customisable cipher suite).
Supported browsers
- Chrome, Firefox, Edge, Internet Explorer 10 and later, Safari 10 and later, Safari (iOS 10 and later), Chrome (Android 6.0 and later) on tablets.
Drive
- Synchronises files across Windows, macOS, Linux, Android and iOS. The built-in cross-platform portal allows access to data anytime and anywhere.
- Maximum number of hosted files: 50,000,000
- Maximum number of concurrent connections for PC clients: 550
File Station
- Provides virtual drives, remote folders, Windows ACL editor, compression/extraction of archived files, bandwidth control for specific users/groups, creation of sharing links, and transfer logs.
Hybrid Share
- Efficiently synchronises files across sites by keeping shared data on Synology C2 Storage and streaming files to Synology NAS worldwide on request. Frequently requested files are cached at each site for low-latency access.
FTP Server
- Supports bandwidth control for TCP connections, custom FTP passive port ranges, anonymous FTP, FTP over TLS/SSL and SFTP protocols, network booting with TFTP and PXE support, and transfer logs.
Presto File Server
- Enables high-speed data transfer over WAN through the exclusive SITA technology between Synology NAS and desktop platforms.
Cloud Sync
- Offers one or two-way synchronisation with public cloud storage providers, including Alibaba Cloud OSS, Backblaze B2, Baidu Cloud, Box, Dropbox, Google Cloud Storage, Google Drive, hubiC, MegaDisk, Microsoft OneDrive, OpenStack Swift-compatible storage, Tencent COS, WebDAV servers, and Yandex Disk.
Universal Search
- Search through files, metadata, and more on your NAS. Integration with Windows Search and macOS Spotlight makes it easy to find files.
Migration Assistant
- Migrates data, system setting, and applications seamlessly from one Synology NAS to another to ensure maximum service availability.
SAN Manager
- Maximum iSCSI targets: 128
- Maximum LUNs: 256
- LUN clone/snapshot, Windows ODX support
Virtual Machine Manager
- Supports running Windows, Linux, and Virtual DSM-based virtual machines on Synology NAS.
Hyper Backup
- Supports local backup, network backup, and data backup to other devices, Synology NAS, and public clouds including C2 Storage.
Backup tools
- DSM configuration backup, macOS Time Machine support, Synology Drive Client desktop application
- Shared folder sync supports a maximum of 16 tasks
Snapshot Replication
- Maximum number of snapshots for shared folders: 1,024
- Maximum number of replications: 32
Synology High Availability
- Reduces service downtime by combining two identical NAS into a high-availability cluster.
Active Backup for Google Workspace
- Supports backup and restoration of Google Workspace My Drive, Team Drive, Gmail, Contacts, and Calendar.
Active Backup for Microsoft 365
- Supports backup and restoration of Microsoft 365 OneDrive for Business, Outlook, Contacts, and Calendar.
Active Backup for Business
- An all-in-one backup solution designed for heterogeneous business IT environments that enables admins to remotely manage PC, server, and VM backups from one centralised console.
Collaboration tools
- Collaborate with instant messaging service Synology Chat, online office suite, Synology Office, and scheduling assistant Synology Calendar.
- Maximum users for Chat: 1,500
- Maximum users for Office: 1,800
- Calendar supports CalDAV and access via mobile devices
Note Station
- A note-taking platform that supports rich text, note organisation and versioning, encryption, sharing, media embedding, and attachments.
Synology MailPlus Server
- A secure, reliable, and private mail solution that offers high availability, load balancing, security, and filtering options.
Synology MailPlus
- An intuitive webmail interface for Synology MailPlus Server with configurable mail labels, filters, and user interface.
Synology Photos
- An efficient photo management solution for professional and amateur photographers. Automated tools allow users to group, filter, organise, and share content while keeping their photos safe and secure.
Other packages
- Video Station, Audio Station, and iTunes Server.
Surveillance Station
- Maximum IP cameras: 40, for a total of 1,200 FPS at 720p (H.264).
Synology Directory Server
- Provides a flexible and cost-effective domain controller solution.
Central Management System
- Provides a single interface to manage and monitor multiple Synology NAS.
VPN Server
- Maximum connections: 30
- Supported VPN protocols: PPTP, OpenVPN, L2DTP/IPSec
Active Insight
- Monitor the vitals of your Synology NAS fleet from a centralised online portal to gain insights, view historical trends, and ensure performance bottlenecks are smoothed out.
Storage Analyser
- Displays volume and quota usage, total size of files, volume usage and trends based on past usage, size of shared folders, large files, most recently modified files, and least recently accessed files.
Antivirus Essential
- Provides full system scans, scheduled scans, white list customization, and auto-update of virus definitions.
Web Station
- Enables hosting for up to 30 websites with support for PHP/MariaDB and 3rd-party applications.
- Other packages DNS Server, RADIUS Server, and Log Center.
iOS/Android applications
- Synology Drive, Synology MailPlus, Synology Secure SignIn, Synology Chat, Synology LiveCam, Synology Photos, Synology Active Insight, DS audio, DS photo, DS video, DS cam, DS file, DS finder, and DS note.
Other packagesÂ
- Additional 3rd-party packages are available in the Package Center.
Environmental safety
- RoHS compliant
Package contents
- 1 x Synology DS2422+ Enclosure
- 1 x Quick Installation Guide
- 1 x Accessory pack
- 1 x AC power cord
- 2 x RJ45 LAN cables
Standard Warranty: 3-Years
Only logged in customers who have purchased this product may leave a review.
Related Products
Synology FS3600 FlashStation 24-Bay NAS Enclosure (16 GB RAM)
Synology FS3600 FlashStation 24-Bay Network Storage Enclosure boosts the performance of I/O sensitive applications, such as databases, virtual machines, or online transaction processing (OLTP). Featuring a 12-core CPU and high-speed network connection, the FS3600 delivers over 195,000 iSCSI 4K random write IOPS to satisfy enterprise demand for high-speed infrastructure.
Out of stock
Synology 60-Bay Rackmount High Density Storage Server Hd6500 (Diskless)
Synology High Density HD6500 – NAS Server with 60 bays in a 4U rackmount enclosure and support for up to 300 drives after expansion, the Synology HD6500 is the ideal high-density storage solution for large-scale warm and cold storage applications
Out of stock
Synology FS6400 FlashStation 24-Bay NAS Enclosure (32 GB RAM)
Synology FS6400 FlashStation 24-Bay Network Storage Enclosure is a highly reliable and ultra-high performance all-flash server for I/O-intensive and latency sensitive applications.
Out of stock
Synology DS720+ DiskStation 2-Bay NAS Enclosure w/ 2 x M.2 NVMe Slots (2GB RAM)
Synology DS720+ DiskStation 2-Bay NAS Enclosure Device is a compact network-attached storage solution to streamline data and multimedia management.
Out of stock
Synology 4-Bay RackStation RS822+ (Diskless)
Synology RackStation RS822+ is a 4-bay rackmount NAS suitable for branch offices and small and medium-sized businesses with ever increasing data management needs.
Out of stock
Synology SA3400 12-Bay Rackmount Network Storage Enclosure Enclosure (16 GB RAM)
Synology SA3400 12-Bay Rackmount Network Storage Enclosure is designed for large and extensive scaling of data storage.
Out of stock
Synology DS220+ 2-Bay 8TB NAS w/ 2x4TB IronWolf
Synology DS220+ 2-Bay 8TB Network Storage Bundle is a compact network-attached storage solution designed to streamline your data and multimedia management.
Out of stock
Synology RS820RP+RackStation 4-Bay NAS Enclosure (2GB RAM)
The Synology RS820RP+ RackStation 4-Bay Rackmount Network Attached NAS Storage Enclosure is designed for businesses pursuing an effective and centralised data management. It comes with four (4) drive trays and four (4) 1GbE LAN ports, and supports an optional 10GbE network or M.2 SSD adapter card (sold separately), providing fast data transmission and reducing IO latency. Powered by a 4-core processor, the RS820RP+ provides both high performance and scalable storage, ideal for file sharing across different platforms and data backup. Furthermore, the RS820RP+ is equipped with redundant power supplies to achieve service continuity.
Out of stock
Synology DS1821+ DiskStation 8-Bay NAS Enclosure w/ 2 x M.2 NVMe Slots (4GB RAM)
Synology DS1821+ DiskStation 8-Bay Network Storage Enclosure is a powerful 8-bay network attached storage solution designed to store and protect mission-critical data.
Out of stock
Synology DS1522+ 5-Bay NAS Enclosure w/ 2 x M.2 NVMe Slots (8GB RAM)
Synology DS1522+ 5-Bay NAS Enclosure device is easy to scale and expand as your needs change, with optional support for up to 15 drives, 10GbE networking, and NVMe SSD caching.
Out of stock
Synology FS2500 FlashStation 12-Bay NAS Enclosure (8GB RAM)
Synology FS2500 FlashStation 12-Bay Rackmount NAS Enclosure device accommodates up to twelve (12) 2.5-inch SATA SSDs in a 1U enclosure.Â
Out of stock
Synology RS1221+RackStation 8-Bay NAS Enclosure (4GB RAM)
Synology RS1221+RackStation 8-Bay Network Attached NAS Storage Enclosure is perfect for centralizing data management in short rack-depth environments.
Out of stock
Reviews
There are no reviews yet.
