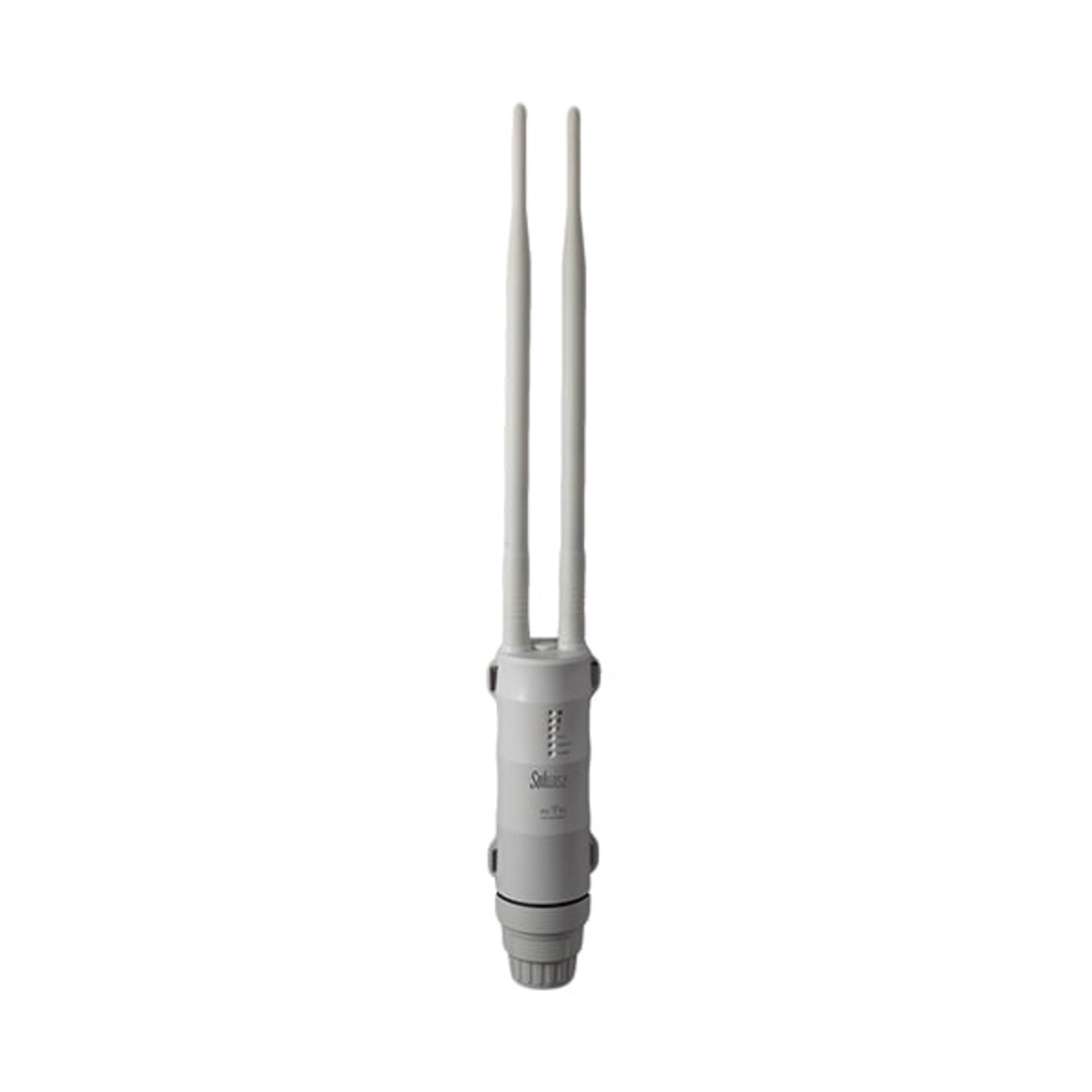

Solwise WL-PATRIOT-DB Outdoor Dual-Band WiFi 5 Access Point (AC)
£60.77 inc.VAT / £50.64 exc.VAT
Solwise Patriot-DB Outdoor 7dBi WiFi 5 Passive PoE Access Point w/ 2 x RP-SMA Female Antennas (583Mbps AC)
Solwise WL-PATRIOT-DB Outdoor Dual-Band WiFi 5 Access Point (AC)Â can be used as a general-purpose outdoor access point and includes a range of additional modes enabling it to function as a high performance WiFi client device
Solwise Patriot-DB Outdoor 7dBi WiFi 5 Passive PoE Access Point w/ 2 x RP-SMA Female Antennas (583Mbps AC)
Solwise WL-PATRIOT-DB Outdoor Dual-Band WiFi 5 Access Point (AC)
Solwise WL-PATRIOT-DB Outdoor Dual-Band WiFi 5 Access Point (AC)Â can be used as a general-purpose outdoor access point and includes a range of additional modes enabling it to function as a high performance WiFi client device.
These capabilities allow the WL-PATRIOT-DB to receive weak WiFi signals in caravan/lodge parks, campsites, marinas, and similar spaces where public wireless services are made available.
The WL-PATRIOT-DB has the capability to relay WiFi by simultaneously receiving a signal on the 2.4GHz band and broadcasting on the 5GHz band, or even vice-versa, effectively boosting the connectivity and speed on handheld client devices like smartphones and tablets from otherwise weak WiFi networks.
Key Features
- IEEE 802.11 ac/a/b/g/n standards.
- WiFi speeds up to 2.4Ghz 150Mbps and 5Ghz 433Mbps.
- Weatherproof RJ45 connector with integrated passive Power over Ethernet (PoE).
- Passive PoE support for flexible deployment.
- Provides high performance over long range links.
- Up to 1000mW of transmit power and enhanced receive sensitivity.
- Robust weatherproof case – IP Rating 65.
- Operations modes; Router, AP, Repeater and WISP (Client Router).
- High security with 802.11X, WAP, and WPA2.
- Three (3) LEDs displaying signal strength.
- Built in lightning protection (15kV ESD)
Weatherproof for outdoor use
It is advised that you take caution when using the repeater functions in public spaces due to interference and bandwidth restriction issues.
Where the outer walls of a lodge, vehicle, or vessel may prove restrictive for wireless signals, the WL-PATRIOT-DB could be mounted to the exterior to establish a connection to the site’s WiFi network and connected to a suitable indoor access point/router to provide a private service within your boat/van/lodge.
Specifications
Hardware
Ports
- 1 x WAN / LAN (10/100 BaseT)
Button
- 1 x Reset 8s
LEDs
- 1 x Power
- 1 x WAN/LAN
- 1 x WiFi
- 3 x Signal strength
Chipset
- MT7688A+7610E
Flash
- Flash 64Mb
DDR2
- 512Mb
Power Supply
- DC24V / 0.5A Power over Ethernet (Passive PoE)
- Note:Â Mains power adapter included
Power Consumption
- 7W max
Mains Adapter
- Input: 100-240 Vac. 50 / 60hz
Physical
Dimensions
- Unit only: 18 x 5 x 5 cm
- Antennas: 25 cm
Environmental
Operating Temperature
- -30ºC to 70ºC (-22ºF to 158°F)
Storage Temperature
- -40ºC to 70ºC (40ºF to 158ºF)
Relative Humidity (Operational)
- 10% – 90% non-condensing
Relative Humidity (Storage)
- 10% – 90% non-condensing
Wireless
Standard
- IEEE 802.11b/g/n/a/ac
Frequency Band(s)
- 2.4Ghz & 5Ghz
Transmit Power
- 30dBm max
- Note:Â Subject to local legal restrictions
Sensitivity
- 802.11b: -93dBm / 802.11g: – 74dBm / 802.11n: – 68dBm
Protocols and speeds
- 802.11ac: up to 433Mbps
- 802.11n: up to 150Mbps
- 802.11a: up to 54Mbps
- 802.11g: 54Mbps
- 802.11b: 11Mbps
- Note:Â Maximum Ethernet throughput is 100Mbps
Wireless Security
- WPA-PSK / WPA2-PSK encryption
Antennas
- 2 x 7dBi Detachable Omni Directional (RP-SMA Female Connectors)
Range
- Outdoor: 500m (Typical)
- Indoor: 150m (Typical)
- Note:Â Range will be dependant on the transmit power and receive sensitivity of the remote device.
Firmware
WAN Type
- PPPoE / Dynamic IP / Static IP / WISP / Repeater
DHCP Settings
- Server / Client
Function Time
- Setting / DDNS / Static Router / DHCP Server / Wireless Setting
Operating Modes
- AP, Client, Client Router, Repeater, Bridge
IP Rating
- IP65
Standard Warranty: 1-Year
