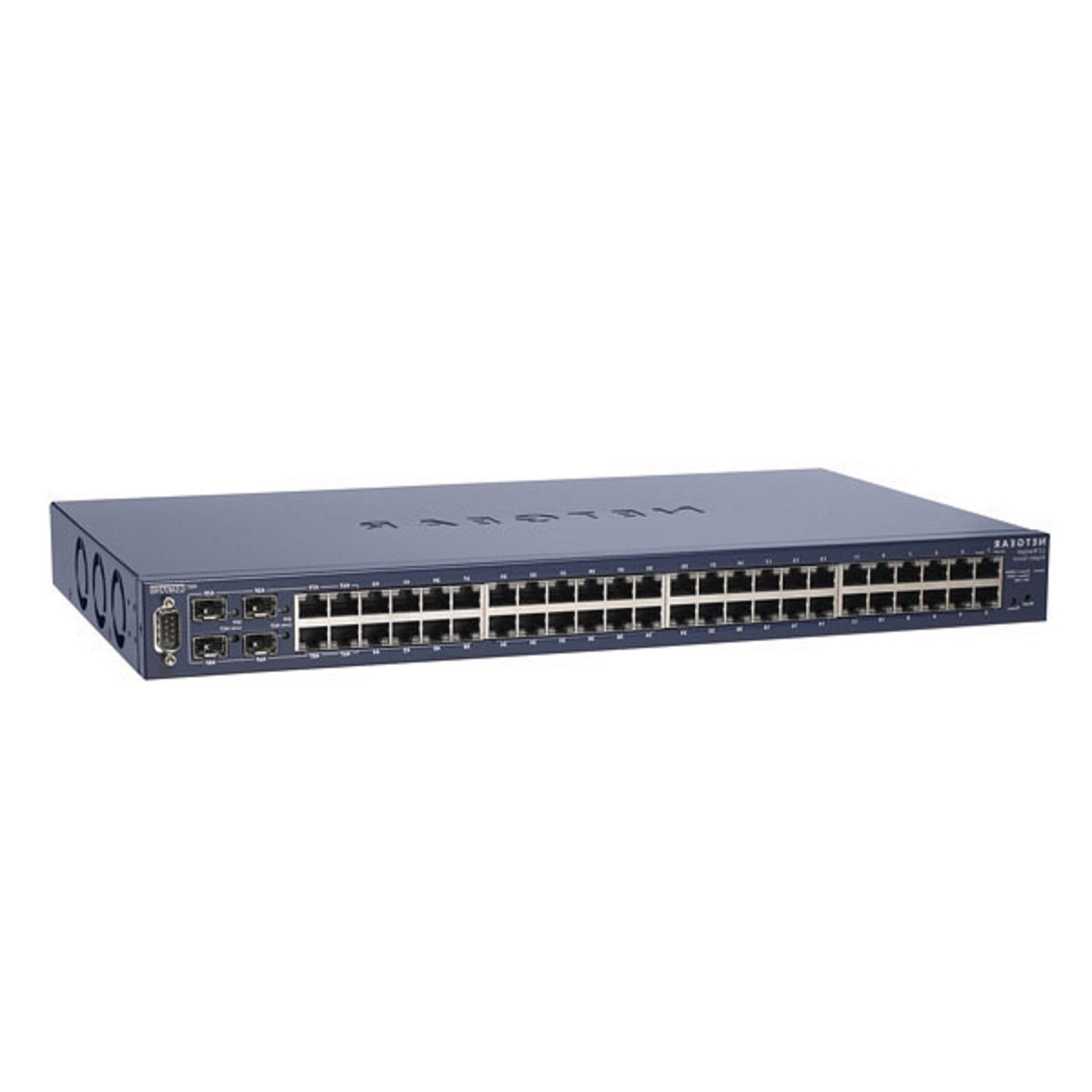

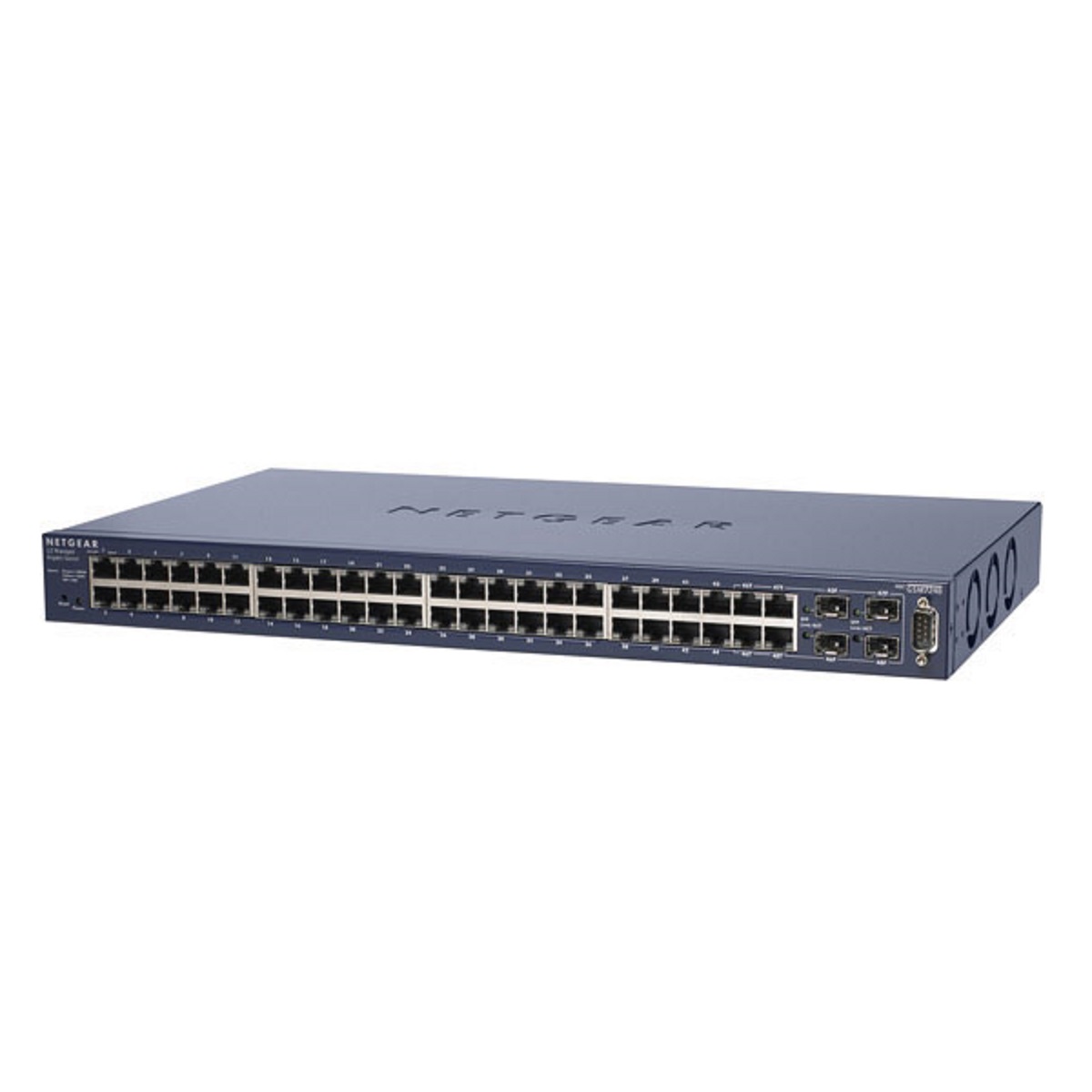

NETGEAR GSM7248-200EUS – M4100-50G network switch Managed L2
£625.97 inc.VAT / £521.64 exc.VAT
Netgear ProSafe GSM7248-200EUS – M4100-50G Managed Switch
Netgear GSM7248-200EUS – M4100-50G Managed Switch is ideal for all organisations considering reliable, affordable and simple access layer switching with CLI, advanced scripting capabilities and Layer 3 routing.
Out of stock
Netgear ProSafe GSM7248-200EUS – M4100-50G Managed Switch
NETGEAR GSM7248-200EUS – M4100-50G network switch Managed L2
NETGEAR GSM7248-200EUS – M4100-50G network switch Managed L2 is ideal for all organisations considering reliable, affordable and simple access layer switching with CLI, advanced scripting capabilities and Layer 3 routing.
GSM7248-200EUS network switch Managed L2
Key Features
- Broad portfolio of access layer solutions, ranging from 12 ports Fast Ethernet to 50 ports Gigabit Ethernet
- 802.3af PoE and 802.3at PoE+ best fit, ranging from 120W to 1,440W power budget per switch
- IPv4 routing in Layer 2+ package (L3 static routing) with IPv4/IPv6 ACLs and QoS
- High value L2/L3 tables with 16K MAC, 512 ARP/NDP, 9K jumbo frames, 1K VLANs, 64 static L3 routes
- Redundant power supply option for uninterruptible operation (RPS)
As a cost effective component of converged voice, video data and network solutions, the Netgear ProSafe M4100-50G Managed Switch delivers a secure edge in commercial buildings and campus LAN environments: PoE (802.3af) and PoE+ (802.3at) versions of M4100 series are perfect for Wireless access points, IP telephony and IP surveillance deployments.
Layer 2+ with static routing
The M4100-50G comes with Port-based / VLAN-based / Subnet-based “static routing” Layer 2+ versions and L3 fixed routes to the next hop towards the destination network are added to the routing table and the L3 routing is wire-speed in M4100 series hardware with 64 static routes (IPv4).
Engineered for convergence
The Automatic multi-vendor Voice over IP prioritization is based on SIP, H323 and SCCP protocol. The M4100-50G also have Voice VLAN and LLDP-MED for automatic IP phones QoS and VLAN configuration and Advanced classifier-based hardware for L2, L3, L4 security and prioritization. In addition, M4100-50G includes Advanced Multicast filtering with IGMP and MLD snooping and querier modes
High value performance and IPv6 ready
TheM4100-50GÂ features 16K MAC addresses; up to 100Gbps switching fabric; 9K jumbo frames; Green Ethernet as well as IPv4/IPv6 ingress traffic filtering (ACLs) and prioritization (QoS – DiffServ).
Specifications
Physical Interfaces
- Auto-sensing RJ45 10/100/1000: 50
- Auto-sensing SFP ports 100/1000Base-X: 4 (shared)
- Storage Port: 1 x USB Firmware, Configuration Files
- Power Supply: Fixed, internal
- RPS/ EPS connector: 1
- Console port (selectable): Serial RS232 DB9, Mini-USB
- Physical security: 1 Kensington Lock Slot
- Total Gigabit Port Count: 50 ports total
Processor/ Memory
- Processor (CPU): Broadcom BCM53003 @ 600MHz
- System memory (RAM): 128 MB
- Code storage (flash): 32 MB, Dual firmware image, dual configuration file
- Packet Buffer Memory: 12 Mb, Dynamically shared across only used ports
Performance Summary
- Switching fabric: 100 Gbps
- Throughput: 74.405 Mpps
- Green Ethernet: Energy Efficient Ethernet (EEE), IEEE 802.3az Energy Efficient Ethernet Task Force compliance
- Forwarding Mode: Store-and-forward
- Latency (64-byte frames, 100 Mbps, Copper): <10.194 μs
- Latency (64-byte frames, 1Gbps, Copper): <3.91 μs
- Addressing: 48-bit MAC address
- Address database size: 16,000 MAC addresses
- Number of VLANs: 1,024 VLANs (802.1Q) simultaneously
- Number of multicast groups filtered (IGMP): 1K
- Number of Link Aggregation Groups (LAGs – 802.3ad): 12 LAGs with up to 8 ports per group
- Number of hardware queues for QoS: 8 queues
- Number of static routes (IPv4): 64
- Number of IP interfaces (port or VLAN): 64
- Jumbo frame support: up to 9K packet size
- Acoustic noise (ANSI-S10.12) @ 25 °C ambient (77 °F): <37.2dB
- Heat Dissipation (BTU) (Maximum): 169 Btu/hr
- Mean Time Between Failures (MTBF) @ 25 °C ambient (77 °F): 489,311 hours (~55.9 years)
- Mean Time Between Failures (MTBF) @ 55 °C ambient (131 °F): 152,639 hours (~17.4 years)
LEDs
- Per port: Speed, Link, Activity, PoE
- Per device: Power, Fan, RPS or PD Mode, Max PoE
Physical Specifications
- Dimensions (Width x Depth x Height): 440 x 257 x 43.2 mm (17.3 x 10.12 x 1.7 in)
- Weight: 3.63 kg (8.36lb)
Power Consumption (all ports used, line-rate traffic, max PoE)
- 49.50W max
Environmental Specifications
- Operating: Temperature: 32° to 122°F (0° to 50°C)
- Operating Humidity: 90% maximum relative humidity, non-condensing
- Operating Altitude: 10,000 ft (3,000 m) maximum
- Storage Temperature: – 4° to 158°F (–20° to 70°C)
- Storage Humidity: 95% maximum relative humidity, non-condensing
- Storage altitude: 10,000 ft (3,000 m) maximum
Package Content
- ProSAFE® M4100 series switch
- Power cord
- Rubber footpads for tabletop installation
- Rubber caps for the SFP sockets
- Mini-USB console cable with one Mini B connector and one type A connector
- Resource CD with links to online documentation: USB drivers for the Mini-USB console; Switch MIB; ProSAFE M4100 Managed
- Switch Quick Installation Guide, ProSAFE M4100 Hardware Installation Guide; ProSAFE Managed Switch Command-Line Interface
- (CLI) User Manual; ProSAFE M4100 and M7100 Managed Switches Administration Manual
Only logged in customers who have purchased this product may leave a review.
Related Products

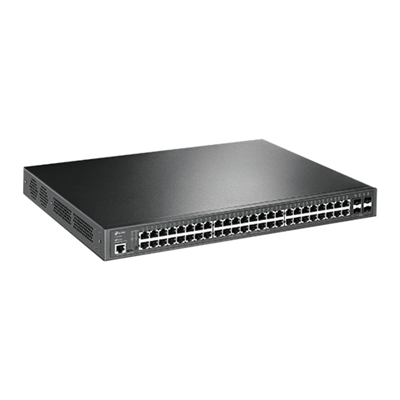

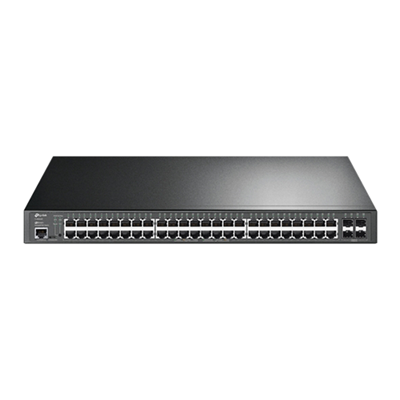

TP-Link TL-SG3452P JetStream 48-Port Layer 2+ Managed Rackmount Gigabit PoE+ Switch w/ 4 x 1Gbps SFP Ports (384W)
The TP-Link TL-SG3452P JetStream 48-Port Layer2+ Managed Rackmount Gigabit PoE+ Switch provides high performance and powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image, mean faster setup and configuration with less downtime. The TL-SG3452P provides a reliable, secure solution for enterprise, campus and ISP networks.
Out of stock

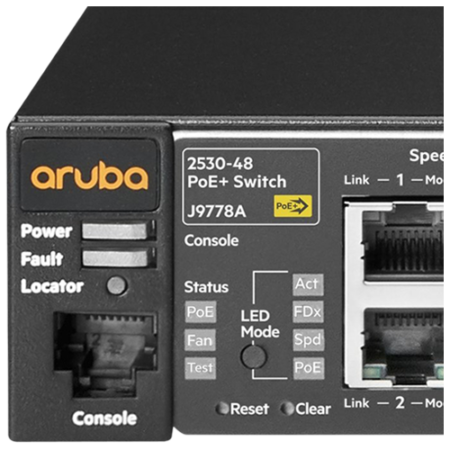

HP 2530-48-PoE+ 48-Port Layer 2 Managed Fast Ethernet PoE+ Switch w/ 2 x 1GbE RJ45 & 2 x 1GbE SFP Ports (382W) J9778A
The HP 2530-48-PoE+ ProCurve Switch (J9778A) is a 48-Port Layer 2 managed Fast Ethernet switch that deliver cost-effective, reliable, secure, and easy-to-use connectivity to business networks. Designed for entry-level to midsize enterprise networks, this HP 2530-48-PoE+ ProCurve Switch delivers full Layer 2 capabilities combined with PoE+, enhanced access security, traffic prioritisation, and IPv6 host support. This HP 2530-48-PoE+ Switch also offers uplink flexibility with two (2) Gigabit Ethernet uplinks and two (2) SFP ports.
Out of stock
Aruba 2530-48G 48-Port Layer 2 Managed Gigabit Ethernet Switch W/ 4x Gigabit SFP Ports J9775A
The HP 2530-48G 48-Port Layer 2 Managed Gigabit Ethernet Switch (J9775A) delivers a cost-effective, reliable, secure, and easy-to-use connectivity to business networks. Designed for entry-level to midsize enterprise networks, this HP 2530-48G (J9775A) Gigabit Ethernet switch deliver full Layer 2 capabilities with enhanced access security, traffic prioritisation, and IPv6 host support. This HP 2530-48G switch also features four (4) Gigabit SFP ports for network uplinks.
Out of stock
HP 2530-48G-PoE+ 48-Port Layer 2 Managed Gigabit PoE+ Switch w/ 4x SFP Ports (382W) J9772A
The HP 2530-48G-PoE+ ProCurve Switch (J9772A) is a 48-Port managed Layer 2 Gigabit switch that deliver cost-effective, reliable, secure, and easy-to-use connectivity to business networks. Designed for entry-level to midsize enterprise networks, this Gigabit Ethernet switch delivers full Layer 2 capabilities combined with PoE+, enhanced access security, traffic prioritisation, and IPv6 host support. This HP 2530-48G-PoE+ Switch also offers uplink flexibility with four Gigabit Ethernet uplinks for SFPs.
Out of stock
HPE 2530-48G-PoE+-2SFP+ 48-Port Layer 2 Managed Gigabit PoE+ Switch w/ 2x Gigabit SFP+ Ports (382W) J9853A
HPE J9853A 48 Port Gigabit Switch provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments.
Out of stock

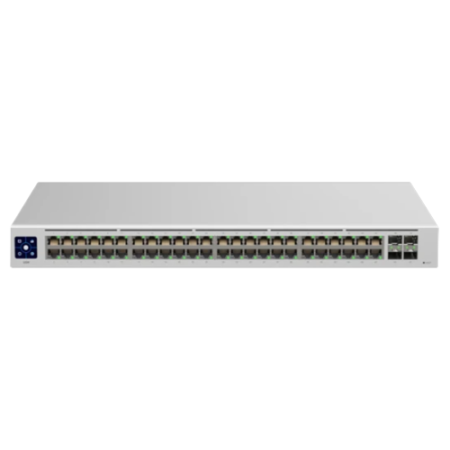

Ubiquiti USW-48 UniFi 48-Port Cloud Managed Rackmount Gigabit Switch w/ 4 x 1GbE SFP Ports
