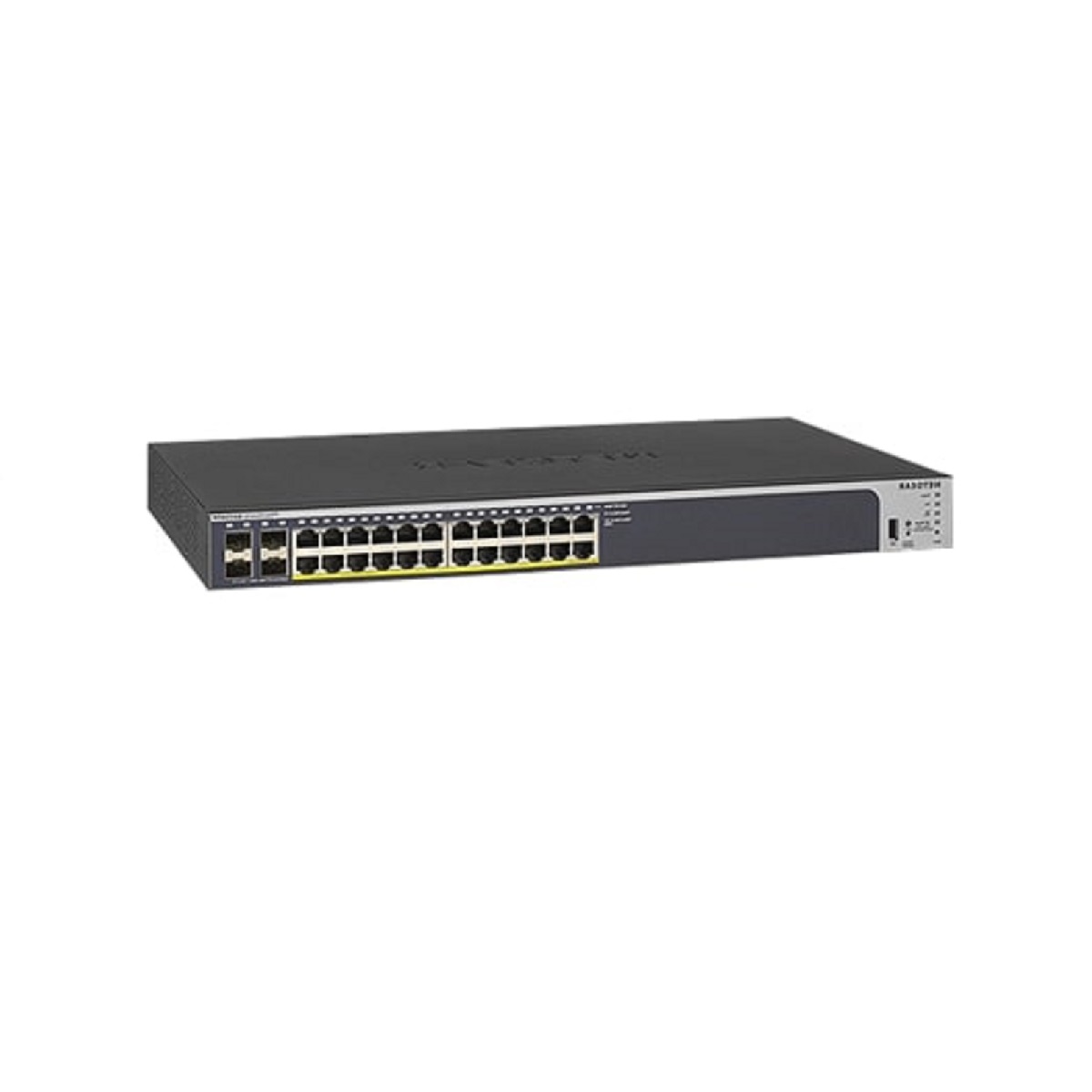

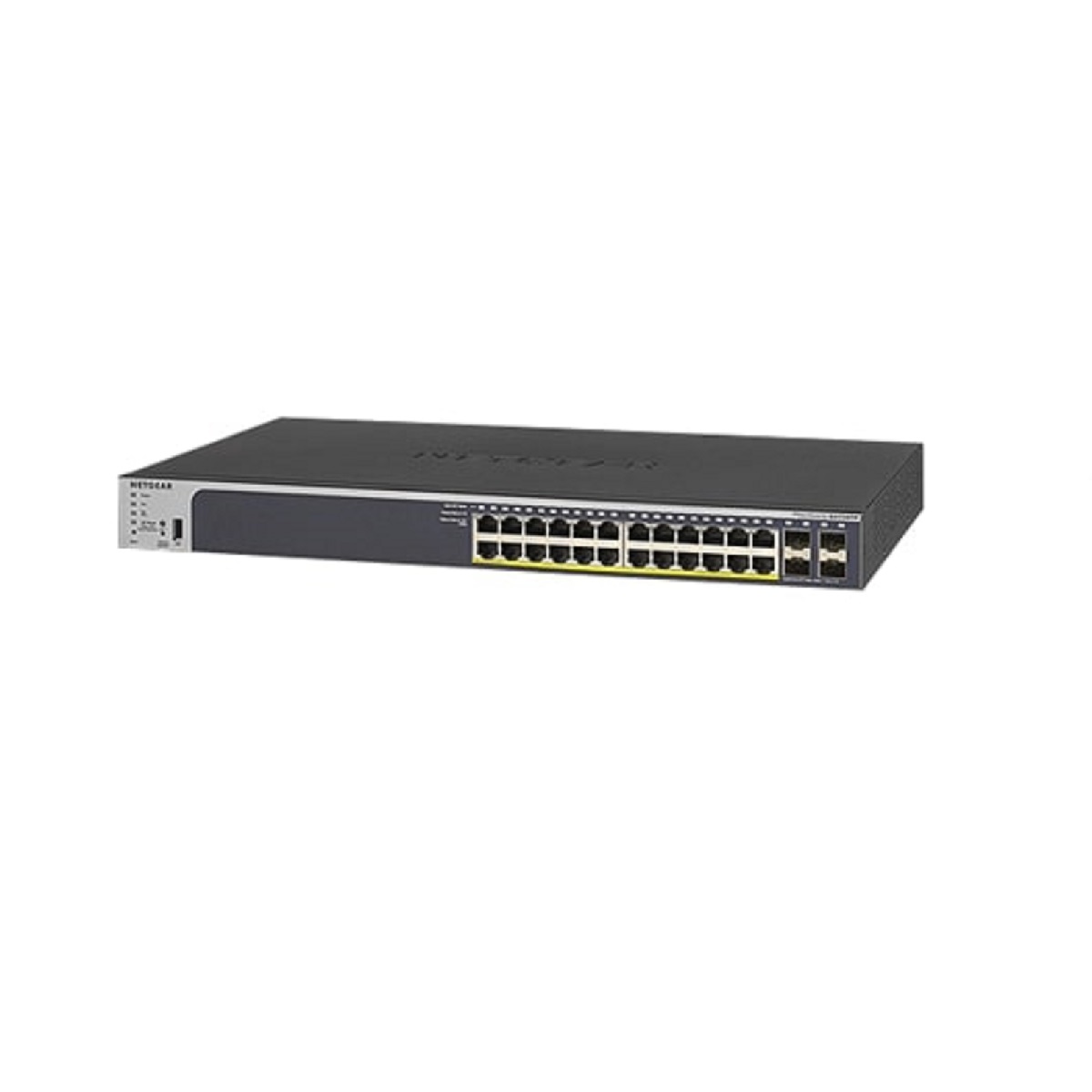

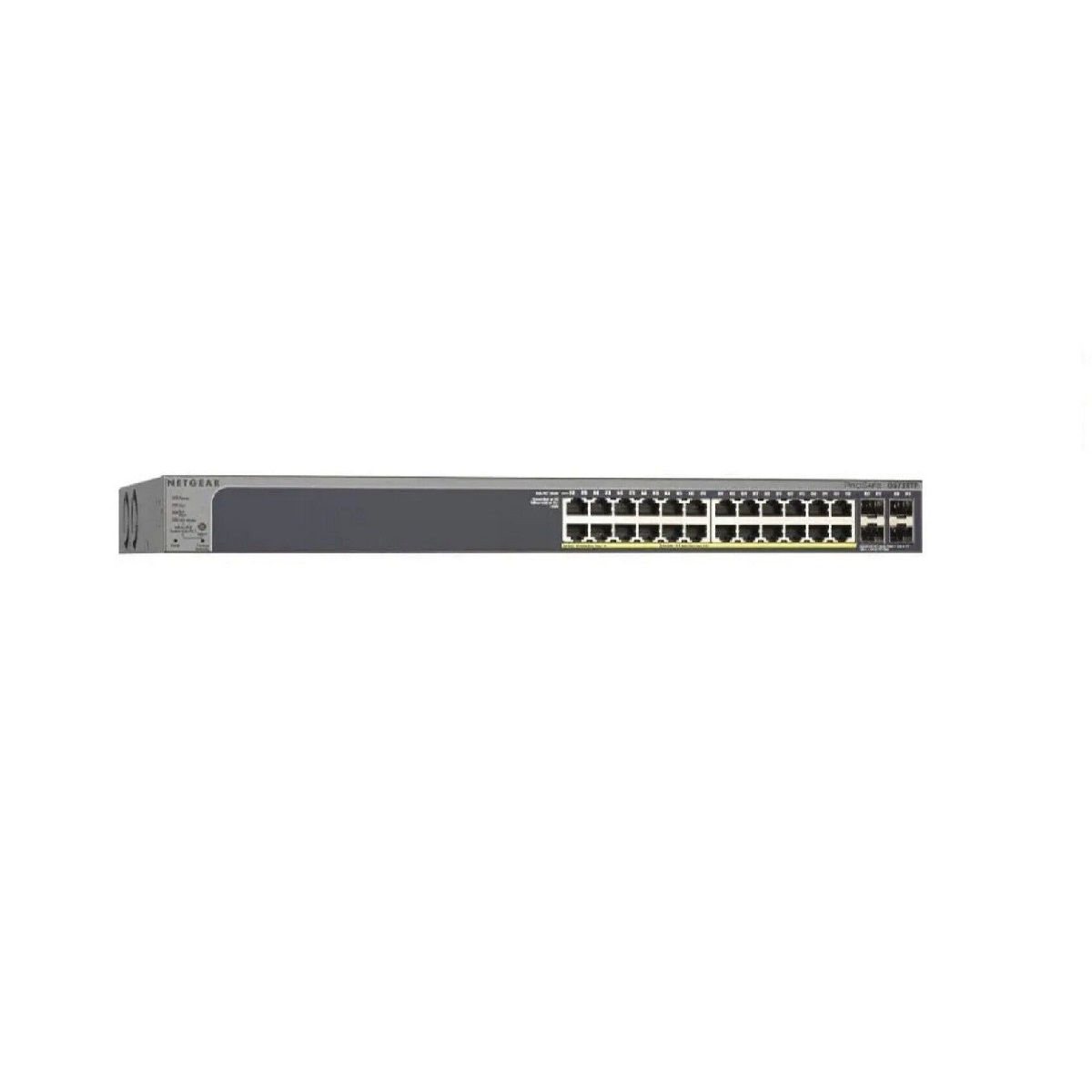

NETGEAR GS728TPv2 Smart Managed PoE+ 24 Port Gigabit Switch
£479.16 inc.VAT / £399.30 exc.VAT
NETGEAR GS728TPv2 24-Port Smart Managed Rackmount Gigabit PoE+ Switch w/ 4x SFP Ports (190W)
NETGEAR GS728TPv2 Smart Managed PoE+ 24 Port Gigabit Switch join the NETGEAR Standalone Smart Managed Pro Switches family, adding full 24 port PoE+ support for deployment.
Out of stock
NETGEAR GS728TPv2 24-Port Smart Managed Rackmount Gigabit PoE+ Switch w/ 4x SFP Ports (190W)
NETGEAR GS728TPv2 Smart Managed PoE+ 24 Port Gigabit Switch
NETGEAR GS728TPv2 Smart Managed PoE+ 24 Port Gigabit Switch join the NETGEAR Standalone Smart Managed Pro Switches family, adding full 24 port PoE+ support for deployment of modern high-power PoE devices.
Cautious spender organizations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 190W over 24-ports.
Gigabit Switch GS728TPv2 Smart Managed PoE+ 24 Port
Key Features
- Twenty Four (24) 10/100/1000 Gigabit Ethernet Ports
- Four (4) 1000BASE-X Fibre SFP Ports
- Quiet rack mounting operation with 27.08dB to 39.74dB at 25°C (77°F) ambient
- Layer 3 static routing with 32 routes (IPv4 and IPv6) for interVLAN local routing
- Manage your switch using the one year FREE subscription to the NETGEAR Insight platform/app.
- Advanced VLAN and Private VLAN support for better network segmentation
- Auto “denial-of-service” (DoS) prevention
- IGMP Snooping and Querier for multicast optimisation
- Multicast VLAN Registration (MVR) for larger L2 multicast networks and AV over IP deployment
- Dynamic ARP for increased security targeting a class of Man in the Middle attack
- Rate limiting and priority queuing for better bandwidth allocation
- Port mirroring for network monitoring
- Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
- Cable test to troubleshoot connection issues
- SNMP v1, v2c, v3 and RMON remote monitoring
Highlights
The NETGEAR PoE+ Gigabit Smart Managed Pro Switches provides a great value, with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoE-based VoIP phones, IP cameras, video-over-IP endpoints and Wireless access points simply and securely.
Advanced features such as IPv4/ IPv6 Layer 3 static routing, LACP link aggregation, DiffServ QoS, Private VLANs, Multicast VLAN Registration and Spanning Tree will satisfy even the most advanced small business networks.
Hardware Features
1000BASE-T Copper Ethernet PoE+ connections
Support high-density VoIP, Surveillance and Wi-Fi AP deployments, scalable for future growth. Never face the risk of running out of PoE ports.
1000BASE-X fibre SFP ports
Four dedicated Gigabit SFP ports for aggregation to the network core. Support for fibre and Copper modules. Can also build dual redundancy by a trunked uplink with link aggregation and failover.
Great choice of PoE port counts and PoE power budgets that can adapt to the business’s needs
190W, 380W or 760W PoE budget available across 24 or 48 Gigabit PoE+ ports (802.3at) – Connect multiple power demanding devices to your network with a single wire for power and connectivity.
Low Acoustics
Temperature-based fan-speed control minimises system acoustic noise in any environment starting at 27.08dB at 25°C (77°F) ambient.
Energy Efficient Ethernet (IEEE 802.3az)
Maximum power reduction for ongoing operation cost savings.
Software Features
Comprehensive IPv6 Support for Management, mACL and QoS
Build current network with future in mind. Ensure investment protection and a smooth migration to an IPv6-based network without switch replacement.
IPv4 & IPv6 Static Routing
A simple way to provide segmentation of the network with internal routing through the switch – reserving the router for external traffic routing only, making the entire network more efficient.
Robust security features:
- 802.1x authentication (EAP)
- Port-based security by locked MAC
- ACL filtering to permit or deny traffic based on MAC and IP addresses
Build a secured, converged network with all types of traffic by preventing external attacks and blocking malware while allowing secure access for authorised users.
Comprehensive QoS features:
- Port-based or 802.1p-based prioritisation
- Layer 3-based (DSCP) prioritisation
- Port-based ingress and egress rate limiting
Advanced controls for optimised network performance and better delivery of mission-critical traffic such as voice and video.
Auto-VoIP, Auto-Voice VLAN, and Auto-Video VLAN
Automatic Voice over IP prioritisation (Auto-VoIP) simplifies most complex multi-vendor IP telephone deployments either based on protocols (SIP) or on OUI bytes (default database and user-based OUIs) in the phone source MAC address, providing the best class of service to VoIP streams (both data and signalling) over other ordinary traffic by classifying traffic, and enabling correct egress queue configuration. Similarly, Auto-Video VLAN enables IGMP snooping to minimise broadcast streams.
IGMP (IPv4) and MLD (IPv6) Snooping and Querier modes with Fast Leave
Facilitate fast receiver joins and leaves for multicast streams. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra multicast router.
Protected Ports
Ensure no exchange of unicast, broadcast, or multicast traffic between the protected ports on the switch, there by improving the security of your converged network. This allows your sensitive phone conversations to stay private and your surveillance video clips can be forwarded to their designated storage device without leakage or alteration.
DHCP Snooping and Dynamic ARP Inspection
Ensure IP address allocation integrity by only allowing DHCP messages from trusted DHCP servers and dropping malformed DHCP messages with a port or MAC address mismatch. Use the DHCP snooping bindings database per port and per VLAN to drop incoming packets that do not match any binding and to enforce source IP/MAC addresses for malicious users traffic elimination.
Dynamic VLAN Assignment (RADIUS)
Dual Firmware ImagesDual firmware images for transparent firmware updates with minimum service interruption.
Specifications
Technical Specifications
10M/100M/1G RJ-45 copper ports
- 24
PoE / PoE+ ports
- 24 PoE+ (190W PoE budget)
1G SFP (fiber) ports
- 4 (dedicated)
USB port (for config file upload/backup & firmware updates)
- Yes
Performance Specification
CPU
- MIPS-34Kc 700MHz Single Core
Packet buffer memory (Dynamically shared across only used ports)
- 1.5 MB
Forwarding modes
- Store-and-forward
Bandwidth
- 56 Gbps
Priority queues
- 8
Priority queuing
- Weighted Round Robin (WRR)
MAC address database size (48-bit MAC addresses)
- 16K
Multicast groups
- 512
Number of IPv4 static routes
- 32
Number of IPv6 static routes
- 32
Number of VLANs
- 256
Number of ARP cache entries
- 512 ARP
Number of DHCP snooping bindings
- 256
Access Control Lists (ACLs)
- 100 shared for MAC, IP and IPv6 ACLs (ingress)
Packet forwarding rate (64 byte packet size) (Mpps)
- 41.67
Jumbo frame support (bytes)
- Up to 10K packet size
Acoustic noise level @ 25°C (dBA) (ANSI-S10.12)
- 27.08dBA
Mean Time Between Failures (MTBF) @ 25°C
- 1,250,365 hours
100M Copper Latency (64-byte; 1518-byte; 9216-byte frames)
- 8.916µs; 9.258µs; 9.009µs
1G Copper Latency (64-byte; 1518-byte; 9216-byte frames)
- 3.388µs; 3.625µs; 3.716µs
1G fiber Latency (64-byte; 1518-byte; 9216-byte frames)
- 3.204µs; 3.209µs; 3.298µs
L2 Services – VLANs
- IEEE 802.1Q VLAN tagging
- IP-based VLANs
- MAC-based VLANs
- Auto-Video VLAN
- GARP with GVRP
- Private VLAN
Auto-VoIP VLAN / Auto-Voice VLAN
- Yes, based on OUI bytes (default database and user-based OUIs) in the phone source MAC address
Auto-VoIP
- Yes, based on protocols (SIP). Prioritizes traffic to a higher queue
Voice VLAN
- Yes, based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED.
L2 Services – Availability
- Broadcast, multicast, unknown unicast storm control
- IEEE 802.3ad – LAGs (LACP)
- IEEE 802.3x (full duplex and flow control)
- IEEE 802.1D Spanning Tree Protocol
- IEEE 802.1w Rapid Spanning Tree Protocol
- IEEE 802.1s Multiple Spanning Tree Protocol
- Layer 2 DHCP Relay
L2 Services – Multicast Filtering
- IGMP snooping (v1, v2 and v3)
- MLD snooping support (v1 and v2)
- IGMP snooping Querier (v2)
- MLD snooping Querier (v1)
- Multicast VLAN Registration (MVR)
L3 Services – DHCP
- DHCP client
- DHCP snooping
L3 Services- Routing
- VLAN routing
- ICMP Router Discovery Protocol (IRDP)
IPv4 static routing
- 32
IPv6 static routing
- 32
Host ARP table (number of entries)
- 512 ARP
Number of IP VLAN interfaces (routed VLANs)
- 15
Link Aggregation
- IEEE 802.3ad – LAGs (LACP)
- Manual Static LAG
# of Static or LACP LAGs # of members in each LAG
- 16 LAGs with max 8 ports in each LAG
Network Monitoring and Discovery Services
- 802.1ab LLDP
- RMON group 1,2,3,9
SNMP
- v1, v2c, v3
Network Security
- IEEE 802.1x
- Guest VLAN
- RADIUS-based VLAN assignment via .1x
- MAC-based .1x
- RADIUS accounting
- IP-based ACLs (IPv4 and IPv6)
- MAC-based ACLs
- TCP/UDP-based ACLs
- MAC lockdown
- MAC lockdown by the number of MACs
- IEEE 802.1x RADIUS port access authentication
- Port-based security by locked MAC addresses
- Dynamic ARP inspection
- Broadcast, unicast, multicast DoS protection
- DoS attacks prevention
Access Control Lists (ACLs)
- L2 / L3 / L4 ingress
Control MAC # Dynamic learned entries
- 4096
Control MAC # static entries
- 48
Quality of Service (QoS)
- Port-based QoS
- Support for IPv6 fields
- IEEE 802.1p COS
- Destination MAC and IP
- IPv4 and v6 DSCP
- IPv4 and IPv6 ToS
- TCP/UDP-based
- Weighted Round Robin (WRR)
- Strict priority queue technology
- Auto-Video VLAN
Port-based rate limiting
- Yes ingress and egress
DiffServ QoS
- Yes ingress
Auto-VoIP VLAN / Auto-Voice VLAN
- Yes, based on OUI bytes (default database and user-based OUIs) in the phone source MAC address
Auto-VoIP
- Yes, based on protocols (SIP). Prioritizes traffic to a higher queue
Voice VLAN
- Yes, based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED
IEEE Network Protocols
- IEEE 802.3 Ethernet
- • IEEE 802.3u 100BASE-T
- • IEEE 802.3ab 1000BASE-T
- • IEEE 802.3af PoE
- • IEEE 802.3at PoE+
- • IEEE 802.3az Energy Efficient Ethernet (EEE)
- • IEEE 802.3ad Trunking (LACP)
- • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX
- • IEEE 802.3x Full-Duplex Flow Control
- • IEEE 802.1Q VLAN Tagging
- • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED)
- • IEEE 802.1p Class of Service
- • IEEE 802.1D Spanning Tree (STP)
- • IEEE 802.1s Multiple Spanning Tree (MSTP)
- • IEEE 802.1w Rapid Spanning Tree (RSTP)
- • IEEE 802.1x RADIUS Network Access Control
Management
- Password management
- Configurable management VLAN
- Admin access control via RADIUS and TACACS+
- IPv6 management
- SNTP client over UDP port 123
- SNMP v1/v2c
- SNMP v3 with multiple IP addresses
- RMON group 1,2,3,9
- Web browser-based graphical user interface (GUI)
- Smart Control Center (SCC) for multi-switch management
- Dual software (firmware) image
- Cable test utility
- HTTP upload/download (firmware)
- Syslog (RFC 3164)
- USB port for firmware and config upload/ download
Port mirroring
- Yes ingress and egress
Many-to-one port mirroring
- 28
TLS/HTTPS Web-based access (version)
- Yes (v1.2)
File transfers (uploads, downloads)
- TFTP / HTTP
LEDs
Per port
- Speed, Link, Activity; or PoE in different mode
Per device
- Power, Fan, PoE Max
Physical Specifications
Dimensions (W x D x H)
- 440 x 257 x 43.2 mm (17.3 x 10.1 x 1.7 in)
Weight
- 3.78 kg (8.32 lb)
Power Consumption
Max power (worst case, all ports used, full PoE, line-rate traffic) (Watts)
- 226W
Max power without PoE (worst case, all ports used, line-rate traffic) (Watts)
- 36W
Iddle power consumption (all ports link-down standby) (Watts)
- 20W
Heat Dissipation (worst case, all ports used, full PoE, line-rate traffic) (BTU/hr)
- 772.9 BTU/hr
Energy Efficient Ethernet (EEE) IEEE 802.3az
- Yes (deactivated by default)
Fan
- 2
Environmental Specifications
Operating
Operating temperature
- 0° to 50°C (32° to 122°F)
Humidity
- 90% maximum relative humidity (RH), non-condensing
Altitude
- 10,000 ft (3,000 m) maximum
Storage
Storage temperature
- –20° to 70°C (– 4° to 158°F)
Humidity
- 95% maximum relative humidity, non-condensing
Altitude
- 10,000 ft (3,000 m) maximum
Electromagnetic Emissions and Immunity
Certifications
- CE mark, commercial
- FCC Part 15 Class A, VCCI Class A
- Class A EN 55022 (CISPR 22) Class A
- Class A C-Tick
- EN 55024
- CCC
- 47 CFR FCC Part 15, SubpartB, Class A
- ICES-003: 2016 Issue 6, Class A
- ANSI C63.4:2014
- IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013
- AN/NZS CISPR 22:2009+A1:2010 CLASS A
Safety
Certifications
- CB mark, commercial
- CSA certified (CSA 22.2 #950)
- UL listed (UL 1950)/cUL IEC 950/EN 60950
- EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
- IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013
- AN/NZS 60950.1:2015
- CCC (China Compulsory Certificate)
Package Contents
- Smart Managed Pro Switch
- AC Power cord with C13 connector (localized to region of sale)
- Brackets and screws for rack mounting
- Rubber footpads for tabletop installation
- Rubber protection caps, which are already installed in the SFP sockets
- Installation guide
- Resource CD with Smart Control Center utility software and links to additional online documentation including
- the Hardware installation guide, the Web browser-based management GUI User Manual and datasheet
Limited Warranty: Lifetime
Only logged in customers who have purchased this product may leave a review.
Related Products
HPE 2530-24G-PoE+-2SFP+ 24-Port Layer 2 Managed Gigabit PoE+ Switch w/ 2x Gigabit SFP+ Ports (195W) J9854A
The HP 2530-24G-PoE+-2SFP+ 24-Port Layer 2 Managed Rackmount Gigabit PoE+ Switch provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments.
Out of stock
TP-Link TL-SG3428MP JetStream 24-Port Smart Managed Rackmount Gigabit PoE+ Switch w/ 4 x 1GbE SFP Ports (384W)
TP-Link TL-SG3428MP JetStream Smart Managed 24 Port Gigabit Switch provides high performance, and powerful L2 and L2+ features.
Out of stock
TP-LINK TL-SG1024D 24-Port Rackmountable Gigabit Switch (10/100/1000Mbps)
TP-LINK TL-SG1024D 24-Port Rackmountable Gigabit Switch provides an easy way to make the transition to Gigabit Ethernet.
Out of stock
Aruba HP 2530-24-PoE+ 24-Port Layer 2 Fast Ethernet PoE+ Switch w/ 2 x 1GbE RJ45 Ports & 2 x 1GbE SFP Ports (195W) J9779A
The HP 2530-24-PoE+ ProCurve Switch (J9779A) is a 24-Port managed Layer 2 edge switch that deliver cost-effective, reliable, secure, and easy-to-use connectivity to business networks. Designed for entry-level to midsize enterprise networks, this Fast Ethernet switch delivers full Layer 2 capabilities combined with PoE+, enhanced access security, traffic prioritisation, and IPv6 host support. This HP 2530-24-PoE+ Switch also offers uplink flexibility with four Gigabit Ethernet uplinks for SFPs.
Out of stock
Aruba JL354A (2540-24G-4SFP+) 2540 Series 24-Port Layer 2 Managed Gigabit Switch w/ 4 x 10GbE SFP+ Ports
Designed for the digital workplace, the Aruba 2540-24G 24-Port Layer 2 Managed Gigabit Switch is optimised for mobile users. With advanced security and network management tools — Aruba ClearPass Policy Manager and Aruba AirWave — this Aruba 2540-24G 24-Port Layer 2 Managed Gigabit Switch is easy to deploy and manage. With support from cloud-based Aruba Central, you can quickly set up remote branch sites with little or no IT support. The Aruba 2540-24G 24-Port Layer 2 Managed Gigabit Switch delivers entry level features for the enterprise campus, SMB and branch offices. It provides built-in 10GbE uplinks, robust QoS, static and RIP routing, IPv6, and requires no software licensing.
Out of stock
NETGEAR GS724TPv2 ProSAFE 24-Port Smart Gigabit PoE+ Switch w/ 2 x SFP Ports (190W)
As a leading provider of network equipment for SMBs, NETGEAR understands the importance of providing great choice of PoE port counts and power budgets that can adapt to the business’s needs, whether in the hospitality, catering, education or retail domains. The NETGEAR GS724TPv2 ProSAFE 24-Port Smart Gigabit PoE+ Switch with PoE+ and 2 SFP Ports joins the NETGEAR Standalone Smart Managed Pro Switches family, adding full 24 port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organisations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 190W.
281 in stock
Dahua PFS5428-24GT L2+ Managed Switch
Dahua PFS5428-24GT L2+ Managed Switch is a Fanless thermal design & Rack mounting Aggregation Switch.
25 in stock
TP-Link TL-SG3428XMP JetStream 24-Port Smart Managed Rackmount Gigabit PoE+ Switch w/ 4 x 10G SFP+ Ports (384W)
The TP-Link TL-SG3428XMP JetStream 24-Port Smart Managed Rackmount Gigabit PoE+ Switch provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image, mean faster setup and configuration with less downtime. The TL-SG3428XMP provides a reliable, secure solution for enterprise, campus and ISP networks.
Out of stock
Ubiquiti UniFi 24 Port PoE Pro Switch (USW-Pro-24-POE)
Ubiquiti UniFi USW Pro 24-POE is a configurable, Gigabit Layer 2 and Layer 3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++.
185 in stock
Ubiquiti USW-24 UniFi 24-Port Cloud Managed Rackmount Gigabit Switch w/ 2 x 1GbE SFP Ports
The Ubiquiti USW-24 UniFi Cloud Managed Rackmount 24 Port Gigabit Switch provides 1 Gbps fibre uplink options to your enterprise network. The USW-24 features a 1.3″ touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis.
231 in stock
TP-Link TL-SG1024 24-Port Unmanaged Rackmount Gigabit Switch
TP-Link TL-SG1024 Unmanaged Rackmount 24 Port Gigabit Switch is specially designed for Ethernet (10Mbps), Fast Ethernet (100Mbps) and Gigabit Ethernet (1000Mbps) with seamless link.
Out of stock
HPE 2530-24G-2SFP+ 24-Port Layer 2 Managed Gigabit Switch w/ 2x Gigabit SFP+ Ports J9855A
The HP 2530-24G-2SFP+ 24-Port Layer 2 Managed Rackmount Gigabit Switch provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments.
Out of stock
Reviews
There are no reviews yet.
