NETGEAR GS724T ProSAFE 24-Port Smart Gigabit Switch
£207.20 inc.VAT / £172.67 exc.VAT
NETGEAR GS724T ProSAFE 24-Port Smart Rackmount Gigabit Switch w/ 2 x SFP Ports
NETGEAR GS724T ProSAFE 24-Port Smart Gigabit Switch is high on value and capability. With 24 10/100/1000 Mbps ports, each capable of powering 2000 Mbps of data throughput in full-duplex mode.
Out of stock
NETGEAR GS724T ProSAFE 24-Port Smart Rackmount Gigabit Switch w/ 2 x SFP Ports
NETGEAR GS724T ProSAFE 24-Port Smart Gigabit Switch
NETGEAR GS724T ProSAFE 24-Port Smart Gigabit Switch is high on value and capability. With 24 10/100/1000 Mbps ports, each capable of powering 2000 Mbps of data throughput in full-duplex mode, plus two optional fiber ports, it provides fast backbone and connects servers or power users, delivering large amounts of multimedia, image, and video information in no time at all.
Gigabit Switch GS724T ProSAFE 24-Port Smart
Key Features
- Smart Switch with key management features for the price of an unmanaged switch.
- Delivers large files, including images and video in no time at all.
- 2 Optional fiber ports available.
- Auto-sensing ports automatically sense the speed and duplex mode.
- Auto Uplink technology automatically adjusts for different types of Ethernet cable.
- Simple to set-up and use.
- Made to last, housed in a 17-inch metal box and comes with a rack mounting kit.
Green Ethernet
- Up to 70% power savings compared to the non-Green version.
- Auto power-down mode saves energy when port is unused.
- Cable length detection reduces power usage when network cable is shorter than 10 meters.
A Netgear GS724T is ideal for combining 10, 100, and 1000 Mbps devices it delivers 10/100/1000 automatic speed and full/half-duplex sensing plus Auto Uplink on every port. Two hot-swappable Small Formfactor Pluggable (SFP) GBIC slots provide optional fiber connectivity for greater distance. An intuitive, web-browser interface offers simple switch management, making it a snap to monitor switch performance, configure ports, even set up trunks, VLANs, and prioritization.
High Powered
The Netgear GS724T has twenty-four 10/100/1000 ports delivering non-blocking, full-speed packet forwarding with 48 Gbps bandwidth migrates your network to future-proof functionality. Two SFP GBIC fiber slots provide optional fiber connectivity for greater distance.
Intelligent
Smart Switch capability enables key management features for the value price of an unmanaged switch. Included are performance monitoring, port configuration, VLAN for traffic control, port Trunking for increased bandwidth, and Class of Service (CoS) for traffic prioritization.
Right Sized
Ideal for growing businesses who want the benefits of management without the cost and complexity of a fully SNMP-capable network.
Easygoing and Durable
The Netgear GS724T is simple to set up and simple to use for effortless network monitoring and troubleshooting. Made to last, this sturdy switch is housed in a 17-inch metal box and comes with a rack mounting kit.
Use with Netgear AGM731F 1000BASE-SX SFP GBIC module or NETGEAR AGM732F 1000BASE-LX SFP GBIC module
Specifications
Interfaces
- 24x 10/100/1000 Mbps auto-sensing Gigabit Ethernet switching ports
- 2x dedicated 1000M SFP fiber ports
PERFORMANCE SPECIFICATION
Forwarding modes
- Store-and-forward
Bandwidth
- 52 Gbps
Priority queues
- 8
Priority queuing
- Weighted Round Robin (WRR)
MAC Address database size
- 16k media access control (MAC) addresses
Addressing
- 48-bit MAC address
Multicast groups
- 512
Number of static routes
- 32
Number of routed VLANs
- 15
Number of ARP Cache entries
- 512
Number of DHCP snooping bindings
- 8K
Number of DHCP static entries
- 1024
ACL
- 100 shared for MAC, IP and IPv6 ACLs
Jumbo frame support
- Up to 9K packet size
Acoustic noise (ANSI-S10.12)
- 0 dBA
Mean Time Between Failures (MTBF)
- 567,680 hours
L2 SERVICES – VLANS
IEEE 802.1Q VLAN Tagging
- Yes
Protocol based VLANs
- Yes
MAC based VLANs
- Yes
Voice VLAN
- Based on phones OUI bytes (internal database, or user-maintained) or protocols (SIP, H323 and SCCP)
Protocol-based VLAN
- Yes
NETWORK SECURITY
IEEE 802.1x
- Yes
Guest VLAN
- Yes
RADIUS based VLAN assignment via .1x
- Yes
MAC-based .1x
- Yes
RADIUS Accounting
- Yes
Network Storm Protection, DoS
- Yes
Broadcast, Unicast, Multicast DoS Protection
- Yes
DoS Attacks
- Yes
Dynamic ARP inspection
- Yes
L2 SERVICES – AVAILABILITY
IEEE 802.3ad – LAGs
- Yes
LACP
- Yes (26 LAGS with max. of 8 members in each LAG)
Broadcast Storm Control
- Yes
IEEE 802.3x (Full Duplex and flow control)
- Yes
IEEE 802.1D Spanning Tree Protocol
- Yes
IEEE 802.1w Rapid Spanning Tree
- Yes
IEEE 802.1s Multiple Spanning Tree
- Yes
L2 SERVICES – MULTICAST FILTERING
IGMP Snooping (v1, v2 and v3)
- Yes
MLD Snooping Support (v1 and v2)
- Yes
IGMP Snooping Queries
- Yes
Block Unknown Multicast
- Yes
Multicast VLAN Registration
- Yes
L3 SERVICES – DHCP
DHCP Client
- Yes
DHCP Snooping
- Yes
L3 SERVICES – IPV4 ROUTING
Static Routing
- Yes
VLAN Routing
- Yes
IP Source Guard
- Yes
NETWORK MONITORING AND DISCOVERY SERVICES
802.1ab LLDP
- Yes
SNMP
- v1, v2c, v3
RMON 1,2,3,9
- Yes
NETWORK TRAFFIC
Access Control Lists (ACLs)
- L2 / L3 / L4
IP-based ACLs (IPv4 and IPv6)
- Yes
MAC-based ACL
- Yes
TCP/UDP-based ACL
- Yes
MAC lockdown
- Yes
MAC lockdown by the number of MACs
- Yes
IEEE 802.1x Radius Port Access Authentication
- Yes
Port-based security by locked MAC addresses
- Yes
Dynamic VLAN Assignment
- Yes
Dynamic ARP inspection
- Yes
QUALITY OF SERVICE (QOS)
Access Lists
- Yes
L2 MAC, L3 IP and L4 Port ACLs
- Yes
Ingress rate limiting
- Yes
Egress rate limiting
- Yes
Support for IPv6 fields
- Yes
DiffServ QoS
- Yes
IEEE 802.1p COS
- Yes
Dst MAC and IP
- Yes
IPv4 and v6 DSCP
- Yes
IPv4 and v6 TOS
- Yes
WRR (Weighted Round Robin)
- Yes
Strict Priority Queue Technology
- Yes
Timing and Synchronization for Time Sensitive Applications (IEEE802.1AS)
- Yes
Stream Reservation Protocol (SRP) (IEEE802.1Qat)
- Yes
Forwarding and Queuing for Time-Sensitive Streams (IEEE802.1Qav)
- Yes (up to 24 ports simultaneously)
Audio Video Bridging Systems (IEEE802.1BA)
- Yes
Auto-VoIP
- Yes, based on protocols (SIP, H323 and SCCP) or on OUI bytes (default database and user-based OUIs) in the phone source MAC address
Auto Video
- Yes
Port Mirroring
- Yes
IEEE NETWORK PROTOCOLS
- IEEE 802.3 Ethernet
- IEEE 802.3i 10BASE-T
- IEEE 802.3u 100BASE-T
- IEEE 802.3ab 1000BASE-T
- IEEE 802.1Q VLAN Tagging
- IEEE 802.3x Full-Duplex Flow Control
- IEEE 802.1Qav1
- IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX
- IEEE 802.3ae 10-Gigabit Ethernet
- IEEE 802.3ad Trunking (LACP)
- IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED)
- IEEE 802.1p Class of Service
- IEEE 802.1Qat1
- IEEE 802.1D Spanning Tree (STP)
- IEEE 802.1s Multiple Spanning Tree (MSTP)
- IEEE 802.1w Rapid Spanning Tree (RSTP)
- IEEE 802.1x Radius network access control
- IEEE 802.1BA1
- IEEE 802.1AS
MANAGEMENT
Password Management
- Yes
Configurable Management VLAN
- Yes
Admin Access Control via Radius and TACACS+
- Yes
Web-based Graphical User Interface (GUI)
- Yes
Smart Control Center (SCC) for Multi-switch Management
- Yes
IPv6 Management
- Yes
Dual Software (firmware) Image
- Yes
Dual Configuration File
- Yes
SNTP Client over UDP Port 123
- Yes
SNMP v1/v2C
- Yes
SNMP v3 with Multiple IP Addresses
- Yes
RMON 1,2,3,9
- Yes
Port Mirroring
- Yes
Many to One Port Mirroring
- Yes
Cable Test Utility
- Yes
SSL/HTTPS and TLS v1.0 for Web-based access
- Yes
File Transfers (uploads, downloads) TFTP / HTTP HTTP Download (firmware)
- Yes
Syslog (RFC 3164)
- Yes
LEDs
Per Port
- Speed
- Link
- Activity
Per Device
- Power
ELECTROMAGNETIC EMISSIONS AND IMMUNITY
Certifications
- CE mark, commercial
- FCC Part 15 Class A, VCCI Class A
- Class A EN 55022 (CISPR 22) Class A
- Class A C-Tick
- EN 50082-1
- EN 55024
- CCC
SAFETY
Certifications
- CE mark, commercial
- CSA certified (CSA 22.2 #950)
- UL listed (UL 1950)/cUL IEC 950/EN 60950
PHYSICAL SPECIFICATIONS
Weight (kg)
- 2.74kg
Dimensions (WxDxH)
- 440 x 204 x 43mm
POWER CONSUMPTION (WHEN ALL PORTS USED, LINE-RATE TRAFFIC AND MAX POE IF APPLICABLE)
Worst-case, all ports used, line-rate traffic
- 17.4W
ENVIRONMENTAL SPECIFICATIONS
Operating
Operating Temperature
- 32° to 122°F (0° to 50°C)
Humidity
- 90% maximum relative humidity, non-condensing
Altitude
- 10,000 ft (3,000 m) maximum
Storage
Storage Temperature
- – 4° to 158°F (–20° to 70°C)
Humidity
- 95% maximum relative humidity, non-condensing
Altitude
- 10,000 ft (3,000 m) maximum
Standard warranty: lifetime
Only logged in customers who have purchased this product may leave a review.
Related Products
Dahua PFS5428-24GT L2+ Managed Switch
Dahua PFS5428-24GT L2+ Managed Switch is a Fanless thermal design & Rack mounting Aggregation Switch.
25 in stock
HPE 2530-24G-2SFP+ 24-Port Layer 2 Managed Gigabit Switch w/ 2x Gigabit SFP+ Ports J9855A
The HP 2530-24G-2SFP+ 24-Port Layer 2 Managed Rackmount Gigabit Switch provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments.
Out of stock
Ubiquiti UniFi 24 Port PoE Pro Switch (USW-Pro-24-POE)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
Ubiquiti UniFi USW Pro 24-POE is a configurable, Gigabit Layer 2 and Layer 3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++.
185 in stock
Ubiquiti USW-PRO-24 UniFi 24-Port Cloud Managed Rackmount Gigabit Switch w/ 2 x 10GbE SFP+ Ports
                The Ubiquiti USW-PRO-24 UniFi 24-Port Cloud Managed Gigabit Switch is a fully managed Layer 3 switch with twenty-four (24) Gigabit Ethernet ports. The two (2) 10GbE SFP+ uplinks offer link aggregation for higher capacity and increased availability. The USW-PRO-24 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi USW-PRO-24 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. The UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
105 in stock
Ubiquiti USW-24-POE UniFi Gen2 24-Port Layer 2 Managed Rackmount Gigabit PoE+ Switch w/ 2 x 1GbE SFP Ports & 16 x PoE+ Ports (95W)Â Â Â
Ubiquiti USW-24-POE Gen2 24-Port Managed Gigabit PoE+ Switch is a configurable Gigabit Layer 2 switch with twenty-four (24) Gigabit Ethernet ports including sixteen (16) auto-sensing 802.3at PoE+ ports, and two (2) SFP ports.Â
605 in stock
Aruba 2530-24G-PoE+ 24-Port Layer 2 Managed Gigabit PoE+ Switch W/ 4x Gigabit SFP Ports (195W) J9773A
The HP 2530-24G-PoE+ 24-Port Layer 2 Managed Gigabit PoE+ Switch (J9773A) delivers a cost-effective, reliable, secure, and easy-to-use connectivity to business networks. Designed for entry-level to midsize enterprise networks, this HP 2530-24G-PoE+ switch delivers full Layer 2 capabilities combined with PoE+, enhanced access security, traffic prioritisation, and IPv6 host support. This HP 2530-24G-PoE+ Switch also offers uplink flexibility with four Gigabit Ethernet uplinks for SFPs.
Out of stock

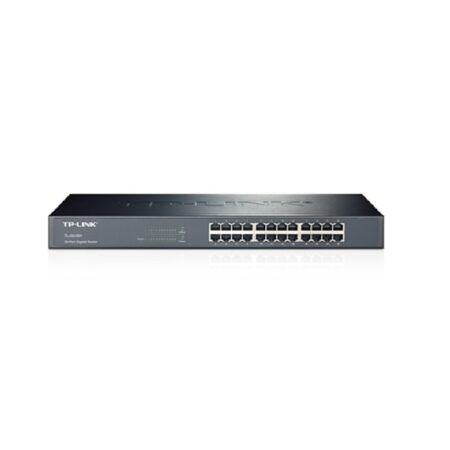

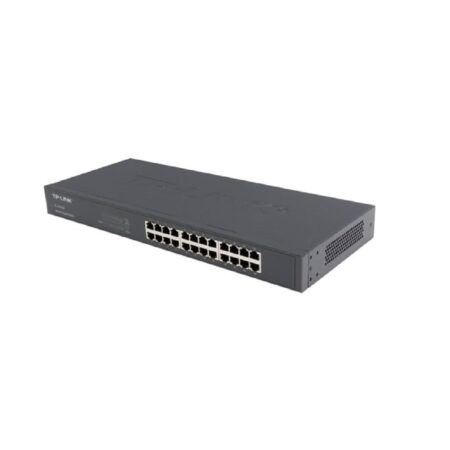

TP-Link TL-SG1024 24-Port Unmanaged Rackmount Gigabit Switch
