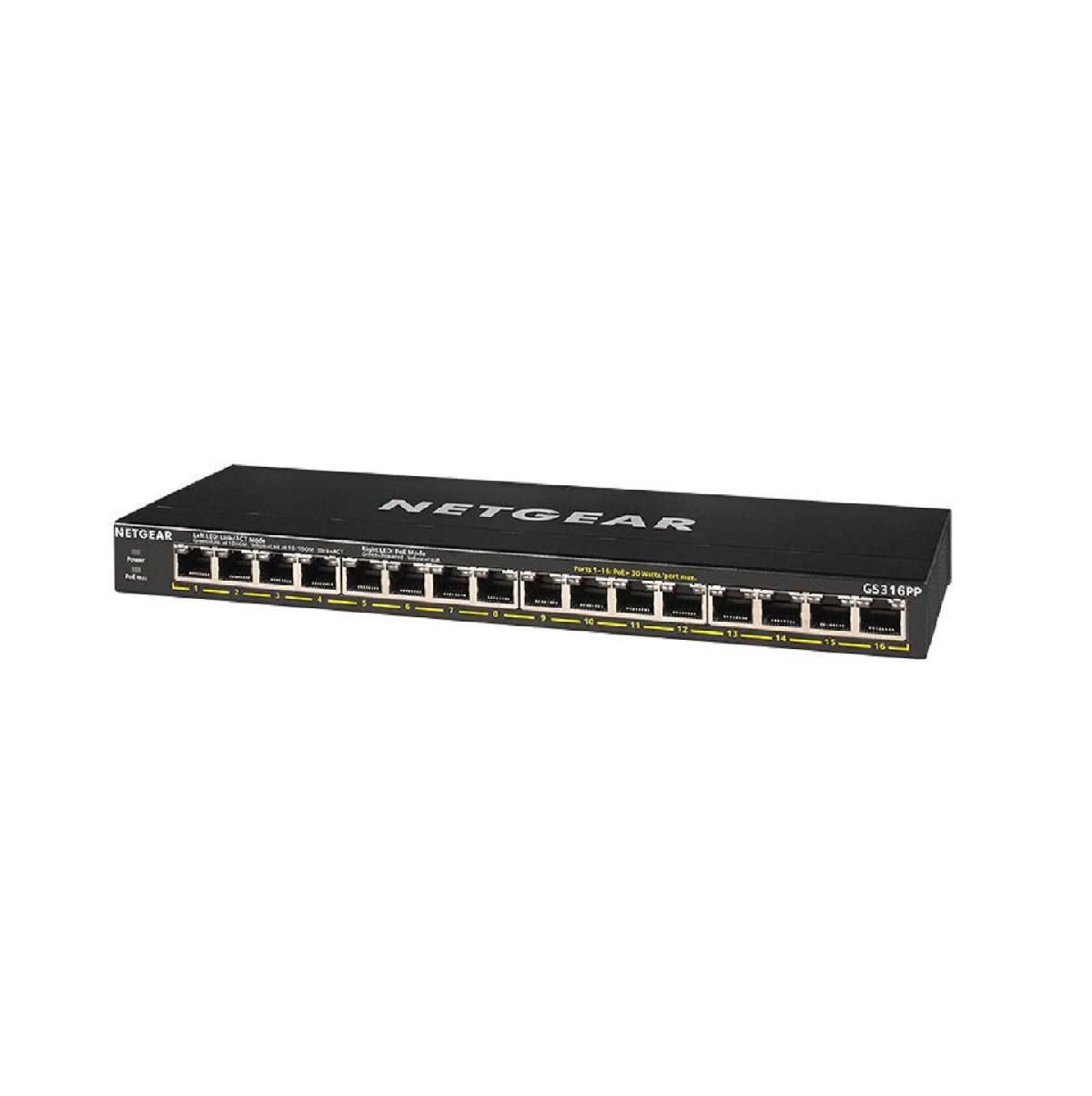

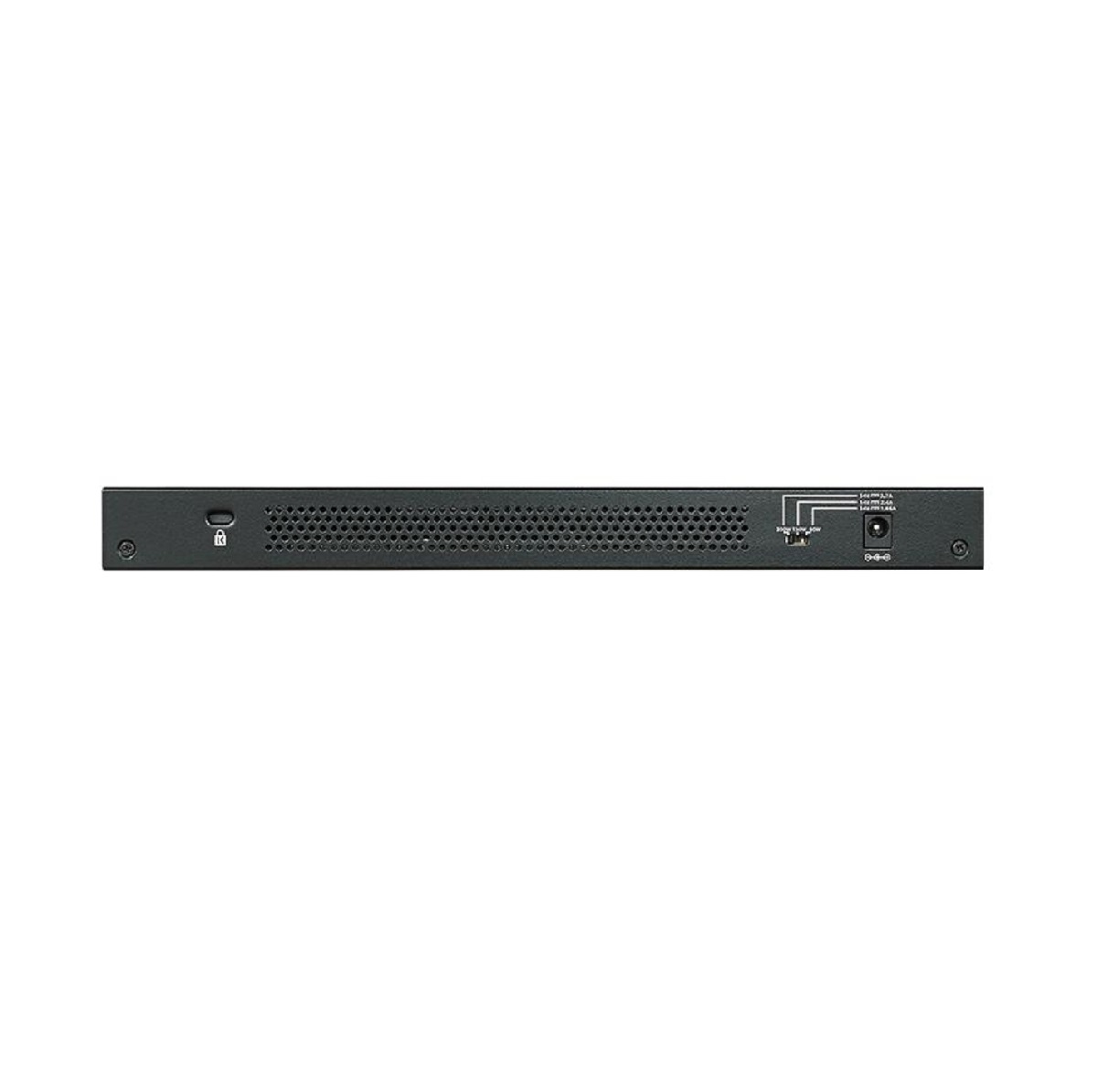

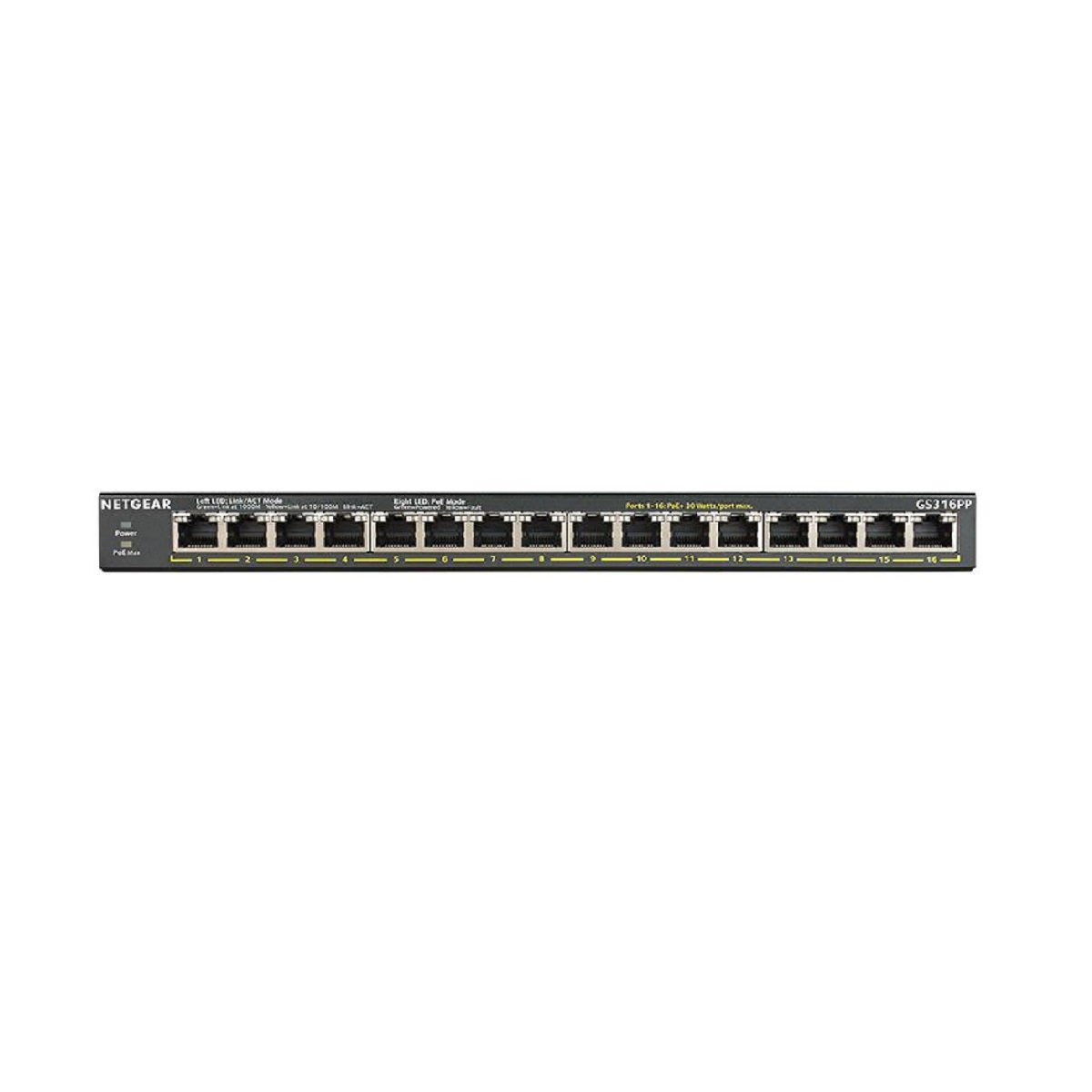

NETGEAR GS316P FlexPoE Unmanaged Desktop PoE+ 16 Port Gigabit Switch
£205.42 inc.VAT / £171.18 exc.VAT
NETGEAR GS316P FlexPoE 16-Port Unmanaged Desktop Gigabit PoE+ Switch (115W)
Out of stock
NETGEAR GS316P FlexPoE 16-Port Unmanaged Desktop Gigabit PoE+ Switch (115W)
NETGEAR GS316P FlexPoE Unmanaged Desktop PoE+ 16 Port Gigabit Switch
With this Plug and Play switch, you can quickly and easily expand your network connections to multiple devices, with no configuration required.
Gigabit Switch GS316P FlexPoE Unmanaged Desktop PoE+ 16 Port
Key Features
- Ethernet port configuration
Sixteen (16) Gigabit ports. - Power-over-Ethernet
Sixteen (16) PoE+ ports with 115W total power budget. - FlexPoE
Includes NETGEAR FlexPoE, making the PoE budget expandable to 183W (requires EPS200W power adapter – sold separately, see accessories tab). - Plug-and-Play
Simple set up with no software to install or configuration needed. - PoE power auto-balance and allocation
NETGEAR’s unique PoE technology automatically balances the PoE power at the most granular level on each port, depending on the device needs. - Versatile mounting options
Supports desktop or wall placement, and includes all the necessary mounting hardware in the box. - Silent operation
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments. - Energy Efficient Ethernet
Designed to optimize power usage lowering its cost to operate, and is compliant with IEEE802.3az Energy Efficient Ethernet mode. - Built to last
Rigorously tested for reliability, quality, and performance.
Outstanding power flexibility with NETGEAR’s exclusive FlexPoE
The GS316P supports NETGEAR’s exclusive FlexPoE upgradeable PoE power feature. Powered by the industry’s first flexible PoE+ integrated technology, you can increase the PoE budget by simply purchasing an optional NETGEAR EPS200W FlexPoE power supply, effectively future-proofing small business networks and budgets. With NETGEAR’s exclusive FlexPoE, the GS316P helps businesses cost-effectively increase their power budget to expand their network as needed.
All ports support PoE/PoE+ up to 30W per port, which makes it the perfect switch for deploying Wireless APs, Pan/Tilt/Zoom and fixed IP Cameras, VoIP Phones, access-limited security door locks or any other IoT PoE-powered devices.
The GS316P has copper Gigabit Ethernet PoE+ ports featuring NETGEAR FlexPoE power. The switch ships with 115W of PoE budget. However should you need more power in the future, rather than replacing the entire switch, with NETGEAR FlexPoE you can just purchase the optional NETGEAR FlexPoE EPS200W Power Adapter, which will boost the PoE budget of your GS316P to 183W.
Specifications
Features
10/100/1000Mbps Ports (Auto Uplink)
- 16
Enclosure
- Metal
Connector Type
- Metal
Form Factor
- Desktop or wall-mountable
Power On/Off Switch
- No
Performance Specification
Bandwidth (Non-Blocking)
- 32Gbps
Packet Buffer Memory (Dynamically shared across only used ports)
- 1MB
Jumbo Frame Support
- 9,216 bytes
Queue WRR (Weighted Round Robin) Ratio
- 1:3:5:7:8:10:12:15
Forwarding Rate (using 64-byte packets) – 1000Mbps Port
- 1,448,000 pps
Latency (using 64-byte packets) – 1000Mbps Port (average)
- < 3.7 µsec
MAC Address Table Size
- 4K
Auto MDI/MDI-X Cable Detection
- Yes
Auto-sensing Half/Full Duplex Switched Ports
- Yes
Mean Time Between Failures (MTBF) @ 25ºC
- 2,362,192 hours
LEDs
Per port
- Speed
- Link/Activity (Left)
- PoE (Right)
Per device
- Power
- PoE Max.
Quality of Service (QoS)
802.1P Based (CoS) Supported
- Yes
Honors DSCP (DiffServ) Tags
- Yes
PoE Configuration
802.3af PoE Ports
- 16
802.3at PoE+ Ports
- 16
PoE Max Power Per Port
- Up to 30W
Total PoE Power Budget
- 76W (with 90W Power Adapter – sold separately)
- 115W (with 130W Power Adapter, included)
- 183W (with 200W Power Adapter – sold separately, see accessories tab)
PoE auto-balance
- Yes
Power Consumption
DC Input/Power In
- 54V, 2.4A (with 130W Power Adapter)
Power Consumption (Max and Standby)
- 127.9W/2.68W
Heat Dissipation (Max and Standby)(BTU/Hr)
- 437.42 BTU/9.18 BTU
Energy Efficiency
Energy Efficient Ethernet (EEE) IEEE 802.3az
- Yes
Auto Power Down
- Yes
Short Cable Detection
- Yes
Fanless
- Yes
Physical Specifications
Dimensions (W x D x H)
- 286 x 102 x 27 mm (11.3 x 4 x 1.1 in.)
Weight
- 0.88 kg (1.94 lb.)
Environmental Specifications
Operating Temperature
- 0ºC to 40ºC (32ºF to 104ºF)
Operating Humidity
- 90% maximum relative humidity (RH), non-condensing
Operating Altitude
- 10,000 ft. (3,000 m) maximum
Storage Temperature
- -20ºC to 70ºC (-4ºF to 158ºF)
Storage Humidity (relative)
- 95% maximum relative humidity (RH), non-condensing
Electromagnetic Emissions and Immunity
Certifications
- CE Mark
- FFC Part 15
- Class A
- IC Class A
- RCM
- VCCI
- BSMI
- KC
Bandwidth (Non-Blocking)
Certifications
- CB
- CE LVD
Other Specifications
IEEE Network Protocols
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3i 10BASE-T Ethernet
- IEEE 802.3x Flow Control
- IEEE 802.1p Priority QoS
- IEEE 802.3 CSMA/CD
- 802.3az Energy Efficient Ethernet
Package Contents
- 1 x NETGEAR GS316P Switch
- 1 x 130W UK Power adapter
- 1 x Set of rubber footpads
- 1 x Wall mount kit
- 1 x Installation Guide
Standard Warranty: 3-Years
