JIROUS Outdoor Installation Box GentleBOX JR-200 outdoor enclosure

JIROUS Outdoor Installation Box GentleBOX JR-200

JIROUS Outdoor Installation Box GentleBOX JR-200 is an outdoor enclosure for RouterBoard devices and others.

The enclosure is designed for parabolic antennas: JRC-24 Duplex, JRC-24 Duplex EXTREM, JRC-29 Duplex and JRC-29 Duplex EXTREM. All required components are included (screws and plastic spacers).

Key Features

• Specially designed for JIROUS ANT58-29Dish (JRC-29) and JRC-24 parabolic dish antennas, also all JIROUS DupiEx Antennas.
• High quality plastic
• herpetic pasta included
• Inside mounts for most of Mikrotik RouterBoards
• JIROUS Outdoor Installation Box GentleBOX JR-200 is the ideal electronics installation box for the parabolic antenna series JRC-xx.

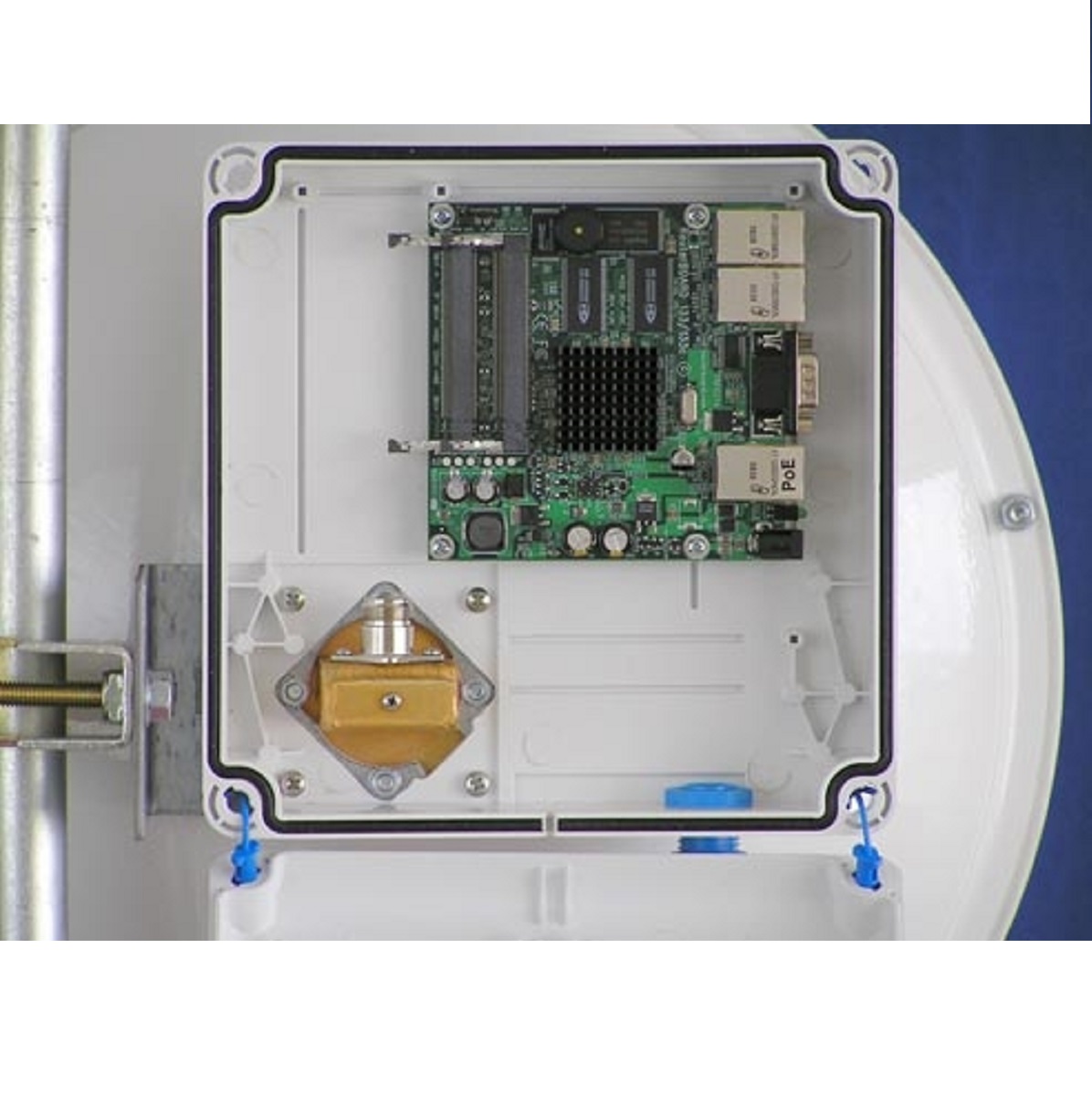

• GentleBOX is an external box for AP, RouterBOARD and other electronic devices, which contains a unique system of latches and holes for their easy installation.
• Easy installation without drilling – 1 flat and 2 crosshead screwdrivers (PH1 and PH2) are required for complete installation.
• The package includes a cable gland, which is secured against rotation by means of specially shaped mounting embossings.
• The GentleBOX is pre-prepared for simplified assembly of RB411 and Rocket M2 and M5.

Specifications

• Outer size : 203 x 203 x 65 mm
• Inner size :186 x 186 x 53 mm
• Material :UV steady plastic ABS, Polyamide
• Instalation: for all parabolic antennas of rank JRC-xx
• Outside Dimensions: 203x203x65 mm
• Inside Dimensions: 186x186x53 mm
• 1x waterproof port for cable (from 4mm to 10mm)
