HPE J9856A 24 Port Gigabit Switch
£0.00 inc.VAT / £0.00 exc.VAT
HPE 2530-24G-2SFP+ 24-Port Layer 2 Managed Gigabit Switch w/ 2x Gigabit SFP+ Ports J9855A
The HP 2530-24G-2SFP+ 24-Port Layer 2 Managed Rackmount Gigabit Switch provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments.
Out of stock
HPE 2530-24G-2SFP+ 24-Port Layer 2 Managed Gigabit Switch w/ 2x Gigabit SFP+ Ports J9855A

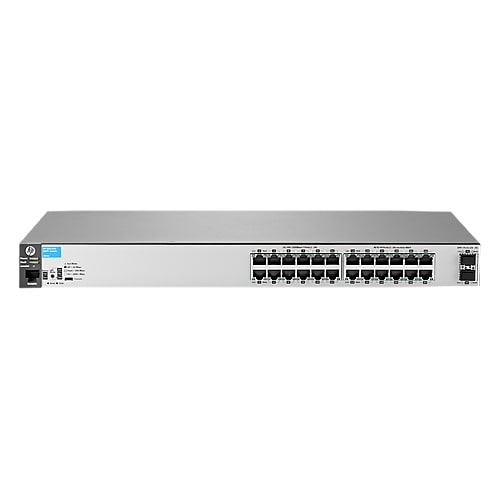

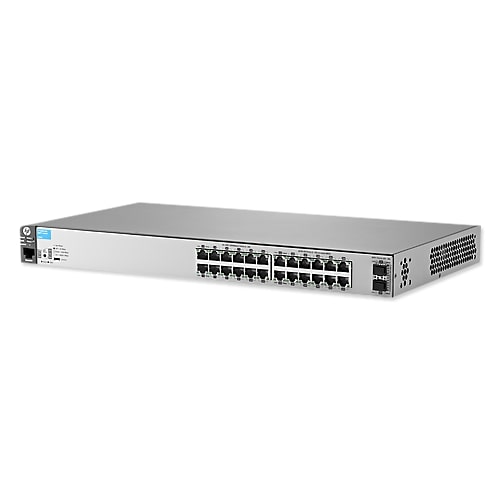

HPE J9856A 24 Port Gigabit Switch
HPE J9856A 24 Port Gigabit Switch provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments.
Designed for entry-level to midsize enterprise networks, this switch delivers full L2 capabilities with enhanced access security, traffic prioritization, and IPv6 host support.
Key Features
- Twenty-four (24)x 10/100/1000 Gigabit Ethernet ports with two (2)x fixed 1000/10000 SFP+ ports.
- MLD snooping forwards IPv6 multicast traffic to appropriate interface; prevents IPv6 multicast traffic from flooding the network.
- IPv6 host allows the switch to be deployed and managed at the edge of an IPv6 network.
- Rapid Per-VLAN Spanning Tree (RPVST+).
- DHCP protection blocks DHCP packets from unauthorized DHCP servers, preventing denial-of-service attacks.
- Dynamic ARP protection blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data.
- HTTP redirect function supports HP Intelligent Management Center (IMC) bring your own device (BYOD) solution.
- Smart Link provides easy-to-configure link redundancy of active and standby links.
Easy to use and deploy
The HP 2530-24G-2SFP+ switch is easy to use, deploy, and manage via the SNMP, CLI, and Web GUI. It offers flexible wall, table, and rack mounting options and quiet operation.
Seamless management
This Switch can be seamlessly managed with HP Intelligent Management Center (IMC) to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
RMON, and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
Specifications
Technical Specifications
- Ports
- 24Â RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
- 2 SFP+ fixed 1000/10000 SFP+ ports
- 1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical Characteristics
- Size
- 17.44(w) x 10.00(d) x 1.75(h) in (44.3 x 25.4 x 4.45 cm) (1U height)
- Weight
- 6.2lb (2.81kg)
Memory and Processor
- ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 3 MB dynamically allocated
Mounting
- Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); Horizontal surface mounting; Wall mounting
- IPv6 Ready Certified
- 100 Mb Latency
- < 7.3 µs (LIFO 64-byte packets)
- 1000 Mb Latency
- < 2.7 µs (LIFO 64-byte packets)
- 10 Gb/s Latency
- < 2.2 µs (LIFO 64-byte packets)
- Throughput
- 65.4Â Mpps (64-byte packets)
- Switching capacity
- 88Â Gb/s
- MAC address table size
- 16000 entries
Environment
- Operating temperature
- 32F to 113F (0C to 45C)
- Operating relative humidity
- 15% to 95% @ 104F (40C), noncondensing
- Non-operating/Storage temperature
- -40F to 158F (-40C to 70C)
- Non-operating/Storage relative humidity
- 15% to 90% @ 149F (65C), noncondensing
- Altitude
- up to 10,000 ft (3 km)
- Acoustic
- Power:Â 29.4 dB
- Pressure:Â 22.3 dB
Electrical Characteristics
- Frequency
- 50/60 Hz Achieved Miercom Certified Green Award
- Maximum heat dissipation
- 189 BTU/hr (199.4 kJ/hr)
- AC Voltage
- 100–127/200–240 VAC
- Current
- 0.9/0.5 A
- Maximum power rating
- 55.1 W
- Idle power
- 33.3 W
Safety
- UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1
Emissions
- FCC Class A; EN 55022/CISPR-22 Class A; VCCI Class A
- IMC—Intelligent Management Centre; command-line interface; Web browser;
configuration menu; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB
Standard warranty: Lifetime
