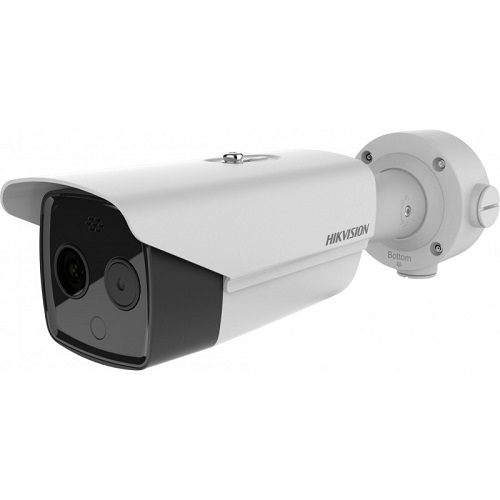

Thermal Module

• Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
• Max. Resolution: 160 × 120 (the resolution of output image is 320 × 240)
• Pixel Interval: 17μm
• Response Waveband: 8 μm to 14 μm
• NETD (Noise Equivalent Temperature Difference): ≤ 40 mk (@25 °C, F# = 1.1)
• Lens (Focal Length): 3.1 mm
• IFOV: 5.48 mrad
• Field of View: 50° × 37.2° (H × V)
• Min. Focusing Distance: 0.2 m
• Aperture: F 1.1

Optical Module

• Max. Image Resolution: 2688 × 1520
• Image Sensor: 1/2.7″ Progressive Scan CMOS
• Min. Illumination: Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)
• Shutter Speed: 1 s to 1/100,000 s
• Lens (Focal Length): 4 mm
• Field of View: 84° × 44.8° (H × V)
• WDR: 120 dB
• Day & Night: IR cut filter with auto switch

Image Function

• Bi-spectrum Image Fusion: Fusion view of thermal view and overlaid details of the optical channel
• Picture in Picture: Combines details of thermal and optical image PIP, overlay thermal image on optical image

Smart Function

• Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
• Temperature Range: 30°C to +45 °C
• Temperature Accuracy: ±0.5°C

Infrared

• IR Distance: Up to 40 m
• IR Intensity and Angle: Automatically adjusted

Network

• Main Stream:
  – Visible Light: 50Hz: 25fps (2688 × 1520), 25fps (1920 × 1080), 25fps (1280 × 720
  – Visible Light: 60Hz: 30fps (2688 × 1520), 30fps (1920 × 1080), 30fps (1280 × 720)
  – Thermal: 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240
• Sub-stream:
  – Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
  – Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
  – Thermal: 704 × 576, 352 × 288, 320 × 240
• Video Compression: H.265/H.264/MJPEG
• Audio Compression: G.711u/G.711a/G.722.1/MP2L2/G.726/PCM
• Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
• Simultaneous Live View: Up to 20
• User/Host Level: Up to 32 users, 3 levels: Administrator, Operator, User
• Security Measures: User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering

Integration

• Alarm Input: 2-ch inputs (0-5 VDC)
• Alarm Output: 2-ch relay outputs, alarm response actions configurable
• Alarm Action: SD recording/relay output/smart capture/FTP upload/email linkage/audio alarm/white light alarm
• Audio Input: 1, 3.5 mm Mic in/Line in interface. Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%
• Audio Output: Linear level, impedance: 600 Ω
• Reset: 1, Reset Button
• Communication Interface: 1, RJ45 10M/100M self-adaptive Ethernet interface. 1, RS-485 interface
• SD Memory Card: Built-in micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128 GB) Supports manual/alarm recording
• Analog Video Output: 1.0 V [p-p]/75 Ω, PAL/NTSC
• Application Programming: Open-ended API, support ISAPI, HIKVISION SDK and third-party management platform
• Client: iVMS-4200, Hik-Connect
• Web Browser: IE9+, Chrome 31-44, Firefox 30-51, Safari 5.02+(mac)

General

• Menu language: 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• Power:
  – 12 VDC ± 20%, two-core terminal block
  – PoE (802.3af, class 3)
• Power Consumption:
  – 12 VDC ± 20%: 0.65 A, max. 7.5 W
  – PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 8 W
• Working Temperature/Humidity:
  – Temperature: 10 °C to 35 °C（Indoor and windless environment use only）
  – Humidity: 95% or less
• Protection Level:
  – IP66 Standard
  – TVS 6000V lightning protection, surge protection, voltage transient protection
• Dimensions: 358.3 mm × 113.5 mm × 115.2 mm (14.10″ × 4.47″ × 4.53″)
• Weight: Approx. 1.76 kg (3.88 lb)
