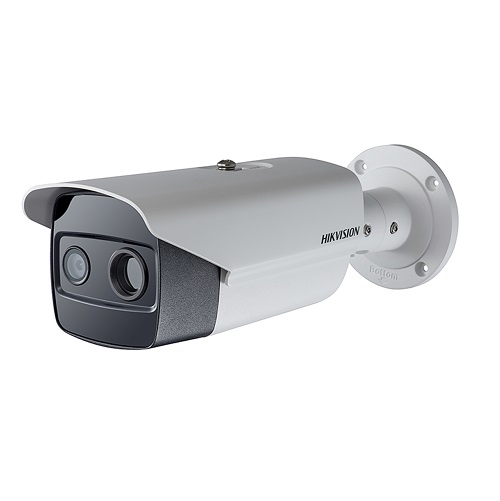

Hikvision DS-2TD2617-3/V1 Thermal-Optical DeepinView Network Bullet Camera

HikVision Thermal & Optical Network Bullet Camera DeepinView Series 3.1MM Lens (DS-2TD2617-3/V1)

Hikvision DS-2TD2617-3/V1 Thermal-Optical DeepinView Network Bullet Camera

The Hikvision DS-2TD2617-3/V1 Thermal-Optical DeepinView Network Bullet Camera Thermal Bi-spectrum Network Bullet Camera is equipped with built-in GPU which support intelligent behavior analysis algorithm, can realise high precision VCA detection and real-time alarm. It is applied to perimeter defense and fire-prevention purposes in critical infrastructures such as: community, villa, construction site, factory, 4S stores, and so on. The pre-alarm system helps you discover unexpected events immediately and protects you from property loss.

Key Features

• Leading image processing technology
• Powerful behavior analysis function
• Reliable temperature exception alarm function
• Advanced fire detection
• Bi-spectrum image fusion, picture in picture preview
• 160 × 120 (the resolution of output image is 320 × 240) resolution sensor
• High sensitivity sensor
• Support contrast adjustment
• Shuuter adjustment in various modes
• 3D DNR, 15 palettes of colour adjustable, image detail enhancement
• Mirror image, digital zoom ×2, ×4, ×8, and local output

 Specifications

Thermal Module

• Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
• Max. Resolution: 160 × 120 (the resolution of output image is 320 × 240)
• Pixel Interval: 17 μm
• Response Waveband: 8 μm to 14 μm
• NETD: less than 40mk (@25°C,F#=1.1)
• Lens (Focal Length): 3.1 mm
• MRAD: 5.48 mrad
• Field of View: 50° × 37.2° (H × V)
• Min. Focusing Distance: 0.2 m
• Aperture: F 1.1

Optical Module

• Max. Image Resolution: 1920 × 1080
• Image Sensor: 1/2.8” Progressive Scan CMOS
• Min. Illumination: Colour: 0.002 Lux @(F1.5,AGC ON), B/W: 0.0002 Lux @(F1.5, AGC ON)
• Shutter Speed: 1s to 1/100,000s
• Lens (Focal Length): 4 mm
• Field of View: 87° × 46.2°(H × V)
• WDR: Digital WDR
• Day & Night: IR cut filter with auto switch

Image Function

• Bi-spectrum Image Fusion: Fusion view of thermal view and overlaid details of the optical channel
• Picture in Picture: Combins details of thermal and optical image PIP, overlay thermal image on optical image

Smart Function

• VCA (Video Content Analysis): 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting) up to 8 VCA rules.
• Temperature Measurement: 3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
• Temperature Range: -20 °C to 150 °C (-4 °F to 302 °F)
• Temperature Accuracy: ±8 °C (14.4 °F)
• Fire Detection: Dynamic fire point detection, up to 10 fire points detectable.

Infrared

• IR Distance: Up to 40 m
• IR Intensity and Angle: Automatically adjusted

Network

• Main Stream:
  – Visible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
  – Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
  – Thermal: 25fps (160 × 120 (the resolution of output image is 320 × 240))
• Sub Stream:
  – Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
  – Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
  – Thermal: 25fps (160 × 120 (the resolution of output image is 320 × 240))
• Video Compression: H.265/H.264/MJPEG, H.265+/H.264+ encoding with Baseline/Main/High Profile
• Audio Compression: G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
• Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
• Simultaneous Live View: Up to 20
• User/Host: level Up to 32 users, 3 levels: Administrator, Operator, User
• Security Measures: User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering

Integration

• Alarm Input: 2-ch inputs (0-5V DC)
• Alarm Output: 2-ch relay outputs, alarm response actions configurable
• Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage
• Audio Input: 1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output impedance:1KΩ±10%
• Audio Output: Linear Level; Impedance: 600Ω
• Reset: 1 Reset Button
• Ethernet:
  – 1 RJ45 10M/100M Self-adaptive Ethernet interface
  – 1 RS-485 interface
• SD Memory Card: Built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128G), support manual/alarm recording
• Analog Video Output: 1.0V [p-p]/75Ω, PAL/NTSC/BNC
• Application Programming: Open-ended API, support ISAPI, HIKVISION SDK and third-party management platform
• Client: iVMS-4200
• Web Browser: IE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac)

General

• Menu language: English
• Power:
  – 12 VDC± 20%
  – PoE (802.3af, class 4)
• Power Consumption:
  – 12 VDC ± 20%: max. 12W
  – PoE (802.3af, class 4)
• Working Temperature/Humidity: -40 °C to 60 °C (-40 °F to 140 °F), 90% or less
• Protection Level:
  – IP66 Standard
  – TVS 6000V Lightning protection, surge protection, voltage transient protection
• Dimensions: 352.4 mm × 113.5 mm × 114.7 mm (13.9″ × 4.5″ × 4.5 “)
• Weight: Approx. 1.5Kg (3.3lb)
