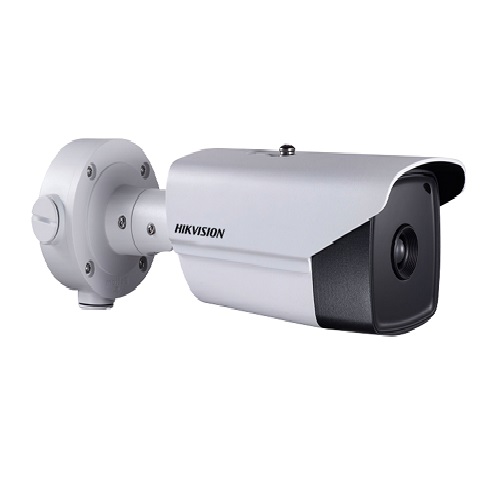

Hikvision DS-2TD2117-6/V1 Thermal DeepinView Network Bullet Camera
HikVision Thermal Network Bullet Camera DeepinView Series 6.2MM Lens (DS-2TD2117-6/V1)
The Hikvision DS-2TD2117-6/V1 Thermal DeepinView Network Bullet Camera  is equipped with built-in GPU which support intelligent behavior analysis algorithm, can realise high precision VCA detection and real-time alarm. It is applied to perimeter defense and fire-prevention purposes in critical infrastructures such as: community, villa, construction site, factory, 4S stores, and so on. The prealarm system helps you discover unexpected events immediately and protects you from property loss.
HikVision Thermal Network Bullet Camera DeepinView Series 6.2MM Lens (DS-2TD2117-6/V1)
Hikvision DS-2TD2117-6/V1 Thermal DeepinView Network Bullet Camera
The Hikvision DS-2TD2117-6/V1 Thermal DeepinView Network Bullet Camera  is equipped with built-in GPU which support intelligent behavior analysis algorithm, can realise high precision VCA detection and real-time alarm. It is applied to perimeter defense and fire-prevention purposes in critical infrastructures such as: community, villa, construction site, factory, 4S stores, and so on. The prealarm system helps you discover unexpected events immediately and protects you from property loss.
 Key Features
- Leading image processing technology
- Powerful behavior analysis function
- Reliable temperature exception alarm function
- Advanced fire detection
- 320 × 240 resolution
- 160 x 120 resolution sensor
- High sensitivty sensor
- Support contrast adjustment algorithm
- Shutter Adjustment
- 3D DNR
- 15 palettes of colour adjustable
- Image detail enhancement
Specifications
Thermal Module
- Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
- Max. Resolution: 160 × 120 (the resolution of output image is 320 × 240)
- Pixel Interval: 17 μm
- Response Waveband: 8 μm to 14 μm
- NETD: less than 40mk (@25°C,F#=1.0)
- Lens (Focal Length): 6.2 mm
- MRAD: 2.74 mrad
- Field of View: 25° × 18.7° (H × V)
- Min. Focusing Distance: 0.6 m
- Aperture: F 1.1
Smart Function
- VCA (Video Content Analysis): 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.
- Temperature Measurement: 3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
- Temperature Range: -20 °C to 150 °C (-4 °F to 302 °F)
- Temperature Accuracy: ±8 °C (14.4 °F)
- Fire Detection: Dynamic fire point detection, up to 10 fire points detectable.
Network
- Main Stream: 25fps (160 × 120(the resolution of output image is 320 × 240))
- Sub Stream: 25fps (160 × 120(the resolution of output image is 320 × 240))
- Third Stream: 25fps (160 × 120(the resolution of output image is 320 × 240))
- Video Compression: H.265/H.264/MJPEG, H.265+/H.264+ encoding with Baseline/Main/High Profile
- Audio Compression: G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
- Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
- Simultaneous Live View: Up to 20
- User/Host: level Up to 32 users, 3 levels: Administrator, Operator, User
- Security Measures: User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
Integration
- Alarm Input: 2-ch inputs (0-5V DC)
- Alarm Output: 2-ch relay outputs, alarm response actions configurable
- Alarm Action: Preset/Patrol scan/pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
- Audio Input: 1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output impedance:1KΩ±10%
- Audio Output: Linear Level; Impedance: 600Ω
- Ethernet:
– 1 RJ45 10M/100M self-adaptive Ethernet interface
– 1 RS-485 interface - SD Memory Card: Built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128G), support manual/alarm recording
- Analog Video Output: 1.0V [p-p]/75Ω, PAL/NTSC/BNC
- Application Programming: Open-ended API, support ISAPI, HIKVISION SDK and third-party management platform
- Client: iVMS-4200
- Web Browser: IE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac)
General
- Menu language: English
- Power:
– 12 VDC± 20%
– PoE (802.3af, class 4) - Power Consumption: 12 VDC ± 20%: 1.7 A, max. 8W, PoE (802.3af)
- Working Temperature/Humidity: -40 °C to 65 °C (-40 °F to 149 °F), 90% or less
- Protection Level:
– IP66 Standard
– TVS 6000V Lightning protection, surge protection, voltage transient protection - Dimensions: 352.4mm × 113.5mm × 113mm (13.9″ × 4.45″ × 4.45″)
- Weight:Â Approx. 1.45kg (3.2lb)
