HikVision DS-2PT3326IZ-DE3(2.8-12mm) PT3 Mini PanoVu

HikVision PanoVu Mini Series IR Network PTZ Camera (DS-2PT3326IZ-DE3(2.8-12mm))

HikVision DS-2PT3326IZ-DE3(2.8-12mm) PT3 Mini PanoVu

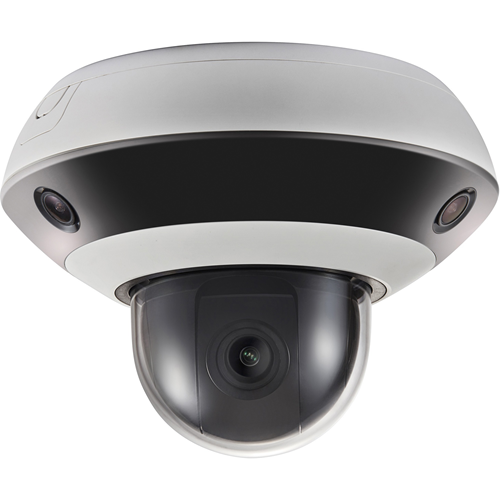

The HikVision DS-2PT3326IZ-DE3(2.8-12mm) PT3 Mini PanoVu is able to capture 360° images with the panoramic cameras as well as close-up images with the PTZ camera.

Key Features

System functions

• 3-ch panoramic images in different directions and 1-ch close-up image
• Support PTZ linkage
• 1-ch audio input and 1-ch audio output
• Support H.265 video compression
• Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
• Open-ended API, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
• Up to 10 m IR (radius)
• Support Hik-Connect

Panoramic Camera

• Three 1/2.8″ progressive scan CMOS
• 3-ch 1920 × 1080@30fps resolution
• Min. illumination: Colour: 0.05 Lux @(F2.0, AGC ON) B/W: 0.01 Lux @(F2.0, AGC ON) 0 Lux with IR
• Support H.265 video compression
• Horizontal FOV: 128.5°× 3

PTZ Camera

• 1/2.8″ progressive scan CMOS
• Up to 1920 × 1080@30fps resolution
• Min. illumination: Colour: 0.05 Lux @(F2.0, AGC ON) B/W: 0.01 Lux @(F2.0, AGC ON) 0 Lux with IR
• Support H.265 video compression
• 4× optical zoom, 8× digital zoom

Specifications

Panoramic Camera

• Image Sensor: Three 1/2.8″ progressive scan CMOS
• Min. Illumination:- Colour: 0.05 Lux @(F2.0, AGC ON)- B/W: 0.01 Lux @(F2.0, AGC ON)- 0 Lux with IR
• Shutter Time:- 50 Hz: 1/25 s to 1/30,000 s- 60 Hz: 1/30 s to 1/30,000 s
• Day & Night: IR Cut Filter
• Gain: Auto/Manual
• WDR: Digital WDR
• Smart Image Enhancement: HLC/BLC/3D DNR/Regional Exposure
• White Balance: Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
• Privacy Mask: 4 × 3 programmable privacy masks
• Focal Length: 2 mm
• Aperture Range: F2.0
• FOV:- Horizontal field of view: 128.5°× 3- Vertical field of view: 75.7°- Diagonal field of view: 144°

PTZ Camera

• Image Sensor: 1/2.8″ progressive scan CMOS
• Min. Illumination:
  – Colour: 0.05 Lux @(F2.0, AGC ON)
  – B/W: 0.01 Lux @(F2.0, AGC ON)
  – 0 Lux with IR
• Shutter Time:
  – 50 Hz: 1/25 s to 1/30,000 s
  – 60 Hz: 1/30 s to 1/30,000 s
• Day & Night: IR Cut Filter
• Gain: Auto/Manual
• WDR: Digital WDR
• Smart Image Enhancement: HLC/BLC/3D DNR/Regional Exposure/Regional Focus
• White Balance: Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
• Privacy Mask: 8 programmable privacy masks
• Digital Zoom: 8×
• Focus Mode: Semi-automatic/Manual
• Focal Length: 2.8 mm to 12 mm, 4× optical zoom
• Zoom Speed: Approx.5.4 s (optical, wide – tele)
• FOV:
  – Horizontal field of view: 120° to 56.6° (wide – tele)
  – Vertical field of view: 61.8° to 31.7° (wide – tele)
  – Diagonal field of view: 149° to 65° (wide – tele)
• Min. Working Distance: 10 mm to 1500 mm (wide – tele)
• Aperture Range: F2.0 to F2.4
• Pan and Tilt Range: Pan: 0°to 350°; Tilt: 0°to 90°
• Pan and Tilt Speed:
  – Pan speed: 0.1°/s to 30°/s (configurable), preset speed: 30°/s
  – Tilt speed: 0.1°/s to 30°/s (configurable), preset speed: 30°/s
• Proportional Zoom: Support
• Preset Number: 300
• Power-off Memory: Support
• PTZ Status Display: Support
• Preset Freezing: Support
• Scheduled Task: Preset/Dome Reboot/Dome Adjust
• Dual-VCA: Support
• Smart Event Detection: Audio Exception Detection, Intrusion Detection, Line Crossing Detection

System

• IR: Up to 10 m IR (radius)
• PTZ Linkage: Support
• SVC: Support
• ROI: Main stream and sub-stream respectively supports eight fixed areas.
• Video Compression (Sub-stream enabled) Panoramic camera:
  – Main stream: H.265/H.264
  – Sub-stream: H.265/H.264
  – H.264 with Main Profile/High Profile, H.265 with Main Profile
• Video Compression (Sub-stream enabled) PTZ camera:
  – Main stream: H.265/H.264
  – Sub-stream: H.265/H.264/MJPEG
  – H.264 with Main Profile/High Profile, H.265 with Main Profile
• Video Compression (Sub-stream not enabled) Panoramic camera:
  – Main stream: H.265/H.264
  – H.264 with Main Profile/High Profile, H.265 with Main Profile
• Video Compression (Sub-stream not enabled) PTZ camera:
  – Main stream: H.265/H.264/MJPEG
  – H.264 with Main Profile/High Profile, H.265 with Main Profile
• Video Bitrate: 32 Kbps to 8192 Kbps
• Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2
• Audio Bitrate:
  – G.711alaw/G.711ulaw: 64 Kbps
  – G.722.1/G.726: 16 Kbps
  – MP212: 32 Kbps/64 Kbps/128 Kbps
• Resolution (Sub-stream enabled) Panoramic camera:
  – Main stream: 50 Hz: 20 fps (1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 20 fps (1920 × 1080, 1280 × 960, 1280 × 720)
  – Sub-stream: 50 Hz: 20 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 20 fps (704 × 480, 640 × 480, 352 × 240)
• Resolution (Sub-stream enabled) PTZ camera:
  – Main stream: 50 Hz: 20 fps (1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 20 fps (1920 × 1080, 1280 × 960, 1280 × 720)
  – Sub-stream: 50 Hz: 20 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 20 fps (704 × 480, 640 × 480, 352 × 240)
• Resolution (Sub- stream not enabled) Panoramic camera:
  – Main stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
• Resolution (Sub- stream not enabled) PTZ camera:
  – Main stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
• Basic Event Detection: Motion Detection, Video Tampering Detection, Exception

Network

• Smart Record: ANR (Automatic Network Replenishment)
• Network Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
• Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
• API: Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
• Simultaneous Live View: Up to 4 × 4 channels
• User/Host: Up to 32 users 3 levels: Administrator, Operator and User
• Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
• Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
• Web Browser: IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51

Interface

• Network Interface: 1 RJ45 10 M/100 M Ethernet
• Audio Interface: 1-ch audio input and 1-ch audio output

General

• Power:
  – 12 VDC & PoE+ (802.3 at, class 4)
  – Max.24 W (Max. 6 W for IR)
• Working Temperature: -10°C to 50°C (14°F to 122°F)
• Working Humidity: ≤ 90%
• Protection Level: TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Material: PC + ABS & Aluminum alloy
• Dimensions: Φ 183 mm × 133.2 mm (Φ 7.20″ × 5.24″)
• Weight: Approx. 0.9 kg (1.98 lb)

Function

PT3 Mini PanoVu

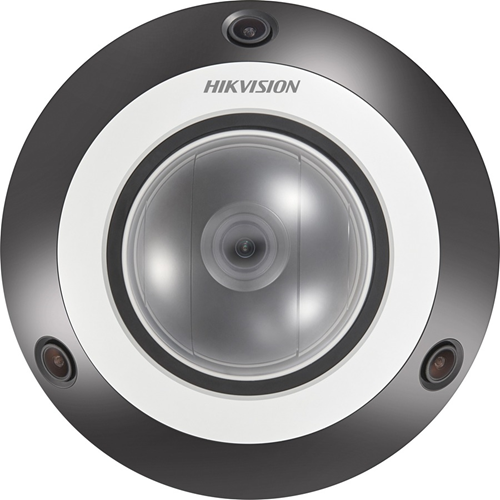

• 3 lenses in one camera cover up to 360° field of view, ensuring zero-blind zone monitoring
• The camera can be widely used in multiple indoor scenes such as retail store, classroom, office hall, hotel lobby, etc
• Panoramic camera linked to a PTZ: capturing 360° images with the panoramic camera, as well as close-up images with the PTZ camera
• Built-in IR light: IR range of 15 meters provides good visibility in low or even zero-light environments
• H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements
