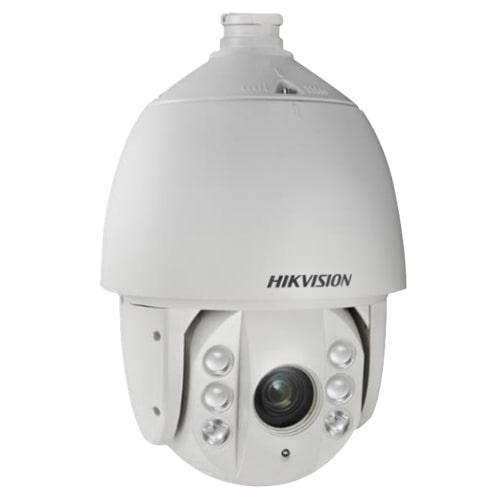

Hikvision DS-2DE7230IW-AE Security IP Camera
Hikvision DS-2DE7230IW-AE Outdoor HD PoE PTZ IP Camera w/ Varifocal Lens, 150m Night Vision, Pan, Tilt & Zoom (2 MP)
The Hikvision DS-2DE7230IW-AE is an Outdoor Pan, Tilt and Zoom camera embedded with a 1/2.8″ progressive scan CMOS chip which makes DWDR and 1.3 megapixel real-time resolution possible. With the 30X optical zoom day/night lens, the Hikvision DS-2DE7230IW-AE Outdoor PTZ IP Camera offers more details over expansive areas. The Hikvision DS-2DE7230IW-AE Outdoor PTZ IP Camera also features a wide range of functions, including intruaion detection, line crossing detection, and audio exception, benefitting users with great improvement on security efficiency, more importantly, with key events/objects being recorder for further forensic needs.
Hikvision DS-2DE7230IW-AE Outdoor HD PoE PTZ IP Camera w/ Varifocal Lens, 150m Night Vision, Pan, Tilt & Zoom (2 MP)
Hikvision DS-2DE7230IW-AE Security IP Camera
The Hikvision DS-2DE7230IW-AE is an Outdoor Pan, Tilt and Zoom camera embedded with a 1/2.8″ progressive scan CMOS chip which makes DWDR and 1.3 megapixel real-time resolution possible. With the 30X optical zoom day/night lens, the Hikvision DS-2DE7230IW-AE Outdoor PTZ IP Camera offers more details over expansive areas. The Hikvision DS-2DE7230IW-AE Outdoor PTZ IP Camera also features a wide range of functions, including intruaion detection, line crossing detection, and audio exception, benefitting users with great improvement on security efficiency, more importantly, with key events/objects being recorder for further forensic needs.
Key Features
- 1/2.8’’ Progressive Scan CMOS.
- High quality resolution: up to 1920 x 1080.
- H.264/MJPEG image compression.
- Focal length: 4.3-129.0mm, 30x.
- Night Vision: 0 Lux with IR.
- Day & Night: IR Cut Filter.
- 16x digital, 30x optical zoom.
- DWDR support.
- Up to 150m IR distance.
- High-PoE and 24 VAC, Max.40W.
- Focus Mode: Auto/Semiautomatic/Manual.
- Privacy Mask: 8 privacy masks programmable.
- Protection Level: IP66, TVS 4,000V lightning protection.
- Alarm trigger: Network disconnect, storage exception.
Specifications
Image Sensor
- 1/2.8’’ Progressive Scan CMOS
Min. Illumination
- F1.6, AGC On: Colour: 0.05 lux, B/W : 0.01lux, 0 lux with IR
Max. Image Resolution
- 1920 x 1080
Focal Length
- 4.3-129.0mm, 30x
Digital Zoom
- 16X
Zoom Speed
- Approx.3s(Optical Wide~Tele)
Angle of View
- 65.5-2.11degree (Wide~Tele)
Min. Working
Distance
- 10~1,000mm(Wide~Tele)
Aperture Range
- F1.6-F5.0
Focus Mode
- Auto / Semiautomatic / Manual
DWDR
- Support
Shutter Time
- 1-1/10,000s
AGC
- Auto / Manual
White Balance
- Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Day and Night
- IR Cut Filter
Privacy Mask
- 8 privacy masks programmable
Enhancement
- 3D DNR, Defog, HLC/BLC
Pan and Tilt
Range
- Pan:360° endless; Tilt: -15°~90°(Auto Flip)
Speed
- Pan Manual Speed: 0.1°~160°/s, Pan Preset Speed: 240°/s
- Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 200°/s
Number of Preset
- 300
Patrol
- 8 patrols, up to 32 presets per patrol
Park Action
- Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
Scheduled Task
- Auto scan / Frame scan / Random scan / Patrol / Pattern / Preset / Panorama scan / Tilt scan /
- Dome reboot / Dome adjust / Aux output
Features
Detection
- Intrusion detection, Line crossing detection, Audio exception detection, Motion detection
ROI encoding
- Support
Infrared
- IR Distance Up to 150m
- IR Intensity Automatically adjusted, depending on the zoom ratio
Alarm
Alarm I/O
- 2/1
Alarm Trigger
- Tampering alarm, Network disconnect, IP address conflict, Storage exception
Alarm Action
- Preset, Patrol, Pattern, Recording, Relay output, Upload center, Upload FTP, Email linkage
Input/Output
Audio Input
- 1 Mic in/Line in interface, line input: 2-2.4V[p-p]; output impedance: 1KO, ±10%
Audio Output
- 1 Audio output interface, line level, impedance: 600O
Network
Ethernet
- 10Base-T / 100Base-TX, RJ45 connector
Stream
- Support three streams
Main Stream
- 50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ;
- 60Hz: 30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720)
- Sub Stream 50Hz:25fps(704×576,640×480,352×288);60Hz:30fps(704×480,640×480,352×240)
Three Stream
- 50Hz:25fps (1920×1080,1280×960,1280×720,704×576,640×480,352×288);
- 60Hz: 30fps(1920×1080,1280×960,1280×720,704×480,640×480,352×240)
Image Compression
- H.264/MJPEG
Audio Compression
- G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols
- IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View
- Up to 20 users
Mini SD Memory Card
- Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level
- Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures
- User authentication (ID and PW); Host authentication (MAC address); IP address filtering
System Integration
Application programming
- Open-ended API, support ONVIF, PSIA and CG , Support cloud P2P
Web Browser
- IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +
Power
- High-PoE&24 VAC, Max.40W
Working Temperature
- -30C ~ 65C (-22F ~ 149F)
Humidity
- 90% or less
Protection Level
- IP66, TVS 4,000V lightning protection, surge protection and voltage transient protection
Certification
- FCC, CE, UL, RoHS, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC /EN60950-1

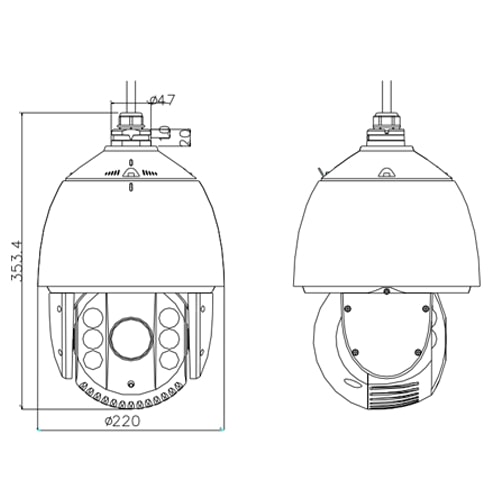

Dimensions
- F220×353.4mm (F8.66”×13.91”)
Weight (approx.)
- 4.5kg(9.92Ibs)
Standard warranty: 3-years
Warranty is invalidated by the incorrect installation of the product. In particular, failure to make correct use of the weather-proof gland will cause oxidation of the connector pins, resulting in irreparable damage to the camera.
