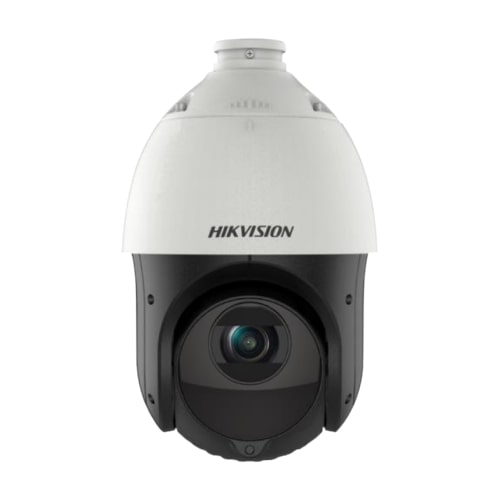

The Hikvision DS-2DE4425IW-DE(T5) Pro Outdoor PoE+ PTZ IP Camera has a 1/2.8″ progressive scan CMOS chip. With the 25× optical zoom lens, the camera offers more details over expansive areas. This camera can be used for wide ranges of high-definition, such as rivers, roads, railways, airports, squares, parks, scenic spots, venues, etc.

Key Features

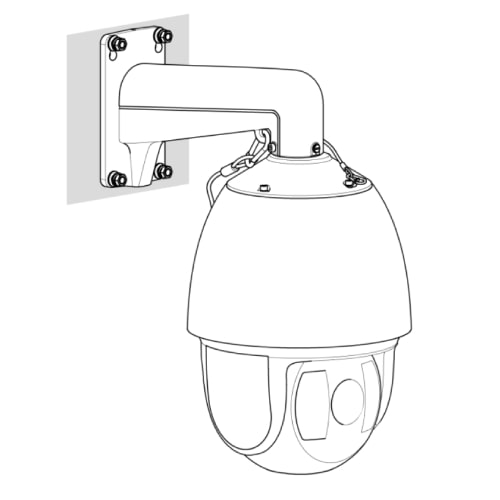

• Includes DS-1618ZJ PTZ Camera Short Arm Wall Mount Bracket
• Focuses on human and vehicle targets classification based on deep learning.
• Support face capture. Up to 5 faces captured at the same time.
• 1/2.8″ progressive scan CMOS.
• High quality imaging with 4 MP resolution.
• Excellent low-light performance with powered-by-DarkFighter technology.
• 25× optical zoom and 16× digital zoom provide close up views over expansive areas.
• Expansive night view with up to 100 m IR distance.
• Support H.265+/H.265 video compression.

AcuSense

Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.

Camera

Image Sensor

• 1/2.8″ progressive scan CMOS

Max. Resolution

• 2560 x 1440

Min. Illumination

• Colour: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed

• 1 s to 1/30,000 s

Slow Shutter

• Yes

Day & Night

• IR cut filter

Zoom

• 25x optical, 16x digital

Lens

Focus

• Auto, semi-auto, manual

Aperture

• Max. F1.6

Zoom Speed

• Approx. 3.6 s

Focal Length

• 4.8 mm to 120 mm

Field of View

• Horizontal: 55° to 2.4° (wide-tele)
• Vertical: 33° to 1.4° (wide-tele)
• Diagonal: 61.5° to 2.8° (wide-tele)

Illuminator

Supplement Light Type

• IR

Supplement Light Range

• IR Distance: up to 100 m

PTZ

Proportional Pan

• Yes

Park Action

• Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan

Scheduled Task

• Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, auxiliary output

Movement Range (Pan)

• 360°

Movement Range (Tilt)

• -15° to 90° (auto flip)

Pan Speed

• Pan speed: configurable from 0.1° to 80°/s
• Preset speed: 80°/s

Tilt Speed

• Tilt speed: configurable from 0.1° to 80°/s
• Preset speed: 80°/s

Presets

• 300

Patrol Scan

• 8 patrols, up to 32 presets for each patrol

Pattern Scan

• 4 pattern scans

Power-off Memory

• Yes

3D Positioning

• Yes

PTZ Status Display

• Yes

Preset Freezing

• Yes

Video

Video Compression

• Main stream: H.265+/H.265/H.264+/H.264
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264/MJPEG

Region of Interest (ROI)

• 8 fixed regions for each stream

Main Stream

• 50 Hz: 25 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720)
• 60 Hz: 30 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720)

Sub-Stream

• 50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288)
• 60 Hz: 30 fps (704 x 480, 640 x 480, 352 x 240)

Third Stream

• 50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288)
• 60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)

Video Bit Rate

• 32 kbps to 16384 kbps

H.264 Type

• Baseline Profile/Main Profile/High Profile

H.265 Type

• Main profile

Scalable Video Coding (SVC)

• H.264 and H.265 encoding

Audio

Audio Compression

• G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

• 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)

Audio Sampling Rate

• 8 kHz/16 kHz/32 kHz/48 kHz

Environment Noise Filtering

• Yes

Network

Network Storage

• NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Protocols

• IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

API

• Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

Simultaneous Live View

• Up to 20 channels

User/Host

• Up to 32 users
• 3 user levels: administrator, operator, and user

Security

• Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)

Client

• iVMS-4200, HikCentral Pro, Hik-Connect

Web Browser

• Chrome 57.0+, Firefox 52.0+, Safari 11+, IE11


Image Parameters Switch

• Yes

Image Settings

• Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Day/Night Switch

• Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

• 120 dB

SNR

• > 52 dB

Defog

• Digital defog

Image Stabilisation

• EIS

Image Enhancement

• BLC, HLC, 3D DNR

Privacy Mask

• 24 programmable polygon privacy masks, mask colour or mosaic configurable

Regional Focus

• Yes

Regional Exposure

• Yes

Interface

Ethernet Interface

• 1 RJ45 10M/100M self-adaptive Ethernet port

On-board Storage

• Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB

Alarm

• 1 input, 1 output

Audio

• 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 k ohms ± 10%;
• 1 output (line out), line level, output impedance: 600 ohms

Reset

• Yes

Event

Basic Event

• Motion detection, video tampering alarm, exception, alarm input and output

Smart Event

• Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection

Alarm Linkage

• Upload to FTP/NAS/memory card, notify surveillance centre, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function

Face Capture

• Detects up to 5 faces simultaneously.
• Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face

Perimeter Protection

• Line crossing, intrusion, region entrance, region exiting
• Support alarm triggering by specified target types (human and vehicle)

General

Power

• 12 VDC, max. 18 W, including max. 1.6 W for heater and 9 W for IR; PoE (802.3at)

Operating Temperature

• -30°C to 65°C (-22°F to 149°F)

Operating Humidity

• 90% or less (non-condensing)

Demist

• Yes

Material

• ADC12

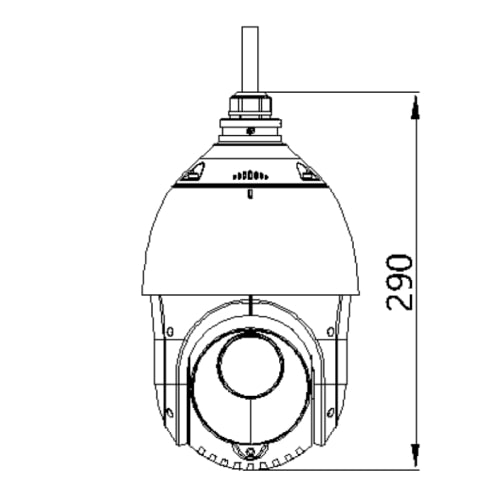

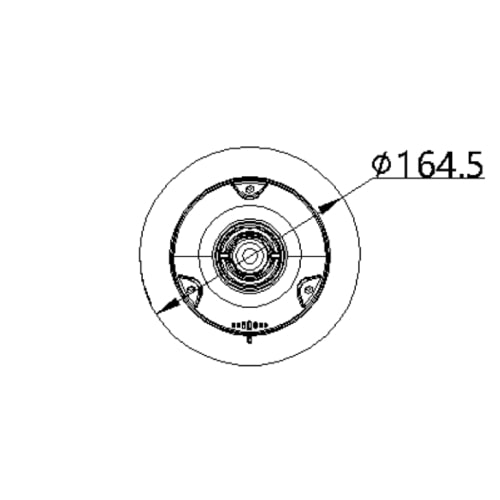

Dimensions

• Ø 164.5 x 290 mm (Ø 6.48 x 11.42 in.)

Weight

• Approx. 2 kg (4.41 lb.)

Approval

EMC

• FCC SDoC (47 CFR Part 15, Subpart B)
• CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011+A1: 2014)
• RCM (AS/NZS CISPR 32: 2015)
• IC VoC (ICES-003: Issue 6, 2019)
• KC (KN 32: 2015, KN 35: 2015)

Safety

• UL (UL 62368-1)
• CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
• CE-LVD (EN 62368-1:2014+A11:2017)
• BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
• LOA (SANS IEC60950-1)

Environment

• CE-RoHS (2011/65/EU); WEEE (2012/19/EU)
• Reach (Regulation (EC) No 1907/2006)

Protection

• IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection

DORI

The DORI (detect, observe, recognise, identify) distance gives the general idea of the camera ability to distinguish persons or objects within its field of view.
It is calculated based on the camera sensor specification and the criteria given by EN 62676-4: 2015.

• Detect: 25 px/m
  • 2400.0 m (7874.0 ft)
• Observe: 63 px/m
  • 952.4 m (3124.7 ft)
• Recognise: 125 px/m
  • 480.0 m (1574.8 ft)
• Identify: 250 px/m
  • 240.0 m (787.4 ft)

Standard Warranty: 3-Years

Warranty is invalidated by the incorrect installation of the product. In particular, failure to make correct use of the weather-proof gland will cause oxidation of the connector pins, resulting in irreparable damage to the camera.
