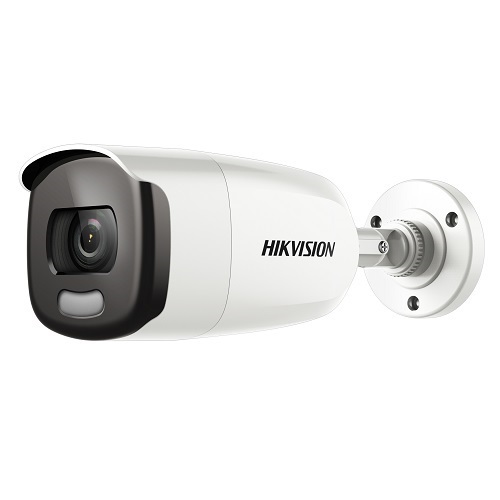

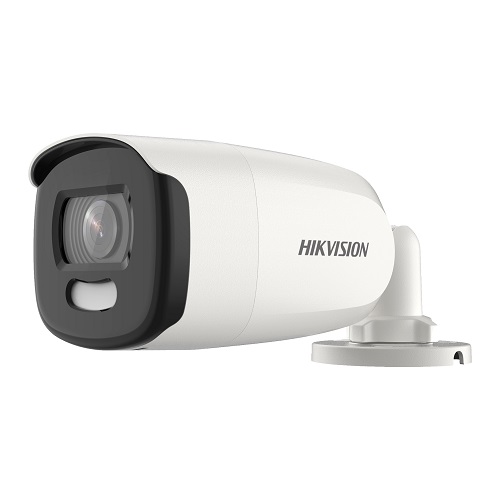

Hikvision DS-2CE10HFT-E Fixed Mini Bullet Camera

HikVision 5 MP ColorVu PoC Fixed Mini Bullet Camera (DS-2CE10HFT-E)

Hikvision DS-2CE10HFT-E Fixed Mini Bullet Camera

The Hikvision DS-2CE10HFT-E Fixed Mini Bullet Camera is a ColorVu PoC fixed mini bullet, 5 megapixel IP CCTV camera for high quality imaging at 2560 x1944 resolution.

Key Features

• High quality imaging with 5 MP, 2560 × 1944 resolution
• 24/7 color imaging
• Clear imaging against strong back light due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• 2.8 mm, 3.6 mm fixed focal lens
• Smart Light, up to 20 m white light distance
• Water and dust resistant (IP67)

ColorVu
Hikvision ColorVu technology provides 24/7 vivid colourful images with F1.0 advanced lenses, high performance sensors and friendly lighting. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilisation of available light. In zero-light scenarios, built-in, warm supplemental lighting works to guarantee colourful images.

Specification

Camera

• Image sensor: 5 MP CMOS
• Signal System: PAL/NTSC
• Resolution: 2560 (H) × 1944 (V)
• Frame Rate: 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps
• Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Lens: 2.8 mm, 3.6 mm fixed focal lens
• Field Of View
  – 2.8 mm, horizontal FOV: 99.7°, vertical FOV: 72°, diagonal FOV: 139.8°
  –  3.6 mm, horizontal FOV: 80.1°, vertical FOV: 58.6°, diagonal FOV: 106.2°
• Lens Mount: M16
• Light Alarm: Solid Light Alarm (White Light)
• WDR (Wide Dynamic Range): ≥130 dB
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°


• White Light: Auto/Off
• Image Mode: STD/HIGH-SAT
• AGC: Yes
• Day/Night Mode: Colour
• White Balance: Auto/Manual
• AE (Auto Exposure) Mode: BLC;HLC;Global;WDR;HLS
• Noise Reduction: 3D DNR/2D DNR
• Language: English
• Function: Sharpness;Mirror;Brightness;Anti-Banding;Smart Light

Interface

• Video Output: 1 HD analog output

General

• Operating Conditions: -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
• Power Supply: 12 VDC±25%/PoC.af
  –  *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
• Consumption: Max. 4 W
• Protection Level: IP67
• Material: Metal
• White Light Range: Up to 20 m
• Communication: HIKVISION-C
• Dimension: 68 mm × 70 mm × 168.2 mm (2.68″ × 2.76″ × 6.62″)
• Weight: Approx. 398 g (0.88 lb.

5 MP ColorVu PoC Fixed Mini Bullet Camera

• High quality imaging with 5 MP, 2560 × 1944 resolution
• 24/7 color imaging
• Clear imaging against strong back light due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• 2.8 mm, 3.6 mm fixed focal lens
• Smart Light, up to 20 m white light distance
• Water and dust resistant (IP67)
