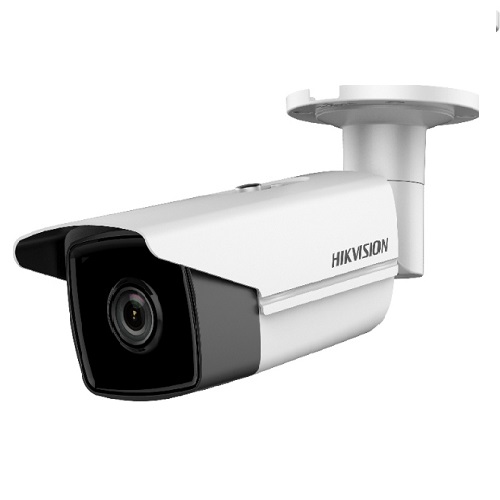

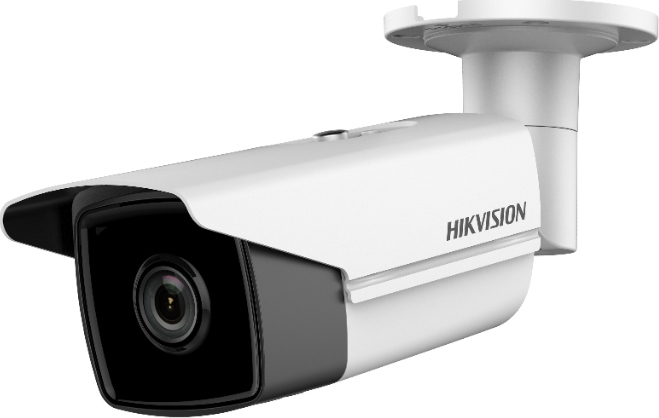

Hikvision DS-2CD2T45FWD-I8 Fixed Bullet Network Camera

Hikvision 4 MP IR Fixed Bullet Network Camera (DS-2CD2T45FWD-I8)

Hikvision DS-2CD2T45FWD-I8 Fixed Bullet Network Camera

The Hikvision DS-2CD2T45FWD-I8 Fixed Bullet Network Camera is a four megapixel IR fixed network bullet camera powered by Darkfighter technology. The DS-2CD2T45FWD-I8 features 1/2.5″  Progressive Scan CMOS, four behaviour analyses and 80m IR range.

Key Features

• 1/2.5″ Progressive Scan CMOS
• 2688 × 1520 @30fps
• 2.8 mm/4 mm/6 mm/8 mm/12 mm fixed lens
• H.265, H.265+, H.264+, H.264
• 4 Behavior analyses
• 120dB WDR
• Powered by Darkfighter
• IR range: 80m
• BLC/3D DNR/ROI/HLC
• IP67
• Bulit-in microSD/SDHC/SDXC card slot, up to 128 GB
• Colour: 0.008 lux @(F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR

Specification

Camera

• Image Sensor: 1/2.5″ Progressive Scan CMOS
• Min. Illumination: Colour: 0.008 lux @(F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Day & Night: IR Cut Filter
• Digital Noise Reduction: 3D DNR
• WDR: 120dB
• 3-Axis Adjustment: Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°

Lens

• Focal Length: 2.8, 4, 6, 8, 12 mm
• Aperture: F1.6
• Focus: Fixed
• FOV:
  – 2.8 mm, horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131°
  – 4 mm, horizontal FOV: 88°, vertical FOV: 46°, diagonal FOV: 105°
  – 6 mm, horizontal FOV: 53°, vertical FOV: 30°, diagonal FOV: 61°
  – 8 mm, horizontal FOV: 41°, vertical FOV: 23°, diagonal FOV: 48°
  – 12 mm, horizontal FOV: 25°, vertical FOV: 14°, diagonal FOV: 29°
• Lens Mount: M12

IR

• IR Range: Up to 80m
• Wavelength: 850nm

Compression Standard

• Video Compression:
  – Main stream: H.265/H.264
  – Sub-stream: H.265/H.264/MJPEG
  – Third stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Main stream supports
• H.265 Type: Main Profile
• H.265+: Main stream supports
• Video Bit Rate: 32 Kbps to 16 Mbps

Smart Feature-set

• Behavior Analysis: Line crossing detection, intrusion detection, object removal detection, unattended baggage detection
• Exception Detection: Scene change detection
• Face Detection: Yes
• Region of Interest: Support 1 fixed region for main stream and sub-stream


• Max. Resolution: 2688 × 1520
• Main Stream:
  – 50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080)
  – 60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080)
• Sub Stream:
  – 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
  – 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream:
  – 50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288)
  – 60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)
• Image Enhancement: BLC/3D DNR/HLC
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
• Target Cropping: No
• SVC: H.264 and H.265 encoding support
• Day/Night Switch: Day/Night/Auto/Schedule

Network

• Network Storage: Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
• Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
• General Function: One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Firmware Version: V5.5.80
• API: ONVIF (PROFILE S, PROFILE G), ISAPI
• Simultaneous Live View: Up to 6 channels
• User/Host: Up to 32 users, 3 levels: Administrator, Operator and User
• Client: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
• Web Browser:
  – Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
  – Plug-in free live view: Chrome 45.0+, Firefox 52.0+

Interface

• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• On-board storage: Built-in microSD/SDHC/SDXC slot, up to 128 GB
• Reset Button: Yes

General

• Operating Conditions:
  – -30 °C ~ 60 °C (-22 °F ~ 140 °F)
  – Humidity 95% or less (non-condensing)
• Power Supply:
  – 12 VDC ± 25%, Φ 5.5 mm coaxial plug power
  – PoE(802.3af, class 3)
• Power Consumption and Current:
  – 12 VDC, 1 A, max: 11.5 W
  – PoE (802.3af, 36V to 57V), 0.4 A to 0.2 A, max. 12.9 W
• Protection Level: IP67
• Material: Metal
• Dimensions:
  – Camera: Φ104.8 mm × 299.7 mm (Φ4.1″ × 11.8″)
  – Package: 386 mm × 156 mm × 155 mm (15.2″ × 6.1″ × 6.1″)
• Weight: Camera: 1200 g (2.7 lb.)

4 MP Powered-by-DarkFighter Fixed Bullet Network Camera

• High quality imaging with 4 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Water and dust resistant (IP67)
• Robust structure design with full metal materials.
