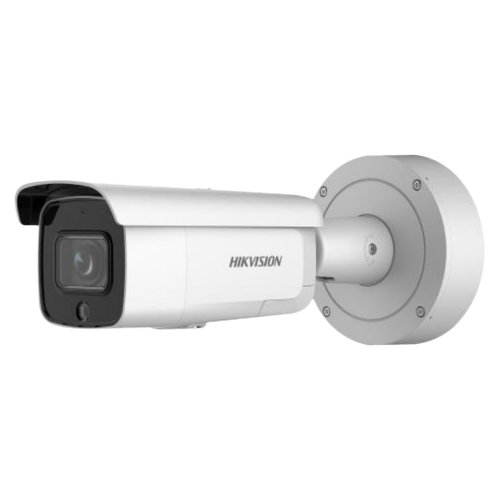

Hikvision DS-2CD2646G2-IZSU/SL AcuSense Bullet Security IP Camera
Hikvision DS-2CD2646G2-IZSU/SL AcuSense, Pro EasyIP 4.0 Outdoor HD PoE+ Bullet IP Camera w/ Motorised Varifocal Lens, 60m Night Vision, Audio, Alarm & Strobe Light (4 MP)
The Hikvision DS-2CD2646G2-IZSU/SL AcuSense, Pro EasyIP 4.0 Outdoor HD PoE+ Bullet IP Camera is empowered by deep learning algorithms technology to bring human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.
Hikvision DS-2CD2646G2-IZSU/SL AcuSense, Pro EasyIP 4.0 Outdoor HD PoE+ Bullet IP Camera w/ Motorised Varifocal Lens, 60m Night Vision, Audio, Alarm & Strobe Light (4 MP)
Hikvision DS-2CD2646G2-IZSU/SL AcuSense Bullet Security IP Camera
The Hikvision DS-2CD2646G2-IZSU/SL AcuSense Bullet Security IP Camera is empowered by deep learning algorithms technology to bring human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.
Key Features
- High quality imaging with 4 MP resolution.
- Motorised varifocal lens for easy installation and monitoring.
- Excellent low-light performance with powered-by-DarkFighter technology.
- Clear imaging against strong back light due to 120 dB true WDR technology.
- Efficient H.265+ compression technology.
- Focus on human and vehicle targets classification based on deep learning.
- Active strobe light and audio alarm to warn intruders off.
- Provides real-time security via built-in two-way audio.
- Water and dust resistant (IP66) and vandal resistant (IK10).
AcuSense
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.
Specifications
Camera
Image Sensor
- 1/3″ Progressive Scan CMOS
Min. Illumination
- Colour: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
Shutter Speed
- 1/3 s to 1/100,000 s
Slow Shutter
- Yes
Wide Dynamic Range
- 120 dB
Day & Night
- IR cut filter
Angle Adjustment
- Pan: 0° to 355°; tilt: 0° to 90°; rotate: 0° to 360°
Power-off Memory
- Yes
Lens
Lens Type
- Varifocal lens, motor-driven lens, 2.8 to 12 mm
Iris Type
- Fixed
Field of View
- Horizontal: 108° to 30°; vertical: 56° to 17°; diagonal: 131° to 35°
Aperture
- F1.4
Lens Mount
- Ø 14
DORI
DORI
- Wide:
- D: 64.0 m
- O: 25.4 m
- R: 12.8 m
- I: 6.4 m
- Tele:
- D: 190 m
- O: 75.4 m
- R: 38.0 m
- I: 19.0 m
Illuminator
Supplement Light Type
- IR
IR Range
- Up to 60 m
IR Wavelength
- 850 nm
Smart Supplement Light
- Yes
Visual Alarm
- Yes
Video
Max. Resolution
- 2688 x 1520
Main Stream
- 50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
- 60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
Sub-Stream
- 50 Hz: 25 fps (640 x 480, 640 x 360)
- 60 Hz: 30 fps (640 x 480, 640 x 360)
Third Stream
- 50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
- 60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
- Note:Â Third stream is supported under certain settings.
Video Compression
- Main stream: H.265/H.264/H.265+/H.264+
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
- Note:Â Third stream is supported under certain settings.
Video Bit Rate
- 32 Kbps to 8 Mbps
H.264 Type
- Baseline Profile/Main Profile/High Profile
H.265 Type
- Main Profile
H.264+
- Main Stream supports
H.265+
- Main stream supports
Bit Rate Control
- CBR/VBR
Scalable Video Coding (SVC)
- H.264 and H.265 encoding
Region of Interest (ROI)
- 1 fixed region for main stream and sub-stream
Audio
Environment Noise Filtering
- Yes
Audio Sampling Rate
- 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression
- G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate
- 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Network
Simultaneous Live View
- Up to 6 channels
API
- Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Protocols
- TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
User/Host
- Up to 32 users
- 3 user levels: administrator, operator and user
Security
- Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage
- MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Together with high-end Hikvision memory card, memory card encryption and health detection are supported
Client
- iVMS-4200, Hik-Connect, Hik-Central
Web Browser
- Plug-in required live view: IE 10+
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Local service: Chrome 57.0+, Firefox 52.0+
SNR
- > 52 dB
Day/Night Switch
- Day, Night, Auto, Schedule
Image Enhancement
- BLC, HLC, 3D DNR
Image Parameters Switch
- Yes
Image Settings
- Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Interface
Alarm
- 1 input, 1 output (max. 12 VDC/24 VAC, 1 A)
Audio
- 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KO, interface type: non-equilibrium
- 1 output (line out), 3.5 mm terminal block, output amplitude: 3.3 Vpp, output impedance: 100 O, interface type: non-equilibrium
Built-in Microphone
- Yes
Built-in Speaker
- Power: 2 W. Max. sound pressure level: 10 cm: 97 dB
On-Board Storage
- Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware Reset
- Yes
Ethernet Interface
- 1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic Event
- Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event
- Scene change detection
Deep Learning Function
Face Capture
- Yes
Perimeter Protection
- Line crossing detection, intrusion detection, region entrance detection, region exiting detection
General
Linkage Method
- Upload to NAS/memory card/FTP, notify surveillance centre, trigger recording, trigger capture, send email, strobe light, audible warning
Web Client Language
- 33 languages
- Bulgarian
- Chinese (Traditional)
- Croatian
- Czech
- Danish
- Dutch
- English
- Estonian
- French
- Finnish
- German
- Greek
- Hungarian
- Italian
- Japanese
- Korean
- Latvian
- Lithuanian
- Norwegian
- Polish
- Portuguese (Brazil)
- Portuguese (Europe)
- Romanian
- Russian
- Serbian
- Slovak
- Slovenian
- Spanish
- Swedish
- Thai
- Turkish
- Ukrainian
- Vietnamese
General Function
- Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Software Reset
- Yes
Firmware Version
- V5.5.112
Startup and Operating Temperature
- -30°C to 60°C (-22°F to 140°F)
Startup and Operating Humidity
- 95% or less (non-condensing)
Storage Temperature
- -30°C to 60°C (-22°F to 140°F)
Storage Humidity
- 95% or less (non-condensing)
Power Supply
- 12 VDC ± 25%, reverse polarity protection
- PoE: 802.3at, Class 4
Power Consumption and Current
- 12 VDC, 1.21 A, max. 14.5 W
- PoE (802.3at, 42.5 V to 57 V), 0.43 A to 0.32 A, max. 18 W
Power Interface
- Two-core terminal plug
Camera Material
- Aluminium alloy body

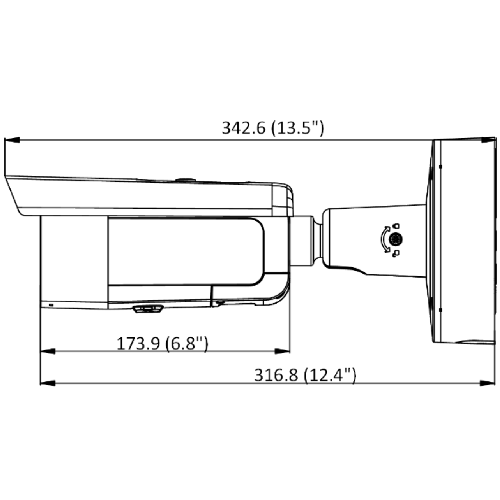

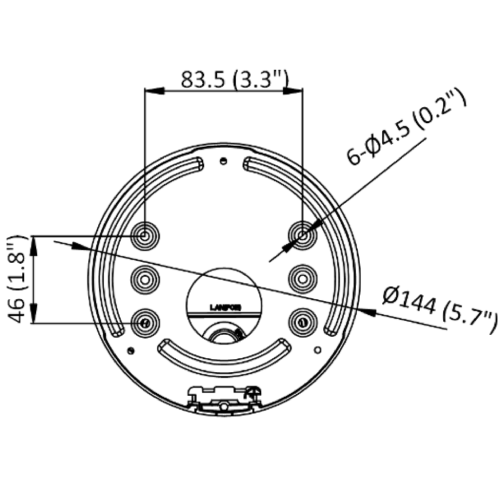

Dimensions
- Ø 144 x 342.6 mm (Ø 5.7 x 13.5 in.)
Weight
- Approx. 1355 g (3.0 lb.)
Approval
EMC
- FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
- UL (UL 60950-1)
- CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014)
- CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014)
- LOA (IEC/EN 60950-1)
Environment
- CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection
- IP66 (IEC 60529-2013), IK 10 (IEC 60529-2013)
4 MP AcuSense Strobe Light and Audible Warning Motorized Varifocal Bullet Network Camera
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong backlight due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Provides real-time security via built-in two-way audio
- Water and dust resistant (IP66) and vandal resistant (IK10)
Standard Warranty: 3-Years
Warranty is invalidated by the incorrect installation of the product. In particular, failure to make correct use of the weather-proof gland will cause oxidation of the connector pins, resulting in irreparable damage to the camera.
