HikVision 8 MP IR Fixed Bullet Network Camera (DS-2CD2086G2-IU)

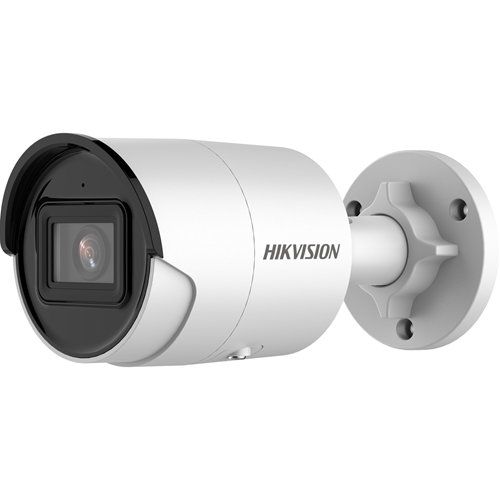

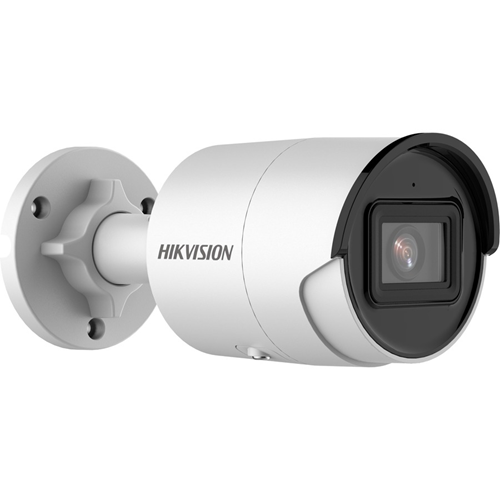

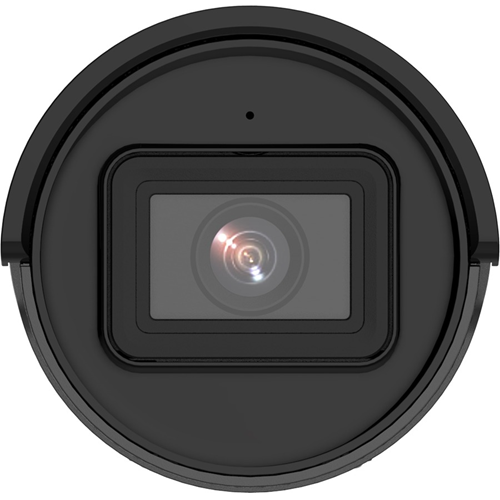

Hikvision DS-2CD2086G2-IU Fixed Mini Bullet Network Camera

The Hikvision DS-2CD2086G2-IUis a fixed bullet network camera with up to 8 megapixels. It features 1/2″ progessive scan CMOS, 3840 x 2160 @ 20fps and 2.8/4/6mm lens.

Key Features

• 1/2″ Progressive Scan CMOS
• 3840 × 2160 @ 20fps
• 2.8/4/6 mm fixed lens
• 120dB WDR
• Powered by Darkfighter
• H.265+, H.265, H.264+, H.264
• Built-in micro SD/SDHC/SDXC card slot, up to 256 GB
• –I model: IP67, -IU model: IP66
• Built-in microphone (Optional)
• Human and vehicle classification alarm based on deep learning.

AcuSense
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or vehicles, vastly improving alarm efficiency and effectiveness.

Specifications

Camera

• Image Sensor: 1/2″ Progressive Scan CMOS
• Min. Illumination: Colour: 0.014 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed: 1/3s to 1/100,000s
• Slow Shutter: Yes
• Wide Dynamic Range: 120dB
• Day & Night: IR Cut Filter
• Angle Adjustment: Pan: 0 to 360°, tilt: 0 to 90°, rotation: 0 to 360° Power-off Memory Yes

Lens

• Lens Type & FOV:
  – 2.8 mm, horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 120°
  – 4 mm, horizontal FOV: 78°, vertical FOV: 43°, diagonal FOV: 92°
  – 6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 59°
• Aperture: F1.6
• Lens Mount: M16

Illuminator

• IR Range: 30 m
• Wavelength: 850 nm
• Smart Supplement Light: Yes

Video

• Max. Resolution: 3840 × 2160
• Main Stream:
  – 50Hz: 20fps (3840 × 2160, 3072 × 1728), 25fps (2688 × 1520,1920 × 1080, 1280 × 720)
  – 60Hz: 20fps (3840 × 2160, 3072 × 1728), 30fps (2688 × 1520,1920 × 1080, 1280 × 720)
• Sub Stream:
  – 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
  – 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream:
  – 50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
  – 60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
• Video Compression:
  – Main stream: H.265+/H.264+/H.265/H.264
  – Sub-stream: H.265/H.264/MJPEG
  – Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Stream Type: Main stream/sub-stream/third stream
• Scalable Video Coding (SVC): Yes
• Region of Interest (ROI): 1 fixed region for each stream

* When the main stream resolution is 3840 × 2160, max frame rate is 20 fps for all streams.

Audio(-U)

• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz,16 kHz,32 kHz,44.1 kHz,48 kHz
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3
• Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps320Kbps(MP3)
• Audio Type: mono sound

Network

• Simultaneous Live View: Up to 6 channels
• API: ONVIF (PROFILE S, PROFILE G), ISAPI, SDK, Ehome
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• Smooth Streaming: Yes
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS 1.2
• Network Storage: MicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser:
  – Plug-in required live view: IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11
  – Plug-in free live view: Chrome 57.0+, Firefox 52.0+


• Day/Night Switch: Day/Night/Auto/Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Settings: Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface

• Audio(-U): Built-in microphone
• On-board Storage: Built-in micro SD, up to 256 GB
• Hardware Reset: Yes
• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

Smart Feature-Set

• Perimeter Protection: line crossing detection, intrusion detection, region entrance detection, region exiting detection (Human&Vehicle classification)
• Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection

General

• Web Client Language: 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General Function: Mirror, password protection, privacy mask, watermark, IP address filter, one-key reset, anti-flicker, three streams, heartbeat
• Software Reset: Yes
• Linkage Method:
  – Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
  – Trigger recording: memory card, network storage, pre-record and post-record
  – Trigger captured pictures uploading: FTP, HTTP, NAS, Email
  – Trigger notification: HTTP, ISAPI, alarm output, Email
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
• Power Supply: 12 VDC ± 25%; PoE: (802.3af, class 3)
• Power Consumption and Current: 12 VDC, 0.5 A, max. 6 W PoE: (802.3af, 36V to 57V), 0.2 A to 0.13 A, max. 7.2 W
• Power Interface: Φ5.5 mm coaxial power plug
• Material: Metal
• Camera Dimension: Φ70 ×161.7 mm (2.76″ × 6.37″)
• Package Dimension: 216 × 121 × 118 mm (8.5″ × 4.8″ ×4.6″)
• Camera Weight: 500 g (1.1 lb.)
• With Package Weight: 710 g (1.6 lb.)

Approval

• Protection: -I model: Ingress protection: IP67 (IEC 60529-2013) -IU model: Ingress protection: IP66 (IEC 60529-2013)
• EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950- 1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
• Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

4K AcuSense Fixed Mini Bullet Network Camera

• High quality imaging with 8 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security(-U)
• Water and dust resistant (IP67)
