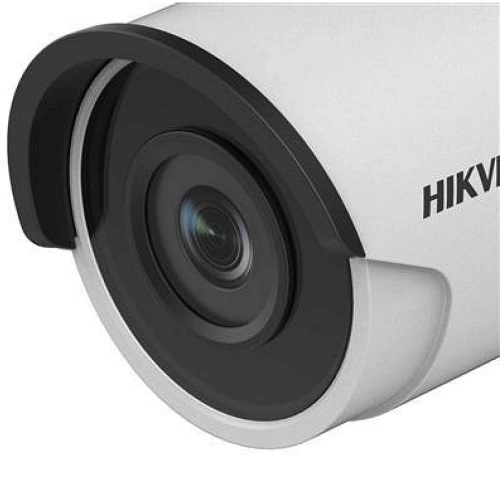

Hikvision DS-2CD2045FWD-I Fixed Mini Bullet Network Camera

Specification

Camera

• Image Sensor: 1/2.5″ Progressive Scan CMOS
• Min. Illumination: Color: 0.008 lux @(F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Day & Night: IR Cut Filter
• DNR: 3D DNR
• Wide Dynamic Range: 120 dB
• 3-Axis Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Focal length: 2.8, 4, 6, 8, 12 mm
• Aperture: F1.6
• Focus: Fixed
• FOV:
  – 2.8 mm, horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131°
  – 4 mm, horizontal FOV: 88°, vertical FOV: 46°, diagonal FOV: 105°
  – 6 mm, horizontal FOV: 53°, vertical FOV: 30°, diagonal FOV: 61°
  – 8 mm, horizontal FOV: 41°, vertical FOV: 23°, diagonal FOV: 48°
  – 12 mm, horizontal FOV: 25°, vertical FOV: 14°, diagonal FOV: 29°
• Lens Mount: M12

IR

• IR Range: Up to 30 m
• Wavelength: 850nm

Compression Standard

• Video Compression:
  – Main stream: H.265/H.264
  – Sub-stream: H.265/H.264/MJPEG
  – Third stream: H.265/H.264
• H.264 Type Main Profile/High Profile
• H.264+ Main stream supports
• H.265 Type Main Profile
• H.265+ Main stream supports
• Video Bit Rate 32 Kbps to 16 Mbps

Smart Feature-set

• Smart Event: Line crossing detection, intrusion detection, unattended baggage detection, object removal detection, face detection, scene change detection
• Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Linkage Method:
  – Trigger recording: memory card, network storage, pre-record and post-record
  – Trigger captured pictures uploading: FTP, HTTP, NAS, Email
  – Trigger notification: HTTP, ISAPI, Email
• Region of Interest: Support 1 fixed region for main stream and sub-stream


• Max. Resolution: 2688 × 1520
• Main Stream:
  – 50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
  – 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  – 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
  – 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream:
  – 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
  – 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
• Image Enhancement: BLC/3D DNR/HLC
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Target Cropping: No
• SCV: H.264 and H.265 encoding support
• Day/Night Switch: Day/Night/Auto/Schedule

Network

• Network Storage: Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS, SMB/CIFS), ANR
• Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• General Function: Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
• API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
• Simultaneous Live View: Up to 6 channels
• User/Host: Up to 32 users 3 levels: Administrator, Operator and User
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser:
  – Plug-in required live view: IE8+
  – Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
  – Local Service: Chrome 41.0+, Firefox 30.0+

Interface

• Video Output: No
• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• On-board storage: Built-in microSD/SDHC/SDXC slot, up to 128 GB
• Reset Button: Yes

General

• Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
• Web Client Language
  – 32 languages
  – English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• Power Supply:
  – 12 VDC ± 25%, Φ 5.5 mm coaxial power plug
  – PoE(802.3af, class 3)
• Power Consumption and Current:
  – 12 VDC, 0.5 A, max. 5.5 W
  – PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 7.5 W
• Protection Level: IP67
• Material: Camera: Metal
• Dimension:
  – Camera: Φ70 × 155 mm (Φ2.8″ × 6.1″)
  – Package: 216 × 121 × 118 mm (8.5″ × 4.8″ × 4.7″)
• Weight:
  – Camera: : 410 g (0.9 lb.)

4 MP Powered-by-DarkFighter Fixed Mini Bullet Network Camera

• High quality imaging with 4 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Water and dust resistant (IP67)
• Robust structure design with full metal material.
