Dahua XVR5216AN-4KL-I2 WizSense Digital Video Recorder,16 Channel Penta-brid 4K

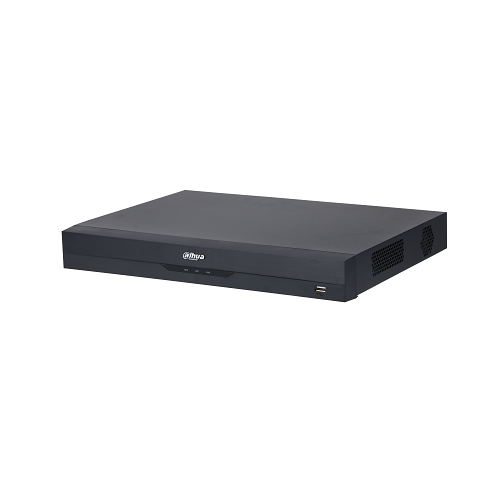

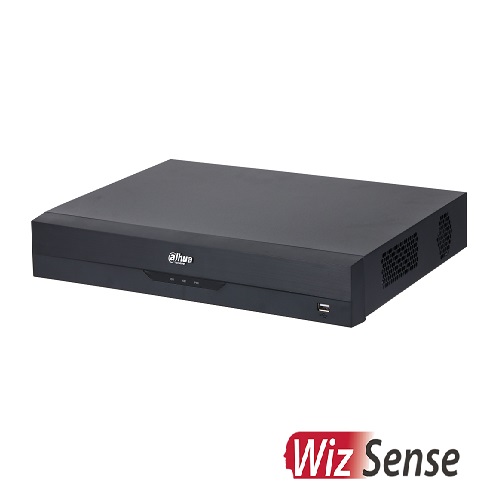

Dahua XVR5216AN-4KL-I2 WizSense Digital Video Recorder

Dahua XVR5216AN-4KL-I2 WizSense Digital Video Recorder is a 16 Channel Penta-brid 4K-N/5MP 1U 2HDDs WizSense Digital Video Recorder.

16 channel DVR features smart H.265+/H.265 dual-stream video compression, HDCVI/AHD/TVI/CVBS auto-detect, smart search and intelligent video analytics while also supporting cameras with facial recognition, perimeter protection and SMD plus.

A great solution for scenarios that require a smaller DVR while still needing to manage cameras with AI features.

Key Features

• H.265+/H.265 dual-stream video compression
• Supports HDCVI/AHD/TVI/CVBS/IP video inputs
• Max 32 channels IP camera inputs
• Seach channel up to 8MP
• Max 128 Mbps incoming bandwidth
• Perimeter Protection and SMD Plus
• Up to 2 channels video stream (analog channel) human face recognition
• IoT & POS functionalities
• 0 TB HDD fitted

Specifications

System

• Main Processor : Embedded Processor
• Operating System : Embedded LINUX

Perimeter Protection

• Performance : 2 channels, 10 IVS for each channel
• Object classification : Human/Vehicle secondary recognition for tripwire and intrusion
• AI Search : Search by target classification (Human, Vehicle)

Face Recognition

• Performance :

Max 12 face pictures/sec processing | 2 channels video stream face recognition, only support analog camera

• Stranger Mode : Detect strangers’ faces (not in device’s face database). Similarity threshold can be set manually.
• AI Search : Up to 8 target face images search at same time, similarity threshold can be set for each target face image.
• Database Management :Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture.
• Database Application : Each database can be applied to video channels independently .
• Trigger Events : Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.

SMD Plus

• Performance : 16 channels
• AI Search : Search by target classification (Human, Vehicle)

Video and Audio

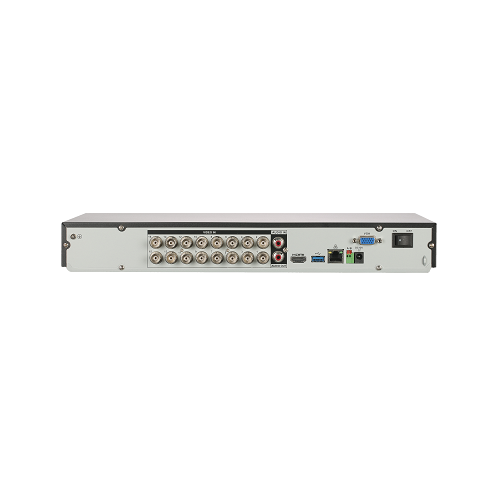

• Analog Camera Input : 16 channels, BNC
• HDCVI Camera Input : 4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps,720P@25/30fps
• AHD Camera Input : 4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
• TVI Camera Input : 4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
• CVBS Camera Input : PAL/NTSC
• IP Camera Input : 16+16 channels, each channel up to 8MP
• Audio In/Out : 1/1, RCA
• Two-way Talk : Reuse audio in/out, RCA

Recording

• Compression : AI Coding/H.265+/H.265/H.264+/H.264
• Resolution : 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
• Record Rate :

Main stream: All channel 4K(1fps–7fps); 6MP(1fps–10fps);5MP(1fps–12fps); 4K-N, 4MP/3MP(1fps–15fps); 4M-N/1080P/720P/960H/D1/CIF (1fps–25/30fps)

Sub steram:960H(1fps–15fps);D1/CIF(1fps–25/30fps)

• Bit Rate : 32 Kbps–6144 Kbps Per Channel
• Record Mode : Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
• Record Interval : 1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s
• Audio Compression : G.711A, G.711U, PCM
• Audio Sample Rate : 8 KHz, 16 bit Per Channel
• Audio Bit Rate : 64 Kbps Per Channel

Display

• Interface : 1 HDMI ,1 VGA
• Resolution : HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
• VGA : 1920 × 1080, 1280 × 1024, 1280 × 720
• Multi-screen Display :

When IP extension mode not enabled: 1/4/8/9/16 | When IP extension mode enabled: 1/4/8/9/16/25/36

• OSD : Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network

• Interface : 1 RJ-45 Port (1000 MB)
• Network Function : HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
• Max. User Access : 128 users
• Smart Phone : iPhone, iPad, Android
• Interoperability : ONVIF 16.12, CGI Conformant

Video Detection and Alarm

• Trigger Events : Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
• Video Detection : Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
• Alarm input : N/A
• Relay Output : N/A

Playback and Backup

• Playback : 1/4/9/16
• Search Mode : Time /Date, Alarm, MD and Exact Search (accurate to second)
• Playback Function : Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
• Backup Mode : USB Device/Network

Storage

• Internal HDD : 2 SATA Ports, up to 10TB capacity for each disk
• eSATA : N/A

Auxiliary Interface

• USB : 2 USB Ports (1 USB 2.0 , 1 USB 3.0)
• RS485 : 1 Port, for PTZ Control
• RS232 : N/A

Electrical

• Power Supply : DC 12V/5A
• Power Consumption : (Without HDD) <15W

Construction

• Dimensions : 1U, 375 mm × 288 mm × 53 mm (14.76” × 11.30” × 2.09”)
• Net Weight :(without HDD) 1.8 kg (4.0 lb)
• Gross Weight : 3.1 kg (6.8 lb)
• Installation : Desktop installation

Environmental

• Operating Conditions : -10°C to +55°C (+14°F to +131°F), 0–90% RH
• Storage Conditions : -20°C to +70°C (-4°F to +158°F) , 0–90% RH

Third-party Support

• Third-party Support : Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications

• FCC: Part 15 Subpart B
• CE: CE-LVD: EN 60950-1/IEC 60950-1
• CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
