Dahua SD29204UE-GN Starlight Indoor HD PoE Mini PTZ Network IP Camera
Dahua SD29204UE-GN Lite HD PoE Mini PTZ IP Camera w/ Motorised Varifocal Lens, 30m Night Vision, Pan Tilt & Optical Zoom (2 MP)
Dahua SD29204UE-GN Starlight Indoor HD PoE Mini PTZ Network IP Camera is a Starlight Indoor HD PoE PTZ IP Camera
Dahua SD29204UE-GN Lite HD PoE Mini PTZ IP Camera w/ Motorised Varifocal Lens, 30m Night Vision, Pan Tilt & Optical Zoom (2 MP)
INTERNAL USE ONLY
Dahua SD29204UE-GN Starlight Indoor HD PoE Mini PTZ Network IP Camera
Dahua SD29204UE-GN Starlight Indoor HD PoE Mini PTZ Network IP Camera is a Starlight Indoor HD PoE PTZ IP Camera Features a powerful optical zoom and accurate pan/tilt/zoom performance, the camera provides a wide monitoring range and great detail.
The camera delivers 2MP resolution at 25/30fps. The camera is equipped with smooth control, high quality image, and good protection, meeting compact size demands of video surveillance applications.
2MP Mini PTZ Dome Camera, 4X Optical Zoom, 2.7-11mm, H.264 & MJPEG dual stream encoding, 25fps@1080P, 50fps@720p, PoE, 12Vdc
Key Features
- Starlight night vision technology.
- 1/2.8” STARVIS CMOS.
- Support Triple-streams encoding.
- 1920(H) x 1080(V).
- 120dB Wide Dynamic Range (WDR).
- Day/Night (ICR).
- Ultra Digital Noise Reduction (2D/3D).
- Back Light Compensation (BLC).
- Multiple network monitoring: Web viewer & DMSS.
- 2.7mm~11mm motorised lens.
- Built-in mic.
- Max. IR LEDs Length 30m.
- Powerful 4x optical zoom.
Wide Dynamic Range
This camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology.
For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimises both the bright and dark areas of a scene at the same time to provide usable video.
High Efficiency Video Coding (H.265)
The H.265 (ITU-T VCEG) video compression standard offers double the data compression ratio at the same level of video quality, or substantially improved video quality at the same bit rate, as compared to older video compression technologies.
H.265 offers such impressive compression by expanding the pattern comparison and difference-coding, improving motion vector prediction and motion region merging, and incorporating an additional filtering step called sample-adaptive offset filtering.
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing colour details in low light down to 0.005 lux.
This camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
Environmental
Operates in extreme temperature environments, rated for use in temperatures from -30 °C to +60 °C (-22 °F to +140 °F) with 90% humidity.
Interoperability
This camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.
Specifications
Camera
Image Sensor
- 1/2.8” STARVIS CMOS
Effective Pixels
- 1920(H) x 1080(V), 2 Megapixels
RAM/ROM
- 256M/128M
Scanning System
- Progressive
Electronic Shutter Speed
- 1/1s~1/30,000s
Minimum Illumination
- Colour: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux@F1.6 (IR on)
IR Distance
- Distance up to 30m (98ft)
IR On/Off Control
- Auto/Manual
IR LEDs
- 2
Lens
Focal Length
- 2.7mm~11mm
Max. Aperture
- F1.6
Angle of View
- Horizontal: 112.5° ~ 30°
Optical Zoom
- 4x
Focus Control
- Auto/Manual
Close Focus Distance
- 100mm~ 1000mm
DORI Distance
- Detect
- 120m(394ft)
- Observe
- 48m(157ft)
- Recognise
- 24m(79ft)
- Identify
- 12m(39ft)
- Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognise and Identify respectively.
PTZ
Pan/Tilt Range
- Pan: 0° ~ 360° limited
- Tilt: 0° ~ 90°
Manual Control Speed
- Pan: 0.1° ~100° /s
- Tilt: 0.1° ~60° /s
Preset Speed
- Pan: 100° /s
- Tilt: 60° /s
Presets
- 300
PTZ Mode
- 5 Pattern, 8 Tour (up to 32 preset per tour), Auto Scan
Speed Setup
- Human-oriented focal length / speed adaptation
Power up Action
- Auto restore to previous PTZ and lens status after power failure
Idle Motion
- Activate Preset / Scan / Tour / Pattern if there is no command in the specified period
Protocol
- DH-SD
Intelligence
Event Trigger
- Motion detection, Video tampering, Network disconnection, IP address conflict, Illegal access, Storage anomaly
Auto Tracking
- N/A
IVS
- Tripwire, Intrusion, Abandoned/Missing
Advanced Intelligent Functions
- Face Detection
Video
Compression
- H.265/H.264/MJPEG(Sub Stream)
Streaming Capability
- 3 Streams
Resolution
- 1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate
- Main stream: 1080P/720P/D1 (1 ~ 25/30fps)
- Sub stream1: D1/CIF(1 ~ 25/30fps)
- Sub stream2: 720P/D1/CIF (1 ~ 25/30fps)
Bit Rate Control
- CBR/VBR
Bit Rate
- H.265/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps
Day/Night
- Auto (ICR) / Colour / B/W
Backlight Compensation
- BLC (Backlight Compensation) / HLC (Highlight Compensation) / 120dB WDR (Wide Dynamic Range)
White Balance
- Auto, ATW, Indoor, Outdoor, Manual
Gain Control
- Auto / Manual
Noise Reduction
- Ultra DNR (2D/3D)
Motion Detection
- Support
Region of Interest
- Support
Electronic Image Stabilization (EIS)
- N/A
Defog
- Support
Digital Zoom
- 16x
Flip
- 180°
Privacy Masking
- Up to 24 areas
Audio
Compression
- G.711a/G.711mu/PCM/G.726/AAC/G722.1/G.729/MPEG2-Layer2
Network
Ethernet
- RJ45 (10XBase-T/100Base-TX)
Wifi
- N/A
Protocol
- IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Interoperability
- ONVIF Profile S&G, API
Streaming Method
- Unicast / Multicast
Max. User Access
- 20 users
Edge Storage
- NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 128GB
Web Viewer
- IE, Chrome, Firefox, Safari
Management Software
- Smart PSS, DSS, DMSS
Smart Phone
- IOS, Android
Certifications
Certifications
- CE: EN55032/EN55024/EN50130-4
- FCC: Part15 subpartB,ANSI C63.4- 2014
- UL: UL60950-1+CAN/CSA C22.2,No.60950-1
Interface
Video Interface
- N/A
RS485
- N/A
Audio I/O
- Built-in Mic
Alarm I/O
- N/A
Electrical
Power Supply
- DC 12V/1.5A, PoE(802.3af)
Power Consumption
- 10W,13W (IR on)
Environmental
Operating Conditions
- -30°C ~ 60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection
- N/A
Vandal Resistance
- N/A
Construction
Casing
- Metal
Dimensions

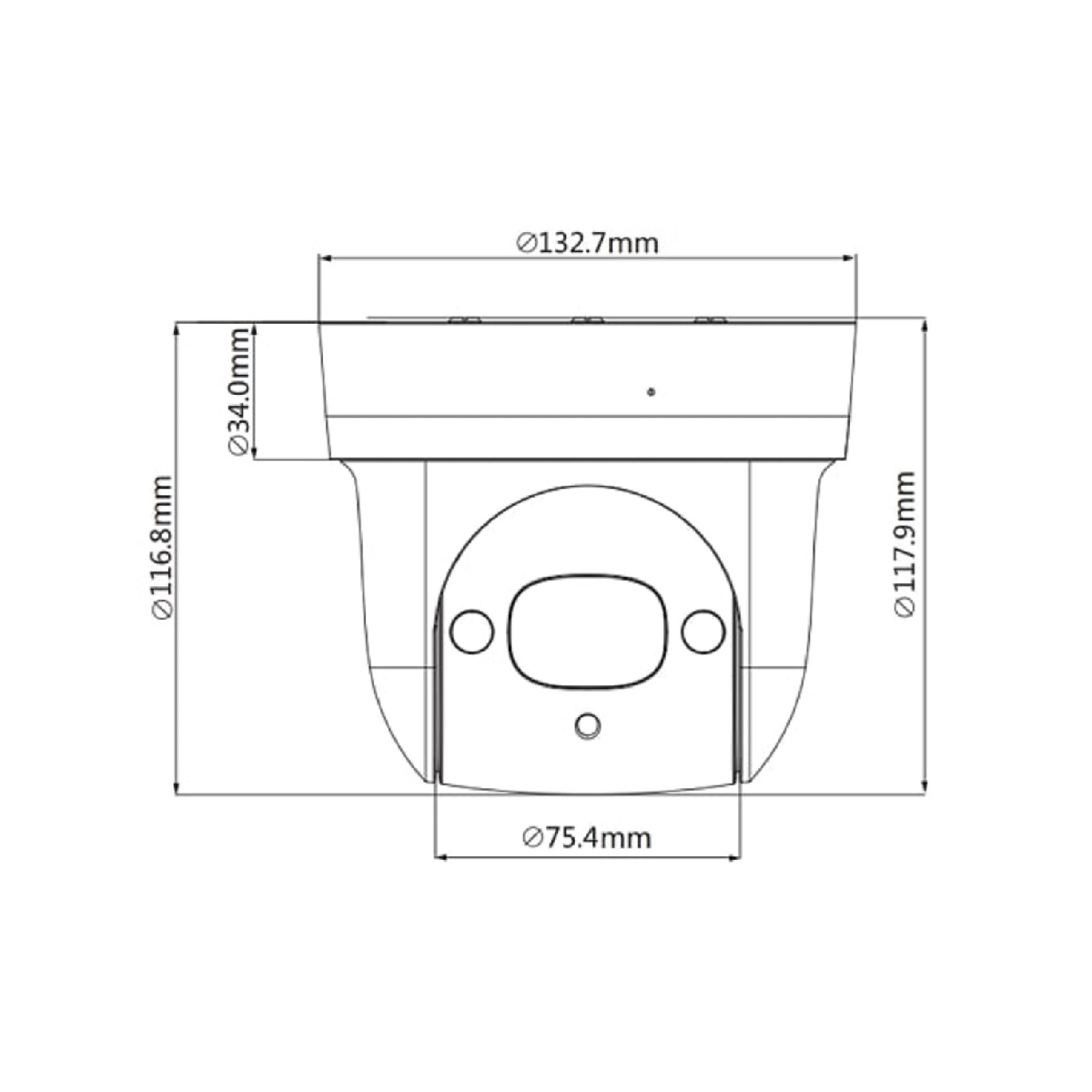

- F132.7 (mm) x 117.9 (mm)
Net Weight
- 0.95kg(2.09lb)
Gross Weight
- 1kg(2.20lb)
Standard Warranty: 3-Years
Warranty is invalidated by the incorrect installation of the product. In particular, failure to make correct use of the weather-proof gland will cause oxidation of the connector pins, resulting in irreparable damage to the camera.
