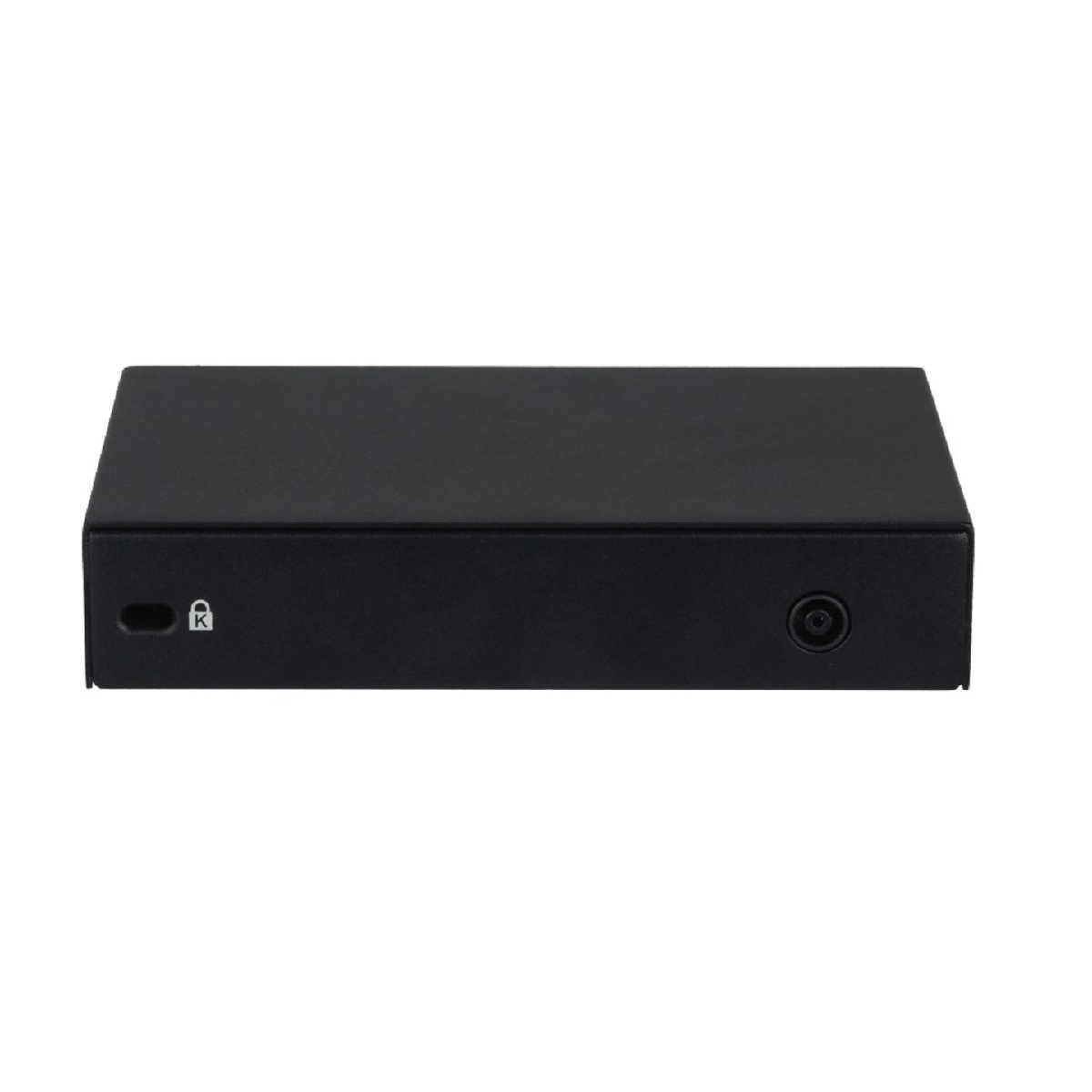

Dahua PFS3006-4ET-60-V2 6-Port Unmanaged Desktop Switch 4 PoE

Dahua PFS3006-4ET-60-V2 6-Port 10/100Mbps Unmanaged Desktop Switch with 4 PoE Ports

Dahua PFS3006-4ET-60-V2 6-Port Unmanaged Desktop Switch 4 PoE

Dahua PFS3006-4ET-60-V2 6-Port Unmanaged Desktop Switch 4 PoE is a 6-Port 10/100Mbps Unmanaged Desktop Switch with 4 PoE Ports is a type of layer two commercial switch.

It provides 4 10/100 Mbps Eth- ernet ports and 2 10/100 Mbps uplink ports. The product is equipped with two types of transmission modes (Extend Mode On/Extend Mode O ).

It also supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.

Key Features

• Layer two commercial switch
• Supports IEEE802.3, IEEE802.3u, IEEE802.3ab and IEEE802.3x  standards
• MDI/MDIX self-adaptation
• RJ-45 port supports 10/100 Mbps self-adaptation, and confirms to  802.3at, and 802.3af power supply standards
• Port 1 supports Hi-PoE 60W power supply
• 250 m PoE power supply
• Wall mounting and mechanical anti-the  53V DC power supply
• Supports PoE watchdog

Intelligent PoE
Adopt PoE power consumption management strategy, and supply power to important ports first. When total power consumption on exceeds the set threshold value of the system, power down the ports from large port number to small port number. Adopt smart detection to prevent outage.
Supply power with ultra-wide power range, and adapt to IPC power consumption fluctuations in severe environment.

Hi-PoE 60W (Orange Port)
Besides IEEE802.3af and IEEE802.3at, orange port also supports maxi- mum 60W output.

Long Distance PoE
Breaking the IEEE 100 m transmission limit, the device supports 250 m long distance PoE transmission with a more flexible networking.

All Metal Design
With all metal design, the device has good heat dissipation, and can work in severe environments.

POE Watchdog
Adopt the PoE watchdog function to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.

Scene
Suitable for supermarkets, hotels, shops, corridors and other small monitoring places.
