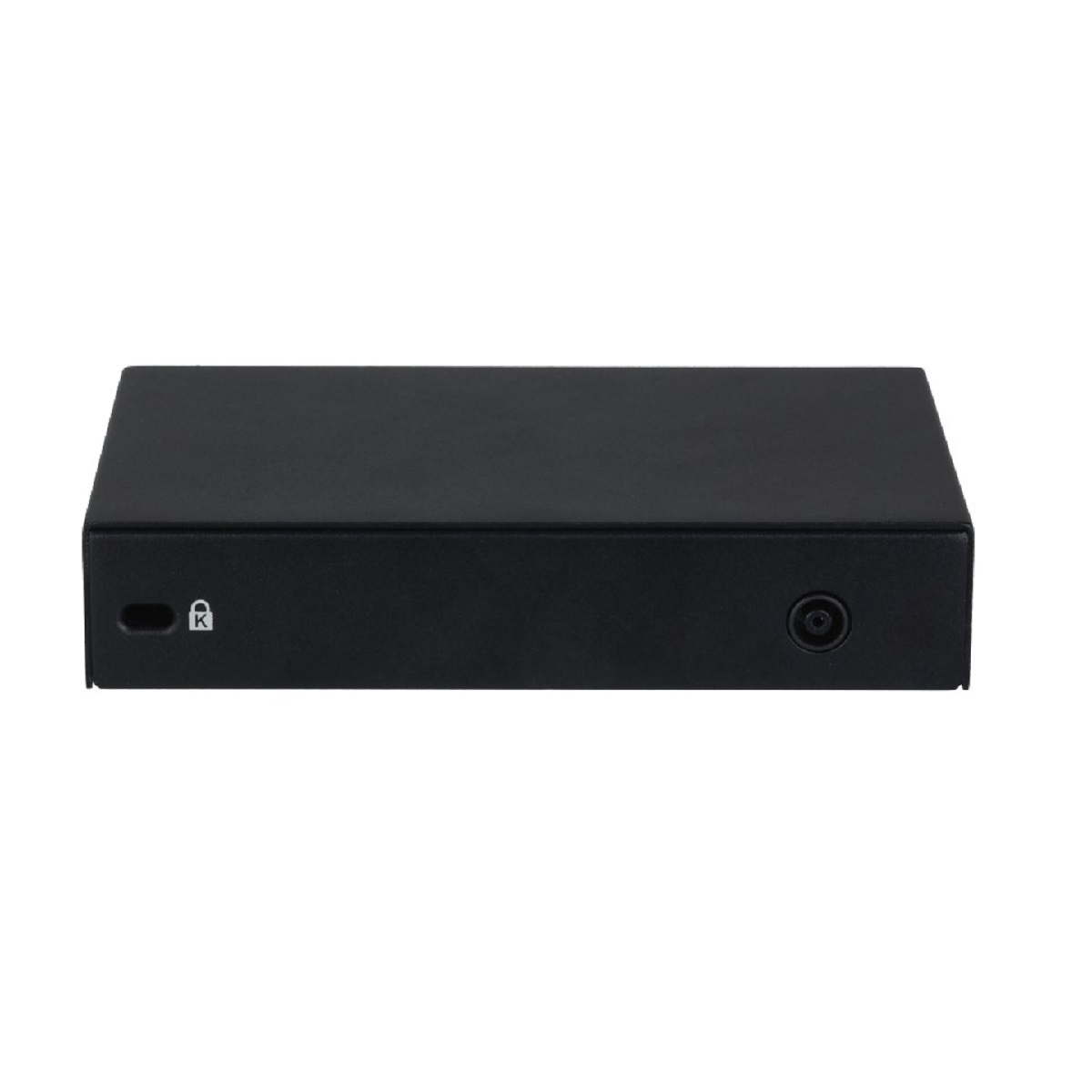

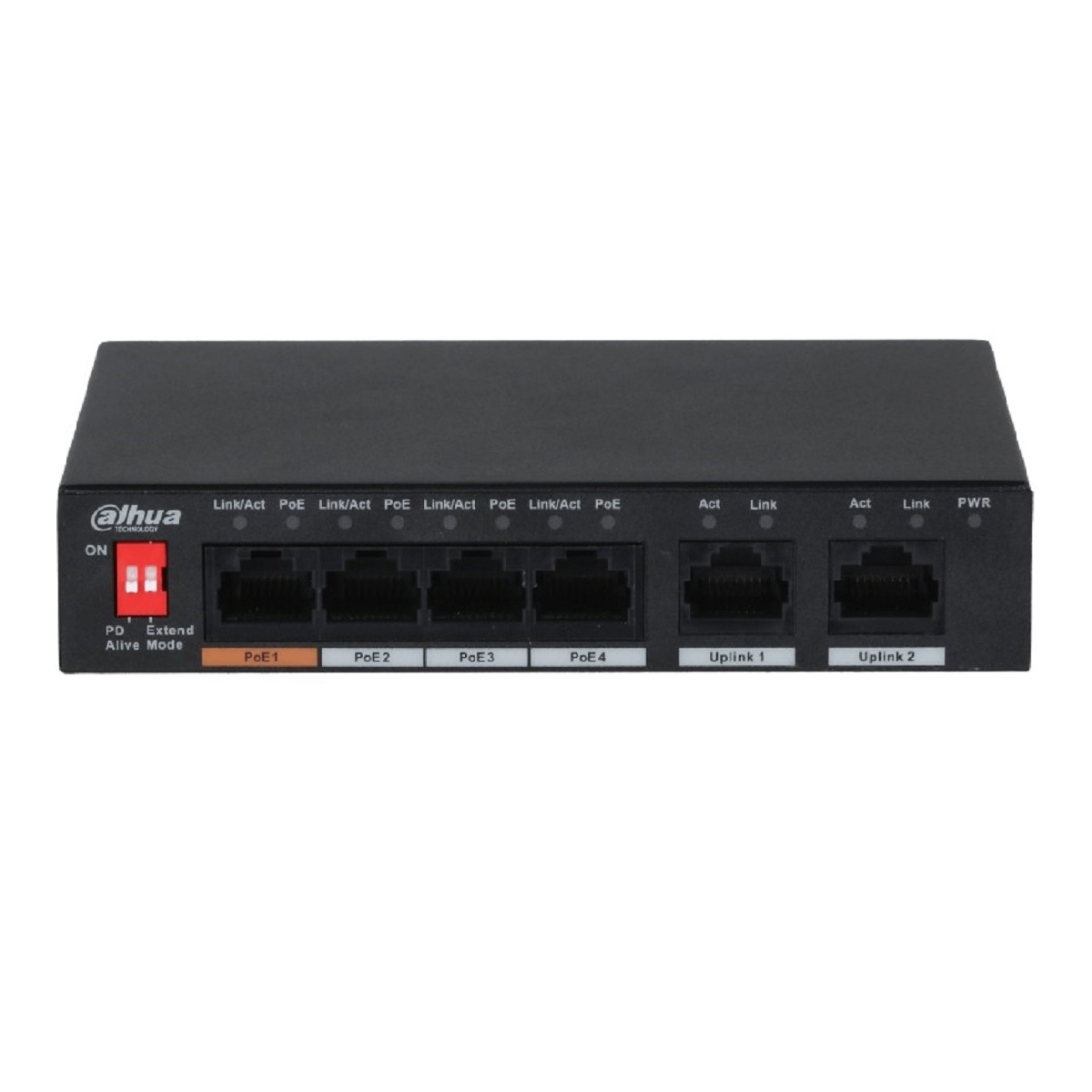

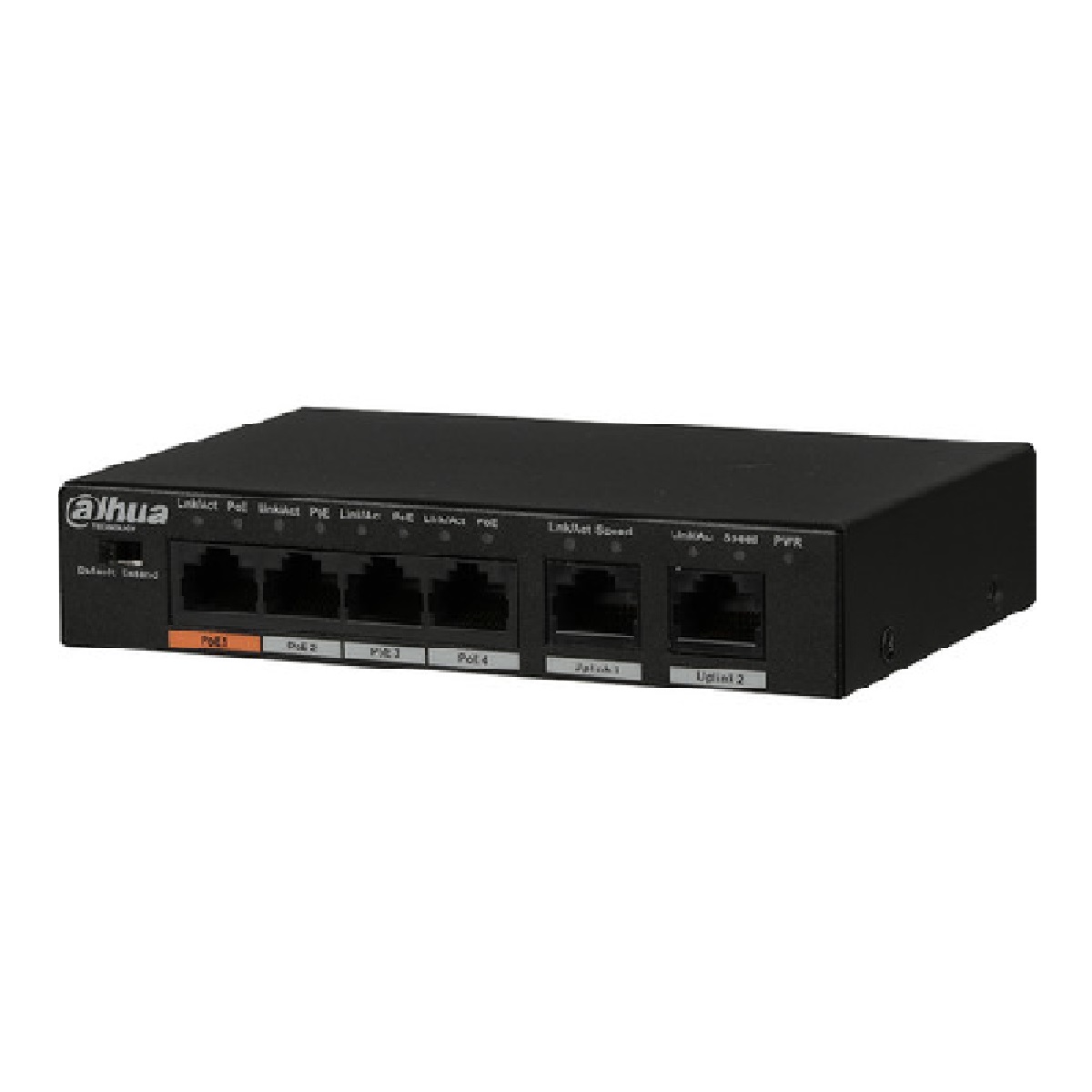

Dahua Technology 4-Port Fast Ethernet PoE Switch (PFS3006-4ET-60)

Dahua PFS3006-4ET-60 4-Port Fast Ethernet PoE+ Switch

Dahua PFS3006-4ET-60 4-Port Fast Ethernet PoE+ Switch is a 4-port fast Ethernet switch, which supports 250 meters long distance PoE transmission.

It provides 4*10/100Mbps PoE ports and 2*100 Mbps uplink ports. The product is equipped with two transmission modes (Default/Extend), which are controlled by DIP switch.

Designed for commercial use, the PFS3006-4ET-60 4-Port Fast Ethernet PoE+ Switch from Dahua comes with a total PoE power budget of up to 60W so you can plug PoE-compliant devices into any of the four Gigabit PoE+ ports.

Alongside the four Fast Ethernet ports, you will find dual Fast Ethernet uplink ports to connect various network components directly to the switch.

Once configured, the Dahua switch resides on Layer 2 of the network and supports a variety of network standards including 802.3, 802.3u, 802.3X, 802.3af, and 802.3at.

Furthermore, this PoE switch is capable of transmitting power and data at distances of up to 820′ to give you maximum flexibility when configuring your devices

Key Features

• Layer two commercial switch
• Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
• MAC auto learning, aging, MAC address capacity is 2K
• Supports MDI/MDIX self-adaptation
• RJ45 port supports 10/100 Mbps self-adaptation
• Supports IEEE802.3af and IEEE803.3at power supply standards
• Adopts metal enclosure
• Supports Hi-PoE 60W
• Supports DC 48-57V power supply

Specification

General

• Model: PFS3006-4ET-60
• Ethernet Port: 2*10/100Mbps Uplink ports 4*10/100 Mbps PoE ports
• PoE Power Consumption: Port1≤60W, Port2-4≤30W, Total≤60W
• PoE Protocol: IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
• Switching Capacity: 1.8Gbps
• Packet Forwarding Rate: 890kpps
• Packet Buffer Memory: 768Kb
• MAC Table Size: 2K
• Flow Control: Enable by default
• Application Humidity: 10%~90%
• Power: DC48~57V power adapter
• Lightning Protection:
  – Common Mode 2KV
  – Differential Mode 0.5KV
• Working Temperature: -10°C~+55°C
• Weight: 0.3kg
• Dimension(W×D×H): 130mm×85mm×26mm
