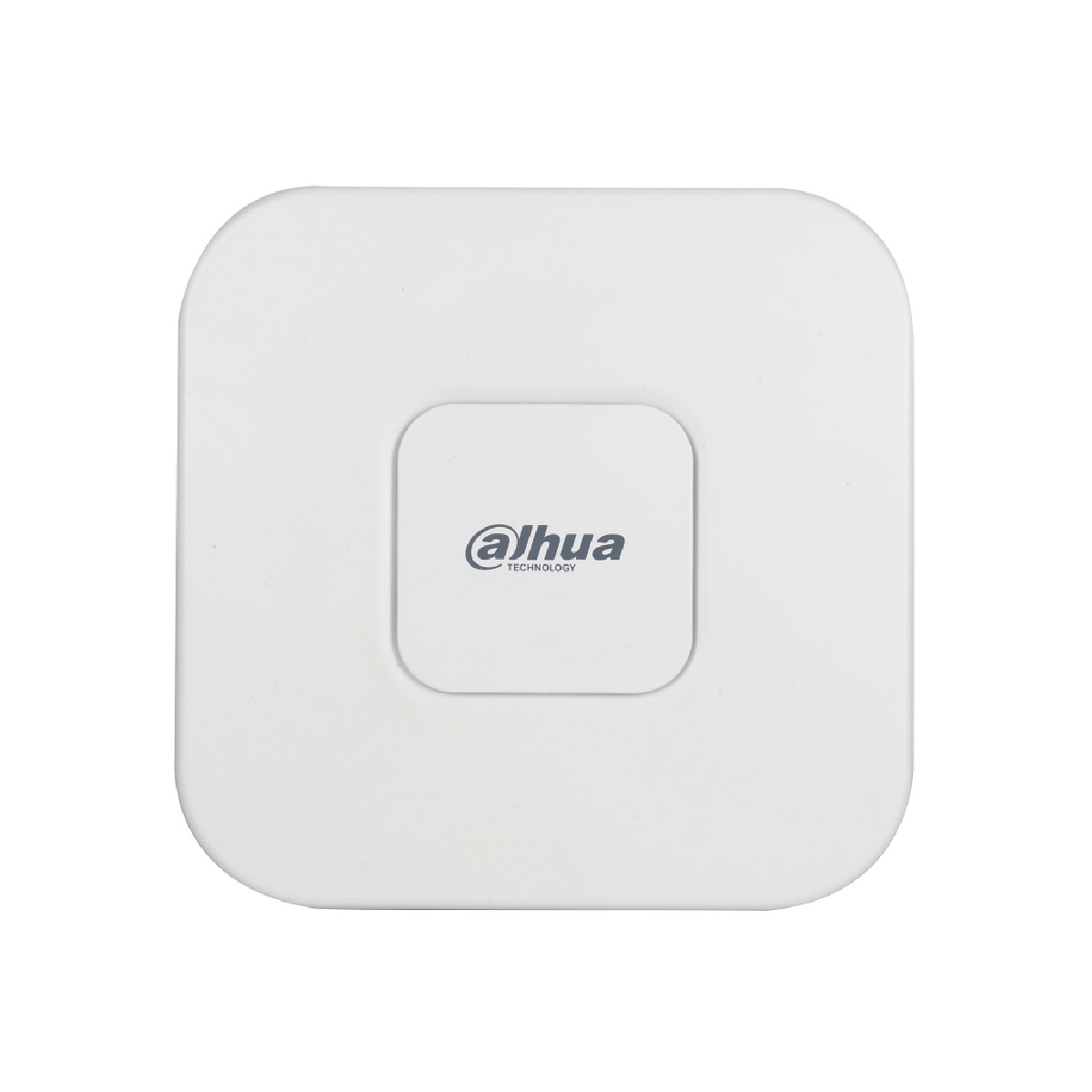

Dahua PFM889-IM Indoor 5G Wireless Video Transmission Device (AP), Transmission 150m,IP41, PoE

Dahua PFM889-IM Indoor 5G Wireless Video Transmission Device (AP)

Dahua PFM889-IM Indoor 5G Wireless Video Transmission Device (AP) is an Indoor Wireless Access Point.

Key Features

• The best coverage: 0-150m(open);
• PoE power supply, which supports international standard 802.3at and lets power supply be convenient and reliable;
• Support Web page and AC remote operations management and make the installation and maintenance be more convenient;
• Support SNMP v1/v2c/v3 network management protocol, adapt to all kinds of general network management platform, and make the equipment management be more convenient;
• Support device auto reboot function;
• Support double firmware redundancy backup and make the maintenance operation be more safe and reliable;
• Use the wireless multimedia optimization shaping technology, which ensures the stability of the video and flow transmission.
•

Specification

Wireless Features

• Wireless Standard : IEEE802.11 a/n/ac | IEEE802.11 b/g/n
• Working Frequency : 5G: 5745~5825MHz (extended range: 4920~6100MHz) ; 2.4G: 2412~2472MHz (extended range: 2312~2732MHz)
• Wireless Speed : 2.4G: 300Mbps ; 5G: 867Mbps
• Modulation Mode : OFDM
• Antenna Internal antenna: gain 3dBi Internal 2.4G antenna: gain 3dBi
• Internal 5G antenna: gain 3dBi
• Output Power : 27dBm
• Receiving Sensitivity :  11b: -93dBm@ 1Mbps; 11g: -92dBm@6Mbps; 11a: -91dBm@6Mbps; 11n : -74dBm@MCS7;
  11ac: -67dBm@MCS9
• Transmission Distance : 150m
• Wireless Direction Angle : Omni-directional

Hardware

• Power : 1*PoE RJ45(IN: 220V, OUT: 48V/0.5A), DC 48V
• Power Consumption : Max. 20W
• Ethernet Port : 1*LAN RJ45(Gigabit)
• Working Temperature : -30ºC~+60ºC
• Storage Temperature : -40ºC~+80ºC
• Working Humidity : 5%~95%RH( no condensation)
• Equipment Dimension : 150mm×150mm×42mm
• Equipment Weight : 0.5Kg
• Protection Level : IP41

Software

• Encryption Type : WPA-PSK/WPA2/CCMP(AES)/TKIP
• Network Mode : Route/Network Bridge
• Working Mode : Access Point/Client/WDS AP/WDS client
• Security Mechanism : IP/MAC address filtering, hide network name and etc.
• Network Protocol : TCP/UDP/ARP/ICMP/DHCP/HTTP/NTP
• TDMA Enhancement : Support(TDMA eliminate hidden nodes influence and greatly improve one-to-many performance)
• Auto ACK Timing Adjustment : Support(Auto optimize parameter within long-distance communication and make the performance optimal)
• Management and Log : NTP, Syslog, Telnet, AC, SNMP
• Webpage Configuration Management : Support webpage configuration, AC remote management and SNMP management
• Firmware Update : Support Firmware webpage update and AC remote upgrade
• Bandwidth Flexible Configuration : 20/40/80MHz
