Dahua ITC437-PW6M-IZ-GN Access ANPR Camera,CMOS image sensor

                                                      **COMES WITH BRACKET (6 IR illuminators)**

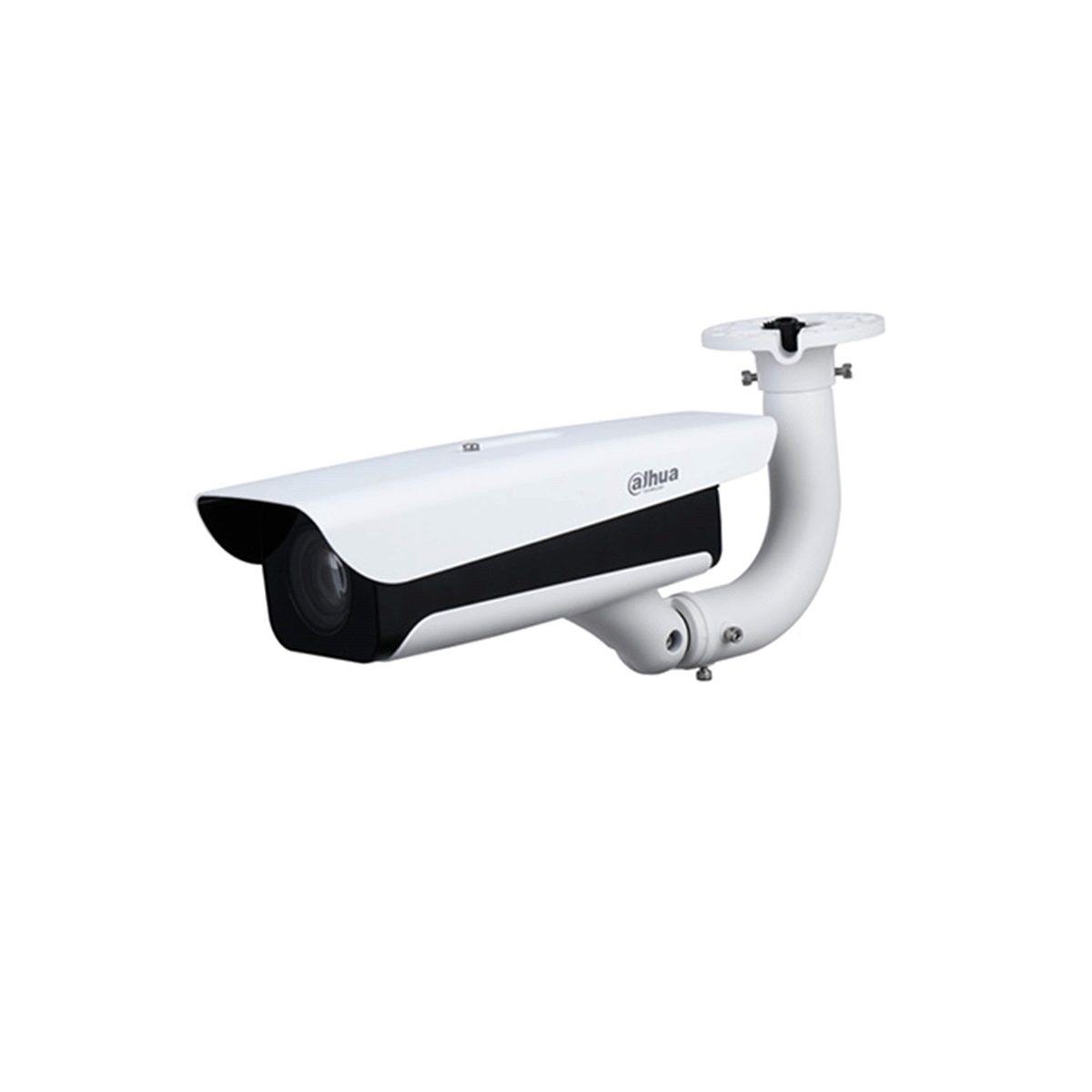

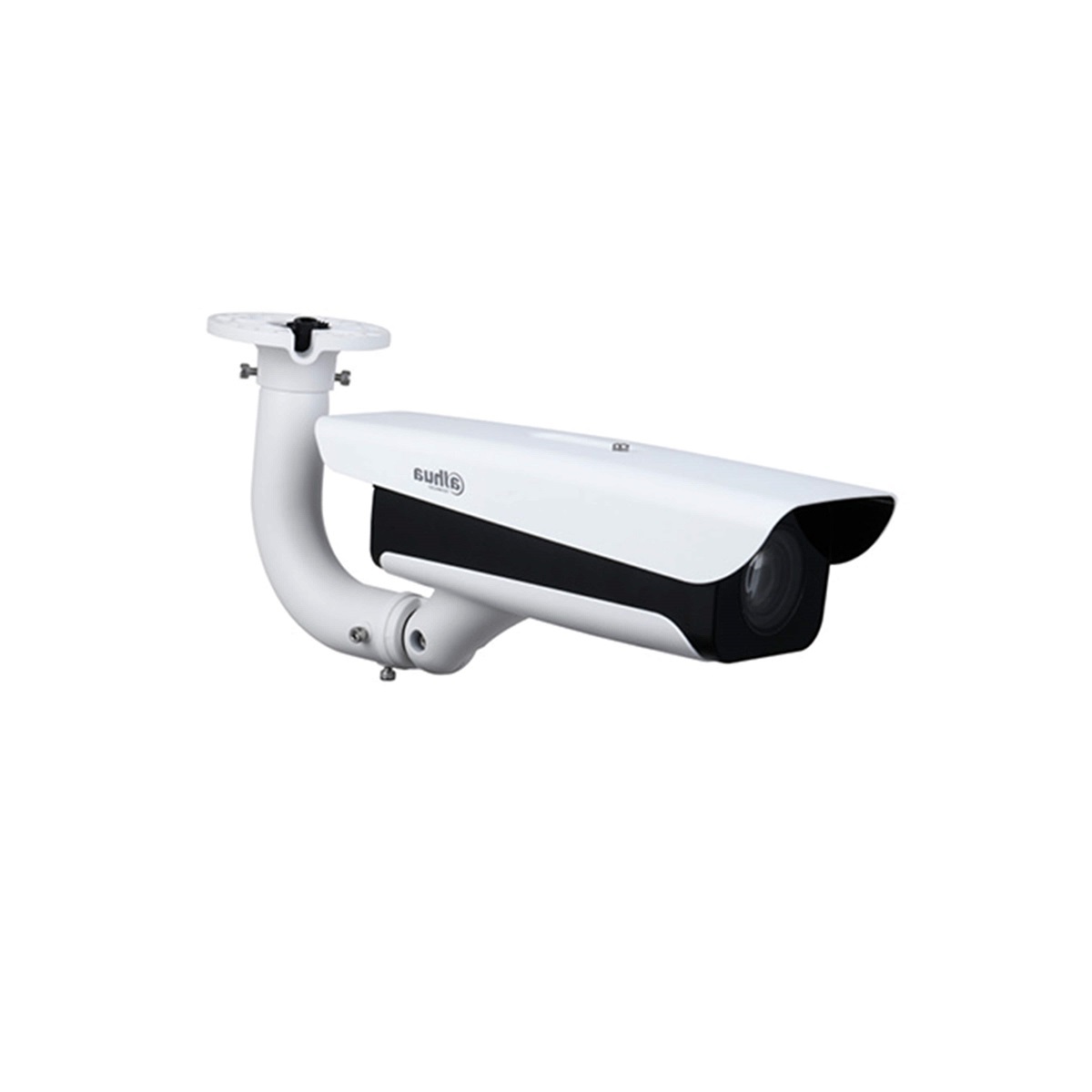

Dahua ITC437-PW6M-IZ-GN Access ANPR Camera

Dahua ITC437-PW6M-IZ-GN Access ANPR Camera as an IP ANPR (Automatic Number Plate Recognition) Camera is designed for auto recognition of the vehicle number plates.

The used moto zoom lens with 10 … 50 mm focal length allows to remote view angle adjustment. PoE powering possibility, compatible with the 802.3at standard makes the device more universal and easier to install.

Dahua ITC437-PW6M-IZ-GN having CMOS image sensor while Video compression standards is H.265/H.264M/H.264H/H.264B/MJPEG,fully Integrated design and IP67 Weatherproof design.

Key Features

• 1/1.8″ 2MP CMOS image sensor
• Video compression standards: H.265/H.264M/H.264H/H.264B/
• Lens 5mm–50mm
• IP67 Weatherproof design
• PoE+ and 12Vdc/24Vac power input

Specification

Basic

• Illuminator Number : 6 IR illuminators, brightness adjustable
• Image Sensor : 1/1.8” CMOS
• Image Resolution : 2688 × 1520 (OSD black strip excluded)
• Video Resolution :

>Main stream: 4M (2688 × 1520), 1080p (1920 × 1080), 720p (1280 × 720)
>Sub stream: 720p (1280 × 720), D1 (704 × 576, 704 × 480), CIF (352 × 288, 352 × 240)

• Video Frame Rate : PAL: Main stream (2688 × 1520@25 fps, 1920 × 1080@25 fps, 1280 × 720@25 fps), sub stream: (1280 × 720@25 fps, 704 × 576@25fps, 352 × 288@25 fps)
  NTSC: Main stream (2688 × 1520@30 fps, 1920 × 1080, 1280 × 720@30 fps), sub stream (1280 × 720@30 fps, 704 × 408@30 fps, 352 × 240@30 fps)
• Bit Rate :                 H.264B: 32 Kbps–32768 Kbps
  H.264M: 32 Kbps–32768 Kbps
  H.264H: 32 Kbps–32768 Kbps
  H.265: 32 Kbps–32768 Kbps
  MJPEG: 512 Kbps–65536 Kbps
• Video Compression : H.264B/H.264M/H.264H/H.265/MJPEG
• Picture Encoding Format : JPEG
• Noise Reduction : 3D NR
• White Balance : Full auto, auto color temperature range, customized color temperature
• Electronic Shutter Speed : 1/50–1/10,000 auto or manual
• WDR : 96 db
• Edge Enhancement : Yes
• Exposure Mode : Full auto, customized auto, customized
• Iris Control : Auto iris (W:1.33—T:1.34)

Performance

• Trigger Mode : Video detection; I/O coil
• Shutter : Single shutter
• Storage : 1 built-in TF card slot. Supports Kingston 16 G, 32 G, 64 G, and 128 G; Dahua 16 G, 32 G, 64 G, and 128 G; SanDisk 16 G, 32 G, 64 G, and 128 G
• Image Tampering Prevention : Yes. Video/picture can be checked through watermark and verification
• Field of View  : H: 40.55° (W)–9.33° (T) | V: 22.7° (W)–5.3° (T) |D: 46.6° (W)–10.63° (T)
• Illumination Distance : 30 m (98.43 ft)
• Capture Distance : 8 m–30 m (26.25 ft to 98.42 ft)
• Detected Width : 6 m–7 m (19.69 ft to 22.97 ft)
• Min. Illumination : 0.002 lx (built-in illuminator on)
• Max. Detection Speed : 60 km/h (37.28 miles per hour)
• Alarm Event : Alarm for events of no storage card, storage card no space, storage card error, network disconnection, IP conflict, and illegal access
• Security : Authorized username and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control
• OSD Overlay : Supports overlay of time, address, plate, vehicle (color, type, accuracy), vehicle posture, counterfeit, checkpoint direction, trigger source, and custom
• Automatic Network Replenishment (ANR) : Yes. Transfer through platform/FTP
• Auto Registration : Yes

Intelligence

• Vehicle Detection : Vehicle capture rate ≥ 99%
• Vehicle Recognition : Supports recognizing vehicle type, vehicle color, features of driver and front-seat passenger, licensed/unlicensed vehicle. Vehicle recognition rate ≥ 95%
• Video Metadata : Yes
• Intelligent Track Frame : Intelligent frame display. Supports displaying vehicle plate and vehicle path

Port

• Lens Mount : Lens in the camera module
• Analog Output : 1
• Network : 1 × 100/1000 M Ethernet port (RJ-45)
• RS-485 : 2
• RS-232 : 1
• Alarm Input : 3, optocoupler input (on-off input)
• Alarm Output : 3 ports. 2-channel optocoupler output, 1-channel relay output, which can connect to devices such as barriers
• Audio Input : 1-channel RCA port
• Audio Output : 1-channel RCA port

General

• Power Supply : 12V DC, 24V AC, PoE+
• Power Consumption :< 20 W
• Operating Temperature : −30°C to +65°C (−22°F to +149 °F)
• Operating Humidity : 10%RH–90%RH (no condensation)
• Casing : Metal + plastic
• Protection Grade : IP67
• Dimensions : 515.2 mm × 124.7 mm × 183.2 mm (20.28″ × 4.91″ × 7.21″) (L × W × H)
• Net Weight : 1.9 kg (4.19 lb)
• Gross Weight : 3.8 kg (8.38 lb)
• Installation : Bent pole bracket (included)
• Lens : Standard 10 mm–50 mm (0.39”–1.97”)

Certification

• CE, FCC : Yes
• RoHS : Yes
