Dahua ITC215-PW6M-IRLZF-B Access ANPR, IP67 2MP Motorized Varifocal Lens,Bullet Camera

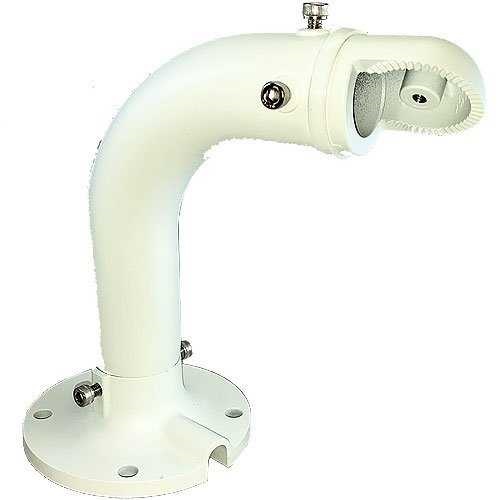

**COMES WITH BRACKET (850nm built-in white light illuminator)**

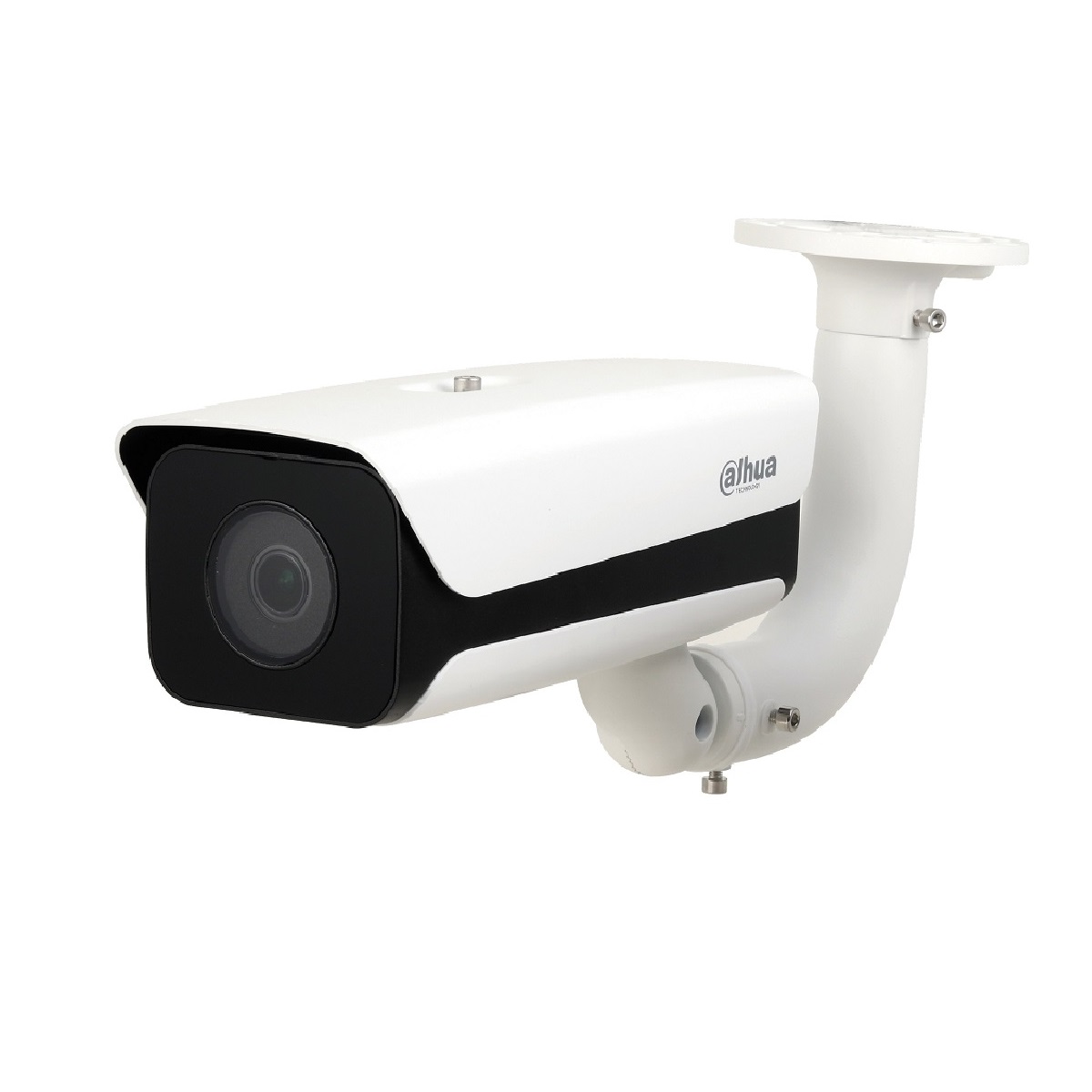

Dahua ITC215-PW6M-IRLZF-B ANPR Camera

Dahua ITC215-PW6M-IRLZF-B ANPR Camera is a license plate recognition camera camera with a recording resolution of 1920 x 1080 (1080p) at 30 frames per second with a 1/2.8-in. CMOS sensor.

The camera includes a 3.2 mm to 10.5 mm vari-focal lens that lets the installer adjust the zoom angle of the picture, providing a 108.1° to 30.3° horizontal angle of view.

The camera can capture and recognize license plates of vehicles traveling up to 40 kph (25 mph). The camera can be mounted between 3 m and 8 m (9.84 ft and 26.25 ft) from where the vehicles will be traveling.

The ITC215-PW6M-IRLZF-B coupled with a Dahua NVR or DSS Video Management System offers a complete traffic management and parking solution.

The short range access ANPR camera adopts high-performance CMOS image sensor and processor for in-depth extraction and analysis of vehicle information 24/7.

In addition, it embraces deep learning algorithm for accurate recognition of vehicles without license plate, vehicle model, vehicle logo, vehicle series, vehicle color, and more.

The camera is extensively applied to vehicle detection and recognition in scenarios such as parking lots, community roads, and more.

The access ANPR kit is extensively applied to vehicle detection and recognition in scenarios such as parking lots, community roads, and more.

The access ANPR kit is extensively applied to vehicle detection and recognition in scenarios such as parking lots, community roads, and more.

Functions

High-quality image
Industry-specific CMOS image sensor with high sensitivity, high SNR and excellent WDR provides lifelike images 24/7.

Impressive performance
High-performance CPU processor helps extract and analyze information of motor and non-motor vehicles in real-time, providing vehicle feature details for business decision-making.

High-level protection
Integrated design with low power consumption, built-in lightning protection module, and IP67 protection grade, suitable for various harsh environments.

Easy installation
Built-in LED illuminator and motorized vari-focal lens, providing ease of installation and commissioning.

License Plate Recognition
The License Plate Recognition camera automatically captures vehicle license plate images and recognizes license plate numbers and letters.

During playback, an operator can perform a license plate search by Time and Date to view thumbnail images of all plates captured during the specified time period or can enter a license plate number to search for vehicles recorded with that plate.

License plate recognition technology offers effective entrance/exit management, traffic surveillance, and parking lot monitoring.

High Efficiency Video Coding (H.265)
The H.265 (ITU-T VCEG) video compression standard offers double the data compression ratio at the same level of video quality, or substantially improved video quality at the same bit rate, as compared to older video compression technologies.

H.265 offers such impressive compression by expanding the pattern comparison and difference-coding, improving motion vector prediction and motion region merging, and incorporating an additional filtering step called sample-adaptive offset filtering.

Cyber security
Dahua network cameras are equipped with a series of key cyber security technologies including: security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage.

These technologies improve the camera’s ability to prevent malicious access and to protect data.

Environmental
With a temperature range of -30 °C to +65 °C (-22 °F to +149 °F), the camera is designed for extreme temperature environments. Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications.

Key Features

• 1/2.8″ 2 Megapixel Progressive scan CMOS
• WDR; Day/Night(ICR); 3DNR; BLC; HLC
• IR distance up to 12m
• H.265+ & H.264 dual-stream encoding
• Micro SD memory
• Powerful 2.7-13.5mm motorized lens and IR light
• ideal for monitor ANPR distance 3-8m
• IP67; and superior performance for outdoor applications
• Embedded with LPR algorithm inside the camera
• Vehicle data structuring: license plate recognition; vehicle size; vehicle colour detection
• PoE+ and 12Vdc power input

Specification

Basic

Illuminator Number 6 IR illuminators, brightness adjustable

Image Sensor 1/2.8” CMOS

Image Resolution 1920 × 1080 (OSD black strip excluded)

Video Resolution  Main stream: 1080P (1920 × 1080)/720P (1280 × 720)
Sub stream: 720P (1280 × 720)/D1 (704 × 576, 704 × 480)/CIF (352 × 288, 352 × 240)

Video Frame Rate PAL: Main stream (1920 × 1080@25fps, 1280 × 720@25fps), sub stream (1280 × 720@25fps, 704 × 576@25fps, 352 × 288@25fps)
NTSC: Main stream (1920 × 1080@30fps, 1280 × 720@30fps), sub stream (1280 × 720@30fps, 704 × 408@30fps, 352 × 240@30fps)

Bit Rate  H.264B: 32Kbps–32768Kbps
H.264M: 32Kbps–32768Kbps
H.264H: 32Kbps–32768Kbps
H.265: 32Kbps–32768Kbps
MJPEG: 512Kbps–65536Kbps

Video Compression H.264B/H.264M/H.264H/H.265/MJPEG

Picture Encoding Format JPEG

Noise Reduction 3DNR

White Balance Full auto, auto color temperature range, customized color temperature

Electronic Shutter Speed 1/50–1/10000, auto or manual

WDR 96 db

Edge Enhancement Yes

Exposure Mode Full auto, customized auto, customized

Iris Control Auto iris (W: 1.6–T: 3.3)

Performance

Trigger Mode Video detection; I/O coil; video detection and I/O coil

Shutter Single shutter

Storage 1 built-in TF card port. Supports Kingston 16G, 32G, 64G, and 128G; Dahua 16G, 32G, 64G, and 128G; SanDisk 16G, 32G, 64G, and 128G

Image Tampering Prevention Yes. Video/picture can be checked through watermark and verification

Field of View Horizontal: 108.1° (W)–30.3° (T);

Vertical: 56.3° (W)–17.1° (T);

Diagonal: 130.9° (W)–34.8° (T)

Illumination Distance 12 m (39.37 ft)

Capture Range 3 m–6 m (9.84 ft–19.69 ft)

Detected Lane Width 3 m –4 m (9.84 ft–13.12 ft)

Min Ambient Illuminance 0.002 Lux. Illuminator is designed with the camera for illumination

Max Speed that the Camera Detects 30 km/h

Alarm Event Alarm in the case of no storage card, not enough storage space, storage card error, network disconnection, IP conflict, and illegal access

Security Authorized username and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control

OSD Overlay Supports overlay of time, address (position of channel), lane (number/direction), plate (number and color), vehicle (speed, color, type)

Automatic Network Replenishment (ANR) Yes. Platform/FTP

Auto Registration Yes

Intelligence

Vehicle Detection Vehicle capture rate ≥99%

Vehicle Recognition Supports recognizing vehicle type, vehicle logo, vehicle series, vehicle color,license plate,features of driver and front-seat passenger, and vehicle without plate. Vehicle recognition rate ≥95%

Video Metadata Yes

Intelligent Track Frame Intelligent frame display. Supports displaying vehicle plate and vehicle path

Port

Lens Mount Φ14

Analog Output 1

Network 1 100/1000M Ethernet port (RJ-45)

RS-485 2

RS-232 1

Alarm Input 3, optocoupler input (on-off input)

Alarm Output 3 ports. 2-channel optocoupler output, 1-channel relay output, which can connect to devices such as barriers

Audio Input 1-channel RCA port

Audio Output 1-channel RCA port

General

Power Supply 12V DC, 24V AC, PoE+

Power Consumption ＜20W

Operating Temperature −30°C to +65°C (−22°F to +149 °F)

Operating Humidity 10%RH–90%RH (no condensation)

Casing Metal and plastic

Protection Grade IP67

Dimensions 486.7 mm × 124.3 mm × 185.5 mm (19.16” × 4.89” × 7.30”) (L × W × H)

Net Weight 1.9 kg (4.19 lb)

Gross Weight 3.3 kg (7.28 lb)

Installation Installed with bracket

Lens 3.2 mm –10.5 mm

Certification

CE, FCC Yes

RoHS Yes
