Dahua IPC-HFW2831TP-ZS-S2 8MP Lite Series 2.7-13.5 mm Motorised Varifocal Lens Varifocal Bullet Network Camera

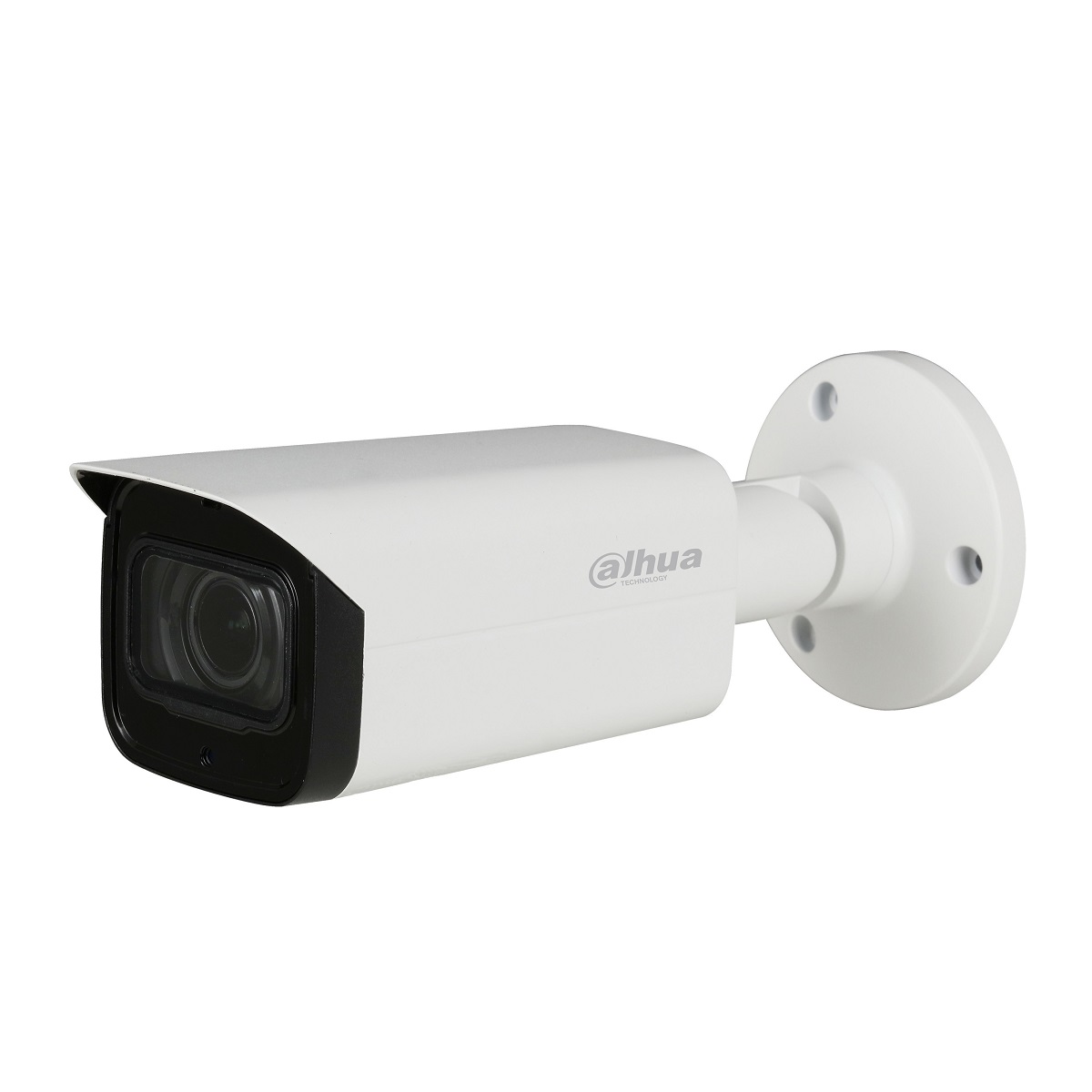

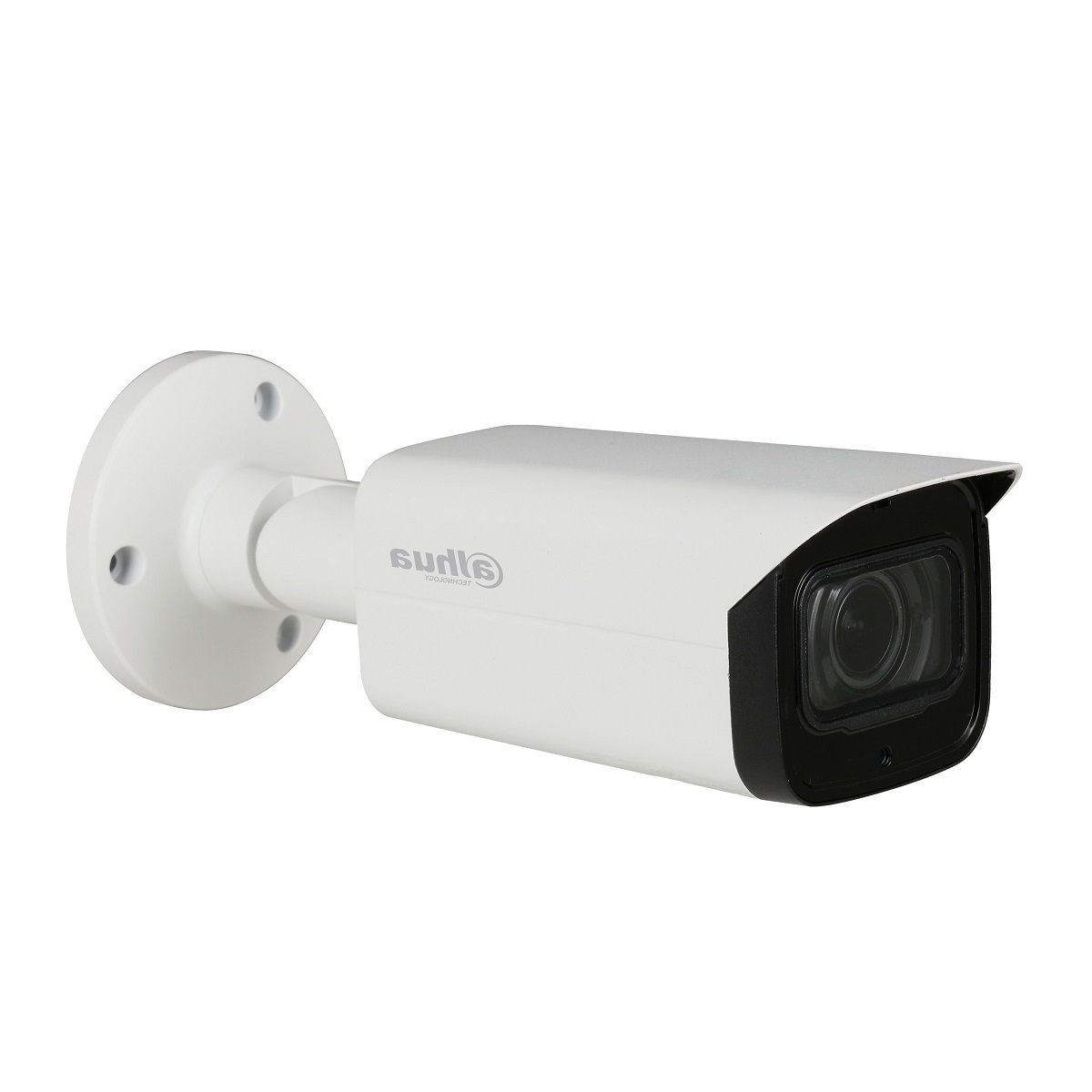

Dahua IPC-HFW2831TP-ZS-S2 Bullet Network Camera

Dahua IPC-HFW2831TP-ZS-S2 Bullet Network Camera is a 8MP Lite Varifocal Bullet Camera, Outputs max. 8MP (3840×2160) @15fps and supports 2688×1520 (2688×1520) @25/30fps, 2.7-13.5 mm Motorised Varifocal Lens, IP67, 12Vdc

Key Features

• 1/2.7″ 8 Megapixel progressive 8MP (3840×2160) @15fps
• and supports 2688×1520 (2688×1520) @25/30fps
• Switchable to standard definition & AHD/TVI via dip switches
• High Speed; long distance real-time transmission
• 2MP signal up to 500m on coax or 250m with UTP passive baluns
• Starlight Full Colour; True WDR; BLC; 3DNR; AWB; AGC
• Built-in IR LED; Max IR distance 60m
• OSD Menu with control over coaxial cable/UTP via CVR
• Supports max. 256 GB Micro SD card
• 2.7-13.5 mm Motorised Varifocal Lens (113º-31º Field of View)
• IP67 Weatherproof design
• 12Vdc power input

Specification

Camera

• Image Sensor: 1/2.7” 8 Megapixel progressive CMOS
• Effective Pixels: 3840 (H) × 2160 (V)
• ROM: 128 MB
• RAM: 256 MB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination: 0.008 Lux@F1.5
• IR Distance: 60 m (196.85 ft)
• IR On/Off Control: Auto/Manual
• IR LEDs Number: 4
• Pan/Tilt/Rotation Range:
  – Pan: 0°–360°
  – Tilt: 0°–90°
  – Rotation: 0°–360°

Lens

• Lens Type: Motorized vari-focal
• Mount Type: φ14
• Focal Length: 2.7 mm–13.5 mm
• Max. Aperture: F1.5
• Field of View:
  – Pan: 113°–31°
  – Tilt: 58°–17°
  – Diagonal: 138°–36°
• Iris Type: Fixed
• Close Focus Distance: 0.8 m–0.8 m (2.62 ft–2.62 ft)
• DORI Distance W Lens:
  – Detect: 85.3 m (279.9 ft)
  – Observe: 34.1 m (111.9 ft)
  – Recognise: 17 m (55.8 ft)
  – Identify: 8.5 m (27.9 ft)
• DORI Distance T Lens:
  – Detect: 280 m (918.6 ft)
  – Observe: 112 m (367.5 ft)
  – Recognise: 56 m (183.7 ft)
  – Identify: 28 m (91.9 ft)

Smart Event

• General IVS Analytics: Tripwire; intrusion

Video

• Video Compression: H.265; H.264; H.264B; MJPEG
• Smart Codec: Yes
• Video Frame Rate:
  – Main Stream: 3840 × 2160 (1 fps–15 fps), 2688 × 1520 (1 fps–25/30 fps)
  – Sub Stream: 704 × 576 (1 fps–25 fps), 704 × 480 (1 fps–30 fps)
• Stream Capability: 2 streams
• Resolution: 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
• Bit Rate Control: CBR/VBR
• Video Bit Rate:
  – H.264: 32 Kbps–8192 Kbps
  – H.265: 12 Kbps–8192 Kbps
• Day/Night: Auto(ICR)/Color/B/W
• BLC: Yes
• HLC: Yes
• WDR: 120 dB
• White Balance: Auto/natural/street lamp/outdoor/manual/regional custom
• Gain Control: Auto/Manual
• Noise Reduction: 3D DNR
• Motion Detection: Off/On (4 Zone, Rectangle)
• Region of Interest(RoI): Yes (4 areas)
• Smart IR: Yes
• Image rotation: 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.)
• Mirror: Yes
• Privacy Masking: 4 areas

Network

• Network: RJ-45 (10/100 Base-T)
• Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
• Interoperability: ONVIF(Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
• User/Host: 20
• Edge Storage: Dahua Cloud; FTP; Micro SD Card (support max. 256 GB); NAS
• Browser: IE Chrome Firefox
• Management Software: Smart PSS, DSS, DMSS
• Mobile Phone: IOS; Android

Certification

• Certifications:
  – CE-LVD: EN60950-1
  – CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
  – FCC: 47 CFR FCC Part 15, Subpart B
  – UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

• Power Supply: 12V DC/PoE (802.3af)
• Power Consumption: < 9.9W

Environment

• Operating Conditions: –30°C to +60°C (–22°F to +140°F)/less than ≤ 95% RH
• Storage Temperature: –40°C to +60°C (–40°F to +140°F)
• Protection Grade: IP67

Structure

• Casing: Metal
• Dimensions: Φ244.1 mm × 90.4 mm (Φ9.61″ × 3.26″)
• Net Weight: 0.86 kg (1.90 lb)
• Gross Weight: 1.10 kg (2.43 lb)
