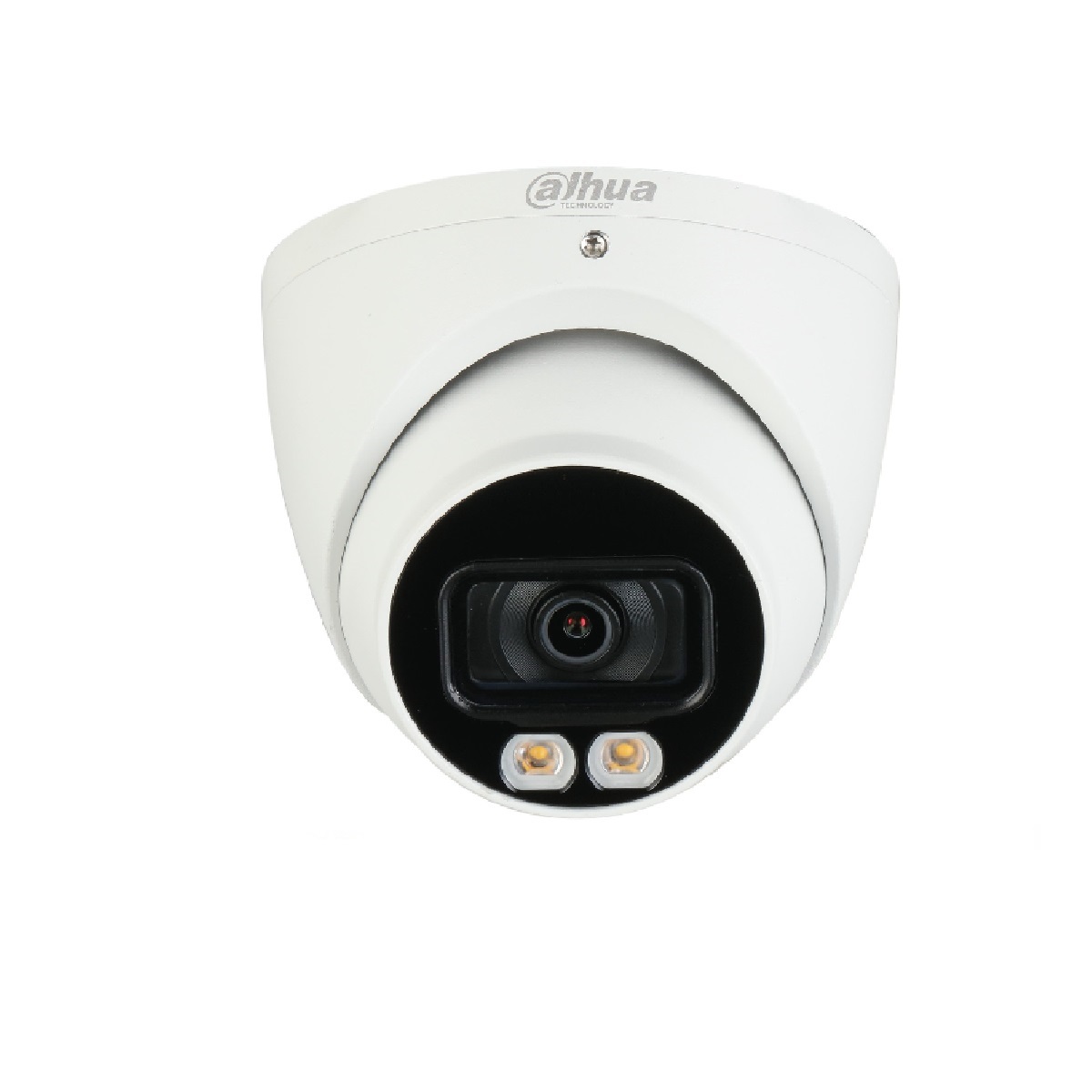

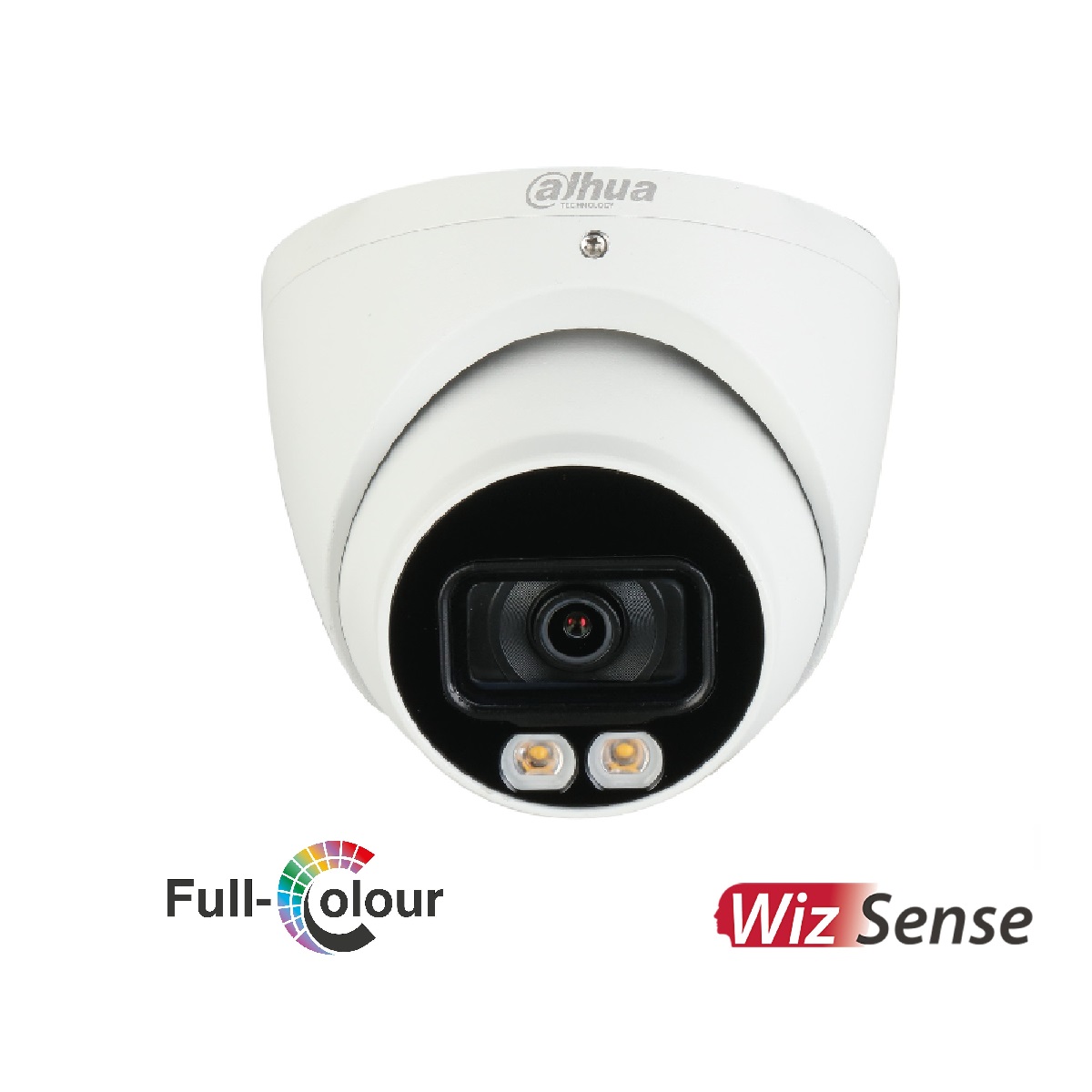

Dahua IPC-HDW3549TM-AS-LED WizSense, IP67 5MP 2.8 mm Fixed Lens, IR 30M IP Turret Camera

Dahua IPC-HDW3549TMP-AS-LED Dome Network Camera

Dahua IPC-HDW3549TMP-AS-LED Dome Network Camera Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm.

It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua’s advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

System Overview

With advanced deep learning algorithm, Dahua WizSense 3 series network camera supports some intelligent functions, such as perimeter protection and smart motion detection.

In addition, with full-color technology, it provides a better image effect in the condition of low illuminance.

Functions

Full-color

With high-performance sensor and large aperture lens, Dahua Full-color technology can display clear colorful image in the environment of ultra low illuminance.

With this photo sensitivity technology, the camera can capture more available light, and display more colorful image details.

SMD Plus

With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

Smart H.265+ & Smart H.264+

With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Perimeter Protection

With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately.

In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

WDR

With advanced Wide Dynamic Range (WDR) technology, Dahua network camera provides clear details in the environment of strong brightness contrast.

The bright and dark area can get clear video even in high brightness environment or with back light shadow.

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes.

Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

Key Features

• 5 Megapixel Full Colour
• 1/2.7” CMOS image sensor; low illuminance; high image definition
• H.264 & H.265 triple-stream encoding
• Outputs max. 5MP (2592×1944) supports 4MP (2688×1520) @25/30fps
• Built in 2 (White Light) 30m illumination
• ROI; SMART H.264 /H.265 ; flexible coding; applicable to various
• Bandwidth and storage environments
• Rotation mode; WDR; 3D DNR; HLC; BLC; digital watermarking
• Applicable to various monitoring scenes
• Intelligent detection: Intrusion; tripwire
• (support the classification and accurate detection of vehicle and human)
• 2.8mm Fixed Focal Lens (Field of View 98º)
• Supports max. 256 G Micro SD card; Built-in Mic
• 12Vdc/PoE power support;
• IP67; SMD plus
