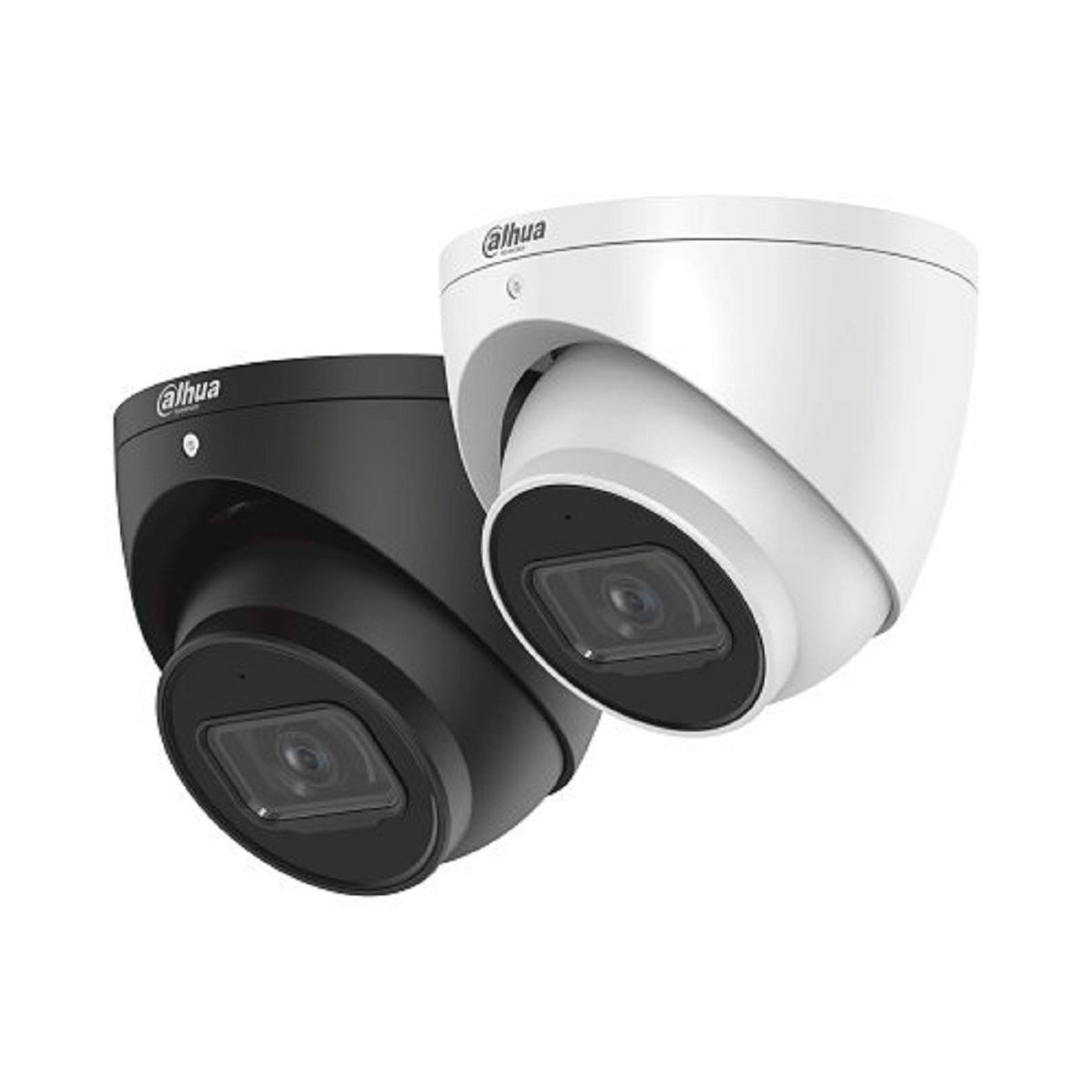

Dahua IPC-HDW3541EM-S-S2 WizSense 3 Series 5MP IR Fixed-Focal Eyeball IP Camera, 6mm Lens,Intelligent Detection

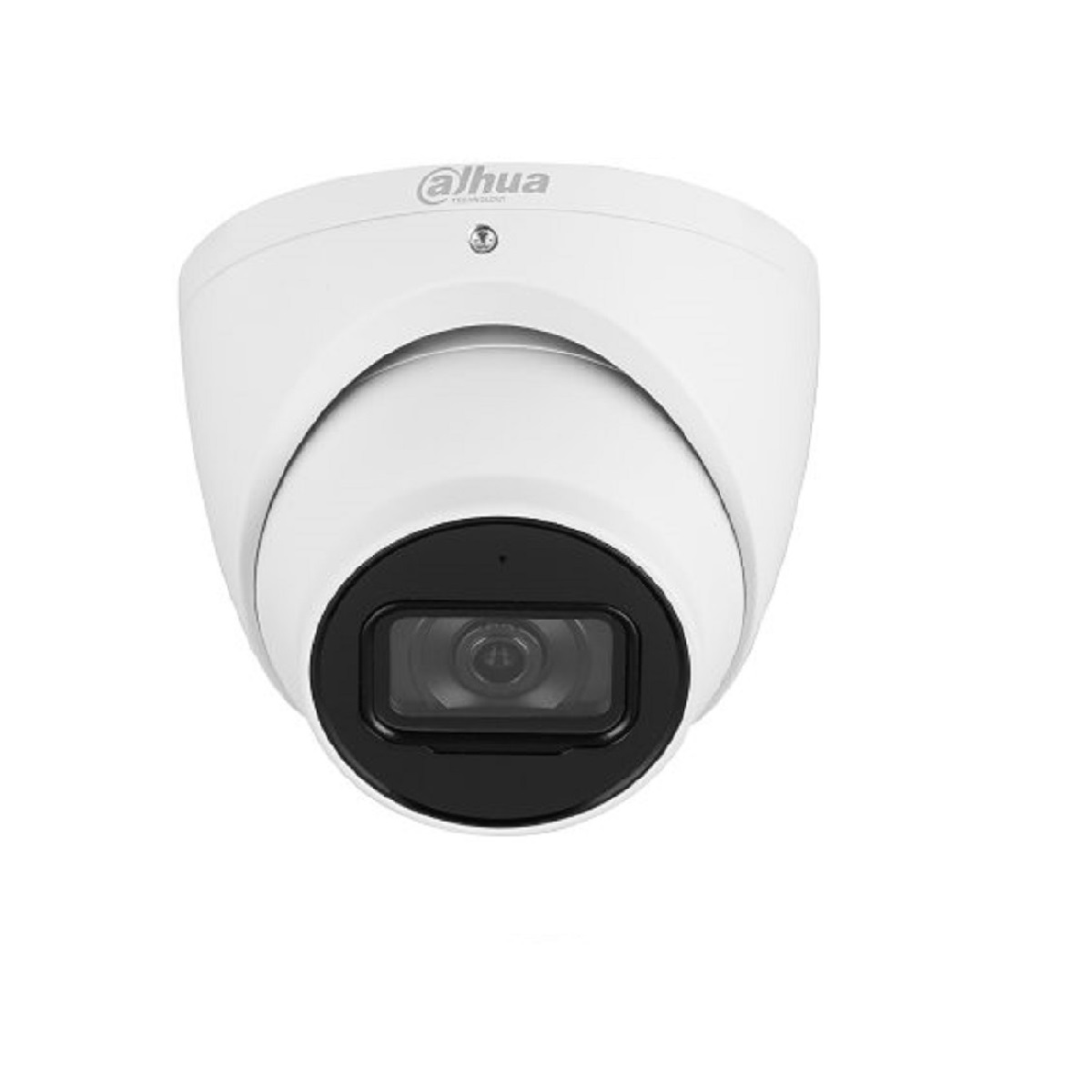

Dahua IPC-HDW3541EM-S-S2 Fixed-focal Eyeball WizSense Network Camera

Dahua IPC-HDW3541EM-S-S2 Fixed-focal Eyeball WizSense Network Camera is launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm.

It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua’s advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

Dahua WizSense 3 Series Network Camera greatly saves on bandwidth and storage space through its AI Coding technology.

Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), Quick Pick, and AI SSA (AI Scene Self-adaptation), making it easy and convenient to use.

Starlight technology and its large aperture lens also allow the camera to produce clear, vivid images even in poor lighting conditions.

Key Features

• 5-MP 1/2.7″ CMOS image sensor, excellent low luminance performance and high definition of images.
• Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4MP (2688 × 1520) @25/30 fps.
• H.265 codec, high compression rate, ultra-low bit rate.
• Built-in IR LED, max. IR distance: 50 m.
• ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
• Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
• Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
• Max. 256 G Micro SD card. built-in Mic.
• 12 VDC/PoE power supply, easy for installation.
• IP67 protection.
• SMD 4.0, AI SSA.

Specification

Camera

• Image Sensor : 1/2.7″ CMOS
• Max. Resolution : 2960 (H) × 1668 (V)
• ROM : 128 MB
• RAM : 512 MB
• Scanning System : Progressive
• Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination : 0.005 lux@F1.4 (Color, 30 IRE) | 0.0005 lux@F1.4 (B/W, 30 IRE) | 0 lux (Illuminator on)
• S/N Ratio : 56 dB
• Illumination Distance : 50 m (164.04 ft)
• Illuminator On/Off Control : Auto/Manual
• Illuminator Number : 2 (IR LED)
• Pan/Tilt/Rotation Range : Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°

Lens

• Lens Type : Fixed-focal
• Lens Mount : M12
• Focal Length : 2.8 mm; 3.6 mm; 6 mm
• Max. Aperture : F1.4
• Field of View :  2.8 mm: Horizontal: 97°; Vertical: 71°; Diagonal: 129°

3.6 mm: Horizontal: 80°; Vertical: 57°; Diagonal: 107°

6 mm: Horizontal: 50°; Vertical: 37°; Diagonal: 64°

• Iris Control : Fixed
• Close Focus Distance : 2.8 mm: 1.1 m (3.61 ft) | 3.6 mm: 1.7 m (5.58 ft) | 6 mm: 3.3 m (10.83 ft)

Intelligence

• IVS (Perimeter Protection) : Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
• AI SSA : Yes
• Quick Pick : With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
• Smart Search :Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Audio

• Built-in MIC : Yes
• Audio Compression : G.711a; G.711Mu; PCM; G.726; G.723

Alarm

• Alarm Event :No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception

Network

• Network Port : RJ-45 (10/100 Base-T)
• SDK and API :Yes
• Network Protocol : IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
• Cyber Security : Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
• Interoperability : ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
• User/Host : 20 (Total bandwidth: 64 M)
• Storage : FTP; SFTP; Micro SD card (support max. 256 G); NAS
• Browser : IE:IE11 | Chrome | Firefox
• Management Software : Smart PSS; DSS; DMSS
• Mobile Client : iOS; Android

Certification

• CE-LVD: EN62368-1;
• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
• FCC: 47 CFR FCC Part 15, Subpart B;
• UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Power

• Power Supply : 12 VDC/PoE (802.3af)
• Power Consumption : Basic: 4.3 W (12 VDC); 4.9 W (PoE) | Max. (WDR + IR intensity + Intelligence): 7.6 W (12 VDC); 8.9 W (PoE)

Environment

• Operating Temperature : –40 °C to +60 °C (–40 °F to 140 °F) /Less than 95% (RH)
• Storage Temperature : –40 °C to +60 °C (–40 °F to 140 °F)
• Protection : IP67

Structure

• Casing : Metal
• Product Dimensions : 93.6 mm × Φ106.0 mm (3.69″ × Φ4.17″)
• Net Weight : 500 g (1.10 lb)
• Gross Weight : 770 g (1.70 lb)
