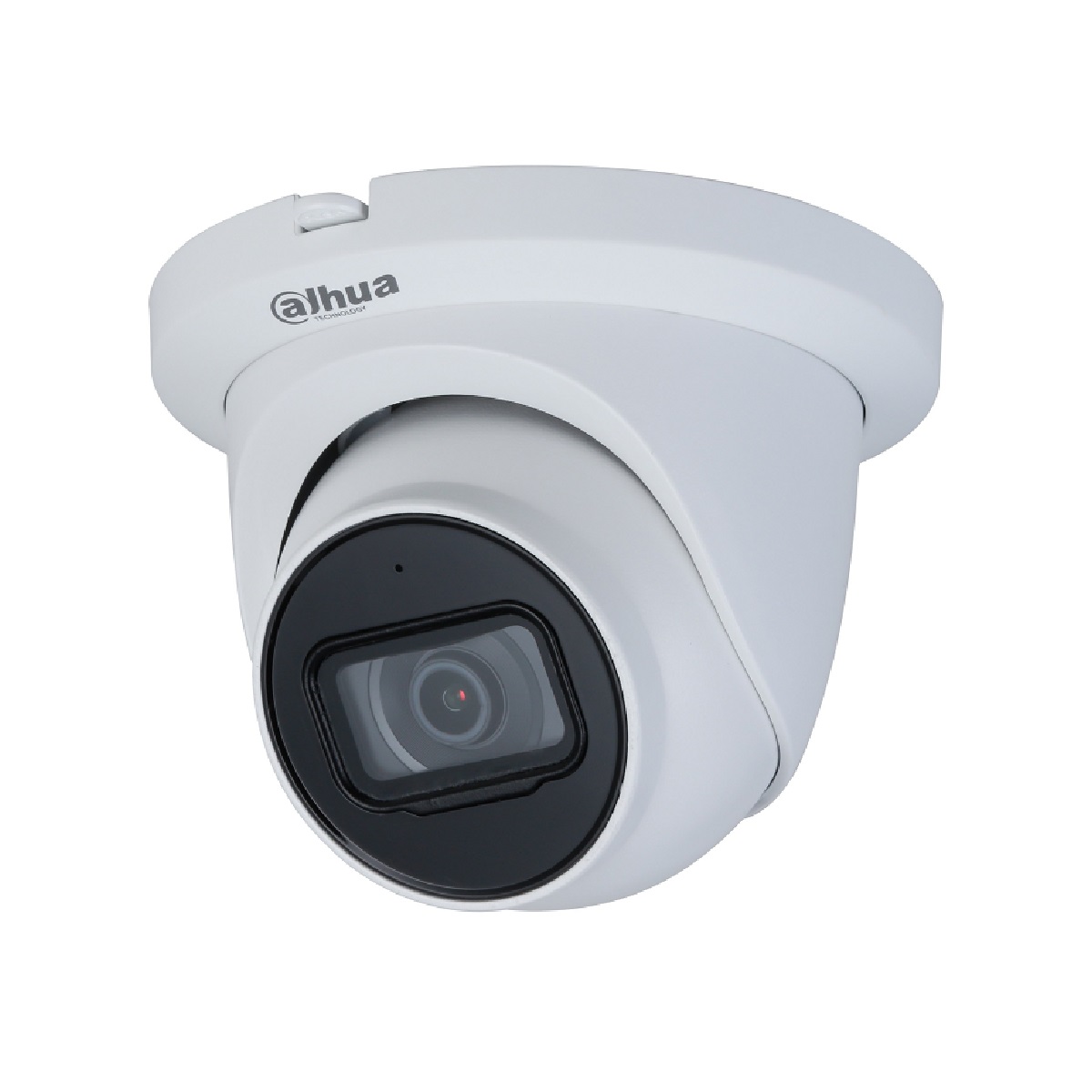

Dahua IPC-HDW2531TMP-AS-S2 Turret Dome Camera

Dahua IPC-HDW2531TMP-AS-S2 5MP Lite IR Fixed-focal Turret Dome Camera

Dahua IPC-HDW2531TMP-AS-S2 Turret Dome Camera

Dahua IPC-HDW2531TMP-AS-S2 Turret Dome Camera is a 5MP Lite IR Fixed Focal Eyeball Network Camera featuring H.264 & H.265, 2 stream encoding, Outputs 4MP (2688×1520)@25/30fps, 2.8 mm fixed focal lens, Micro SD memory, IP67, 12Vdc.

Key Features

• 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
• Outputs 2688×1520 (2688×1520) @ 25/30 fps, and supports max. 5MP (2592×1944) @ 20 fps
• H.265 codec, high compression rate, ultra-low bit rate
• Built-in IR LED, max IR distance: 30 m
• ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Intelligent detection: Intrusion, tripwire
• Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
• Supports max. 256 GB Micro SD card, built-in MIC
• 12V DC/PoE power support
• IP67 protection

Specification

Camera

• Image Sensor: 1/2.7” 5 Megapixel progressive CMOS
• Effective Pixels: 2592 (H) × 1944 (V)
• ROM: 128 MB
• RAM: 256 MB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100000 s
• Min. Illumination: 0.008 Lux @ F1.6
• IR Distance: 30 m (98.43 ft)
• IR On/Off Control: Auto/Manual
• IR LEDs Number: 2
• Pan/Tilt/Rotation: Range:
  – Pan: 0°–360°
  – Tilt: 0°–78°
  – Rotation: 0°–360°

Lens

• Lens Type: Fixed
• Mount Type: M12
• Focal Length: 2.8 mm, 3.6 mm
• Max. Aperture: F1.6
• Field of View:
  – 2.8 mm: Pan: 103.0°, Tilt: 71.0°, Diagonal: 132.0°
  – 3.6 mm: Pan: 84.0°, Tilt: 58.0°, Diagonal: 110.0°
• Iris Type: Fixed aperture
• Close Focus Distance:
  – 2.8 mm: 0.9 m (2.95 ft)
  – 3.6 mm: 1.6 m (3.61 ft)
• DORI Distance 2.8 mm Lens:
  – Detect: 56 m (183.73 ft)
  – Observe: 22.4 m (73.49 ft)
  – Recognise: 11.2 m (36.75 ft)
  – Identify: 5.6 m (18.37 ft)
• DORI Distance 3.6 mm Lens:
  – Detect: 80 m (262.47 ft)
  – Observe: 32.0 m (104.99 ft)
  – Recognise: 16.0 m (52.49 ft)
  – Identify: 8.0 m (26.25 ft)

Smart Event

• General IVS Analytics: Tripwire; intrusion

Video

• Video Compression: H.265; H.264; H.264B; MJPEG
• Smart Codec: Yes
• Video Frame Rate:
  – Main stream: 2592 × 1944 (1 fps-20 fps), 2688 × 1520 (1 fps-25/30 fps)
  – Sub stream: 704 × 576 (1 fps-25 fps), 704 × 480 (1 fps-30 fps)
• Stream Capability: 2 streams
• Resolution: 2592×1944(2592×1944); 2688×1520(2688×1520); 3M(2048×1536); 2304×1296(2304×1296); 1080p(1920×1080); 1.3M (1280 × 960); 720p(1280×720); D1(704× 576/704×480); VGA(640×480); CIF(352×288/352×240)
• Bit Rate Control: CBR/VBR
• Video Bit Rate:
  – H.264: 32 Kbps–8192 Kbps
  – H.265: 12 Kbps–8192 Kbps
• Day/Night: Auto(ICR) / Color / B/W
• BLC: Yes
• HLC: Yes
• WDR: 120 dB
• White Balance: Auto/natural/street lamp/outdoor/manual/regional custom
• Gain Control: Auto/Manual
• Noise Reduction: 3D DNR
• Motion Detection: Off / On (4 Zone, Rectangle)
• Region of Interest(RoI): Yes (4 areas)
• Smart IR: Yes
• Image Rotation: 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.)
• Mirror: Yes
• Privacy Masking: 4 areas

Audio

• Built-in MIC: Yes
• Audio Compression: G.711A; G.711Mu; G.726; AAC

Network

• Network: RJ-45 (10/100 Base-T)
• Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
• Interoperability: ONVIF(Profile S/Profile G/Profile T);CGI; P2P; Milestone; Genetec
• User/Host: 20
• Edge Storage: Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
• Browser: IE, Chrome, Firefox
• Management Software: Smart PSS; DSS; DMSS
• Mobile Phone: IOS; Android

Certification

• Certifications:
  – CE-LVD: EN60950-1
  – CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
  – FCC: 47 CFR FCC Part 15, Subpart B

Power

• Power Supply: 12V DC/PoE (802.3af)
• Power Consumption: < 7.2W

Environment

• Operating Conditions: -40°C to +60°C (-40°F to +140°F)/less than ≤ 95%
• Storage Temperature: -40°C to +60°C (-40°F to +140°F)
• Protection Grade: IP67

Structure

• Casing: Metal
• Dimensions: 100.9 mm × Φ109.9 mm (3.97″ × Φ4.33″)
• Net Weight: 0.48 kg (1.1 lb)
• Gross Weight: 0.65 kg (1.4 lb)
