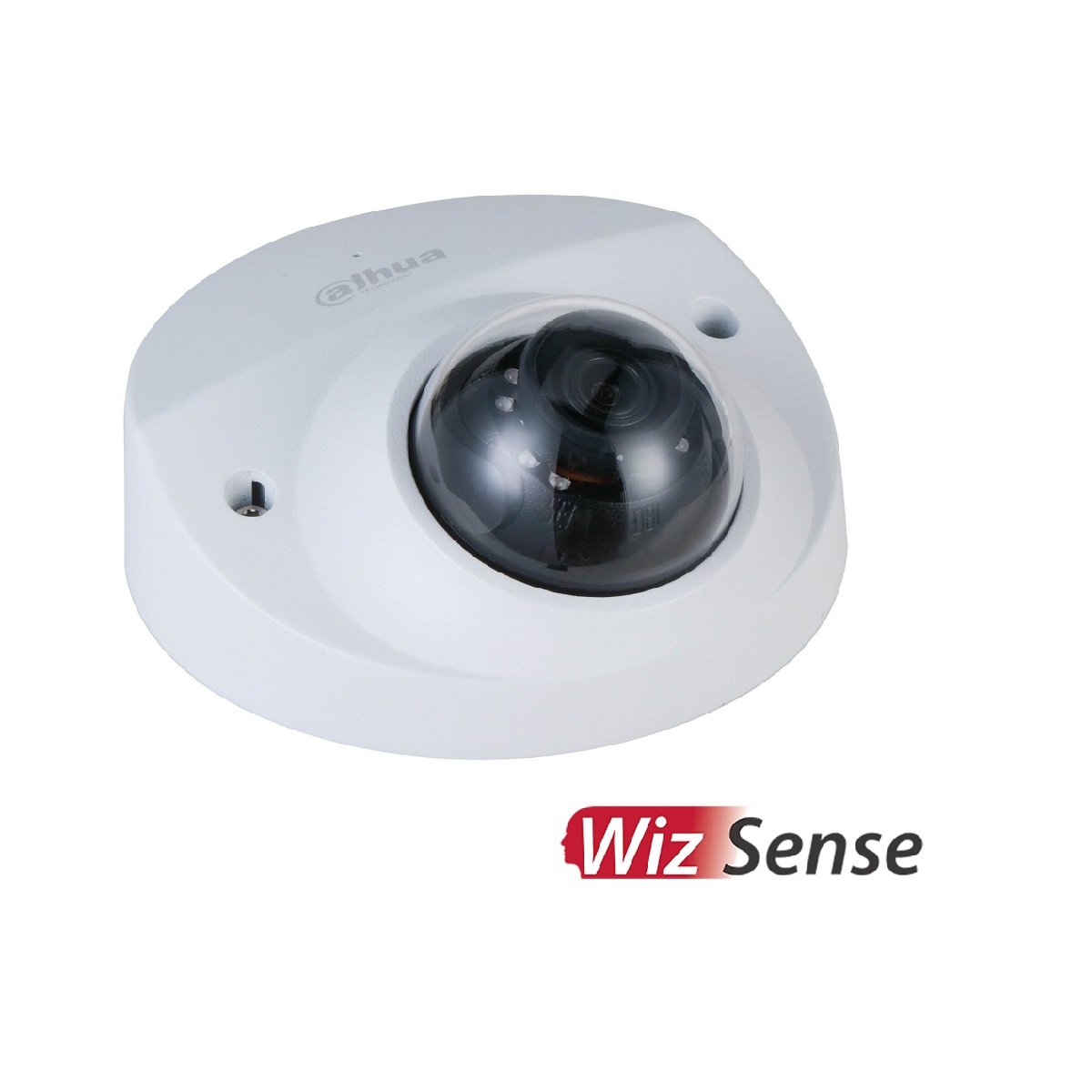

Dahua IPC-HDBW3541FP-AS-M Dome WizSense Network Camera

Dahua IPC-HDBW3541FP-AS-M 5MP IR Fixed focal Dome WizSense Network Camera

Dahua IPC-HDBW3541FP-AS-M Dome WizSense Network Camera

Dahua IPC-HDBW3541FP-AS-M Dome WizSense Network Camera is a Pro Series 5MP Dahua dome network camera boasts Wizsense AI and Starlight technology.

It’s an ideal camera for installs that require advanced AI features such as smart motion detection & perimeter detection, as well as excellent performance in low-light conditions.

5MP Pro Series IR Fixed Focal WizSense Dome Network Camera, H.264+&H.265+ flexible coding, Outputs max. 4MP (2592×1944@20fps, 2.8mm fixed focal lens (Field of view 98º), Micro SD memory, IP67, IK10, PoE99.

Key Features

• 5MP; 1/2.7″ CMOS image sensor; low illuminance; high image definition
• Outputs max. 5MP (2592×1944)@20fps
• H.265 codec; high compression rate; low bit rate
• Built-in IR LED; max. IR distance: 50m
• ROI; SMART H.264+/H.265+; flexible coding; applicable to various
• bandwidth and storage environments
• Rotation mode; WDR; 3D DNR; HLC; BLC; digital watermarking
• applicable to various monitoring scenes
• Intelligent detection: Intrusion; tripwire
• Abnormality detection: Motion detection; video tampering; scene changing
• audio detection; no SD card; SD card full; SD card error; network disconnection
• IP conflict; illegal access; voltage detection
• Supports max. 256 G Micro SD card; built-in Mic
• IP67; IK10; PoE
• 12Vdc power input

Specifications

Camera

• Image Sensor : 1/2.7”5 Megapixel progressive CMOS
• Max. Resolution : 2592 (H) ×1944 (V)
• ROM : 128 MB
• RAM : 512 MB
• Scanning System : Progressive
• Electronic Shutter Speed : Auto/Manual 1/3 s–1/100000 s
• Min. Illumination : 0.005 Lux@F1.6 (Color, 30IRE) | 0.0005 Lux@F1.6 (B/W, 30IRE) | 0 Lux (Illuminator on)
• S/N Ratio : > 56 dB
• Illumination Distance : 30 m (98.4ft)
• Illuminator On/Off Control: Auto/Manual
• Illuminator Number : 8 (IR LED)
• Pan/Tilt/Rotation Range : Pan: -30°–30°; Tilt: 0°–80°; Rotation: 0° to 360°

Lens

• Lens Type : Fixed-focal
• Mount Type : M12
• Focal Length : 2.8 mm; 3.6 mm; 6 mm
• Max. Aperture : F1.6
• Field of View : 2.8 mm: Horizontal: 98°; vertical: 72°; diagonal: 130°

3.6 mm: Horizontal: 80°; vertical: 59° ; diagonal: 106°

6 mm: Horizontal: 50°; vertical: 36°; diagonal: 64°

• Iris Type : Fixed
• Close Focus Distance :2.8 mm: 0.9 m (3.0 ft) | 3.6 mm: 1.6 m (5.3 ft) |6 mm: 3.2 m (10.5 ft)

Professional, Intelligent

• Perimeter Protection : Tripwire; intrusion (Recognition of human and vehicle)
• Intelligent Search :Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

• Video Compression : H.265; H.264; H.264H; H.264B; MJPEG(only supported by sub stream)
• Smart Codec : Smart H.265+/ Smart H.264+
• Video Frame Rate : Main stream (2592 × 1944@1–20 fps) ; (2688 × 1520@1–25/30 fps)

sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps)

third stream (1280 × 720@1–25/30 fps)

• Stream Capability : 3 streams
• Resolution : 5M (2592 × 1944); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
• Bit Rate Control : CBR/VBR
• Video Bit Rate : H.264: 3 Kbps–8192 Kbps | H.265: 3 Kbps–8192 Kbps
• Day/Night : Auto(ICR)/Color/B/W
• BLC : Yes
• HLC : Yes
• WDR : 120 dB
• White Balance : Auto/natural/street lamp/outdoor/manual/regional custom
• Gain Control : Auto/Manual
• Noise Reduction : 3D DNR
• Motion Detection : OFF/ON (4 areas, rectangular)
• Region of Interest (RoI) : Yes (4 areas)
• Smart Illumination : Yes
• Image Rotation :0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.)
• Mirror : Yes
• Privacy Masking : 4 areas

Audio

• Built-in MIC : Yes
• Audio Compression : G.711a; G.711Mu; G726

Alarm

• Alarm Event :No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD

Network

• Network : RJ-45 (10/100 Base-T)
• SDK and API : Yes
• Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
• Cyber Security : Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
• Interoperability : ONVIF(Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
• Scene Self-adaptation (SSA) : Yes
• User/Host : 20 (Total bandwidth: 64 M)
• Storage : FTP; SFTP;Micro SD Card (support max. 256 G); NAS
• Browser : IE: IE8, IE9, IE11
• Chrome : Firefox | Management Software | Smart PSS, DSS, DMSS | Mobile Phone | IOS; Android

Certification

• CE-LVD: EN62368-1
• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
• FCC: 47 CFR FCC Part 15, Subpart B

Power

• Power Supply : 12V DC/PoE (802.3af)
• Power Consumption : <5.7W

Environment

• Operating Conditions : -40°C to +60°C (-40°F to +140°F)/ less than 95%
• Storage Conditions : -40°C to +60°C (-40°F to +140°F)
• Protection Grade : IP67; IK10

Structure

• Casing : Metal
• Dimensions : 55 mm × Φ108.9 mm (2.2″ × Φ4.3″)
• Net Weight : 380 g (0.8 lb)
• Gross Weight : 520 g (1.1 lb)
