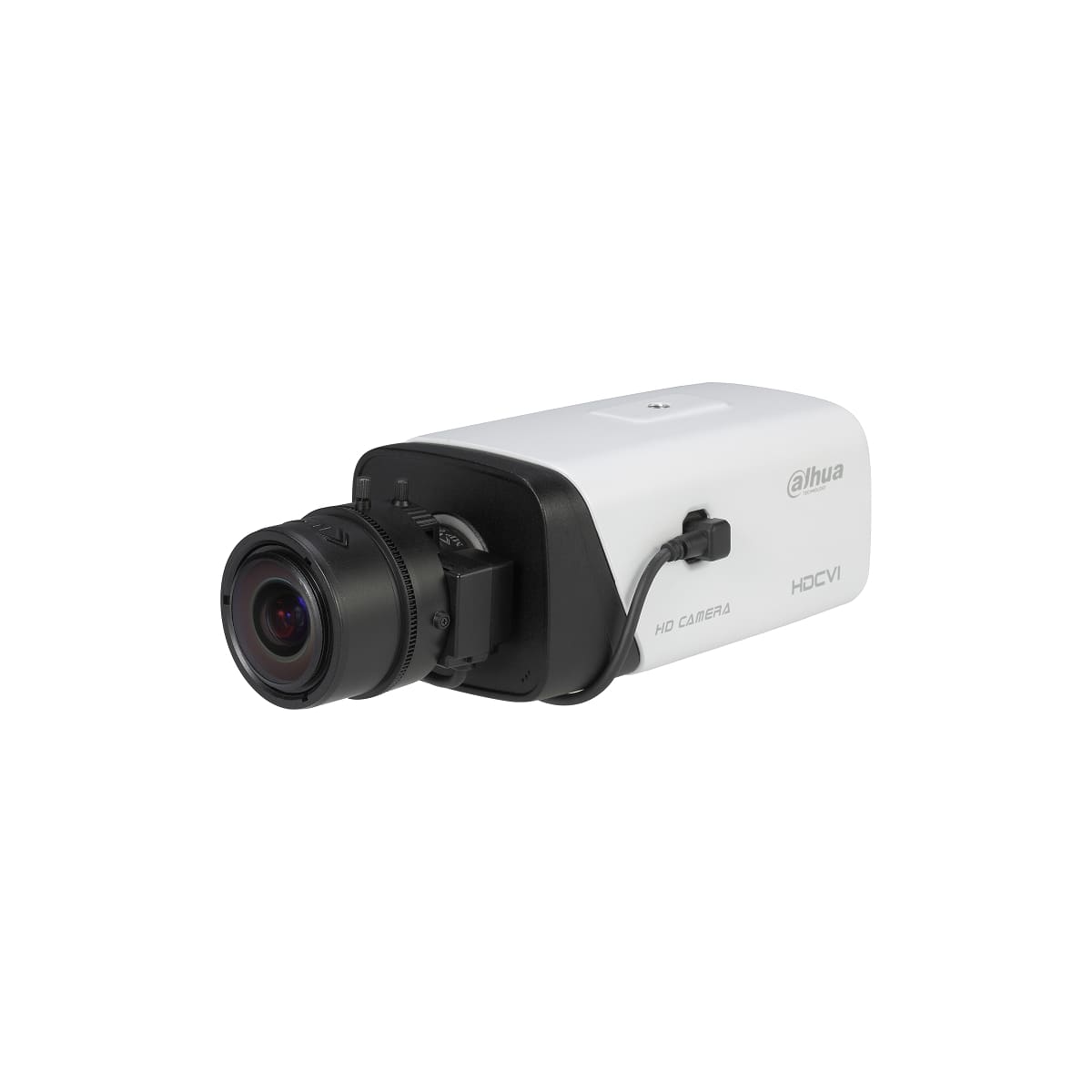

Dahua HAC-HF3231EP 2MP Starlight HDCVI Box Camera

Dahua HAC-HF3231EP 2MP Starlight HDCVI Box Camera

LENS NOT INCLUDED

Dahua HAC-HF3231EP 2MP Starlight HDCVI Box Camera is a Megapixel camera with 1/2.8″ CMOS sensor and HD-CVI (High Definition Composite Video Interface) / PAL.

The HD-CVI interface allows to transmission of analog, composite video signal via coaxial cable.

It enables the transmission of HD resolution images for even 500 m distance with keeping the low costs of the installation.

During transmission there are no delays and is maintained the original, high quality image.

Key Features

• 1/2.8” 2 Megapixel Progressive Scan CMOS
• Max 25fps@1080P
• High definition and Standard definition dual output
• High Speed; long distance real-time transmission
• 1080p signal up to 500m on coax or 250m with UTP passive baluns
• True Day/Night (ICR); WDR (120dB); BLC; 3DNR; AWB; AGC
• Starlight Technology
• OSD Menu with control over coaxial cable/UTP via CVR
• C/CS Mount Auto Iris Lens Support
• Alarm Input/Output; Audio Input; RS485 port
• 12Vdc/24Vac power input

Specification

Camera

• Image Sensor : 1/2.8″ CMOS
• Effective Pixels : 945(H)×1097(V), 2.1MP
• Scanning System : Progressive
• Electronic Shutter Speed : PAL: 1.3s~1/30000s | NTSC: 1s~1/30000s
• Minimum Illumination : 0.005Lux/F1.2 (Color), 0.0005Lux/F1.2 (B/W)
• S/N Ratio : More than 65dB
• IR Distance : N/A
• IR On/Off Control : N/A
• IR LEDs : N/A

Lens

• Lens Type : C/CS lens / Auto iris
• Mount Type : C/CS
• Focal Length : N/A
• Max Aperture : N/A
• Angle of View : N/A
• Focus Control : Auto / Manual
• Close Focus Distance : N/A
• Pan / Tilt / Rotation : N/A

Video

• Resolution : 1080P (1920×1080)
• Frame Rate : 25/30fps@1080P, 25/30/50/60fps@720P
• Video Output : 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output
• Day/Night : Auto (ICR) / Manual
• OSD Menu :Multi-language
• BLC Mode :BLC / HLC / WDR
• WDR : 120dB
• Gain Control : AGC
• Noise Reduction : 2D / 3D
• White Balance : Auto / Manual
• Smart IR : N/A

Certifications

• CE (EN55032, EN55024, EN50130-4)
• FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
• UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

• Audio Interface : 1-channel audio in
• Alarm Interface : 2-channel alarm in & 1-channel alarm out

Eelectrical

• Power Supply : AC 24V±25% / DC 12V±25%
• Power Consumption : Max 4.7W (12V DC, IR on)

Environmental

• Operating Conditions : -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -30°C (-22°F)

• Storage Conditions : -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
• Ingress Protection & Vandal Resistance : N/A

Construction

• Casing : Aluminium
• Dimensions : 135.4mm×74.4mm×65.5mm (5.33″×2.93″×2.58″)
• Net Weight : 0.49kg (1.08lb)
• Gross Weight : 0.60kg (1.32lb)

FUNCTION

2MP Starlight HDCVI Box Camera

• Starlight, 120dB true WDR, 3DNR
• Max 30fps@1080P
• HD and SD dual-output
• C/CS lens
• AC24V/DC12V
