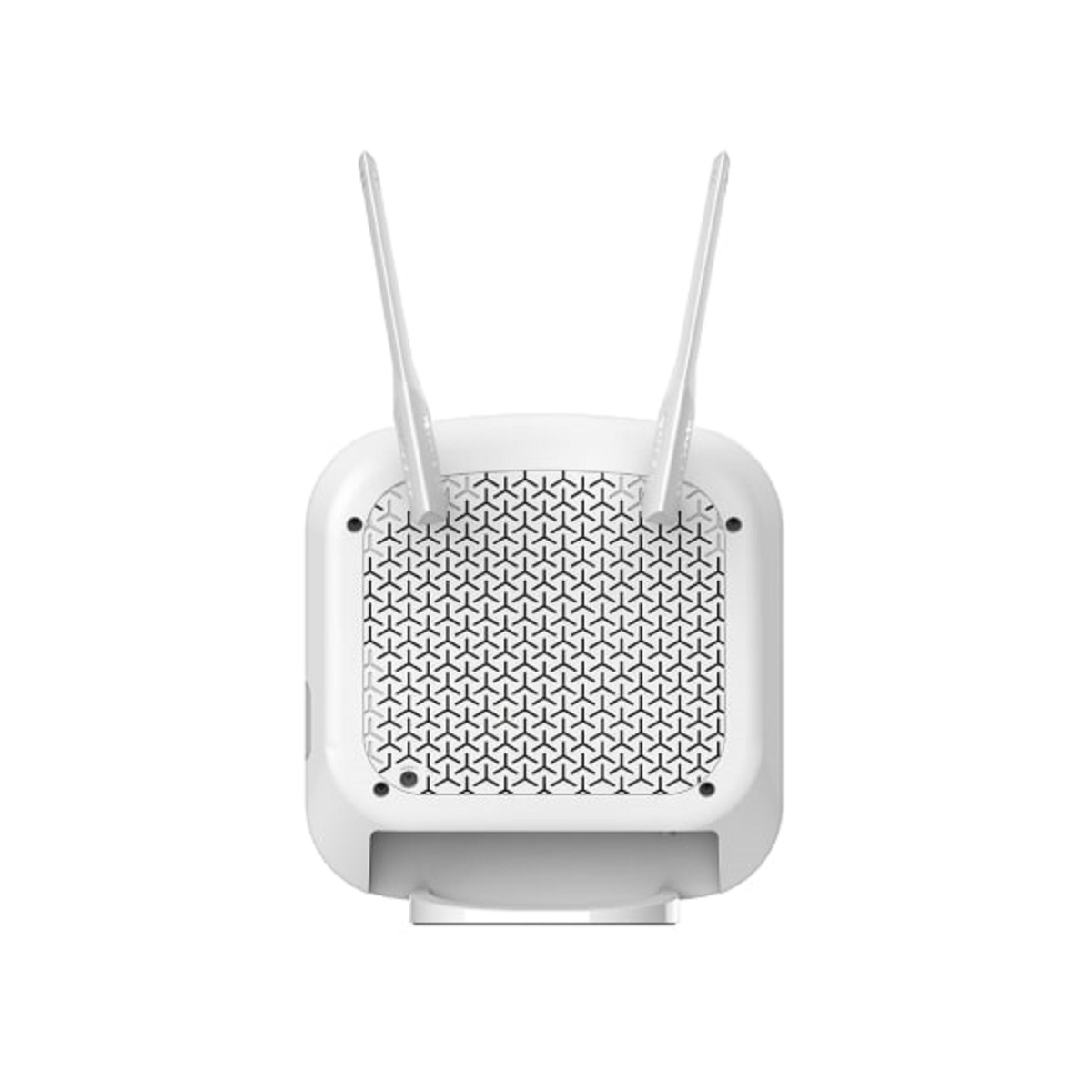

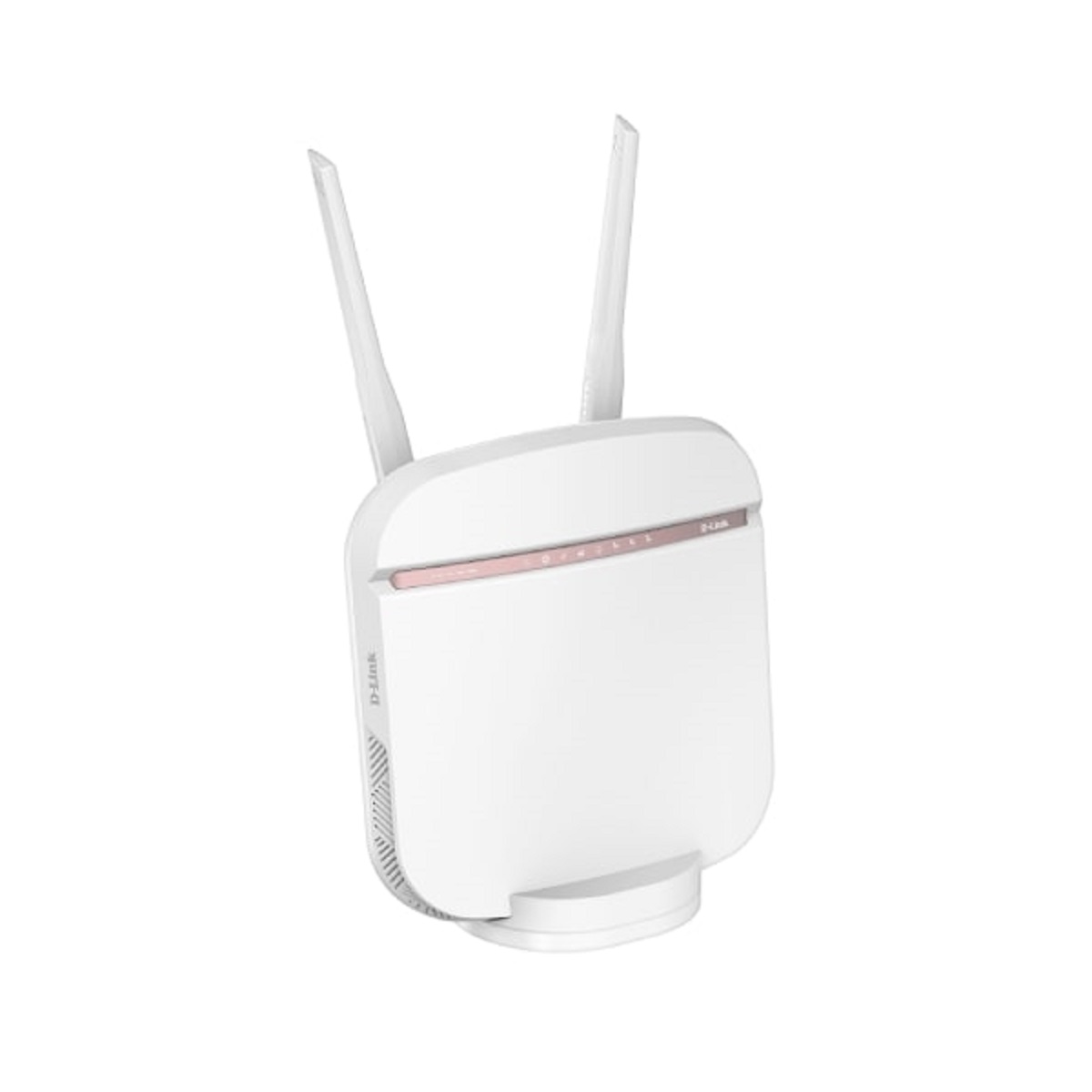

D-Link DWR-978 AC2600 5G WiFi 5 Router (AC)

£632.33 inc.VAT / £526.94 exc.VAT

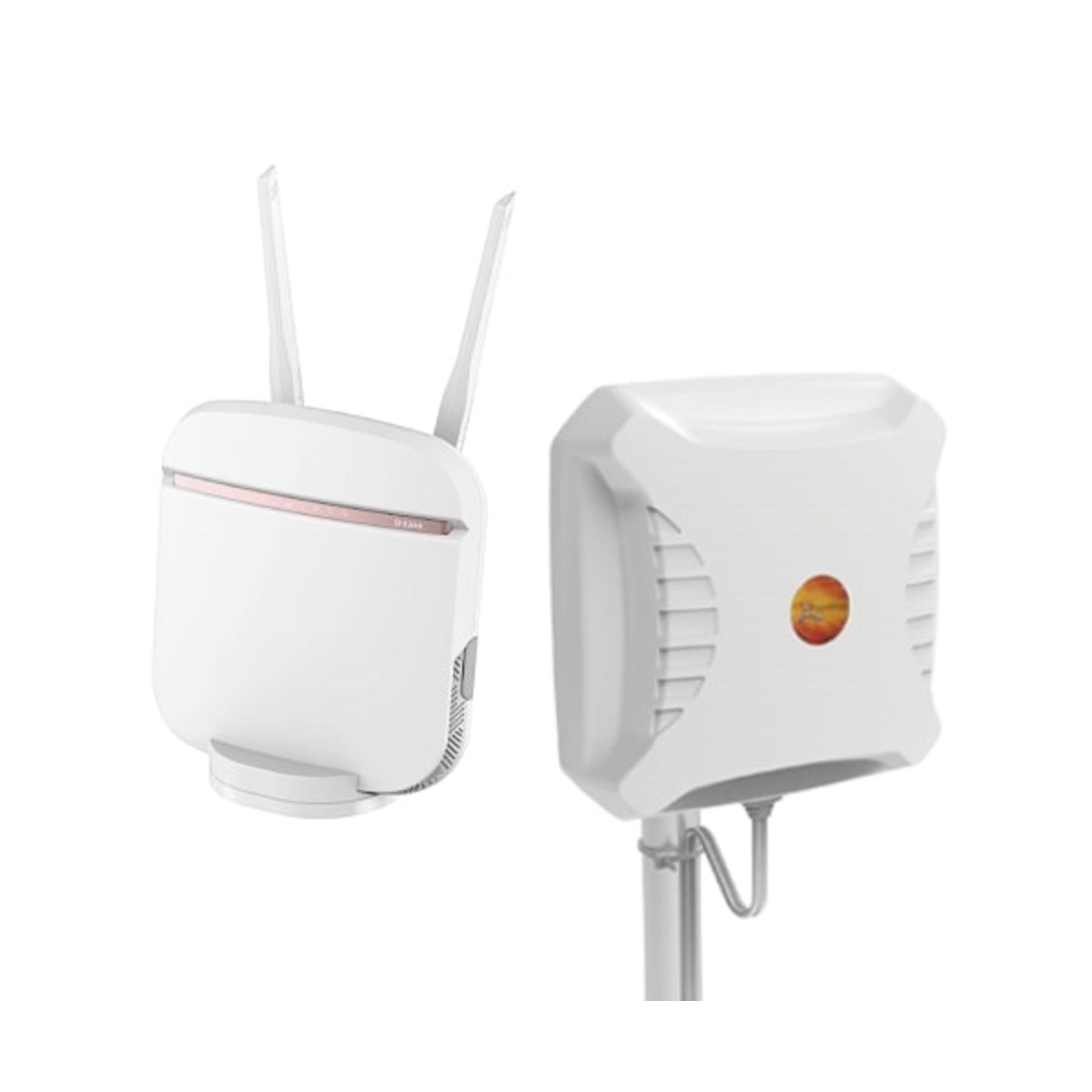

D-Link DWR-978 WiFi 5 4G/5G NR Router (2532Mbps AC) w/ Poynting XPOL-2-5G Outdoor 4G/5G LTE Panel Antenna

D-Link DWR-978 AC2600 5G WiFi 5 Router (AC) includes Poynting XPOL-2-5G Outdoor 11dBi 2×2 MIMO Cross Polarised Directional Panel Antenna.

Only 34 item(s) left in stock.
  Estimated Delivery: Sep 22 – Sep 26

  Share
Trust

D-Link DWR-978 WiFi 5 4G/5G NR Router (2532Mbps AC) w/ Poynting XPOL-2-5G Outdoor 4G/5G LTE Panel Antenna

D-Link DWR-978 AC2600 5G WiFi 5 Router (AC)

D-Link DWR-978 AC2600 5G WiFi 5 Router (AC) allows you to experience next-gen 5G connection speeds of up to 1.6 Gbps and high-speed WiFi up to 2.6 Gbps on all your connected devices.

Whether at home, at work, or on holiday, the DWR-978 router is built to work for you as a simple plug and play companion, with rapid and reliable 5G connectivity.

There’s no setup involved – just insert a 5G/4G LTE SIM card (not included) and you’ll instantly be able to share your connectivity with all of your devices.

D-Link DWR-978 AC2600 5G WiFi 5 Router (AC)

Key Features

  • Next-generation 5G connectivity speeds up to 1.6 Gbps.
  • Bundled with Poynting XPOL-2-5G Outdoor 11dBi 2×2 MIMO Cross Polarised Directional Panel Antenna.
  • Built-in WiFi AC2600 distributes high-speed, high-performance WiFi to all your connected devices.
  • Supports multiple 5G bands for increased connectivity options.
  • Dual-band WiFi with MU-MIMO technology makes 4K streaming, VR gaming or video chatting a breeze.
  • Four (4) Gigabit Ethernet LAN ports and one (1) Gigabit Ethernet WAN port provide optional wired connectivity.
  • Two (2) external antennas help achieve optimal network performance (detachable).
  • Two (2) SMA-female connectors
  • Nano SIM card slot supports 5G or 4G/LTE (SIM card not included).
  • Create a fail-safe internet connection with internet WAN port.

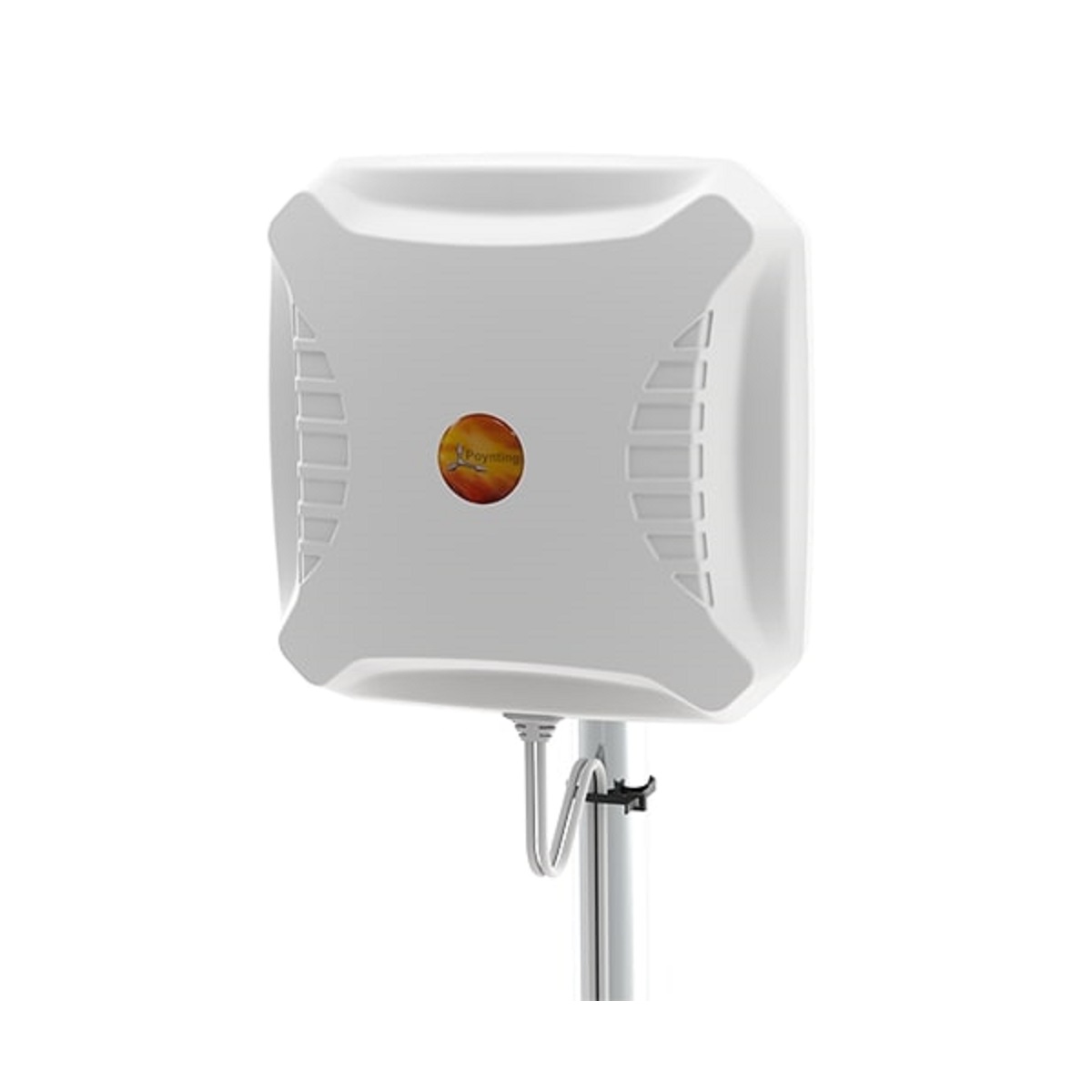

Poynting XPOL-2-5G Outdoor 11dBi 2×2 MIMO Cross Polarised Directional Panel Antenna

The Poynting XPOL-2-5G Outdoor 4G/5G LTE 11dBi Cross Polarised Directional Panel Antenna is Poynting’s third generation “V3” of this Cross Polarised (XPOL), cellular band, 2×2 MIMO antenna.

The antenna enclosure effectively looks the same as the second generation “V2”, but has been completely redesigned on the inside.

Poynting have used advanced metamaterial technology, making use of Artificial Magnetic Conductors (AMC) and new registered/patent pending radiator configuration, which is proving to yield exceptional improvements in bandwidth and gain.

Radiation patterns of this antenna are exceptionally well controlled, further adding to the performance of the antenna.

Connection that stays with you

Insert a 5G/4G LTE SIM card (not included) and immediately have access to 5G download speeds of up to 1.6 Gbps at your home or business, or even while taking the camper van out into the countryside.

Thanks to 5G technology you can enjoy HD movies in seconds, download huge files immediately, play multiplayer games without lag, and enjoy video calls without interruption – making it the perfect companion whether at home or away.

Perfect for areas with limited access to fixed internet

The DWR-978 router is the complete solution for those hard-to-read areas where fixed-line ISPs (Internet Service Providers) are unreliable or unavailable.

Insert your 5G SIM card (not included) and allow your network and all of your devices to be powered by 5G cellular data.

With two (2) high-performance external antennas, you can be sure that the DWR-978 router will deliver the strongest connectivity possible on multiple devices at the same time – allowing you to stream, game or work, without worrying about buffering, dropouts, or interference.

Your internet will never fail you again

Disruptions can happen at any time, but D-Link has built the DWR-978 router to eliminate them altogether with D-Link Failover technology.

When your 5G/LTE cellular provider is having technical difficulties, the DWR-978 router will jump into action by switching to the internet via your fixed-line (Fibre/Cable/DSL), so you can keep working, playing or watching as normal.

Cut down on dead spots and loading times

Two (2) high-performance antennas deliver WiFi speeds of up to 2.6 Gbps throughout every corner of your home, making it easy for you to stay connected at the highest speeds possible despite any structural interference.

The DWR-978 router’s MU-MIMO technology ensures multiple devices get high-bandwidth WiFi at the same time, distributing data more efficiently and giving you faster WiFi speeds throughout your home.

Manage your network, your way

Whether you need to give a friend quick access, or get the kids to do their homework, the DWR-978 router comes with WiFi scheduling – so you’re always in change.

  • Manage
    Find out which devices are connected to your WiFi, create schedules, check login credentials.
  • WiFi Guest Zone
    Set guest logins for when you have visitors and block any devices you don’t know.

Specifications

Router Specifications

Device Interfaces

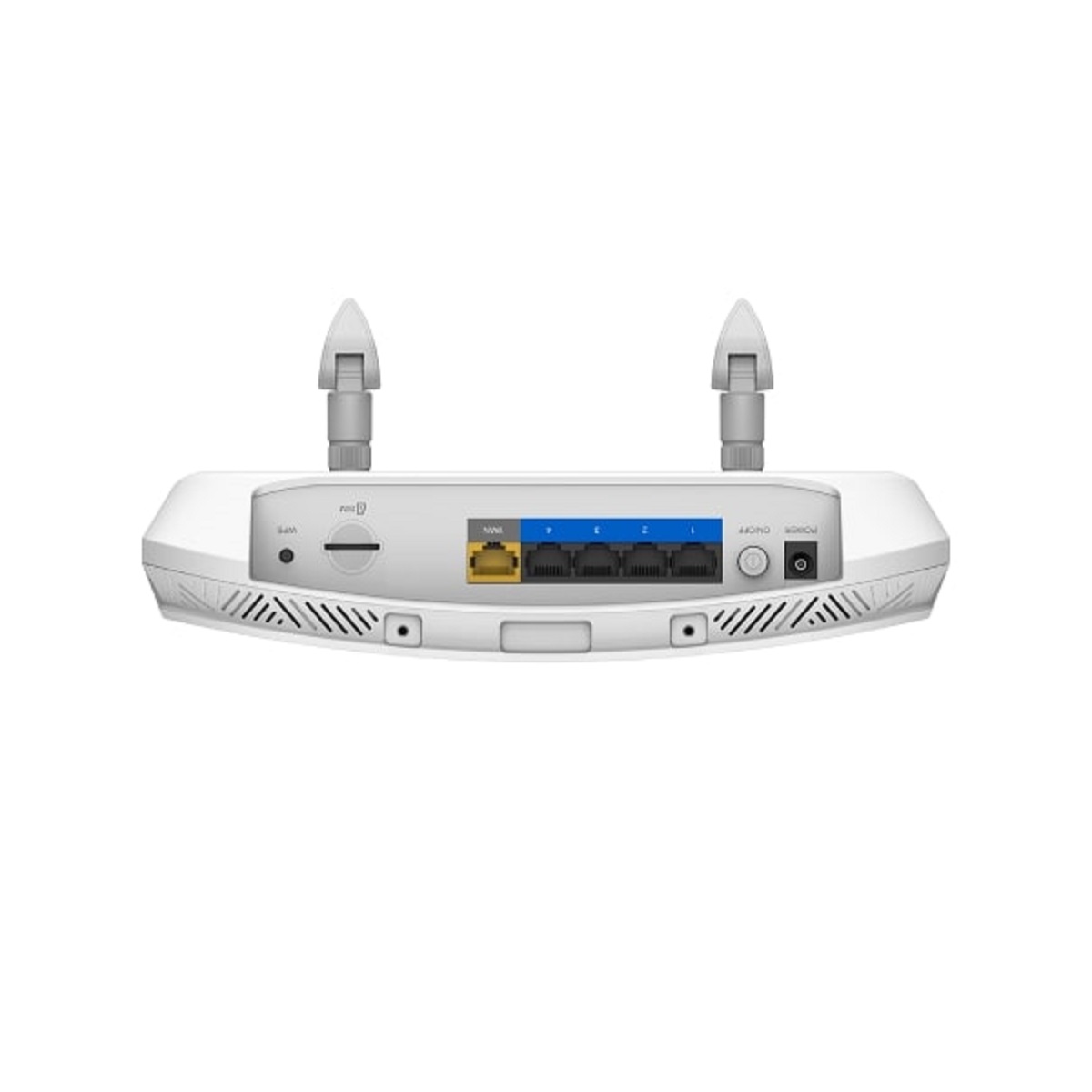

  • 4 x 10/100/1000 Gigabit Ethernet LAN Ports
  • 1 x 10/100/1000 Mbps Gigabit Ethernet WAN port
  • 1 x USB 2.0 Port, 1 x LTE SIM/USIM Slot
  • 1 x Reset Button, 1 x WPS Button
  • 1 x Power Port, 2 x SMA-female connectors

LED

  • Power
  • WAN
  • WLAN
  • Phone
  • LAN
  • 3G
  • 4G LTE
  • 5G NR

Antenna Type

  • 2 x 2.4 GHz WLAN Internal Antenna
  • 2 x 5 GHz WLAN Internal Antenna
  • 2 x 2 LTE External Antenna
  • 2 x 2 LTE Internal Antenna

Functionality

Frequency Support

  • 5G NR Sub 6Ghz n1/3/20/28/78
  • LTE FDD B1/B3/B7/B8/B20/B28/B38
  • WCDMA B1, B8

Wireless IEEE Standard

  • IEEE 802.11 ac/n/g/b/k/v/r

WiFi Data Rate

  • 5 GHz Up to 1732 Mbps, 2.4 GHz Up to 800 Mbps

WAN Interface

  • DHCP
  • Static IP
  • PPPoE (PPPoE Pass-through)
  • PPTP, L2TP
  • IPsec (VPN Pass-through)
  • DS-Lite
  • Support Dual Access
  • PPPoE
  • L2TP
  • PPTP for Russia
  • Support 802.1p & 802.1p VLAN tagging and Priority bit
  • Concurrent session: 32000

Security Protocol

  • WPA/WPA2

Firewall

  • DoS
  • Stateful Packet Inspection
  • Anti-spoofing Checking
  • IP/MAC Address Filtering
  • DMZ

Mesh

  • D-Link WiFi Mesh (compatible with WiFi EasyMesh)

QoS

  • D-Link Intelligent QoS Technology

Software

Device Management

  • Mobile app (iOS and Android), Web UI

Physical

Size

  • 234.5 x 245 x 55.25 mm

Weight

  • 920 g

Power Input

  • 12 V 4 A

Operating Temperature

  • 0 to 40 °C

Storage Temperature

  • -10 to 70 °C

Operating Humidity

  • 10% to 90% non-condensing

Storage Humidity

  • 5% to 95% non-condensing

Certifications

  • CE , FCC , PTCRB, EMC, Safety, RoHS

Electrical Specifications – Cellular

Frequency bands

  • 698-960 MHz
  • 1710-2700 MHz
  • 3400-3800 MHz

Gain (max) Port 1 & 2

  • 11 dBi

VSWR Port 1 & 2

  • <1.5.1
  • Over 95% of the band

Feed power handling

  • 10 W

Input impedance

  • 50 Ohm (nominal)

Polarisation

  • ±45º

Coax cable loss

  • 0.35 dB/m @ 900 MHz
  • 0.53 dB/m @ 2000 MHz
  • 0.6 dB/m @ 2500 MHz

DC Short

  • Path to ground

Coax Cable & Connector Type – Cellular

Cable length

  • 5m ±5%

Coax cable type

  • Twin HDF-195

Connector type

  • 2 x SMA (Male)
  • With finger grips for easier connection
    • Note: The coax cables & connectors are factory mounted to the antenna

Antenna Overview

Ports

  • 2

SISO / MIMO

  • 2×2 MIMO

Frequency Bands – Cellular & WiFi

  • Cellular frequency bands:
    • 698-960 MHz
    • 1710-2170 MHz
    • 2300-2500 MHz
    • 2500-2700 MHz
    • 3400-3800 MHz
  • WiFi frequency bands:
    • 2400-2500 MHz

Peak Gain

  • 9 dBi @690-960MHz
  • 10 dBi @ 1710-2700MHz
  • 11 dBi @3400-3800MHz

Coax Cable Type

  • Twin HDF 195

Coax Cable Length

  • 5m

Connector Type

  • SMA Male

Mechanical Specifications

Product dimensions

  • 255 x 255 x 80 mm

Weight

  • 1.55 kg

Radome material

  • UV Stable SAN Marine ASA

Radome colour

  • Brilliant White
  • Pantone P 179-1 C

Mounting Type

  • Wall and pole mount (Z-shaped bracket included, pole mount sold separately)

Environmental Specifications, Certification & Approvals

Wind Survival

  • <120 km/h

Operating Temperature

  • -40ºC to +80ºC

Operating Relative Humidity

  • Up to 98%

Storage Temperature

  • -40ºC to +80ºC

Storage Humidity

  • 5% to 95% – non-condensing

Environmental Conditions

  • Outdoor/Indoor

Water ingress protection ratio/standard

  • IP65

Salt Spray

  • MIL-STD 810F/ASTM B117

Flammability Rating

  • UL 94-HB, ECE-R118.02 Certified cables

Impact resistance

  • IK08

Product Safety & Environmental

  • Complies with CE, EN, CSA, RoHS and IEC standards, E-mark certified

Package Contents

  • 1 x XPOL-2-5G antenna
  • 1 x Z-shaped mounting bracket

Standard Warranty: 2-Year
