D-Link DWR-921/B WiFi 4 N150 3G / 4G WiFi Router

£160.13 inc.VAT / £133.44 exc.VAT

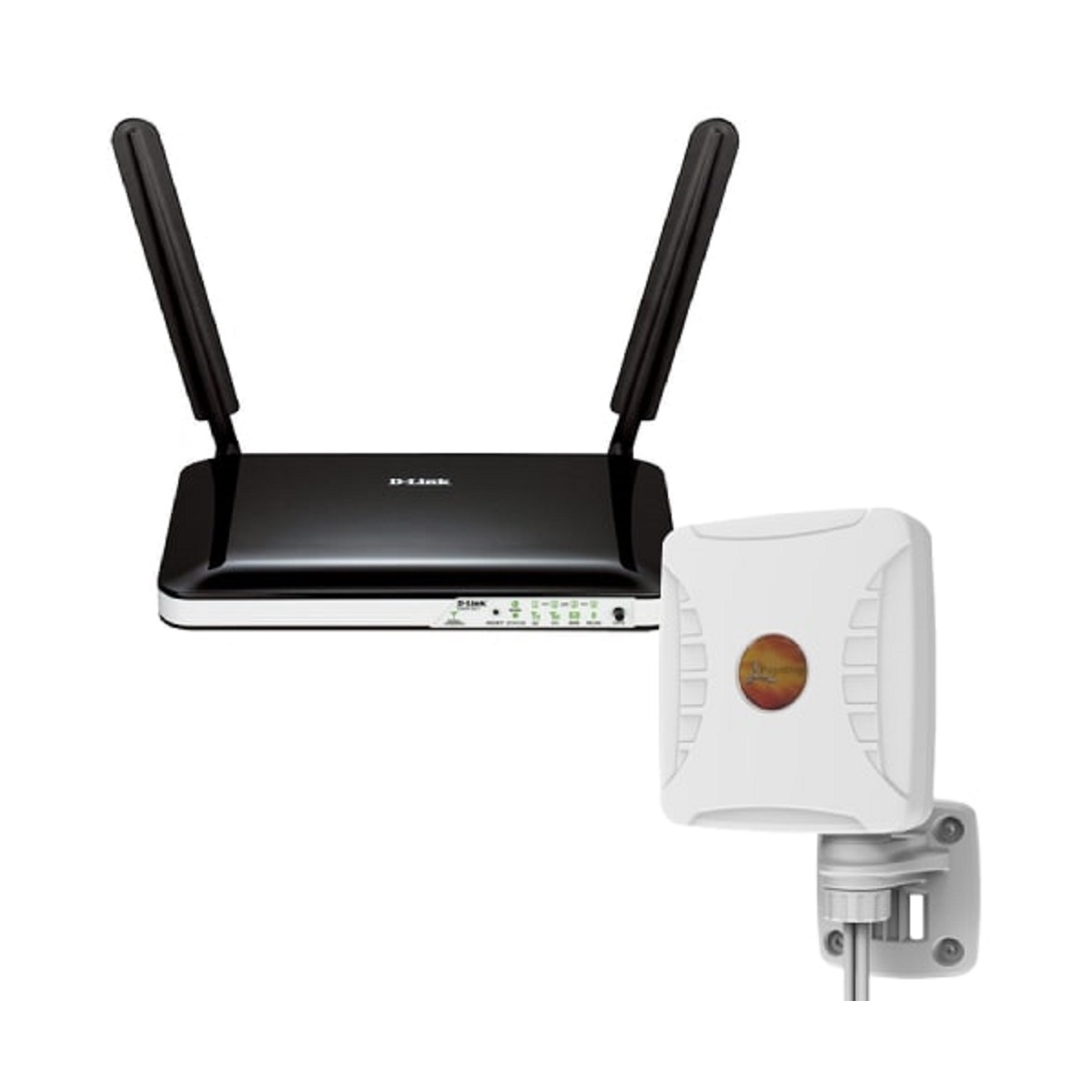

D-Link DWR-921 WiFi 4 3G/4G LTE Cat 4 Router w/ Embedded SIM Slot & Outdoor 4G LTE/5G Omni-Directional Antenna (150Mbps N)

D-Link DWR-921/B WiFi 4 N150 3G / 4G WiFi Router allows you to access a Poynting outdoor 5G omni-directional Antenna.

Only 81 item(s) left in stock.
  Estimated Delivery: Sep 22 – Sep 26

  Share
Trust

D-Link DWR-921 WiFi 4 3G/4G LTE Cat 4 Router w/ Embedded SIM Slot & Outdoor 4G LTE/5G Omni-Directional Antenna (150Mbps N)

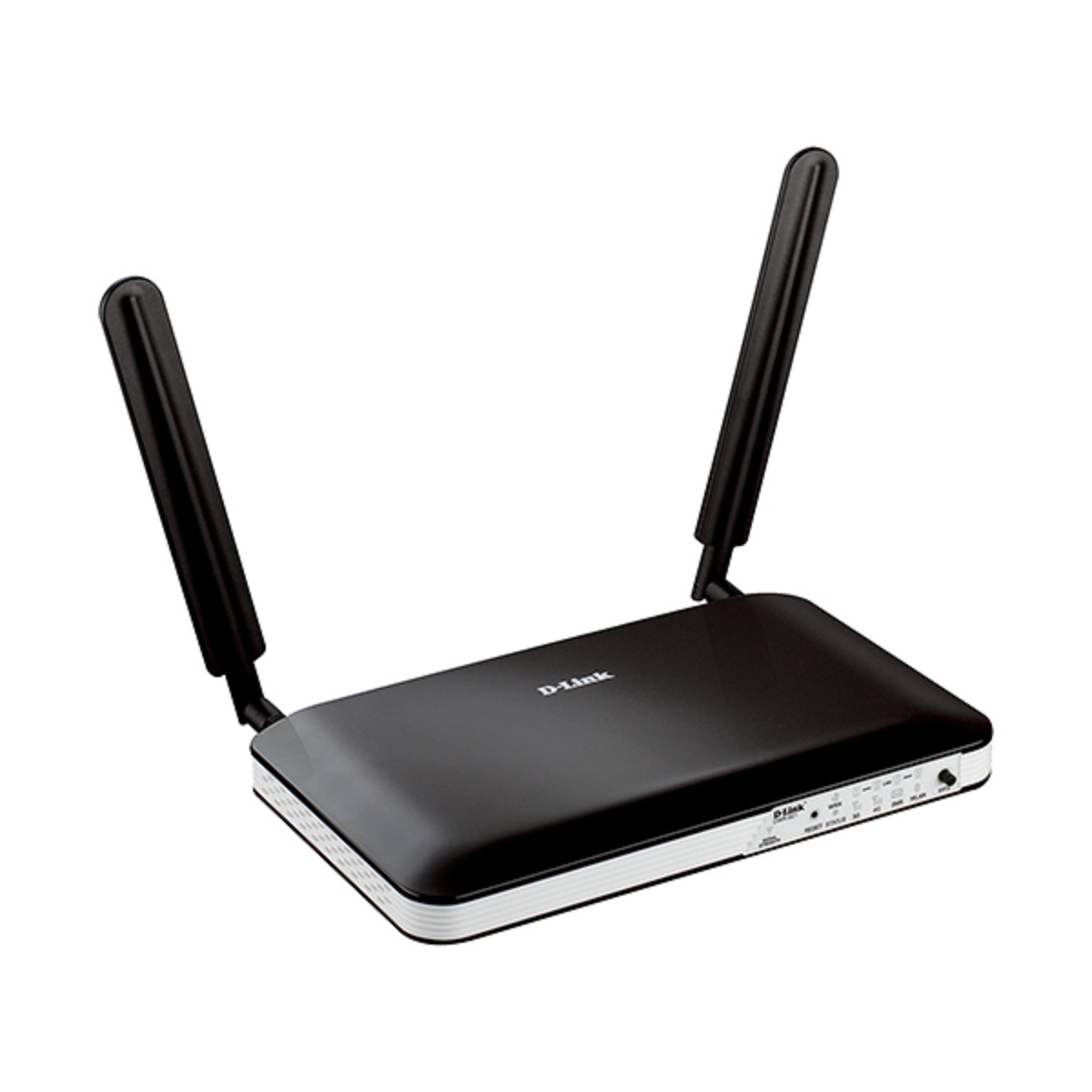

D-Link DWR-921/B WiFi 4 N150 3G / 4G WiFi Router

D-Link DWR-921/B WiFi 4 N150 3G / 4G WiFi Router allows you to access and share your 4G LTE or 3G mobile broadband connections.

Once connected, you can transfer data, stream media, and send SMS messages. Simply insert your SIM card (not included) and share your 4G LTE or 3G internet connection through a secure wireless network or any of the four (4) Ethernet ports.

This D-Link DWR-921 4G LTE Router is designed with constant connection in mind. Dual-band 4G LTE and 3G support allows automatic 3G connection if or when the 4G LTE signal strength becomes low, whereas the additional xDSL/FTTH Ethernet WAN option gives fail-safe connectivity if either your fixed line or mobile broadband fails.

D-Link DWR-921/B WiFi 4 N150 3G / 4G WiFi Router

Key Features

  • Includes a Poynting outdoor 5G omni-directional Antenna.
  • Connect your device to the internet from anywhere there is a 3G/4G LTE connection.
  • WAN failover automatically switches to a 4G/WAN connection if the primary connection is down.
  • Fast download speeds of up to 100 Mbps and upload speeds of up to 50 Mbps.
  • Automatic 3G connection if or when the 4G LTE signal strength becomes low.
  • Embedded SIM card slot for 3G/4G LTE SIM card, no drivers or USB modem needed.
  • Backwards compatible with mobile networks HSUPA and HSPDA.
  • WPA2 encryption, sharing your 3G/4G connection only with the users you want to.
  • WAN option gives fail-safe connectivity if either your fixed line or mobile broadband fails.

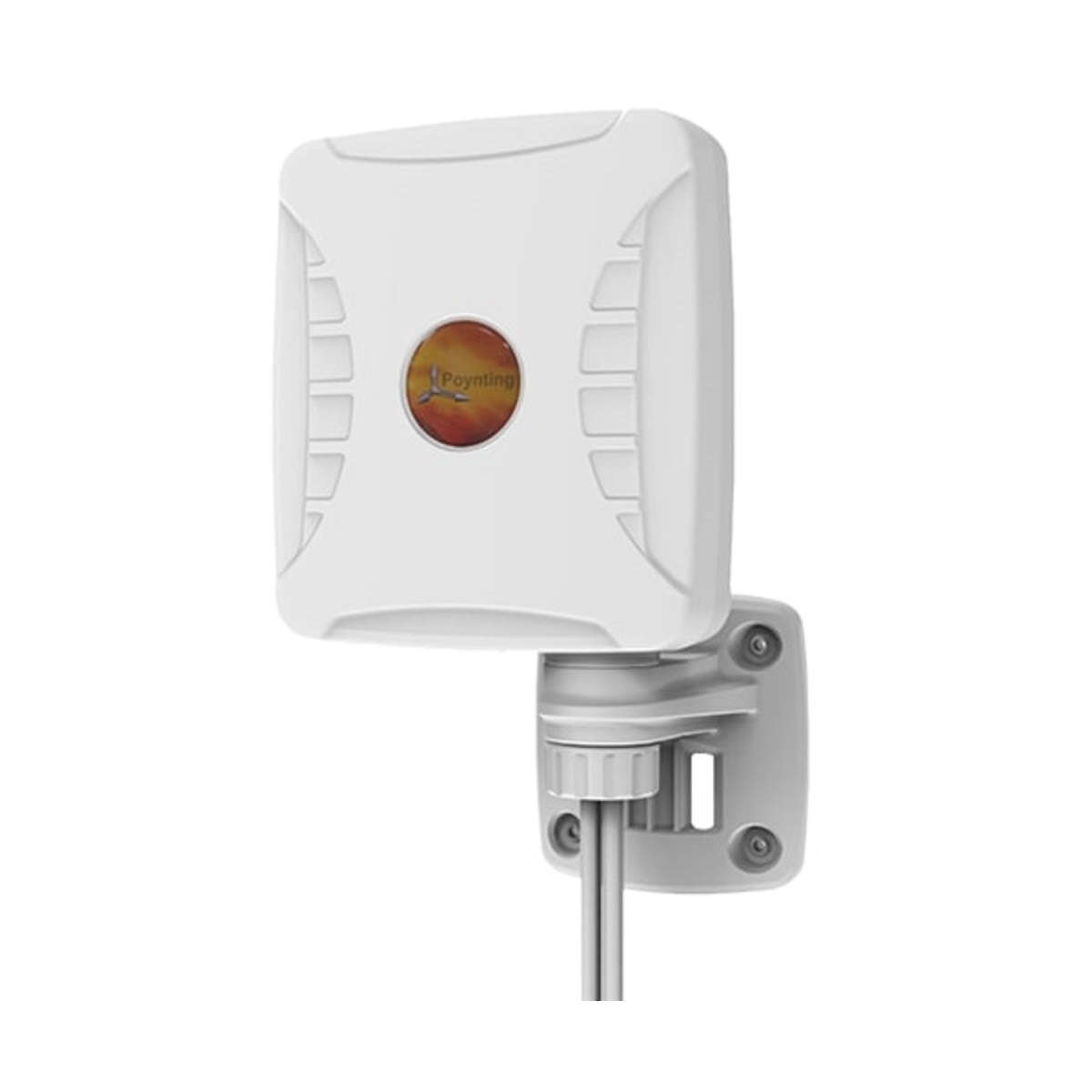

Includes the Poynting XPOL-1-5G V2 Antenna

The Poynting XPOL-1-5G V2 Outdoor 3.5dBi 2×2 MIMO Omni-Directional 5G LTE Antenna is a next generation cross-polarised omni antenna.

The antenna design achieves wideband performance from 698 to 3800 MHz. This wideband performance allows the antenna to cover the contemporary LTE and 5G Ready bands from 698 to 3800 MHz, which also includes the newer 5G/CBRS band from 3400 to 3800 MHz.

The antenna performs exceptionally well in the following frequency bands: 617 – 960 MHz, 1427 – 1517 MHz, 1700 –2700 MHz & 3400 – 3800 MHz, with a peak gain of 3.5 dBi across the frequency bands of operation. The antenna also offers 2X2 MIMO capability.

Fast mobile internet

The D-Link DWR-921 4G LTE Router lets you connect to your 4G LTE mobile connection with fast download speeds of up to 100 Mbps and upload speeds of up to 50 Mbps, giving you a fast and responsive internet experience, allowing you to surf the web with ease and stream music and video without buffering.

Secure wired and wireless connections

The D-Link DWR-921 utilises dual-active firewalls (SPI and NAT) to prevent potential unwanted intrusions from internet.

WPA/WPA2 wireless encryption keeps your wireless network secure and your traffic safe, allowing you to securely share your 4G LTE or 3G connections without worrying about unauthorised users accessing your network.

Easy to set up and use

The D-Link DWR-921 4G LTE Router can be installed quickly and easily almost anywhere. This router is great for any situations where a wireless network is needed, or wherever conventional internet access is unavailable.

The D-Link DWR-921 can even be installed in buses, trains, or boats, allowing passengers to check email or chat online while commuting or travelling.

Specifications

Router Specifications

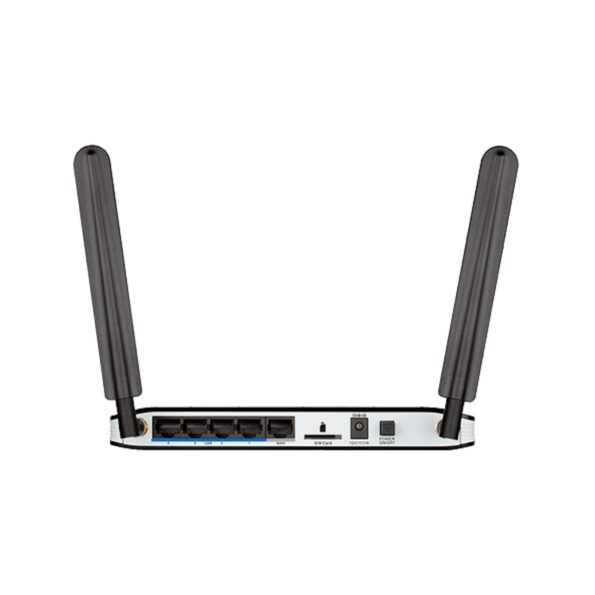

Device interfaces

  • Four 10/100 Ethernet LAN ports
  • WAN (RJ-45) port
  • Two detachable 4G LTE / 3G antennas

Data rates

  • Up to 150 Mbps with 802.11n clients
  • LTE Uplink: Up to 50 Mbps
  • LTE Downlink: Up to 100 Mbps

Standards

  • 802.11n, compatible with 802.11g/b,
  • 802.3
  • 802.3u

UMTS/HSDPA/HSUPA band

  • 900/2100 MHz
  • Power Class 3

LTE band

  • 900/1800/2600/800 MHz

Wireless security

  • 64/128-bit WEP (Wired Equivalent Privacy)
  • WPA & WPA2 (Wi-Fi Protected Access)

Firewall

  • Network Address Translation (NAT)
  • Stateful Packet Inspection (SPI)

VPN

  • L2TP/PPTP/IPSEC VPN pass-through

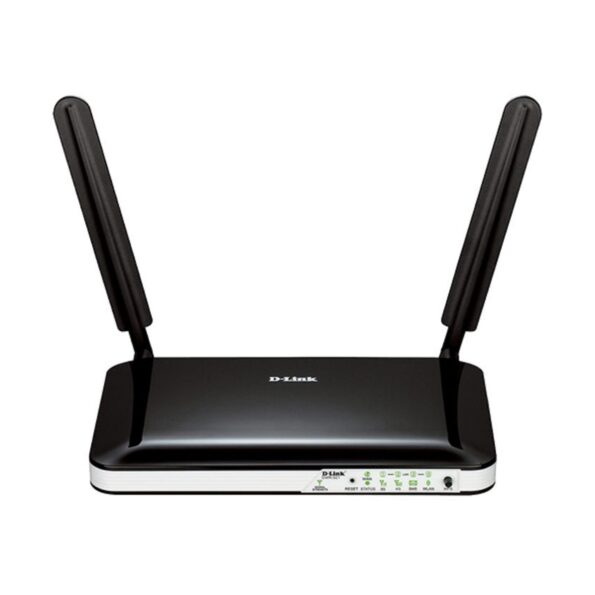

LED status indicators

  • WAN
  • LAN
  • WLAN
  • 4G LTE
  • 3G
  • SMS
  • Signal

Dimensions

  • 190 x 111.5 x 23.5 mm

Weight

  • 500 grams

Temperature

  • Operating: 0 to 40 °C

Humidity

  • Operating: 10% to 90% non-condensing

Certifications

  • CE
  • Wi-Fi Certified

Antenna Specifications

Antenna Specifications

Ports

  • 2

SISO / MIMO

  • 2×2 MIMO

Coax Cable Type

  • HDF 195

Coax Cable Length

  • 5m

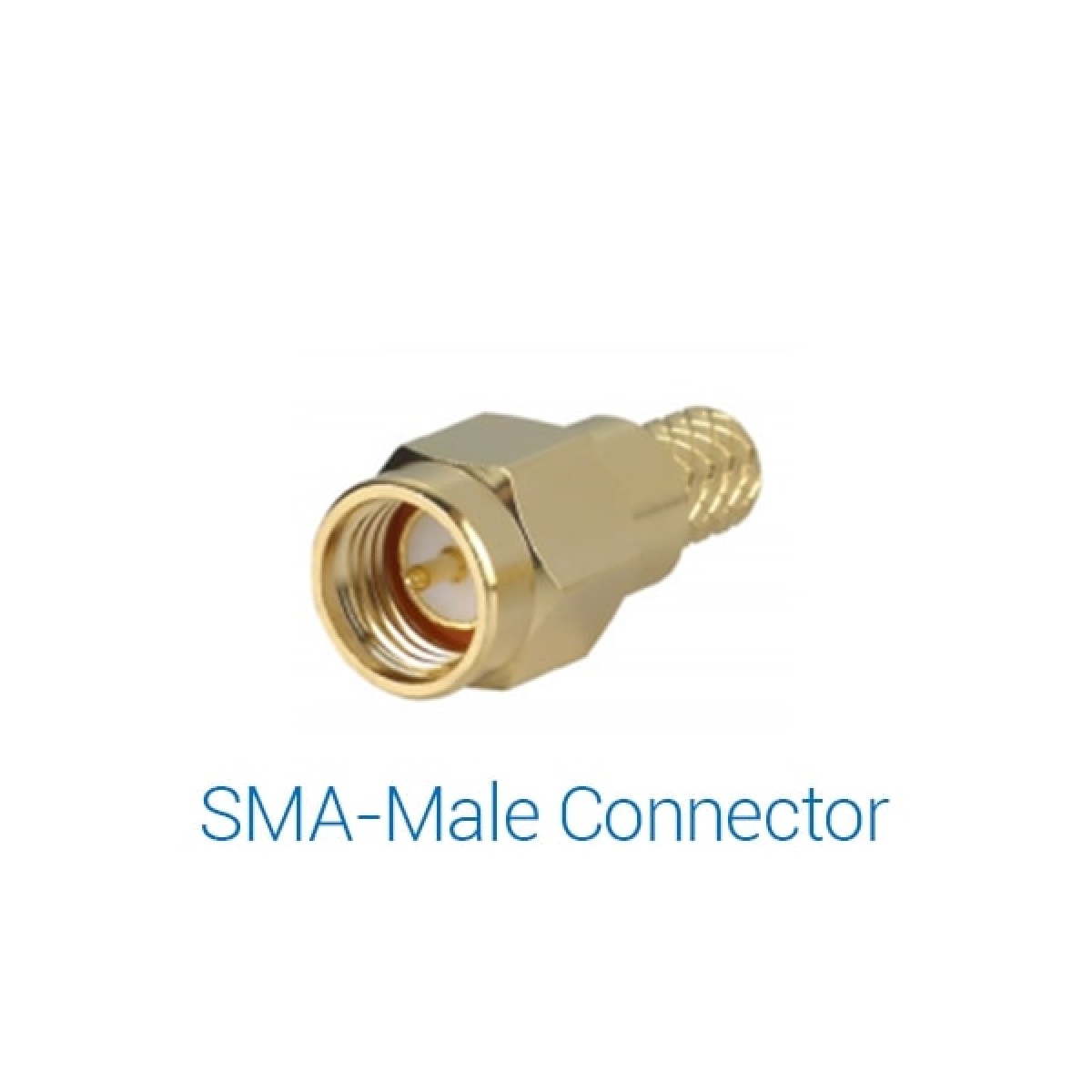

Connector Type

  • SMA (m)

Electrical Specifications

Frequency bands

  • 617 – 960 MHz
  • 427 – 1517 MHz;
  • 1710 -2700 MHz
  • 3400–3800 MHz

Gain (max)

  • 3.5 dBi

VSWR

  • < 2.5:1 – over 90% of the bands

Feed power handling

  • 20 W

Input impedance

  • 50 Ohm (nominal)

Polarisation

  • Cross Polarised

Coax cable loss

  • 0.385 dB/m @ 900 MHz
  • 0.507 dB/m @ 1500 MHz
  • 0.565 dB/m @ 1800 MHz
  • 0.666 dB/m @ 2400 MHz
  • 0.788 dB/m @ 3000 MHz

DC short

  • Yes, path to ground

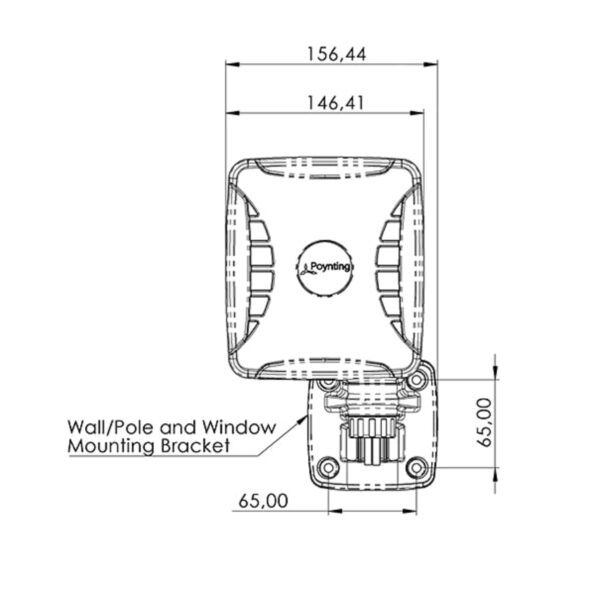

Mechanical Specifications

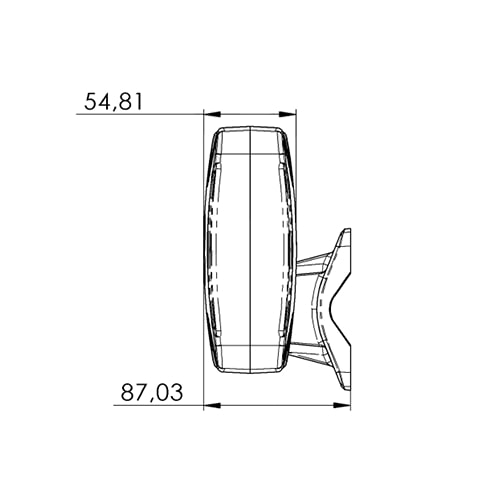

Product dimensions

  • 247 x 157 x 88 mm

Product weight

  • 0.95 kg

Radome material

  • UV Stable ASA

Radome colour

  • Brilliant White Pantone P 179-1 C

Mounting Type

  • Wall mount (included)
  • Pole mount (included)

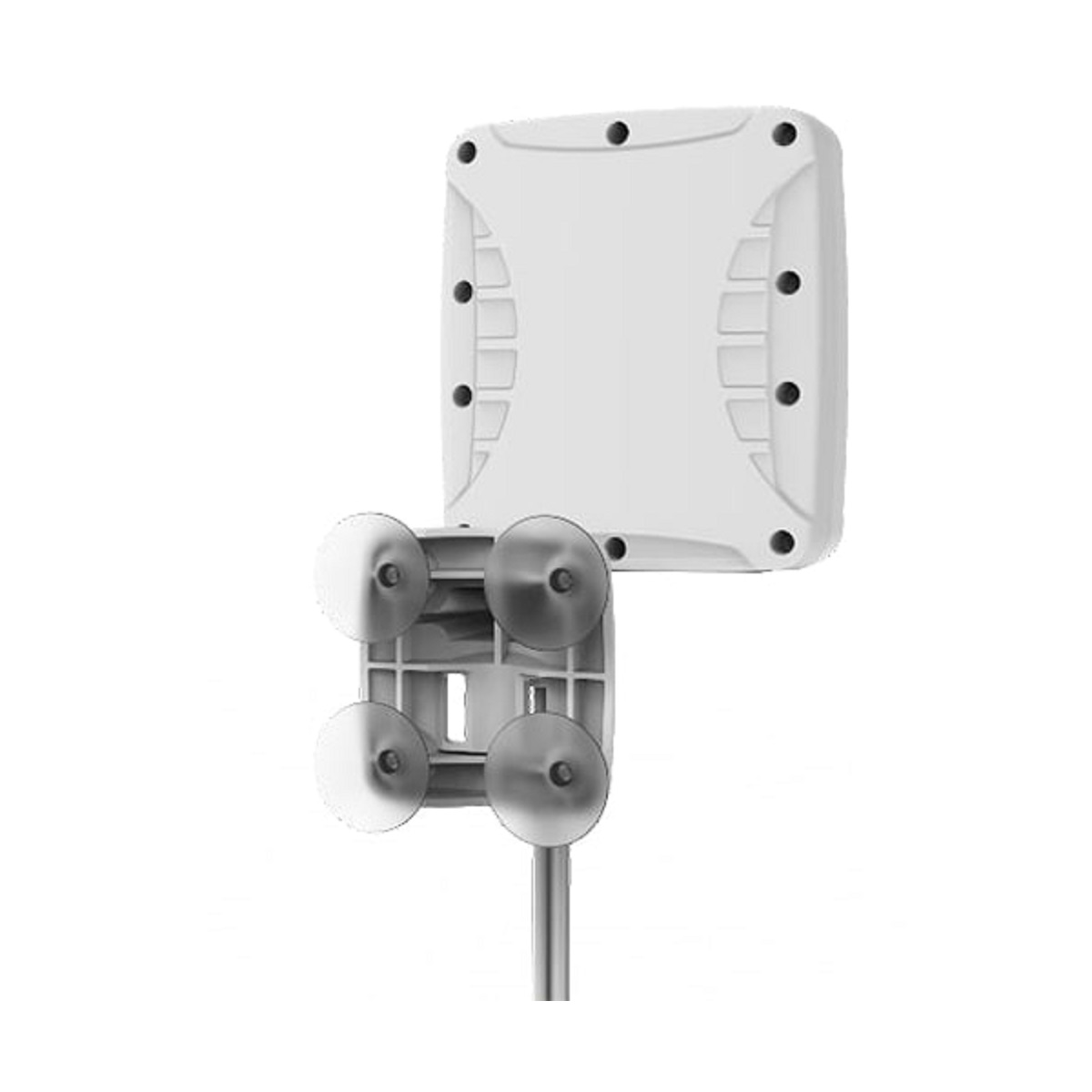

  • Window mount (included)

Environmental Specifications, Certification & Approvals

Wind Survival

  • < 250 km/h
    • Note: Except for window mount configuration

Operating Temperature

  • -40°C to 70°C

Environmental Conditions

  • Outdoor/Indoor

Water ingress protection ratio/standard

  • IP65

Salt Spray

  • MIL-STD 810G/ASTM B117

Operating Relative Humidity

  • Up to 98%

Storage Humidity

  • 5% to 95% – non-condensing

Storage Temperature

  • -40°C to 70°C

Enclosure Flammability Rating

  • UL 94-HB

Impact Resistance

  • IK10

Product Safety & Environmental

  • Complies with CE and RoHS Standards

Standard Warranty: 1-Year
