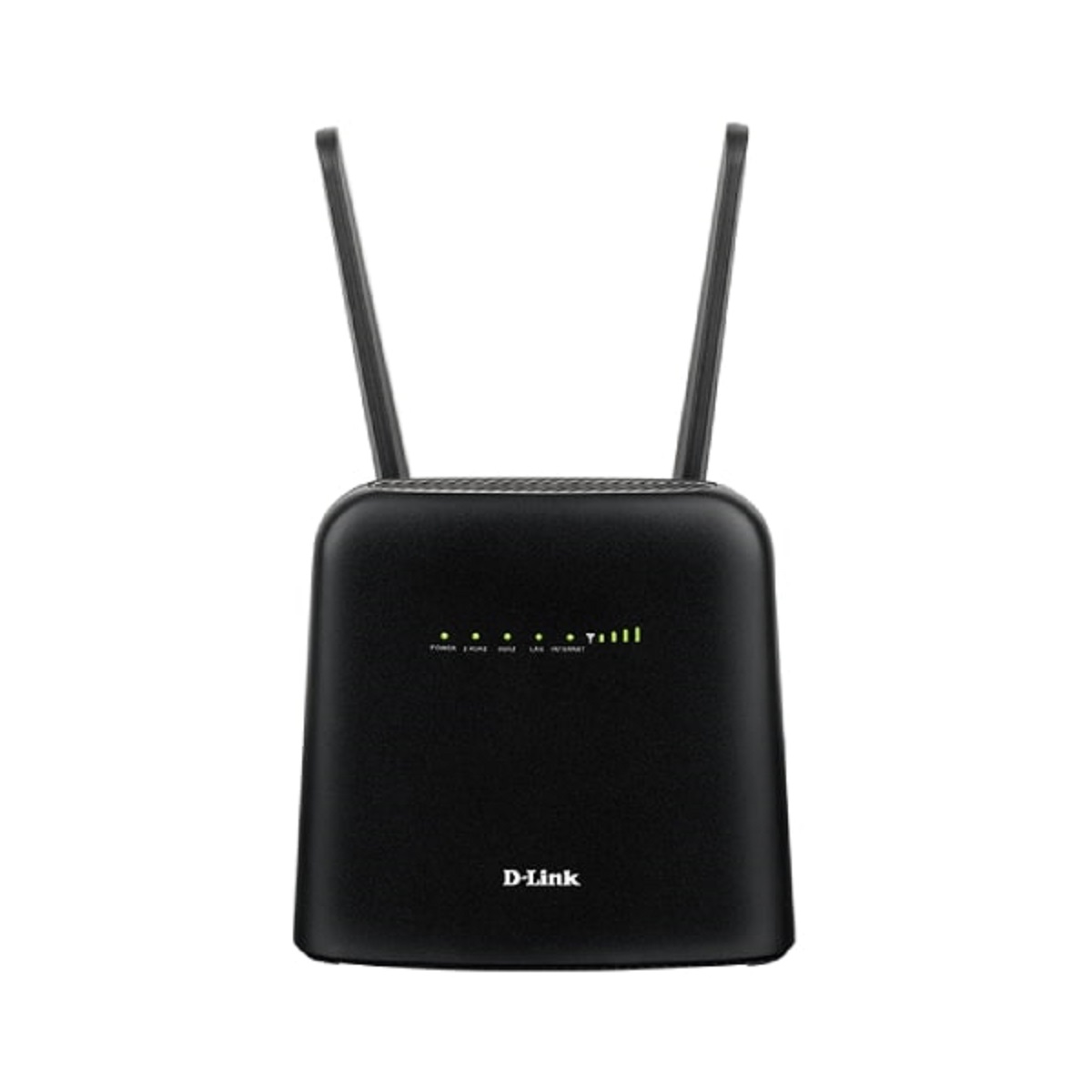

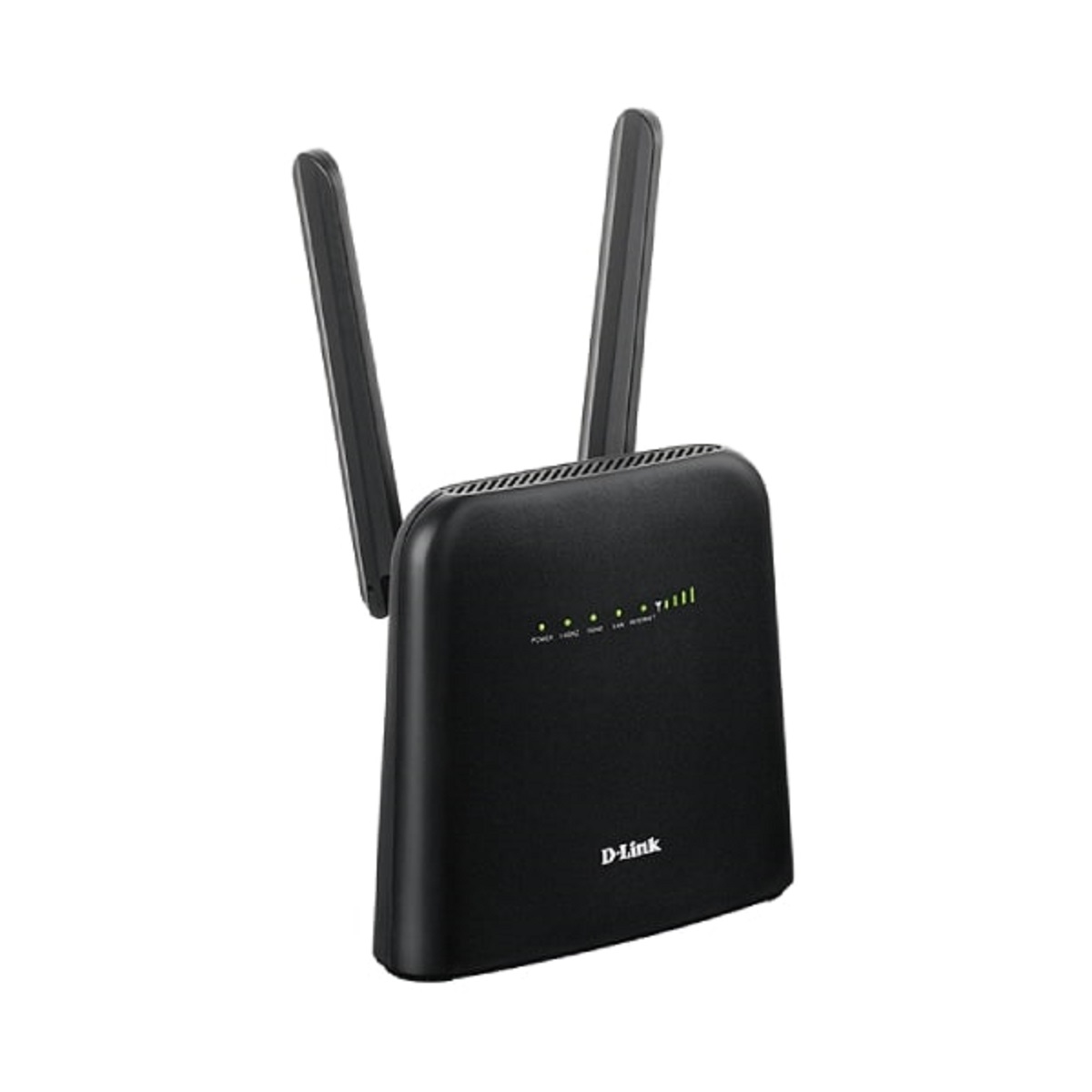

Router Specifications

General

Frequency Support

• LTE Bands:
  • Release 10, Cat 4: Band 1/3/5/7/8/20/38/40
• Pentaband UMTS/HSPA/HSPA+/DC-HSPA+
  • Bands 1/5/8 (850/900/2100)
• Quadband GSM/GPRS/EDGE
  • 850/900/1800/1900

Data Throughput

• LTE Mode
  • Downlink: Up to 150 Mbps
  • Uplink: Up to 50 Mbps
• DC-HSPA Mode
  • Downlink: Up to 42 Mbps
  • Uplink: Up to 5.76 Mbps

Standards

• IEEE 802.11n/g/b
• IEEE 802.3i
• IEEE 802.3u

WiFi Data Rates

• Up to 300 Mbps with 802.11n clients
• 6/9/11/12/18/24/36/48/54 Mbps in 802.11g mode
• 1/2/5.5/11 Mbps in 802.11b mode

Functionality

Wireless Security

• 64/128-bit WEP (Wired Equivalent Privacy)
• WPA & WPA2 (WiFi Protected Access)
• WPS (WiFi Protected Setup)

Firewall

• Network Address Translation (NAT)
• Stateful Packet Inspection (SPI)

Advanced Features

• L2TP/PPTP/IPSec VPN Passthrough
• User configurable multi-WAN
• Port forwarding
• DMZ (Demilitarised Zone)
• MAC filter

Physical

Device Interfaces

• Two 10/100/1000 Ethernet LAN ports
• Configurable WAN (RJ45) port
• Wireless N

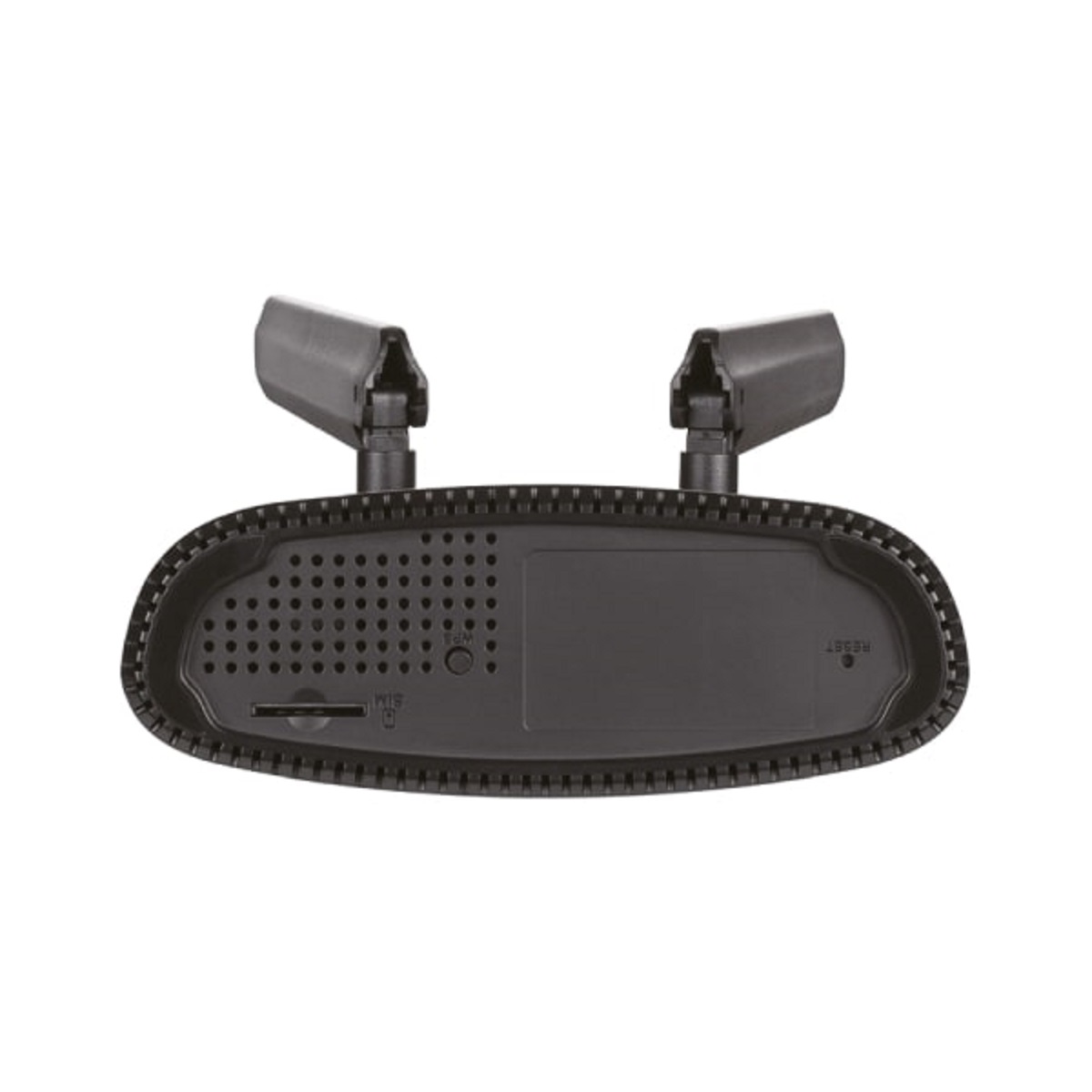

• Standard Mini-SIM/UICC slot
• Two detachable 3G/4G antennas

LED Status Indicators

• Power, LAN, WLAN, Internet, Signal Strength

Dimensions

• 121 x 117.3 x 43.5 mm

Weight

• 205 g

Temperature

• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -10 to 70 °C (14 to 158 °F)

Humidity

• Operating: 10% to 90% non-condensing
• Storage: 0 to 95% non-condensing

Certifications

• CE

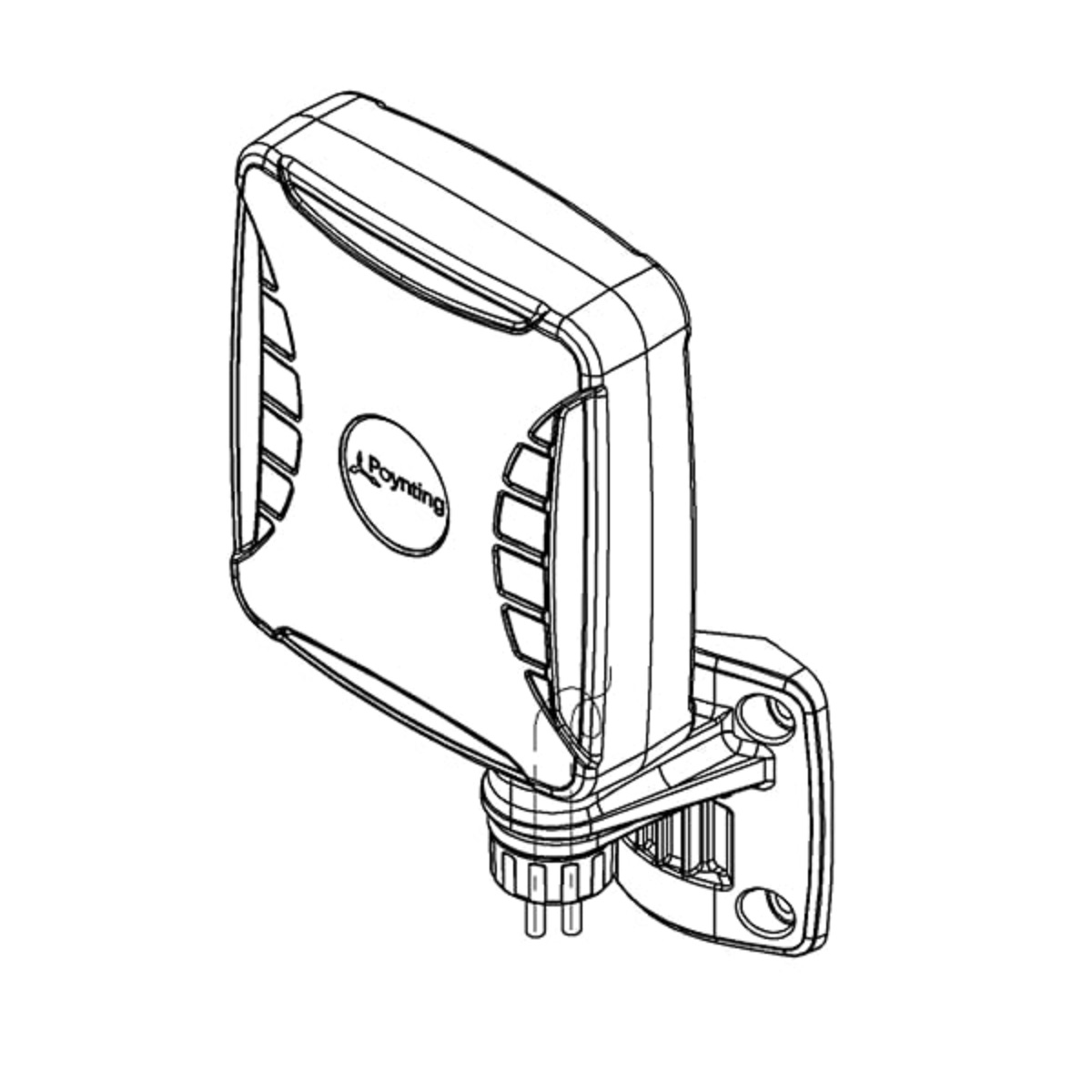

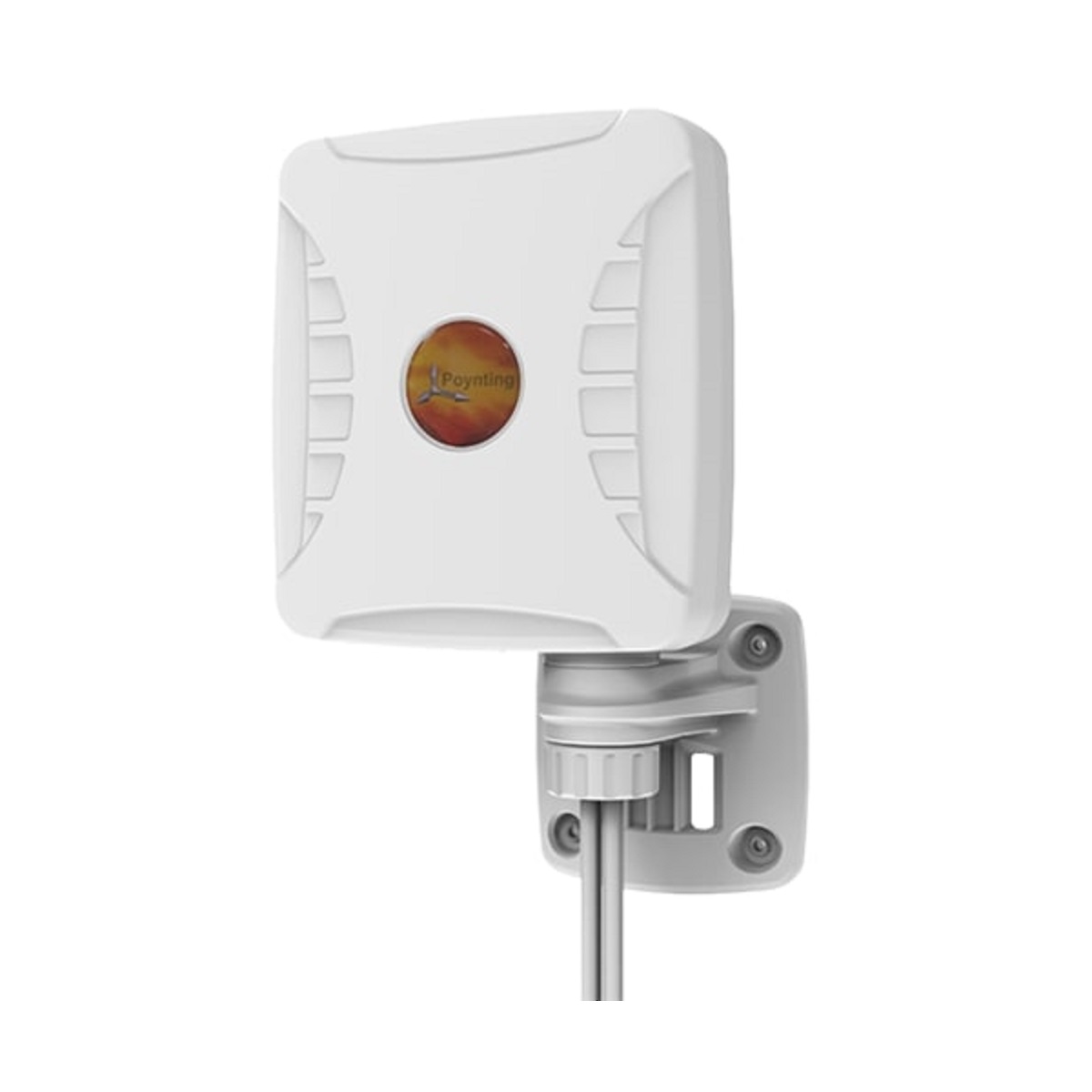

Antenna Specifications

Antenna Specifications

Ports

• 2

SISO / MIMO

• 2×2 MIMO

Coax Cable Type

• HDF 195

Coax Cable Length

• 5m

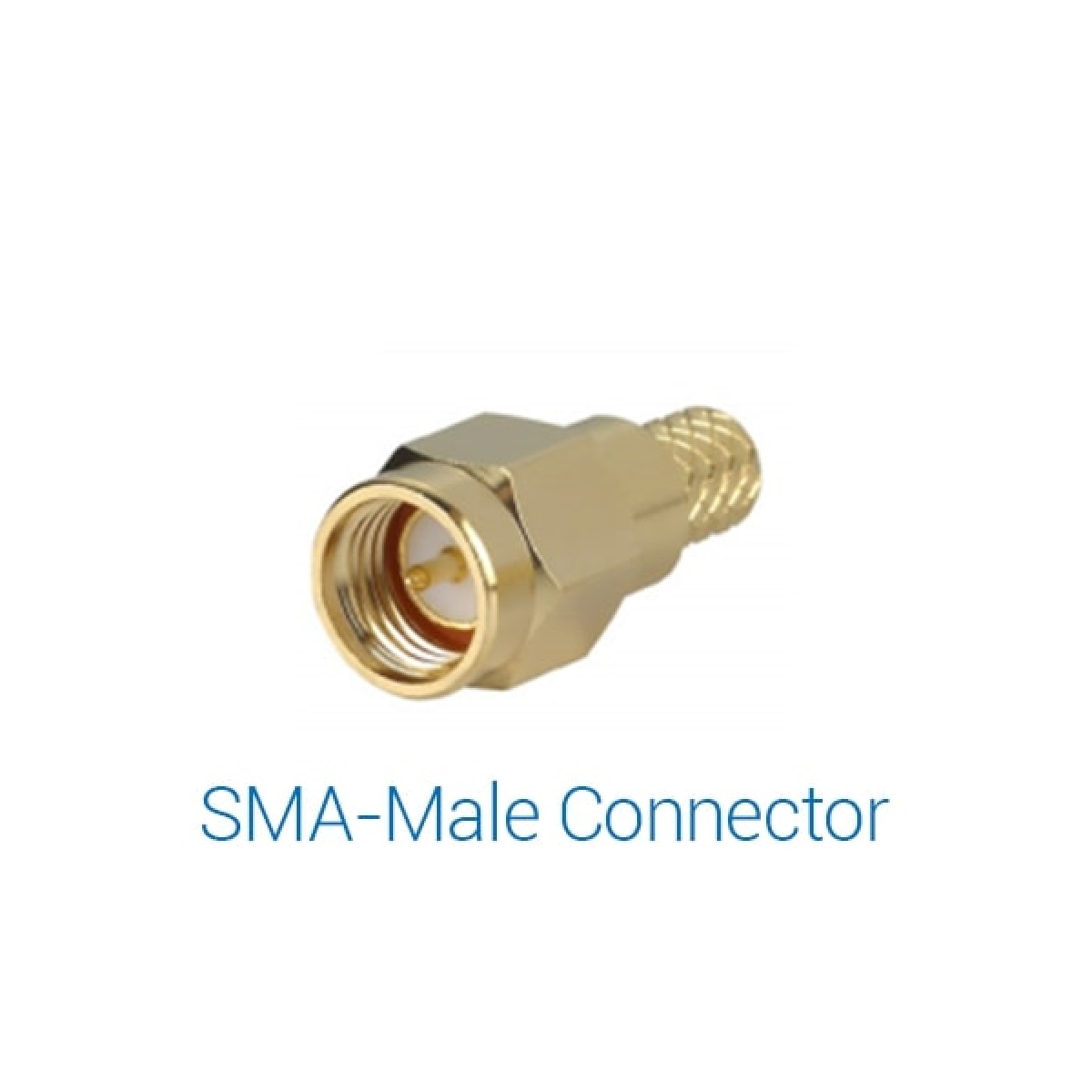

Connector Type

• SMA (m)

Electrical Specifications

Frequency bands

• 617 – 960 MHz
• 427 – 1517 MHz;
• 1710 -2700 MHz
• 3400–3800 MHz

Gain (max)

• 3.5 dBi

VSWR

• < 2.5:1 – over 90% of the bands

Feed power handling

• 20 W

Input impedance

• 50 Ohm (nominal)

Polarisation

• Cross Polarised

Coax cable loss

• 0.385 dB/m @ 900 MHz
• 0.507 dB/m @ 1500 MHz
• 0.565 dB/m @ 1800 MHz
• 0.666 dB/m @ 2400 MHz
• 0.788 dB/m @ 3000 MHz

DC short

• Yes, path to ground

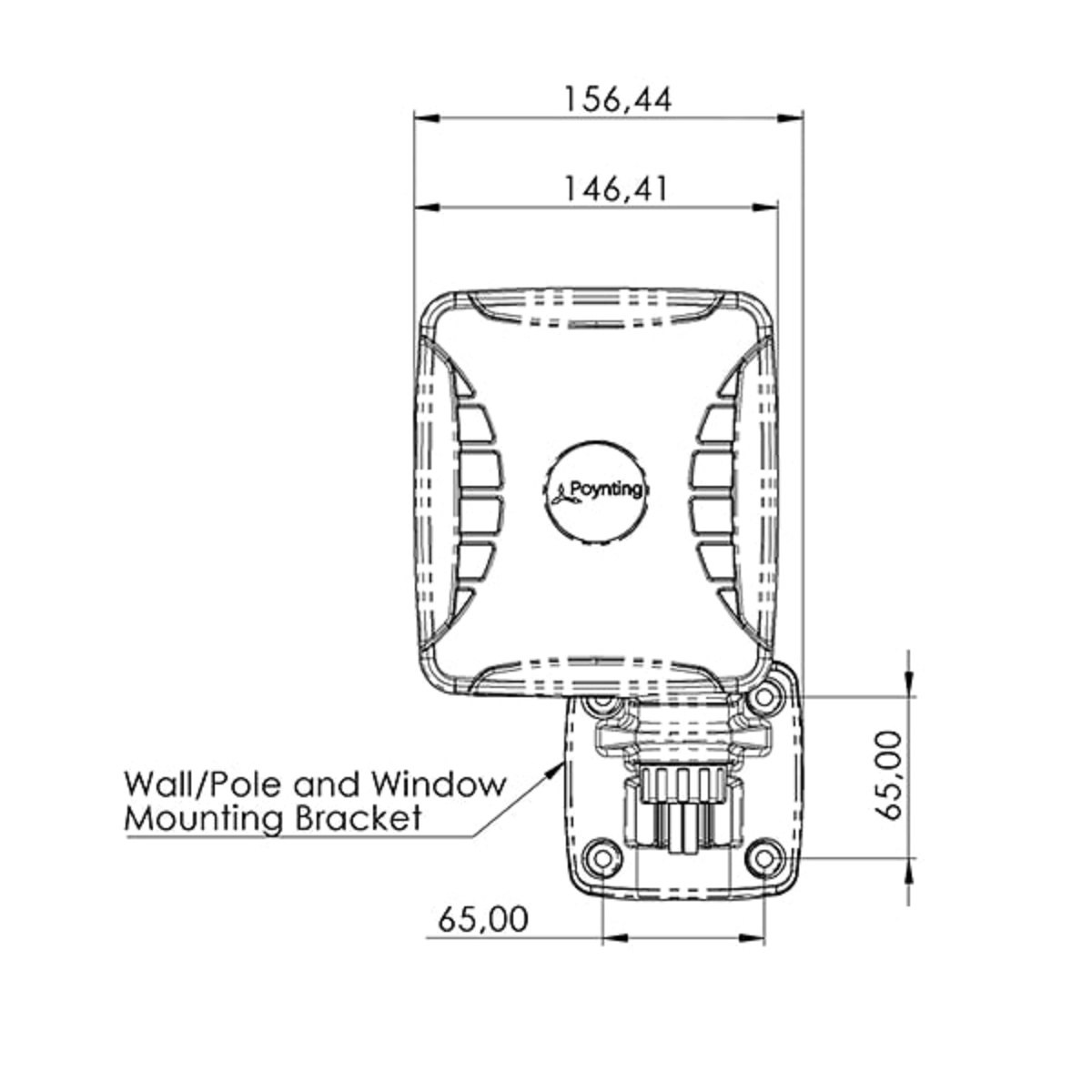

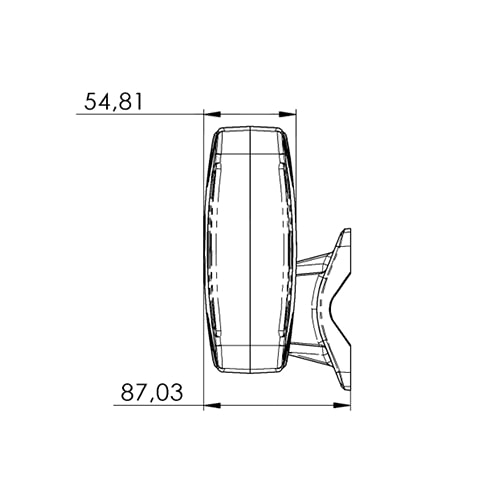

Mechanical Specifications

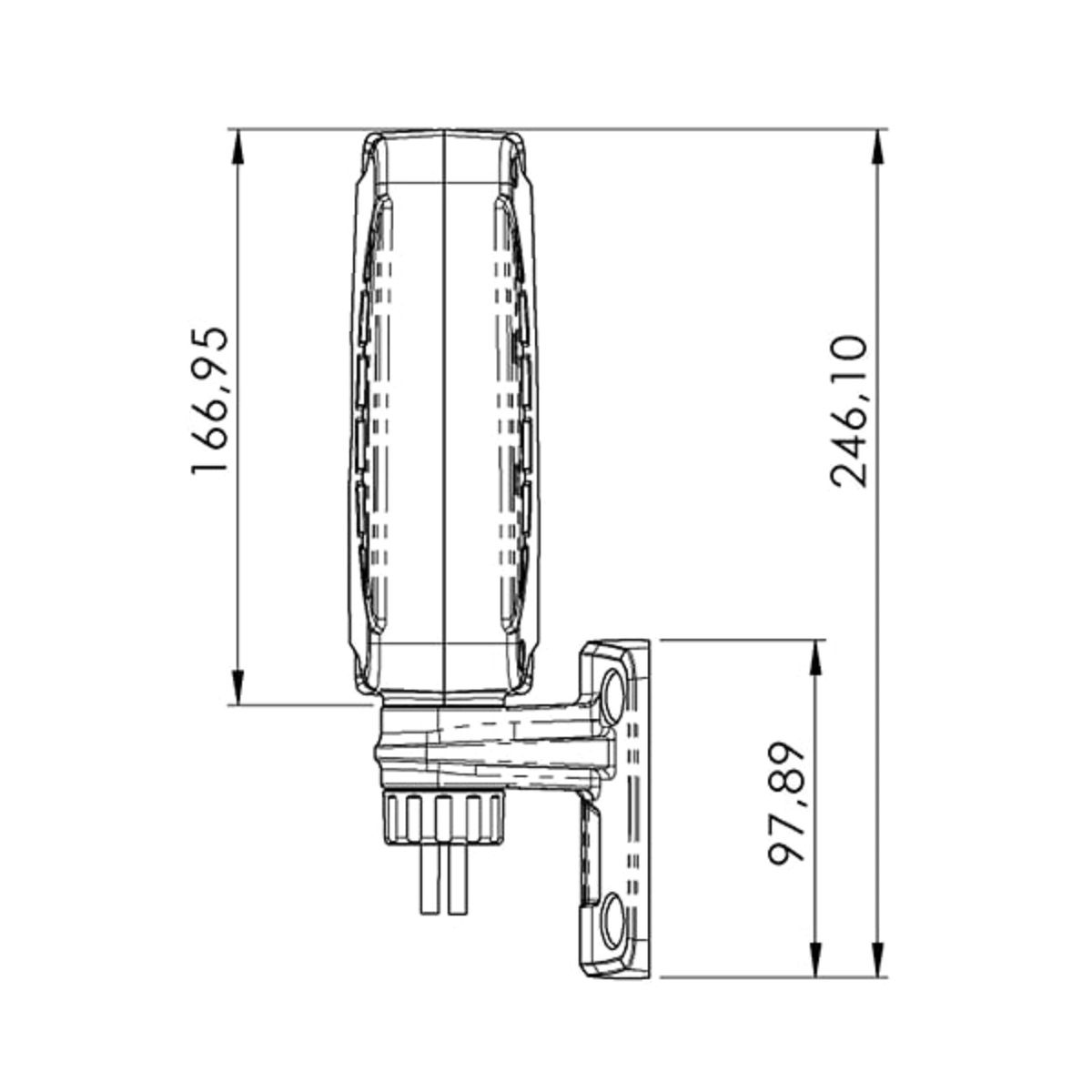

Product dimensions

• 247 x 157 x 88 mm

Product weight

• 0.95 kg

Radome material

• UV Stable ASA

Radome colour

• Brilliant White Pantone P 179-1 C

Mounting Type

• Wall mount (included)
• Pole mount (included)

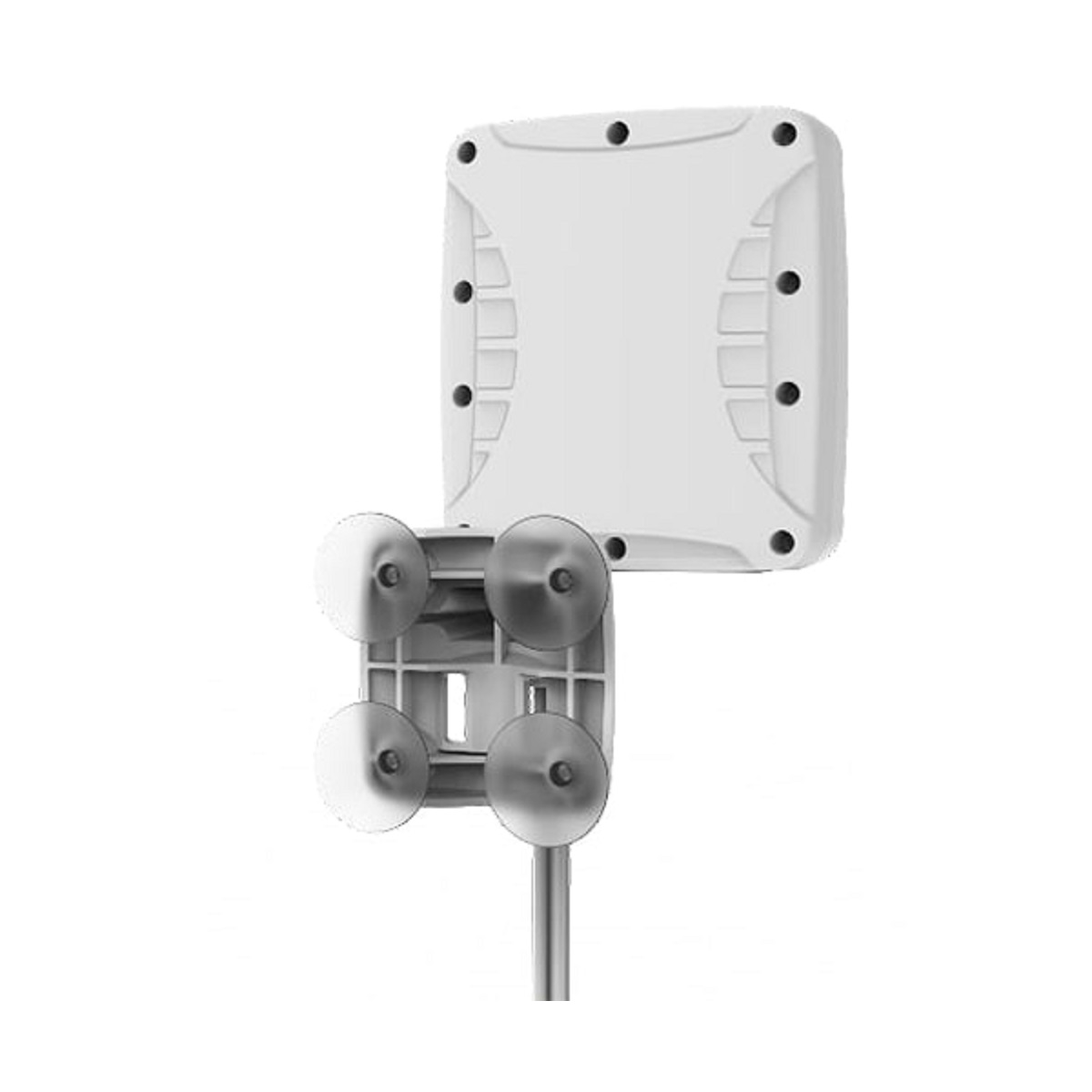

• Window mount (included)

Environmental Specifications, Certification & Approvals

Wind Survival

• < 250 km/h
  • Note: Except for window mount configuration

Operating Temperature

• -40°C to 70°C

Environmental Conditions

• Outdoor/Indoor

Water ingress protection ratio/standard

• IP65

Salt Spray

• MIL-STD 810G/ASTM B117

Operating Relative Humidity

• Up to 98%

Storage Humidity

• 5% to 95% – non-condensing

Storage Temperature

• -40°C to 70°C

Enclosure Flammability Rating

• UL 94-HB

Impact Resistance

• IK10

Product Safety & Environmental

• Complies with CE and RoHS Standards
