Connectix Purple 001-004-004-15 F/UTP Solid Ethernet CAT6 Cable Reel / Box
£217.35 inc.VAT / £181.13 exc.VAT
Connectix 001-004-004-15 CAT6 F/UTP Solid Ethernet Cable, 305m, Purple, LSZH (Boxed)
Connectix Purple 001-004-004-15 F/UTP Solid Ethernet CAT6 Cable Reel / Box is a twisted pair cable, designed for use in next generation data communications networks & applications including Gigabit Ethernet.
Connectix 001-004-004-15 CAT6 F/UTP Solid Ethernet Cable, 305m, Purple, LSZH (Boxed)
Connectix Purple 001-004-004-15 F/UTP Solid Ethernet CAT6 Cable Reel / Box
Connectix Purple 001-004-004-15 F/UTP Solid Ethernet CAT6 Cable Reel / Box is a twisted pair cable, designed for use in next generation data communications networks. It will comfortably support all present applications including Gigabit Ethernet.
This cable offers the performance characteristics required by the ever present Category 6 Standard. When used in conjunction with Connectix Category 6 Shielded Modules and Patch Panels (sold separately), the user will get a link performance exceeding Category 6 specification requirements.
Key Features
- Excellent Category 6 performance – exceeding ANSI/TIA-568-C.
- UL tested.
- Individually tested in the UK.
- Supplied metre marked for easy installation.
- Performance exceeding Category 6 specifications.
- Comes with Purple outer sheath.

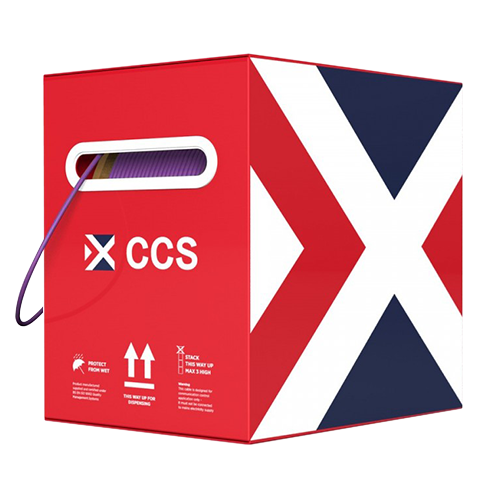

- Supplied in easy pull boxes for easy installation.
- Excellent electromagnetic compatibility.
- 24 AWG solid copper cores.
- Suitable for Gigabit Ethernet applications.
Specifications
Product Specifications
Inner Conductor
- 0.55 mm
Insulation
- HD polyethylene
Screen

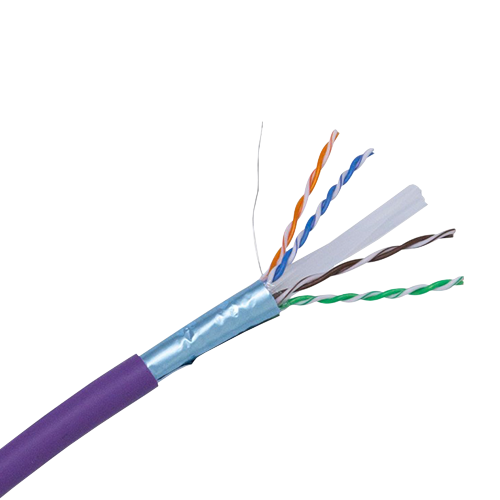

- Overall aluminium / polyester type longitudinally applied, aluminium side in with a 0.40 mm tinned copper drain wire applied under the screen
Construction
- 4 twisted pair cables together with spine foil shield
Colour Code
- Pair 1: White/Blue – Blue
- Pair 2: White/Orange – Orange
- Pair 3: White/Green – Green
- Pair 4: White/Brown – Brown
Sheath
- Low Smoke Zero Halogen (LSZH)
RAL Colour
- Violet – 4001
Overall Diameter
- 7.6 mm
Min. Bending Radius Operation
- 30 mm
Impedance
- <li.100+ -=”” 15=”” ohms<=”” li=””></li.100+>
Velocity Ratio
- 72%
Operating Temperature Range
- -10ºC to +50ºC
Euroclass Rating
- Eca
Electrical Specifications
DC Resistance Unbalance
- Max 2.5
Insulation Resistance
- >5000mOhms*km
Capacitance Unbalance (pair to ground)
- < 5.6nF/100 m
Characteristic Impedance @1-250 MHz
- 100 Ohms ± 15 Ohms
Transfer Impedance (mO/m)
- 1 MHz
- 10 MHz
- 30 MHz
- 100 MHz
Product Information
Installation Temperature Range
- 0ºC to +40ºC
LSZH Sheath Conforms to
- IEC 60332-1, IEC 61034 and IEC 60754 and ISO 11807 CENELEC EN 50173
