Connectix 24 Way 009-001-019-02 CCS Cat5e Through Coupler Panel 1U

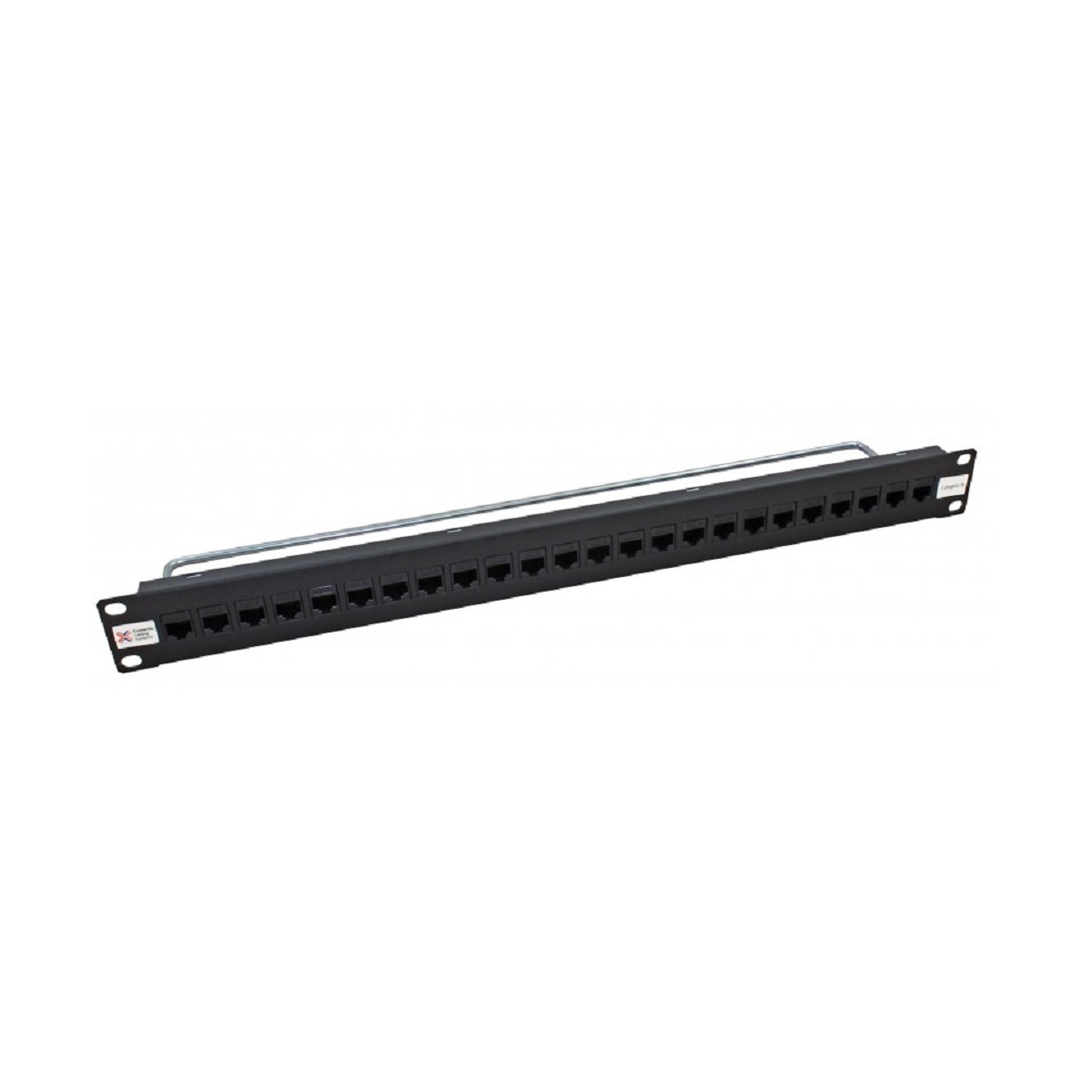

Connectix 24 Way 009-001-019-02 CCS Cat5e Through Coupler Panel

Connectix 24 Way 009-001-019-02 CCS Cat5e Through Coupler Panel,Connectix Copper Cabling Solutions Through Coupler Panels offer Enhanced Category 5 system performance, and feature 24 ports in 1u.

They offer the perfect solution when a panel mounted high performance, high density plug-to-plug connection is required.

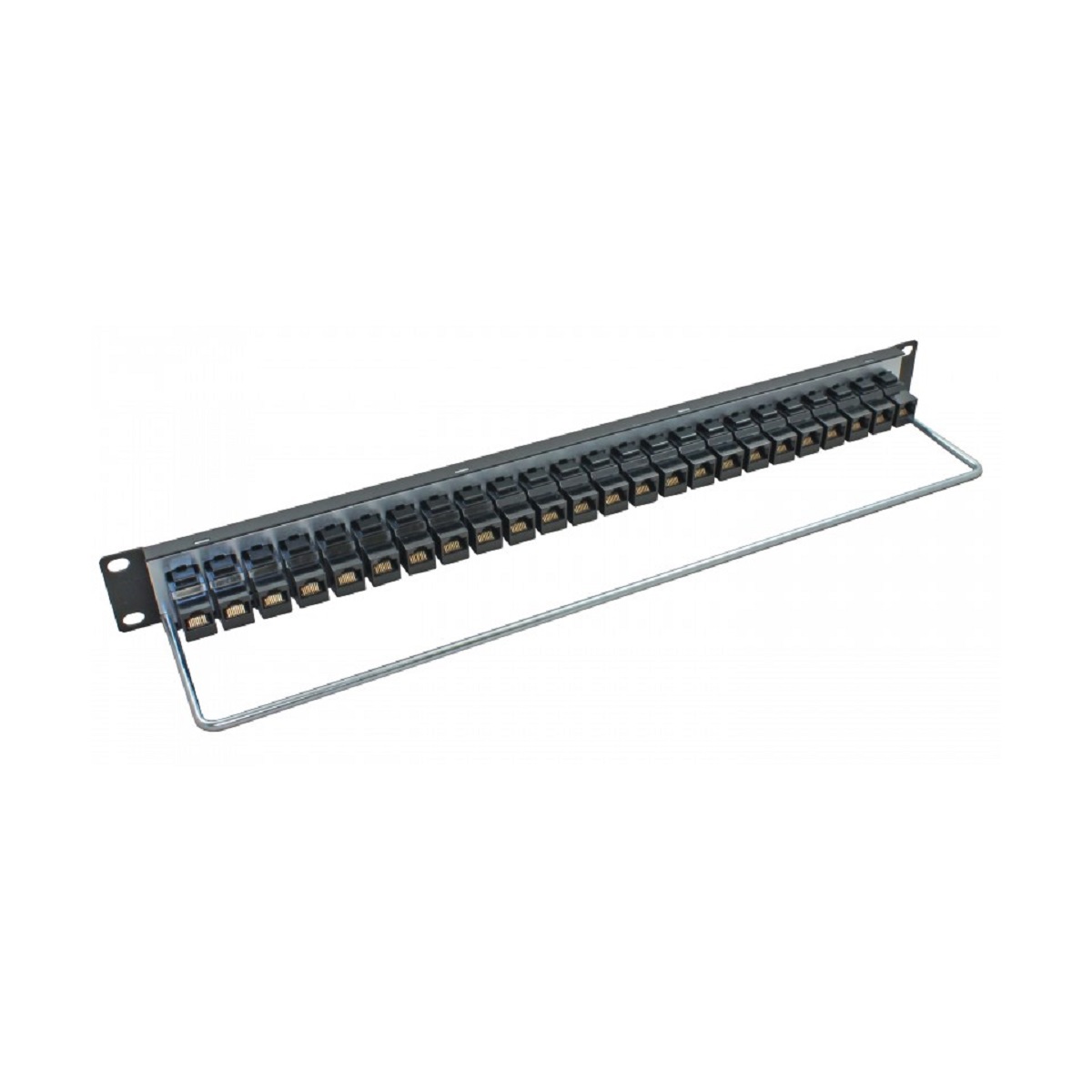

Designed to match the other panels in the Connectix range the Coupler Panels have RJ45 sockets front and rear to facilitate through coupling.

These are ideal for temporary or emergency cabling installations as they can be installed in a matter of minutes. They can also be installed as equipment link panels.

• Choice of port density
• Quick and simple to install
• Category 5e compliant
• Lifetime product warranty
• 25 year system warranty available

Features

• High density, 24 ports in 1u
• Enhanced Category 5 system performance
• RJ45 to RJ45 connection

Specification

• Width – 483 mm (19”)
• Depth – 35 mm
• Height 24 way – 1u (44 mm)
• Fixing Centers – 467 mm
• Material – Mild steel sheet CR4
• Finish – Black powder coat BS6496
• RJ45 Sockets – Unshielded vertical jacks
• PCB – Groups of 4 identical circuits on 1.6 mm double sided PTH boards
• Conforms to – ANSI/TIA-568-C Enhanced Category 5 Specification
