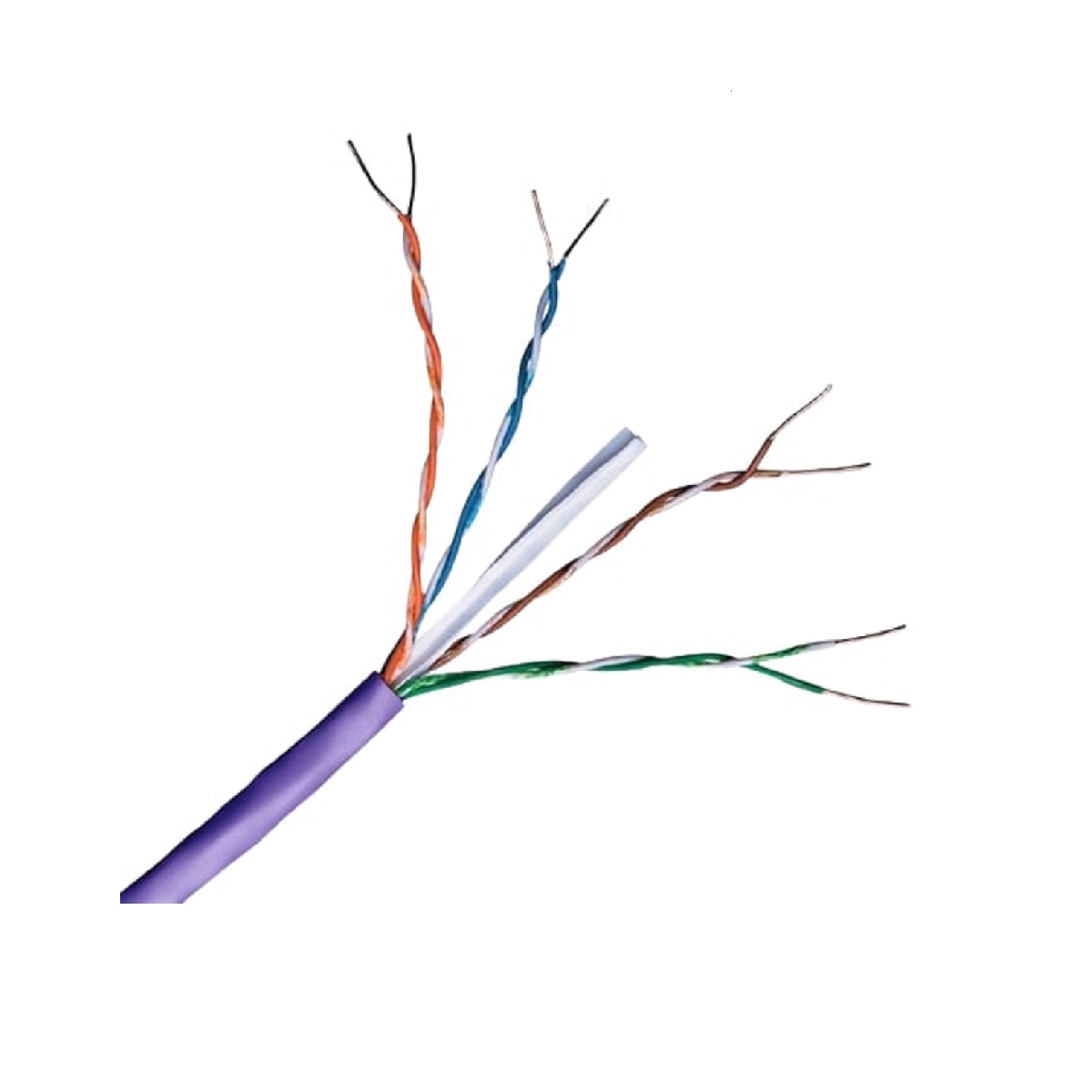

Connectix 001-003-005-25 U/UTP 100m Purple CAT6 Cable Reel / Box
£65.38 inc.VAT / £54.48 exc.VAT
Connectix 001-003-005-25 CAT6 U/UTP Solid Ethernet Cable Reel, 100m, Purple, LSZH
Connectix 001-003-005-25 U/UTP 100m Purple CAT6 Cable Reel / Box is an unshielded twisted pair cable, designed for use in next generation data.
Connectix 001-003-005-25 CAT6 U/UTP Solid Ethernet Cable Reel, 100m, Purple, LSZH
Connectix 001-003-005-25 U/UTP 100m Purple CAT6 Cable Reel / Box
Connectix 001-003-005-25 U/UTP 100m Purple CAT6 Cable Reel / Box  is an unshielded twisted pair cable, designed for use in next generation data communications networks. It will comfortably support all present applications including Gigabit Ethernet.
This cable offers the performance characteristics required by Cat6 Standard. When used in conjunction with Connectix Cat6 Modules and Patch Panels (sold separately), the user will get a link performance exceeding Category 6 specification requirements.
CAT6 Cable Reel / Box 001-003-005-25 U/UTP 100m Purple
Key Features
- LSZH (Low Smoke Zero Halogen) Outer Sheath.
- Performance exceeding Cat6 specifications.
- UL tested.
- Individually tested in the UK.
- Supplied meter marked for easy installation.
Specifications
Product Specifications
Inner Conductor
- 23 AWG plain copper
Insulation
- High density polyethylene
Construction
- 4 twisted pairs cabled together with spline
Colour Code
- Pair 1: White-Blue/Blue
- Pair 2: White-Orange/Orange
- Pair 3: White-Green/Green
- Pair 4: White-Brown/Brown
Sheath
- Low Smoke Zero Halogen
RAL Colour
- Violet – 4001
Overall Diameter
- 5.5 +/- 0.2 mm
Weight (kg/km)
- 41.2 (LSZH)
Min. Bending Radius Installation
- 50 mm
Min. Bending Radius Installed
- 25 mm
Conforms to
- ANSI/TIA-568-C, Cenelec EN50173 and ISO 11801
LSZH Jacket Conforms to
- IEC 60332-1, IEC 61034 and IEC 60754
Euroclass Rating
- Eca
Electrical Specifications
DC Resistance
- < 9 Ohms/100 m
Insulation Resistance
- >5000m Ohms*km
Capacitance Unbalance (pair to ground)
- < 5.6nF/100 m
Velocity Ratio
- 69%
Operating Temperature Range
- -20ºC to +60ºC
Installation Temperature Range
- 0ºC to +50ºC
Characteristic Impedance @1-250 MHz
- 100 Ohm +/- 15 Ohm
Only logged in customers who have purchased this product may leave a review.
Related Products

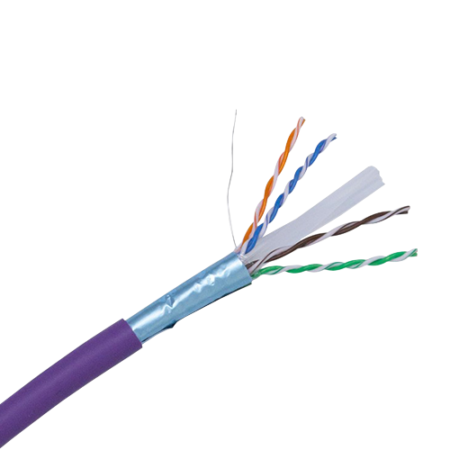

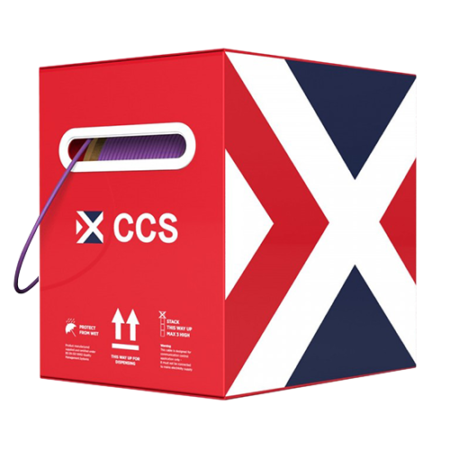

Connectix 001-004-004-15 CAT6 F/UTP Solid Ethernet Cable, 305m, Purple, LSZH (Boxed)
Connectix Purple 001-004-004-15 F/UTP Solid Ethernet CAT6 Cable Reel / Box is a twisted pair cable, designed for use in next generation data communications networks & applications including Gigabit Ethernet.
1 in stock

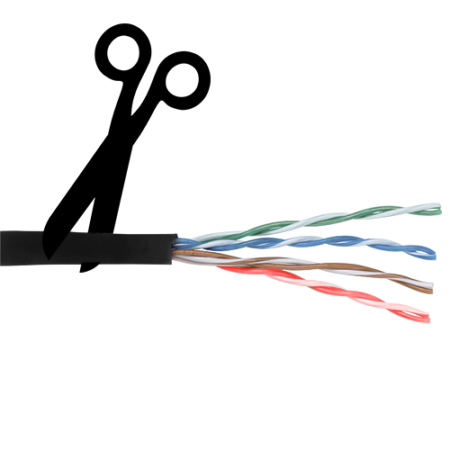

EssCable C6SWAPE Black CAT6 Armoured U/UTP External Grade Outdoor Ethernet Cable [PER METRE, UN-TERMINATED]
Must be terminated to a module
This CAT6 U/UTP External/Outdoor Ethernet Cable is designed for optimal support of high-speed data protocols delivery 1Gbps performance to the workstation. The cable comes with a black polyethylene outer sheath, for outdoor use.
Designed for external use, this CAT6 U/UTP External/Outdoor Ethernet Cable is rodent proof.
500 in stock

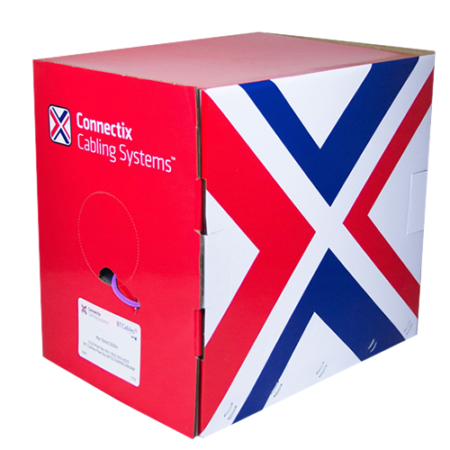

Connectix 001-003-005-60S CAT6 U/UTP Solid Ethernet Cable, 305m, Purple, LSZH (Boxed)
Connectix Purple 001-003-005-60S U/UTP 305m CAT6 Cable Reel / Box is an unshielded twisted pair cable, designed for use in next generation data communications networks & applications including Gigabit Ethernet.
26 in stock
Connectix 001-003-005-10X CAT6 U/UTP Solid Ethernet Cable, 305m, Black, PE (Boxed)
Connectix Black 001-003-005-10X U/UTP Solid Ethernet CAT6 Cable Reel / Box is designed for use in next generation data communications networks and applications including Gigabit Ethernet.
Out of stock

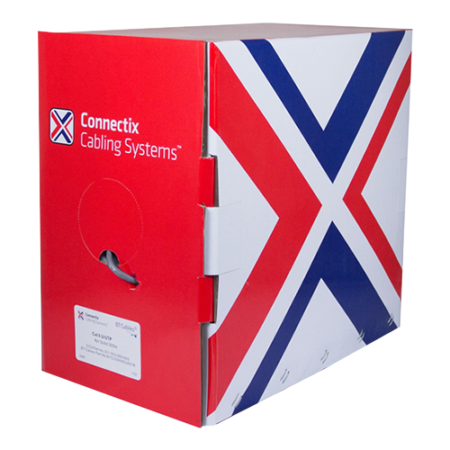

Connectix BTCCS906OUN08 CAT6 U/UTP Solid Ethernet Cable Reel, 305 m, Grey, PVC (Boxed)
Connectix Grey BTCCS906OUN08 U/UTP Solid Ethernet CAT6 Cable Reel / Box is designed for use in next generation data communications networks and applications including Gigabit Ethernet.
26 in stock
Connectix BTCCS906OUZ07 CAT6 U/UTP Solid Ethernet Cable Reel, 305m, Purple, LSZH (Boxed)
Connectix Purple BTCCS906OUZ07 Solid Ethernet UTP LSZH CAT6 Cable Reel / Box is designed for use in next generation data communications networks and applications including Gigabit Ethernet.
26 in stock

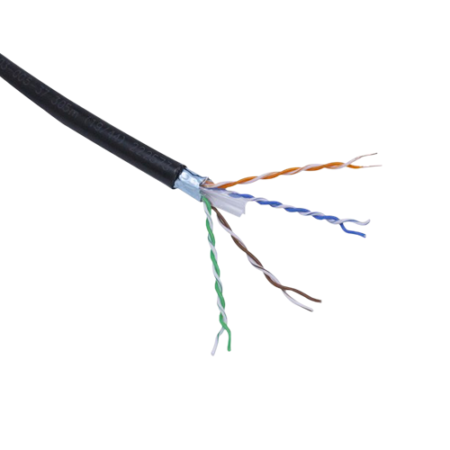

EssCable CAT6 F/UTP External/Outdoor PE Ethernet Cable Reel, Black, 305m (Boxed)
This Black CAT6 F/UTP External/Outdoor Ethernet Cable is manufactured in accordance with the highest data transmission standards for LAN networks, guaranteeing top performance. This Black CAT6 F/UTP External/Outdoor Ethernet Cable is perfect for any installation that requires highly-resistant outdoor cable. Protected from any weather or other external factors with a high-density outer jacket. Comes in a 305m length that is boxed.
4 in stock

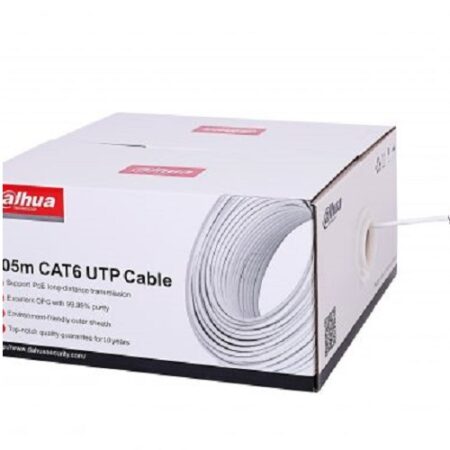

CAT6 305m PFM923I-6UN-C
Oxygen Free; Copper Conductors with 99.97% purity, White Low Smoke Zero Halogen Outer Sheaf ,305 m Box
Out of stock

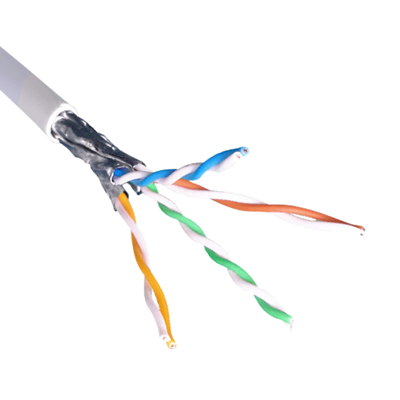

Excel CAT6A Solid U/FTP Ethernet Cable Reel, 305m, White, LSZH, Boxed (170-191-WT-305M)
Please Note:Â This cable must be terminated to a module
This Excel 170-191-WT-305M CAT6A Solid U/FTP Ethernet Cable Reel takes the performance capabilities of copper infrastructure to new levels. The cable has been designed to exceed the ISO/IEC, TIA and CENELEC for Category 6A/Augmented Category 6 component requirements. This delivers Class EA/Augmented Category 6 link performance over distances of up 90 metres which supports the applications including 10GBASE-T, 10 Gigabit Ethernet. The cable consists of two sets of two pairs are wrapped together in an “S” configuration with high quality, strong, aluminium/polyester foil tape providing screening for each pair. The “S” Foil configuration ensures separation of the pairs, which are set to different lay lengths, to ensure performance. The print legend on the cable includes information regarding the DOP number, Test and Classification of the cable for traceability.
Out of stock

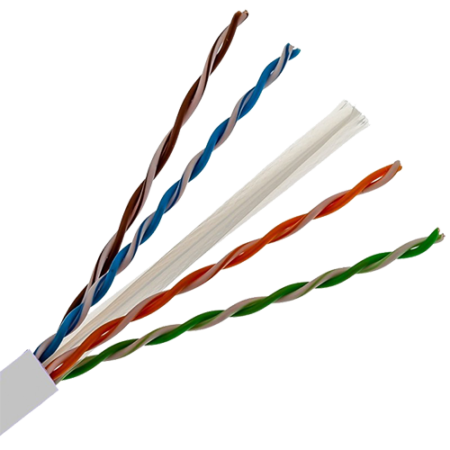

EssCable X6 CAT6 U/UTP Solid Ethernet Cable Reel, Grey, 305m (Boxed)
The boxed EssCable X6 CAT6 solid U/UTP Ethernet cable conforms to the Category 6 networking standard and is ideally suited for indoor Fast Ethernet or Gigabit networks, voice, data, video and multimedia applications. This un-terminated CAT6 cable reel comes in a 305m easy-pull box, features a grey PVC outer sheath, solid core, and is fully compliant with ISO11801 Class D. Constructed of only top quality materials, this EssCable X6 CAT6 cable delivers reliable performance and clear transmissions every time.
Out of stock

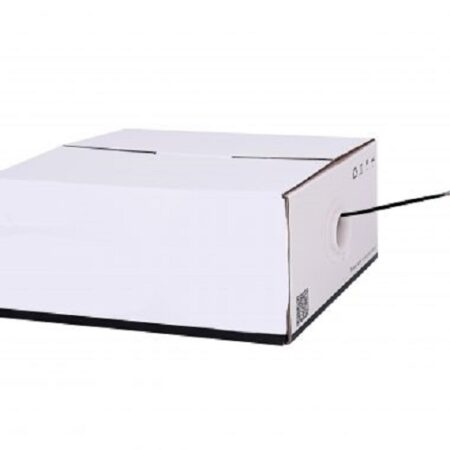

CAT6 305m DUCT GRADE Box
