Black 48-Port CAT6 Unshielded Patch Panel 1U Rackmount Vertical Punch
£141.53 inc.VAT / £117.94 exc.VAT

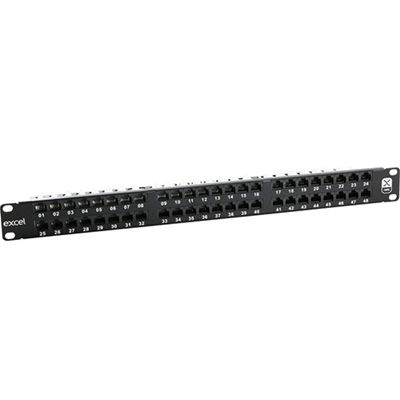

Excel 48-Port CAT6 Unshielded Patch Panel, 1U, Rackmount, Vertical Punch, Black (100-394)
The Excel 100-394 48-Port CAT6 Unshielded Patch Panel has been designed to meet or exceed the latest ISO and TIA requirements for category 6 (CAT6) compliance. Ease of installation is assured with built in rear cable management at a 90º angle to the panel fascia. This panel has a screen printed labelling field positioned above each port, and a pre-printed self adhesive labelling sheet (pre-numbered 1- 96) is included for fast and easy labelling on site. Termination can be made using LSA compatible tools, and cable tie bridges are positioned between the IDC blocks to relieve cable stress.
Out of stock
Excel 48-Port CAT6 Unshielded Patch Panel, 1U, Rackmount, Vertical Punch, Black (100-394)
Excel 100-394 48-Port Unshielded Vertical Punch 1U CAT6 Patch Panel
The Excel 100-394 48-Port CAT6 Unshielded Patch Panel has been designed to meet or exceed the latest ISO and TIA requirements for category 6 (CAT6) compliance. Ease of installation is assured with built in rear cable management at a 90º angle to the panel fascia. This panel has a screen printed labelling field positioned above each port, and a pre-printed self adhesive labelling sheet (pre-numbered 1- 96) is included for fast and easy labelling on site. Termination can be made using LSA compatible tools, and cable tie bridges are positioned between the IDC blocks to relieve cable stress.
Key Features
- Category 6 (CAT6) compliant
- Supports Gigabit Ethernet
- Backward compatible (CAT5/5e)
- Right angle (vertical punch) design.
- Min. life 750 insertions
- Rear cable management
- LSA style termination blocks
- T568A/B wiring configuration
Specifications
Number of ports – loaded
- 48
Type of connector
- RJ45 8(8)
Shielded
- No
Category
- 6
Wiring specifications
- T568A / T568B
Connection type
- LSA
RJ45 jack
- Min life 750 insertions
- 50 Micro-inch Gold over 100 Micro-inch nickel undercoat
IDC contacts max life expectancy
- 200 terminations
Contact compatibility
- 22-26AWG
Number of rack units
- 1U
Colour
- Black
Panel material
- SPCC
Jack housing material
- PBT, 30% glass fibre filled
IDC material
- Phosphor bronze, tin over nickel undercoat
Mounting method
- 19 inch mounting

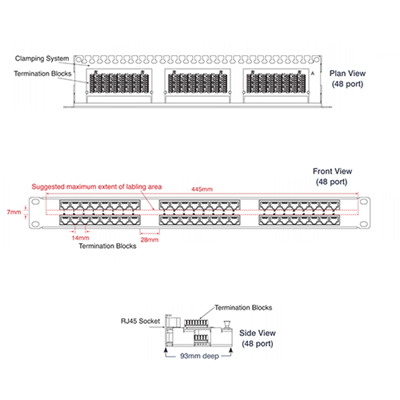

Height
- 44 mm
Width
- 480 mm
Depth
- 96 mm
Operating temperature range
- -10ºC to 60ºC
Storage temperature range
- -40ºC to 68ºC
Relative humidity
- 10% to 90%
Included accessories
- Cage nuts
- Mini cable ties
Standard Warranty: N/A
| Color | BLACK |
|---|
