Black 24-Port CAT6 Shielded Patch Panel 1U Rackmount Vertical Punch
£117.63 inc.VAT / £98.03 exc.VAT
Excel 24-Port CAT6 Shielded Patch Panel, 1U, Rackmount, Vertical Punch, Black (100-013)
The Excel 100-013 24-Port CAT6 Shielded Patch Panel has been designed to meet or exceed the latest ISO and TIA requirements for category 6 compliance. Ease of installation is assured with built in rear cable management at a 90º angle to the panel fascia. This panel has a screen printed labelling field positioned above each port, included with the panel is a pre-printed self adhesive labelling sheet – pre-numbered 1- 96, for fast and easy labelling on site. Termination can be made using LSA compatible tools, and cable tie bridges are positioned between the IDC blocks to relieve cable stress. This panel consists of a number of 8 way blocks of RJ45 sockets, housed in a high quality plastic moulding.
Excel 24-Port CAT6 Shielded Patch Panel, 1U, Rackmount, Vertical Punch, Black (100-013)
Excel 100-013 24-Port Shielded 19-inch Vertical Punch CAT6 Patch Panel
The Excel 100-013 24-Port CAT6 Shielded Patch Panel has been designed to meet or exceed the latest ISO and TIA requirements for category 6 compliance. Ease of installation is assured with built in rear cable management at a 90º angle to the panel fascia. This panel has a screen printed labelling field positioned above each port, included with the panel is a pre-printed self adhesive labelling sheet – pre-numbered 1- 96, for fast and easy labelling on site. Termination can be made using LSA compatible tools, and cable tie bridges are positioned between the IDC blocks to relieve cable stress. This panel consists of a number of 8 way blocks of RJ45 sockets, housed in a high quality plastic moulding.
Key Features
- Category 6 (CAT6) compliant
- Supports Gigabit Ethernet
- Backward compatible with CAT5e
- Shielded patch panel
- Min. life 750 insertions
- Rear cable management
- LSA style termination blocks
- T568A/B wiring configuration
Performance
The Excel 100-013 Patch Panel is manufactured and tested to the latest specification requirements as defined by the relevant standards bodies. A range of performance characteristics are tested upto 250MHz including return loss, attenuation and near and far end crosstalk (NEXT and FEXT) for which both worst case and power sum tests are completed. Actual performance far exceeds the required standard – when tested in isolation and in circuit – resulting in significant headroom for even the most demanding of applications. As well as providing link and channel compliance – when installed with Excel Category 6 components – with the aforementioned specification – the panel is also backward compatible with Category 5 and 5e components.
Specifications
Number of ports – loaded
- 24
Type of connector
- RJ45 8(8)
Shielded
- Yes
Category
- 6
Wiring specification
- T568A & T568B
Connection type
- LSA
Number of rack units (RU)
- 1U
RJ45 jack
- 50 micron gold plated contact pins
- LSA style, maximum 100 reterminations
Colour
- Black
Contact compatibility
- 22 to 26AWG Solid & 24AWG Stranded wires
Panel material
- SPCC – Black Powder Painting Coat Finish
NEXT at 250MHz
- SPEC – 33.14dB (in channel worst pair)
- Actual – 38.87dB (in channel worst pair)
FEXT at 250MHz
- SPEC – 15.33dB (in channel worst pair)
- Actual – 22.29dB (in channel worst pair)
Mounting method
- 19 inch mounting

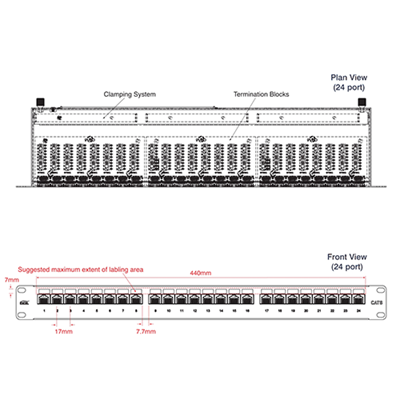

Dimensions (H x W x D)
- 44 x 479 x 102.5 mm
Operating temperature range
- -10ºC to 60ºC
Storage temperature range
- -40ºC to 68ºC
Included accessories
- Cage nuts
- Mini cable ties
Standard Warranty: N/A
| Color | BLACK |
|---|
