Aruba RAP-203R Indoor Wi-Fi 5 Access Points
£0.00 inc.VAT / £0.00 exc.VAT
HPE Aruba RAP-203R Indoor Wi-Fi 5 Access Points 203R Series Radio Access Point 2.4 GHz, 5 GHz
Aruba RAP-203R Indoor Wi-Fi 5 Access Points is a highly secure and reliable 203R Series ensures corporate applications work remotely without disruption.
Out of stock
HPE Aruba RAP-203R Indoor Wi-Fi 5 Access Points 203R Series Radio Access Point 2.4 GHz, 5 GHz
Aruba RAP-203R Indoor Wi-Fi 5 Access Points is a highly secure and reliable 203R Series ensures corporate applications work remotely without disruption.
Compact and cost-effective, they’re the perfect access point for home and small branch offices.
Aruba 203R Series Unified Remote Access Points deliver secure and fast IEEE 802.11ac wireless and wired network access to corporate resources for branch and home offices.
Unique in the industry, the compact Aruba 203R remote AP is software-configurable to operate in either 1×1 dual-radio mode, or 2×2 single-radio mode.
It supports up to 867 Mbps in the 5 GHz band or up to 400 Mbps in the 2.4 GHz band when operating in single-radio 2×2 mode. In dual-radio 1×1 mode, the maximum data rates are 433 Mbps in the 5 GHz band and 200 Mbps in the 2.4 GHz band.
Key Features
Multi functional connectivity for home and small branch offices
The multi functional 203 R Series remote APs support both wall-box and desk-mount deployments, delivering secure and fast 802.11 ac wireless and wired network access to corporate resources.
Easy to set up, easy to use
With no IT support required, the 203R Series APs deliver remote access point (RAP) benefits from the convenience of a small office or home.
Policy-based access control
Dynamic Segmentation enforces real-time, device-level access policies on Aruba wired and wireless networks.
Built-in Bluetooth Low-Energy (BLE) radio
Provides location-based services with BLE-enabled mobile devices receiving signals from multiple Aruba beacons at the same time.
Top-located USB port for support of USB cellular modem
The 203R Series access point enables the use of cellular modems to provide either backup or primary internet connectivity for remote access point (RAP) support and for client WLAN access, via a USB port located on the top of the access point for maximum flexibility.
Flexible radio architecture
The 203R Series APs flexible software configuration allows it to seamlessly switch between modes where the radio resources are either combined in a single 2×2 radio or separated into two 1×1 radios.
Specifications
RAP-203R Series Specifications
Unified flexible radio 802.11ac remote AP with internal antennas.
Supports wall-box and desk mount deployments
Wi-Fi Radio Specifications
- AP type: Indoor, flex radio:
- 5GHz 802.11ac 2×2 MIMO OR 2.4GHz 802.11n 2×2 MIMO1, or
- 5GHz 802.11ac 1×1 AND 2.4GHz 802.11n 1×11
- Software-configurable radio supports 5GHz (Radio 0) and/or 2.4GHz (Radio 1)
- 5GHz: Two spatial stream Single User (SU) MIMO for up to 867Mbps wireless data rate to individual 2×2 VHT80 client devices
- 2.4GHz: Two spatial stream Single User (SU) MIMO for up to 400Mbps wireless data rate to individual 2×2 VHT40 client devices (300Mbps for HT40 802.11n client devices)
- Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio
- Supported frequency bands (country-specific restrictions apply):
- 2.400 to 2.4835GHz
- 5.150 to 5.250GHz
- 5.250 to 5.350GHz
- 5.470 to 5.725GHz
- 5.725 to 5.850GHz
- Available channels: Dependent on configured regulatory domain
- Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
- Supported radio technologies:
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
- Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
- Transmit power: Configurable in increments of 0.5 dBm
- Maximum (conducted) transmit power (limited by local regulatory requirements):
- 2.4GHz band: +18 dBm per chain, +21 dBm aggregate (2×2 mode)
- 5GHz band: +18 dBm per chain, +21 dBm aggregate (2×2 mode)
- Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain
- Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks
- Maximum ratio combining (MRC) for improved receiver performance
- Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
- Short guard interval for 20MHz, 40MHz and 80MHz channels
- Space-time block coding (STBC) for increased range and improved reception
- Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
- Transmit beam-forming (TxBF) for increased signal reliability and range
- Supported data rates (Mbps):
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n: 6.5 to 300 (MCS0 to MCS15)
- 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80)
- 802.11n high-throughput (HT) support: HT 20/40
- 802.11ac very high throughput (VHT) support: VHT 20/40/80
- 802.11n/ac packet aggregation: A-MPDU, A-MSDU
- 256-QAM modulation (802.11ac) supported by the 2.4GHz radio as well.
Wi-Fi Antennas
Two integrated dual-band omni-directional antennas for 2×2 MIMO with maximum individual antenna gain of 0.7dBi in 2.4GHz and 1.0dBi in 5GHz. Built-in antennas are optimized for vertical orientation of the AP.
-
- Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the effective per-antenna pattern is -0.4dBi in 2.4GHz and 0.5dBi in 5GHz.

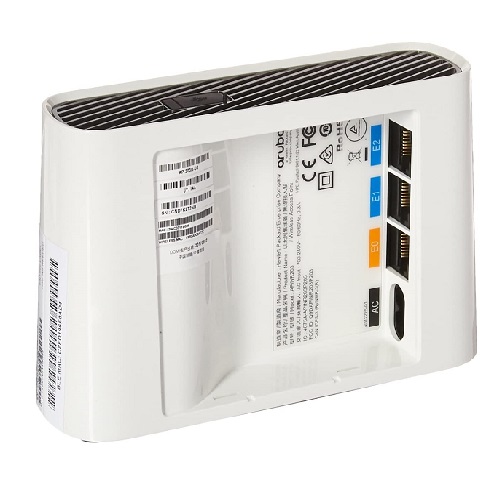

Other Interfaces
- Uplink: 10/100/1000BASE-T Ethernet (RJ-45, back)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
- Local: Two 10/100/1000BASE-T Ethernet (RJ-45, back)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
- One port (E2): PoE-PSE (output): 48 Vdc (nominal) 802.3af PoE (AP-203RP models)
- Bluetooth Low Energy (BLE) radio
- Up to 4dBm transmit power (class 2) and -93dBm receive sensitivity
- Integrated antenna with moderately directional pattern and peak gain of 1dBi
- USB 2.0 host interface (Type A connector, top)
- 3G/4G cellular modems
- Device battery charging port
- Capable of supplying up to 1A/5 watts of power to an attached device
- AC power interface, 2 prong IEC 60320-1 C8 receptacle (back)
- Visual indicators (LEDs, front):
- Power/system status
- Radio status
- Local network port status (2x)
- Includes PoE-PSE status (AP-203RP models)
- Reset/LED control button (“paperclip access”, bottom)
- Factory reset (when activated during device power up)
- LED control: toggle off/normal
- Serial console interface (custom, uUSB physical jack, bottom)
Encrypted Throughput
Maximum IPsec encrypted wired throughput: 20Mbps
Power Sources And Consumption
- The AP supports direct AC power: 90V – 265V, 47Hz – 63Hz.
- Note that the unit does not include an AC power cord (IEC C7 plug). A compatible region-specific cord should be selected and added when ordering the AP.
- Maximum (worst-case) power consumption: 7.5W.
- Excludes power consumed by external USB and/or PoE-PD device (and internal losses); this could add up to 6W for a 5W/1A USB device and up to 18W for a max load (15.4W) 802.3af PoE-PD device
- Maximum (worst-case) power consumption in idle mode: 4.6W.
Mounting
The AP supports desk mount without additional accessories. A cover ships with the AP to hide connectors, cables and product labels.
The cover can be used to support wall mounted deployments as well.
Mechanical
- Dimensions/weight (unit, with cable cover):
- 155mm (W) x 50mm (D) x 95mm (H)
- 320g (AP-203R), 340g (AP-203RP)
- Dimensions/weight (shipping):
- 224mm (W) x 159mm (D) x 78mm (H)
- 510g (AP-203R), 590g (AP-203RP)
Environmental
- Operating:
- Temperature: 0° C to +40° C (+32° F to +104° F)
- Humidity: 5% to 93% non-condensing
- Storage and transportation:
- Temperature: -40° C to +70° C (-40° F to +158° F)
Regulatory
FCC/Industry of Canada
CE Marked
R&TTE Directive 1995/5/EC
Low Voltage Directive 72/23/EEC
EN 300 328
EN 301 489
EN 301 893
UL/IEC/EN 60950
EN 60601-1-1 and EN 60601-1-2
For more country-specific regulatory information and approvals, please see your Aruba representative.
Reliability
MTBF at +25C° operating temperature:
AP-203R: 324,000 hours (37 years)
AP-203RP: 308,000 hours (35 years)
Regulatory Model Number
AP-203R-xx (all variants): APINR203
AP-203RP-xx (all variants): APINP203
Certifications
CB Scheme Safety, cTUVus
Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac
Warranty
Aruba limited lifetime warranty
Minimum Software Version
ArubaOS™ 6.5.2.0/8.2.0.0
Aruba InstantOS™ 6.5.2.0/8.2.0.0
