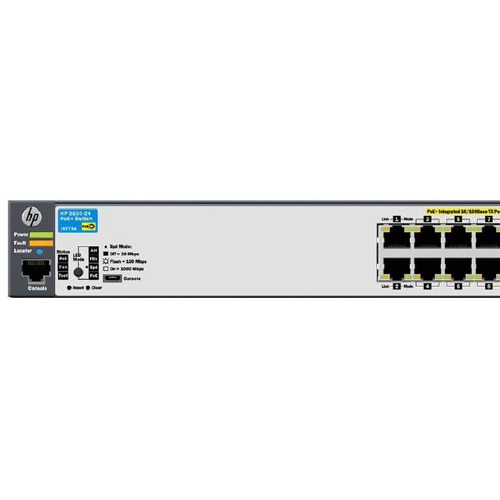

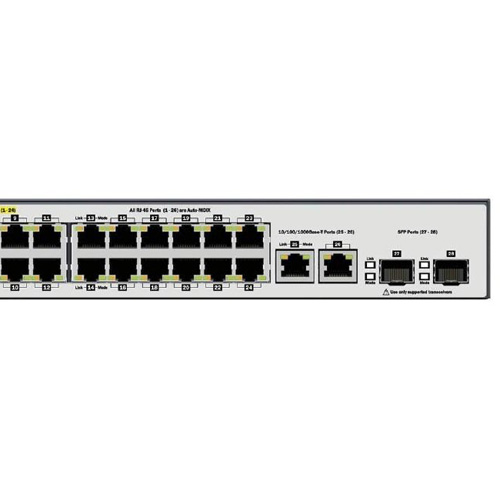

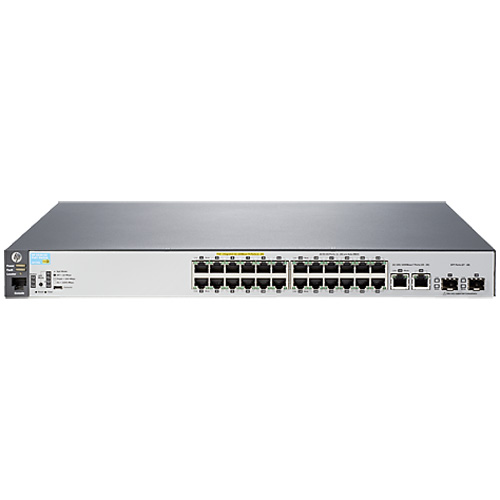

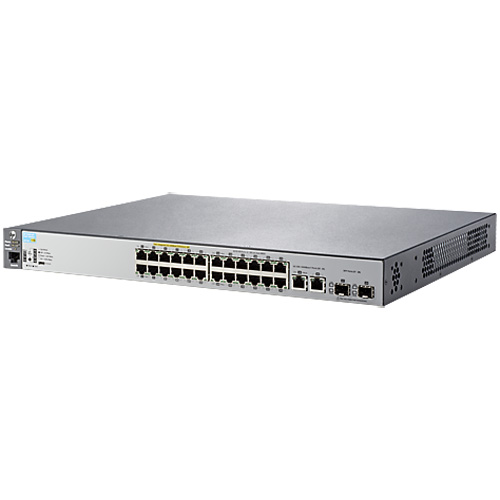

Aruba HP 2530-24-PoE+ 24-Port Layer 2 Fast Ethernet PoE+ Switch w/ 2 x 1GbE RJ45 Ports & 2 x 1GbE SFP Ports (195W) J9779A

Aruba HP 24 Port Ethernet Switch (J9779A)

The Aruba HP 24 Port Ethernet Switch (J9779A) is a 24-Port managed Layer 2 edge switch that deliver cost-effective, reliable, secure, and easy-to-use connectivity to business networks. Designed for entry-level to midsize enterprise networks, this Fast Ethernet switch delivers full Layer 2 capabilities combined with PoE+, enhanced access security, traffic prioritisation, and IPv6 host support. This Aruba HP 24 Port Ethernet Switch (J9779A) also offers uplink flexibility with four Gigabit Ethernet uplinks for SFPs.

 Key Features

• Traffic prioritisation (IEEE 802.1p): allows real-time traffic classification with support for eight priority levels mapped to either two or four queues; uses weighted deficit round robin (WDRR) or strict priority (SP).
• Simplified QoS configuration: Port-based: prioritises traffic by specifying a port and priority level. VLAN-based: prioritises traffic by specifying a VLAN and priority level.
• Class of Service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ.
• Rate limiting: sets per-port ingress enforced maximums for all ingressed traffic or for broadcast, multicast, or unknown destination traffic.
• Layer 4 prioritisation: enables prioritisation based on TCP/UDP port numbers.
• Choice of management interfaces: Web graphical user interface (GUI): HTML-based easy-to-use graphical interface allows configuration of the switch from any Web browser. Command-line interface (CLI): provides advanced configuration and diagnostics through a robust CLI. Simple Network Management Protocol (SNMPv1/v2c/v3): allows a switch to be managed with a variety of third-party network management applications.
• Virtual stacking: provides single IP address management for up to 16 switches.
• sFlow (RFC 3176): delivers wire-speed traffic accounting and monitoring configured by SNMP and CLI with three terminal encrypted receivers.
• IEEE 802.1AB Link Layer Discovery Protocol (LLDP): automates device discovery protocol for easy mapping by network management applications.
• Logging: provides local and remote logging of events via SNMP (v2c and v3) and syslog; provides log throttling and log filtering to reduce the number of log events generated.
• IPv6: IPv6 host: allows the switch to be deployed and managed at the edge of an IPv6 network. Dual stack (IPv4/IPv6): supports connectivity for both protocols; provides a transition mechanism from IPv4 to IPv6. MLD snooping: forwards IPv6 multicast traffic to the appropriate interface; prevents IPv6 multicast traffic from flooding the network.
• IEEE 802.3af Power over Ethernet (PoE): provides up to 15.4 W per port to IEEE 802.3af-compliant PoE-powered devices such as IP phones, wireless access points, and security cameras.
• IEEE 802.3at Power over Ethernet Plus: provides up to 30 W per port to IEEE 802.3 for PoE/PoE+-powered devices such as video IP phones, IEEE 802.11n wireless access points, and advanced pan/tilt/zoom security cameras.
• Auto-MDIX: adjusts automatically for straight-through or crossover cables on all ports.
• Pre-standard PoE support: detects and provides power to pre-standard PoE devices; see the list of supported devices in the product FAQ at www.hp.com/networking/support.
• VLANs: provides support for 512 VLANs and 4,094 VLAN IDs.
• Jumbo packet support: supports up to 9220-byte frame size to improve the performance of large data transfers; automatically supports up to 2000-byte frames with no configuration needed 16K MAC address table: provides access to many Layer 2 devices.
• GARP VLAN Registration Protocol: allows automatic learning and dynamic assignment of VLANs.

Power over Ethernet (PoE+)

For customers implementing Power over Ethernet for voice, video, or wireless deployments, the HP 2530-24-PoE+ switch is IEEE 802.3af and IEEE 802.3at compliant with up to 30 W per port. This switch is easy to use, deploy, and manage via SNMP, CLI, and Web GUI.

Flexible Deployment

The HP 2530-24-PoE+ switch offers flexible wall, table, and rack mounting; quiet operation with fanless and variable speed fan; and improved power savings, with features such as IEEE 802.3 az (Energy Efficient Ethernet). This switch includes a lifetime warranty, as well as all software releases and technical phone support.

The Aruba HP 2530-24-PoE+ Switch (J9779A) is a switch that provides security, reliability, and ease of use for enterprises, branch offices, and SMBs. This fully managed switch delivers full Layer 2 capabilities with enhanced access security, ACLs, traffic prioritisation, sFlow, and IPv6 host support. Right size deployment is simple with choice of 8-, 24-, and 48-port models available with Gigabit or Fast Ethernet ports, and optional PoE+. The 2530 delivers power savings with fanless models, Energy Efficient Ethernet, ability to disable LEDs and enable port low power mode.

The Aruba 2530 Switch Series is easy to use and deploy, and delivers consistent wired/wireless user experience with unified management tools such as Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central.

Specifications

Standard warranty: limited lifetime
