Aruba 2530-24G-PoE+ 24-Port Layer 2 Managed Gigabit PoE+ Switch W/ 4x Gigabit SFP Ports (195W) J9773A

Aruba 2530 PoE 24 Port Gigabit Switch (J9773A)

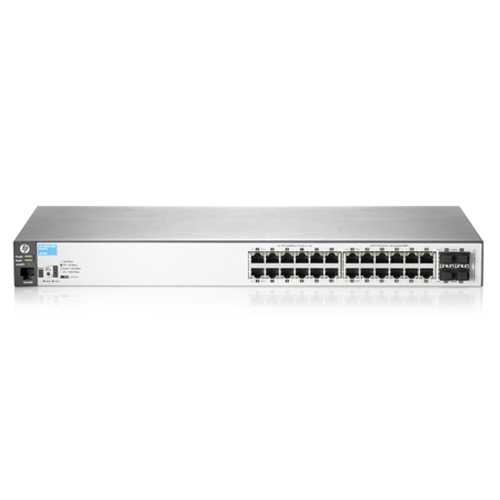

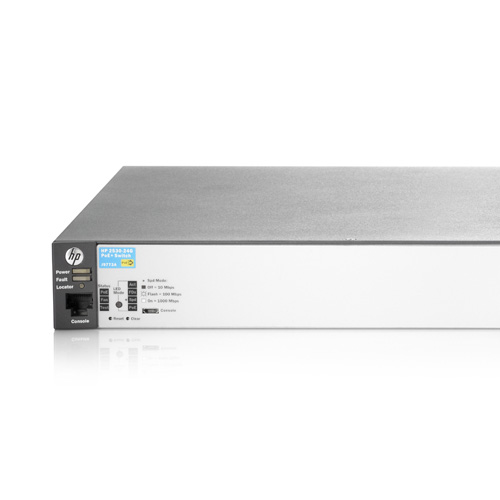

The HP 2530-24G-PoE+ 24-Port Layer 2 Managed Gigabit PoE+ Switch (J9773A) delivers a cost-effective, reliable, secure, and easy-to-use connectivity to business networks. Designed for entry-level to midsize enterprise networks, this HP 2530-24G-PoE+ switch delivers full Layer 2 capabilities combined with PoE+, enhanced access security, traffic prioritisation, and IPv6 host support. This HP 2530-24G-PoE+ Switch also offers uplink flexibility with four Gigabit Ethernet uplinks for SFPs.

Key Features

• Traffic prioritisation (IEEE 802.1p): allows real-time traffic classification with support for eight priority levels mapped to either two or four queues; uses weighted deficit round robin (WDRR) or strict priority (SP).
• Simplified QoS configuration: Port-based: prioritises traffic by specifying a port and priority level. VLAN-based: prioritises traffic by specifying a VLAN and priority level.
• Class of Service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ.
• Rate limiting: sets per-port ingress enforced maximums for all ingressed traffic or for broadcast, multicast, or unknown destination traffic.
• Layer 4 prioritisation: enables prioritisation based on TCP/UDP port numbers.
• Choice of management interfaces: Web graphical user interface (GUI): HTML-based easy-to-use graphical interface allows configuration of the switch from any Web browser. Command-line interface (CLI): provides advanced configuration and diagnostics through a robust CLI. Simple Network Management Protocol (SNMPv1/v2c/v3): allows a switch to be managed with a variety of third-party network management applications.
• Virtual stacking: provides single IP address management for up to 16 switches.
• sFlow (RFC 3176): delivers wire-speed traffic accounting and monitoring configured by SNMP and CLI with three terminal encrypted receivers.
• IEEE 802.1AB Link Layer Discovery Protocol (LLDP): automates device discovery protocol for easy mapping by network management applications.
• Logging: provides local and remote logging of events via SNMP (v2c and v3) and syslog; provides log throttling and log filtering to reduce the number of log events generated.
• IPv6: IPv6 host: allows the switch to be deployed and managed at the edge of an IPv6 network. Dual stack (IPv4/IPv6): supports connectivity for both protocols; provides a transition mechanism from IPv4 to IPv6. MLD snooping: forwards IPv6 multicast traffic to the appropriate interface; prevents IPv6 multicast traffic from flooding the network.
• IEEE 802.3af Power over Ethernet (PoE): provides up to 15.4 W per port to IEEE 802.3af-compliant PoE-powered devices such as IP phones, wireless access points, and security cameras.
• IEEE 802.3at Power over Ethernet Plus: provides up to 30 W per port to IEEE 802.3 for PoE/PoE+-powered devices such as video IP phones, IEEE 802.11n wireless access points, and advanced pan/tilt/zoom security cameras.
• Auto-MDIX: adjusts automatically for straight-through or crossover cables on all ports
• Pre-standard PoE support: detects and provides power to pre-standard PoE devices; see the list of supported devices in the product FAQ at www.hp.com/networking/support.
• VLANs: provides support for 512 VLANs and 4,094 VLAN IDs.
• Jumbo packet support: supports up to 9220-byte frame size to improve the performance of large data transfers; automatically supports up to 2000-byte frames with no configuration needed 16K MAC address table: provides access to many Layer 2 devices.
• GARP VLAN Registration Protocol: allows automatic learning and dynamic assignment of VLANs

Power over Ethernet (PoE+)

For customers implementing Power over Ethernet for voice, video, or wireless deployments, the HP 2530-24G-PoE+ switch is IEEE 802.3af and IEEE 802.3at compliant with up to 30 W per port. This switch is easy to use, deploy, and manage via SNMP, CLI, and Web GUI.

Flexible Deployment

The HP 2530-24G-PoE+ switch offers flexible wall, table, and rack mounting; quiet operation with variable speed fan; and improved power savings, with features such as IEEE 802.3 az (Energy Efficient Ethernet). This switch includes a lifetime warranty, as well as all software releases and technical phone support.

Specifications

Standard warranty: limited lifetime
