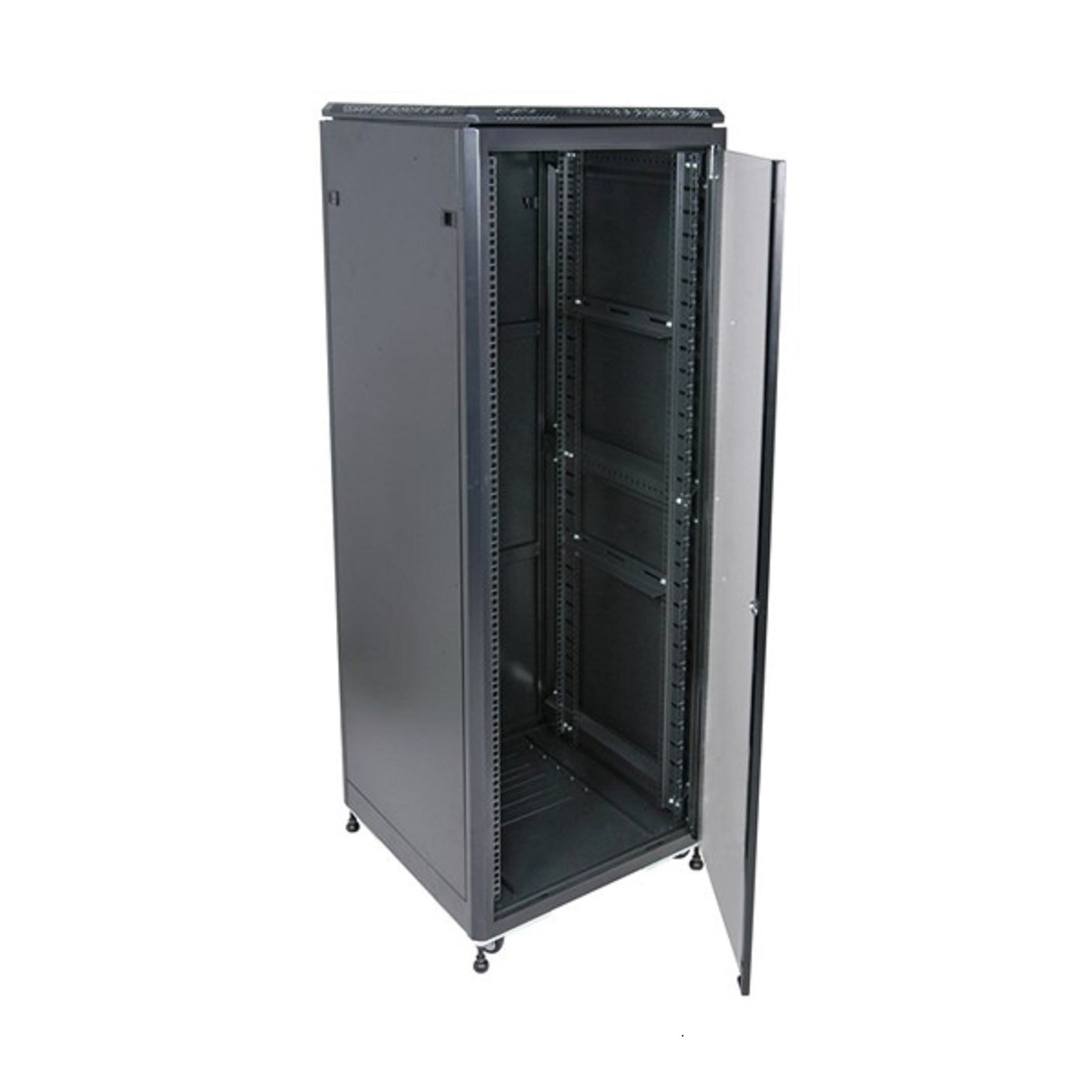

Allrack 42U 800mm Deep Data Cabinet, Floor Standing, 19-Inch Rackmount (W 600 mm x D 800 mm)

Allrack CAB426X8 42U 800mm Deep Data Cabinet

Allrack CAB426X8 42U 800mm Deep Data Cabinet is high quality and cost effective 19-inch rack for comms rooms and other infrastructure deployments.

All doors and panels are lockable and removable giving all round access. The fully adjustable 19″ mounting profiles are printed numerically with the “U” height, for ease of installation and future use.

Cable entry is from directly underneath or in the back of the roof using cable entry glands.

Key Features

• 42U (HxWxD) 2050 mm x 600 mm x 800mm.
• Heavy-duty 19-inch steel mounting profiles.
• Cabinet feet available separately.
• Steel framed / toughened glass front door.
• Lockable front door, read door and side panels.
• Vented roof panel for additional air flow.
• Smooth black RAL9005 powder coated paint finish.
• Delivered assembled as standard (Flat-packed optional).

• Specifications

  Material

  • Cold rolled steel construction for cabinet frame, toughened glass panel insert in steel framework for front
    door.

  Finish

  • Smooth black RAL9005 powder coated paint finish.

  Dimensions

  • 42U (HxWxD) 2050mm x 600mm x 800mm

  Racks

  • Supplied with depth adjustable heavy-duty steel mounting profiles to take industry standard 19” patch panels and
    equipment. All 800 wide cabinets come complete with side vertical management as standard.

  Doors

  • Steel framed / toughened glass front door, Steel rear door, Steel side panels All lockable and removable

  Locks

  • Lockable front door, Lockable rear door, Lock and slam locks on side panels

  Ventilation

  • Through roof panel and via fan tray.

  Options

  • Delivered assembled as standard. Flat-packed optional.

  Profile distances

  • The mounting profiles can be adjusted forwards and backwards to utilise almost the full depth of the cabinets.

  Static Loading

  • 600 kg

Standard warranty: 3-years
